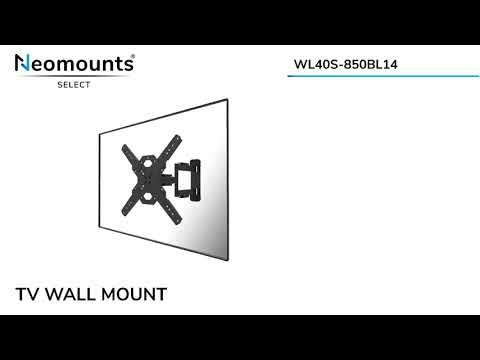

Neomounts WL40S-850BL14 swiveling TV wall mount 32-65 inches, black
The Neomounts WL40S-850BL14 LEVEL is a fully movable wall mount for flat screens up to 65 inches and 40 kg, with flexible tilt and swivel functions for the optimal viewing angle. Thanks to the easy release system and integrated cable routing, it enables easy installation and ensures a tidy appearance.
Flatscreen wall mount 32-65 inches
The Neomounts WL40S-850BL14 LEVEL is a fully movable wall mount that is specifically designed for flat screens up to a size of 65 inches and a maximum weight of 40 kg. Thanks to its versatile tilt (up to 14°) and swivel functions (up to 45°) it offers flexible adjustment of the optimal viewing angle, which is particularly important in rooms with varying lighting conditions or different seating positions advantage is. For precise alignment, the mount can also be leveled to ensure the screen hangs straight. The depth of the LEVEL-850 TV wall mount is variable and ranges from 47 mm to 555 mm. This means that the screen can either be positioned close to the wall or extended far to achieve the desired viewing angle. The mount is compatible with VESA hole patterns from 100x100mm to 400x400mm, making it suitable for a wide range of screen models and sizes.
Display wall mount with cable management
A special feature of the WL40S-850BL14 is the integrated Easy Release System, which enables the television to be attached quickly and easily . This well thought-out system makes the assembly process much easier and ensures that the screen is attached securely and stably. After installation, the screen is firmly fixed and any cables can be neatly stored behind the screen thanks to the high-quality steel cable guide. This not only ensures a tidy appearance, but also protects the cables from damage. To further simplify installation, the scope of delivery includes a spirit level and a mounting template. These tools ensure precise and easy assembly so that the screen can be optimally positioned. With its robust design and numerous adjustment options, the Neomounts WL40S-850BL14 LEVEL wall mount represents a functional and at the same time elegant solution for attaching flat screens securely and flexibly to the wall.
Key features TV mount for the wall
- Screen size: 32 -65 inches
- Load capacity: 40 kg
- VESA standard: 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400 mm
- Wall distance: 47 - 55 5 mm
- Tiltable: +12°/-2°
- Swivel: 45°
- Rotating (pivot): +3°/-3°
- Dimensions (HxWxD) : 449 x 449 x 47 mm
- Material: steel
- Color: black
- Guarantee: 5 years
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 40 kg |
| Tilt: | +12°/-2° |
| Rotate: | +3°/-3° |
| Height range (mm): | - |
| Swivelling range: | 45° |
| Length of the swivel arm: | 47 bis 555 mm |
| Screen size: | 32-65" |
| Material: | Stahl |
| Depth of the bracket: | 47 - 555 mm |
| VESA Standard: | 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400 mm (www.vesa-standard.com) |
| Scope of delivery: | Neomounts WL40S-850BL14 swivel TV wall mount, installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Warranty: | 5 years |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 65 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 300x400, VESA 350x350, VESA 400x200, VESA 400x300, VESA 400x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
