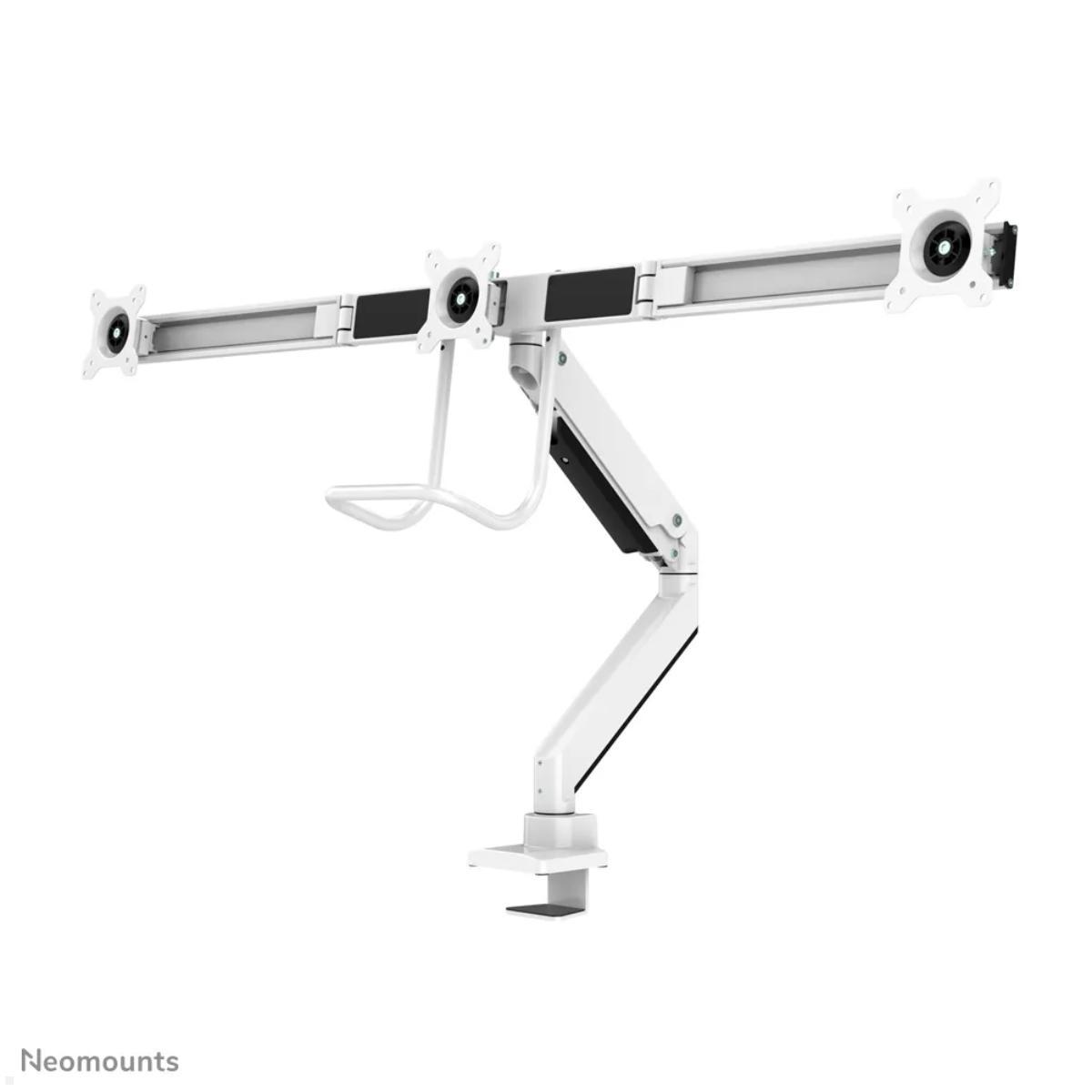

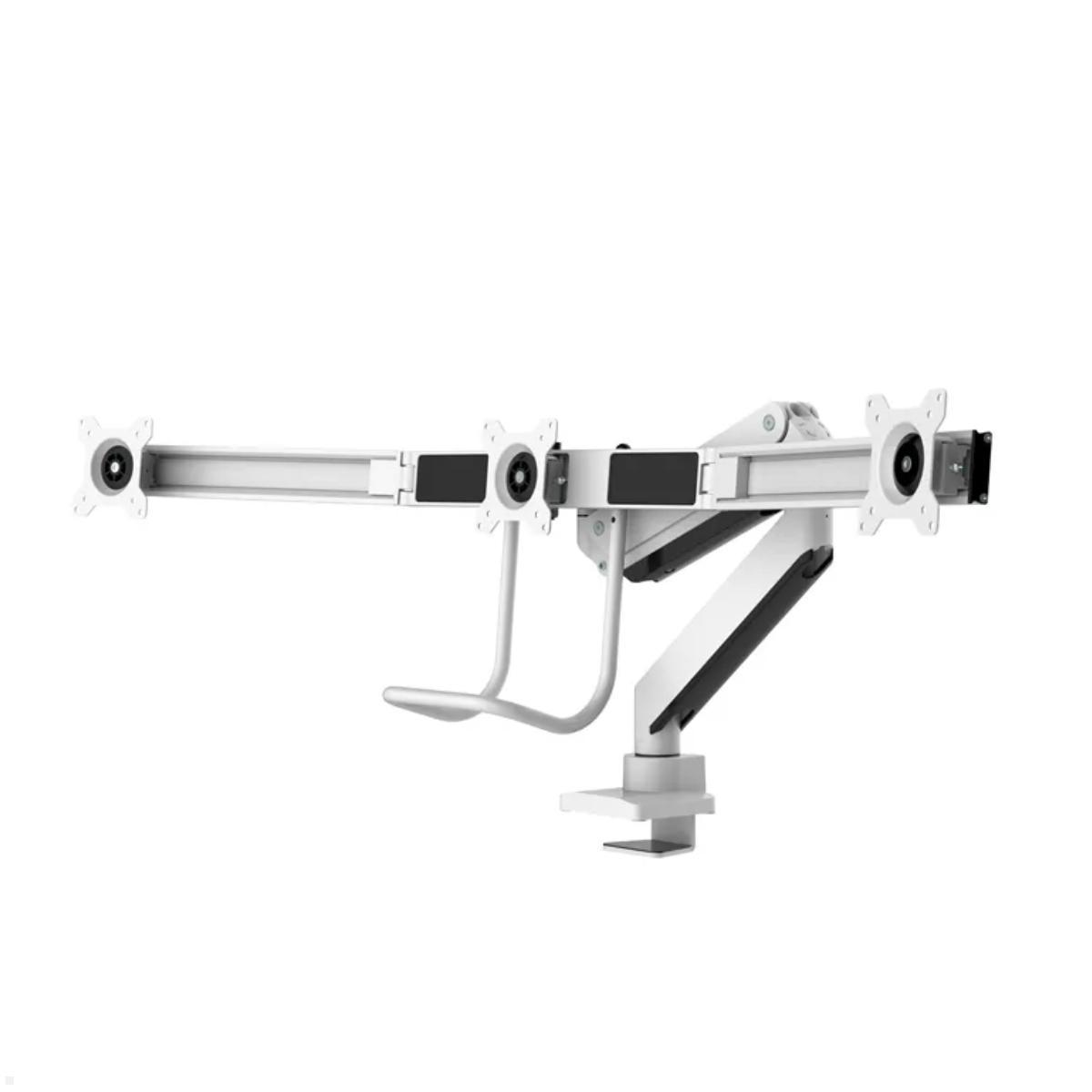

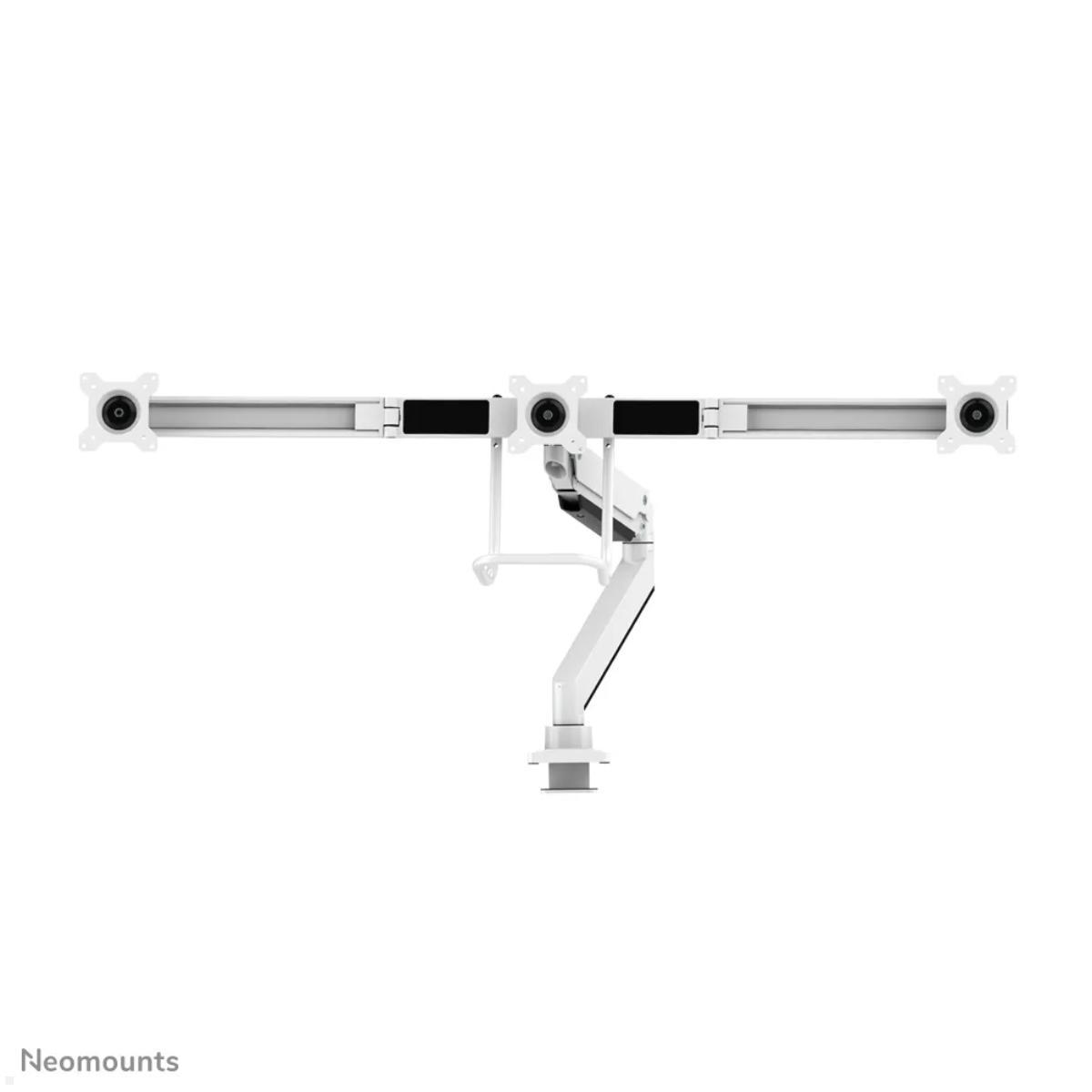

Neomounts NM-D775DX3 3-way Monitor desk mount 17-27 inch, white
The Neomounts NM-D775DX3 monitor table holder in white enables the swiveling, tilting and turning of three 17 inch to 27 inch displays with a weight of up to 6 kg per monitor. The holder is attached to the desk with a thickness of 10-45 mm by means of a table clamp or screw fastening.
Monitor holder for 3 screens
The Monitor holder for 3 screens NM-D775DX3 in white is suitable for three monitors from 17 to 27 inches with a weight of 6 kg per monitor. Displays can be tilted, swiveled and rotated flexibly. The attachment to the desk monitor mount is done either by a table clamp or a screw fastening, in which a hole is drilled in the table. This means that 3 monitors can be mounted on the desk to save space. The triple monitor table bracket is ideal for office workplaces, police control centers or fire brigade control rooms and control rooms.
Ergonomic screen table mount

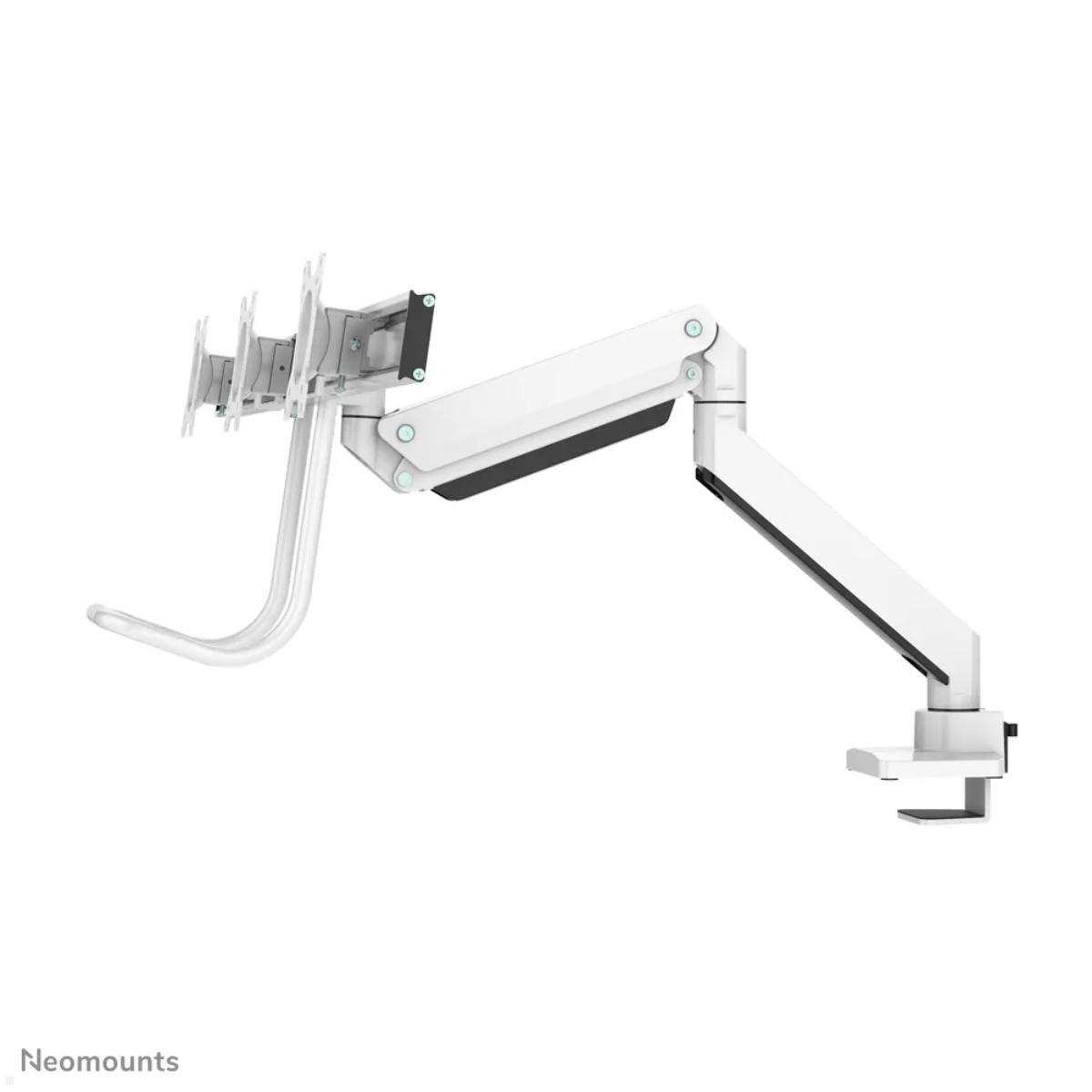

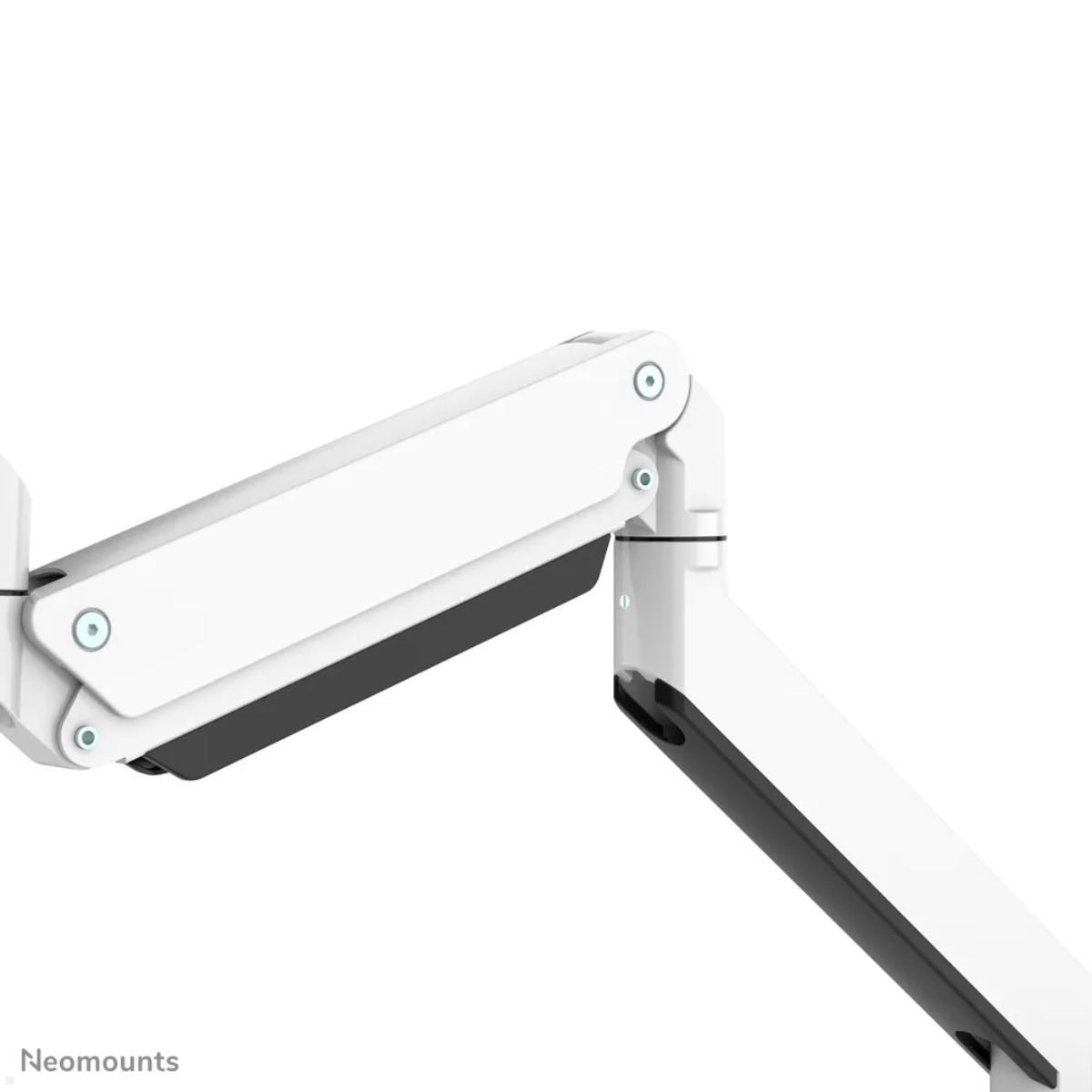

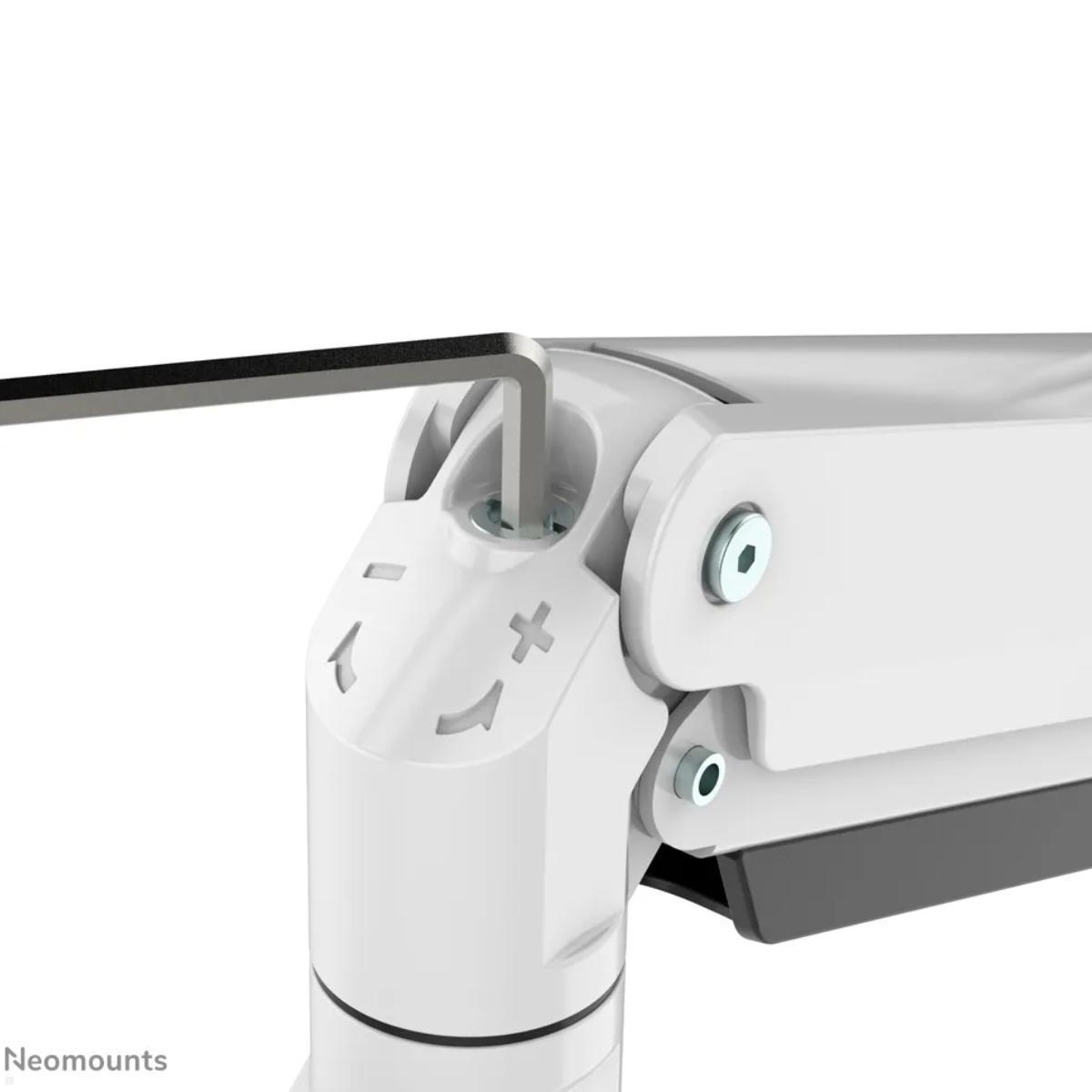

The unique setting options of the screens allow adaptation to any viewing angle in order to be able to use the full range of flat screens. Thanks to a gas spring in the joint, the monitor desk mount in white is 600 mm hight adjustable and 630 mm depth adjustable. In this way, the displays can be ergonomically adapted to each user. The integrated cable routing conceals and leads the cables over the monitor arm to the flat screen. The swivel range stops at 180 ° to protect the devices behind it or the wall from damage.
Key features triple monitor mount
- Screen size: 17", 18", 19", 21", 22", 23", 24", 26", 27"
- Suitable for 3 Monitors from 17 to 27 inches
- Capacity: 1 - 6 kg per Monitor, 18 kg overall
- VESA mount: 75x75, 100x100 mm

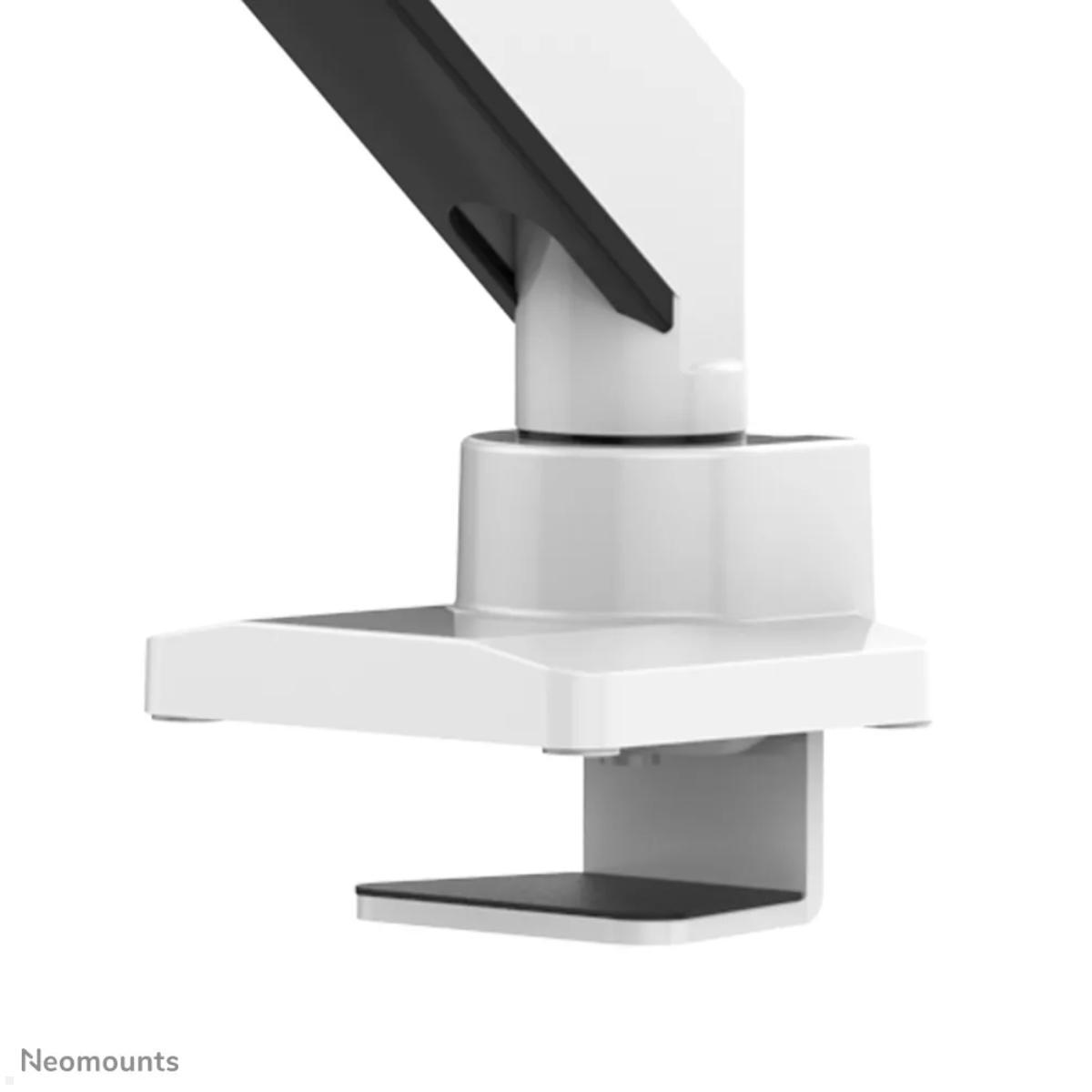

- Incl. Desk clamp and desk grommet mount
- Desk thickness: 10 - 45 mm
- Tilt: 20°
- Swivel: 180
- Rotate: 360°
- Depth adjustable: 0 - 630 mm
- Height adjustable: 270 - 630 mm
- Finish: white
- Warranty: 5 years
Does your monitor or display fit?
We would be happy to check whether your monitor is suitable for this Neomounts NM-D775DX3 in white. Simply send us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|

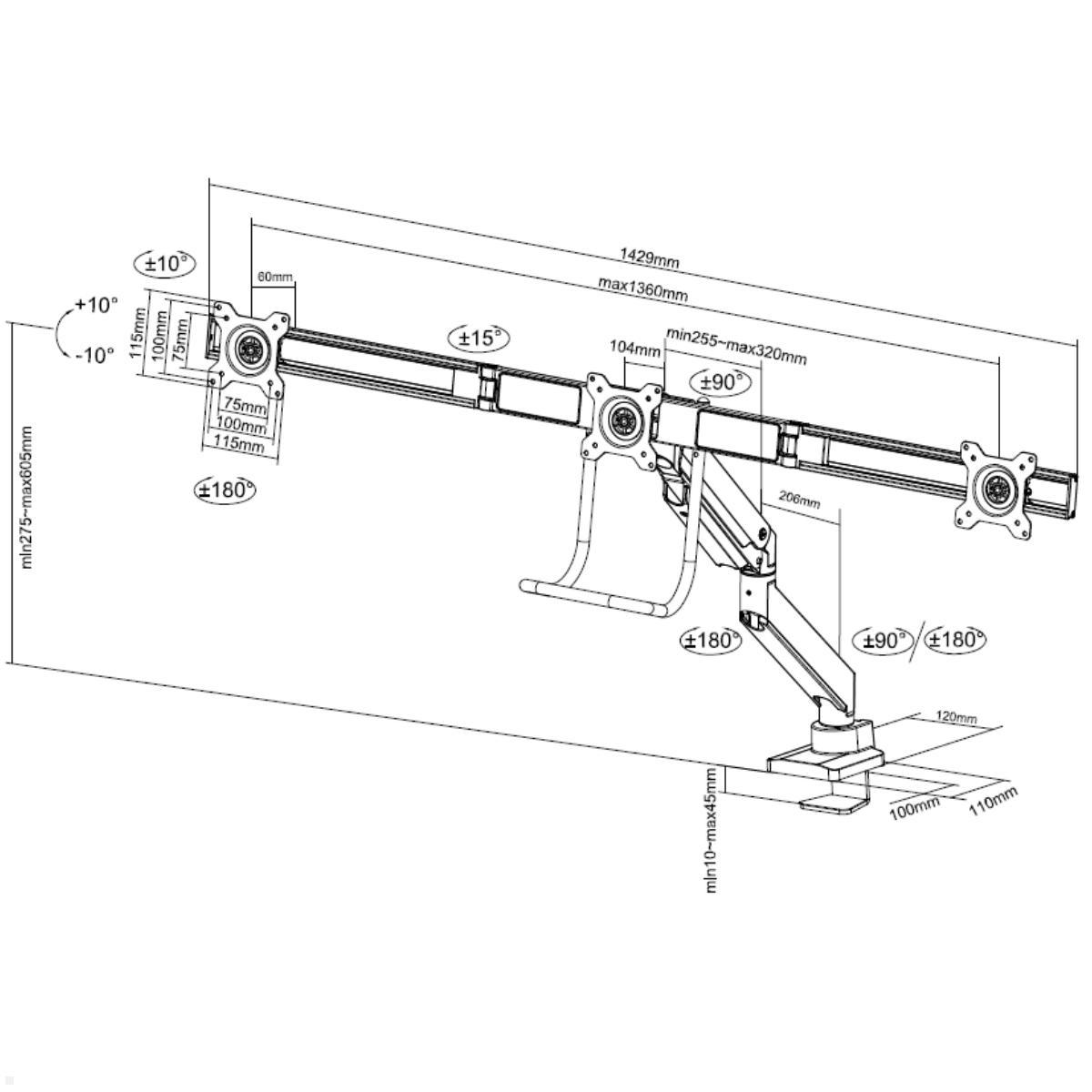

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg pro Monitor |
| Capacity: | 6 kg pro Monitor |
| Tilt: | 20° |
| Rotate: | 360° |
| Height range (mm): | 270 - 600 mm |
| Swivelling range: | 180° |
| Length of the swivel arm: | 461 - 526 mm |
| Screen size: | 17 - 27" |
| Thickness of table (mm): | 10 - 45 mm |
| Depth of the bracket: | 630 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Warranty: | 5 years |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , rotatable, swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Triple solution |
| Theft-proof: | No |
| color: | White |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
