Neomounts NEXT Core DS70-450WH1 Monitor desk mount 17-42 inch, white

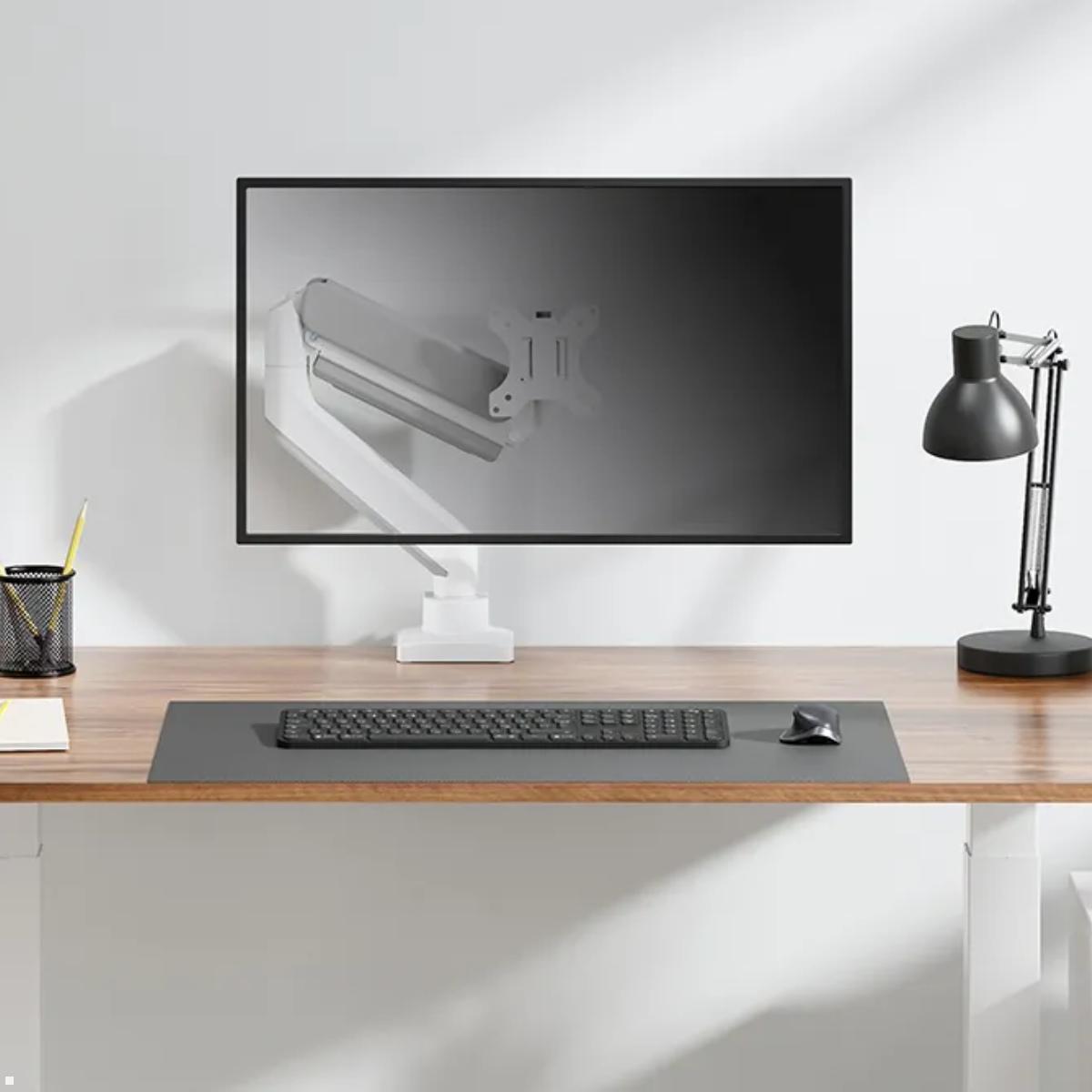

The Neomounts DS70-450WH1 NEXT Core is a flexible table mount for flat screens up to 42 inches. The monitor mount enables tilting, swiveling, rotating and gas-sprung height adjustment of the screen. The 180° stop mechanism protects against wall contact. An intelligent cable management system keeps your desk tidy.
Swivel monitor desk mount

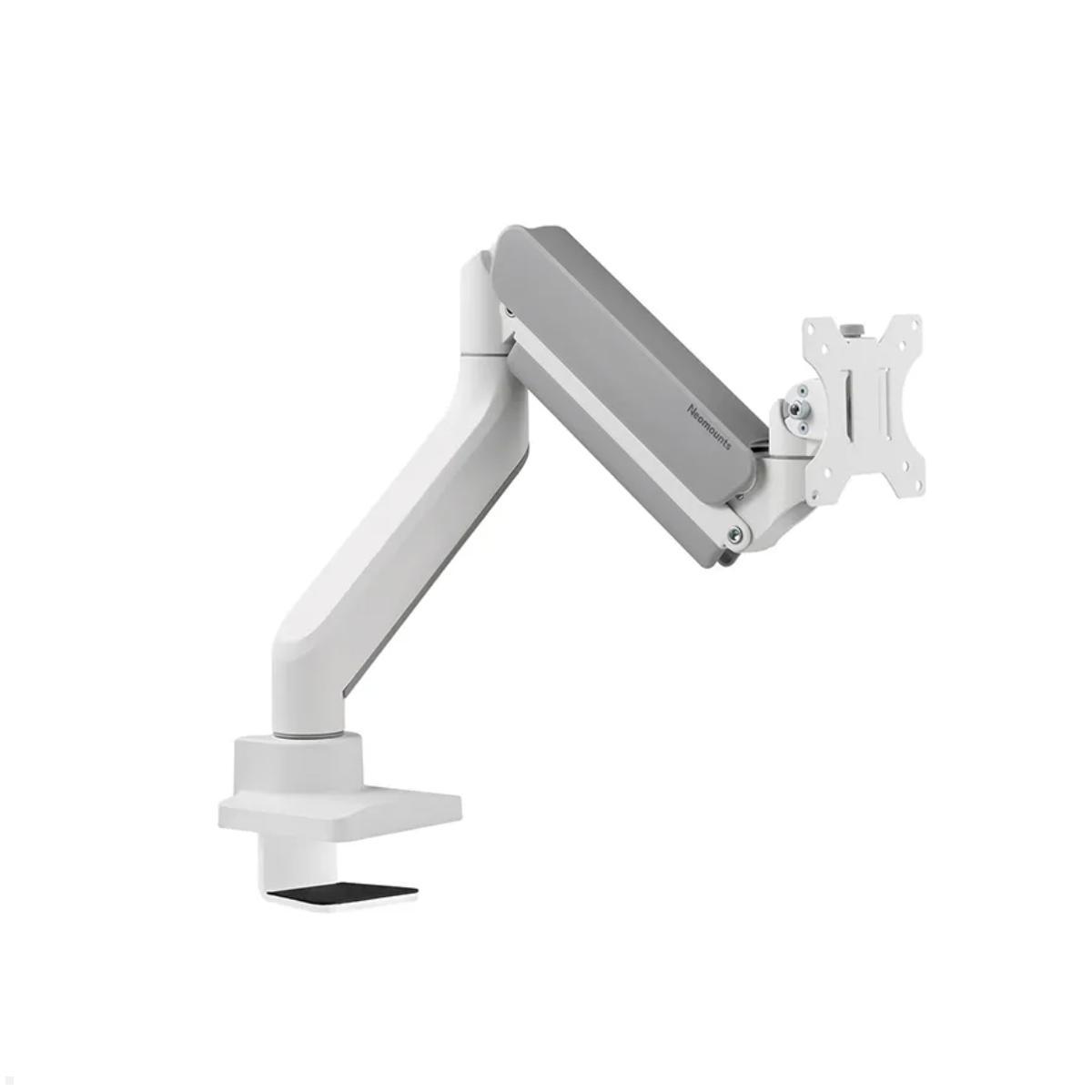

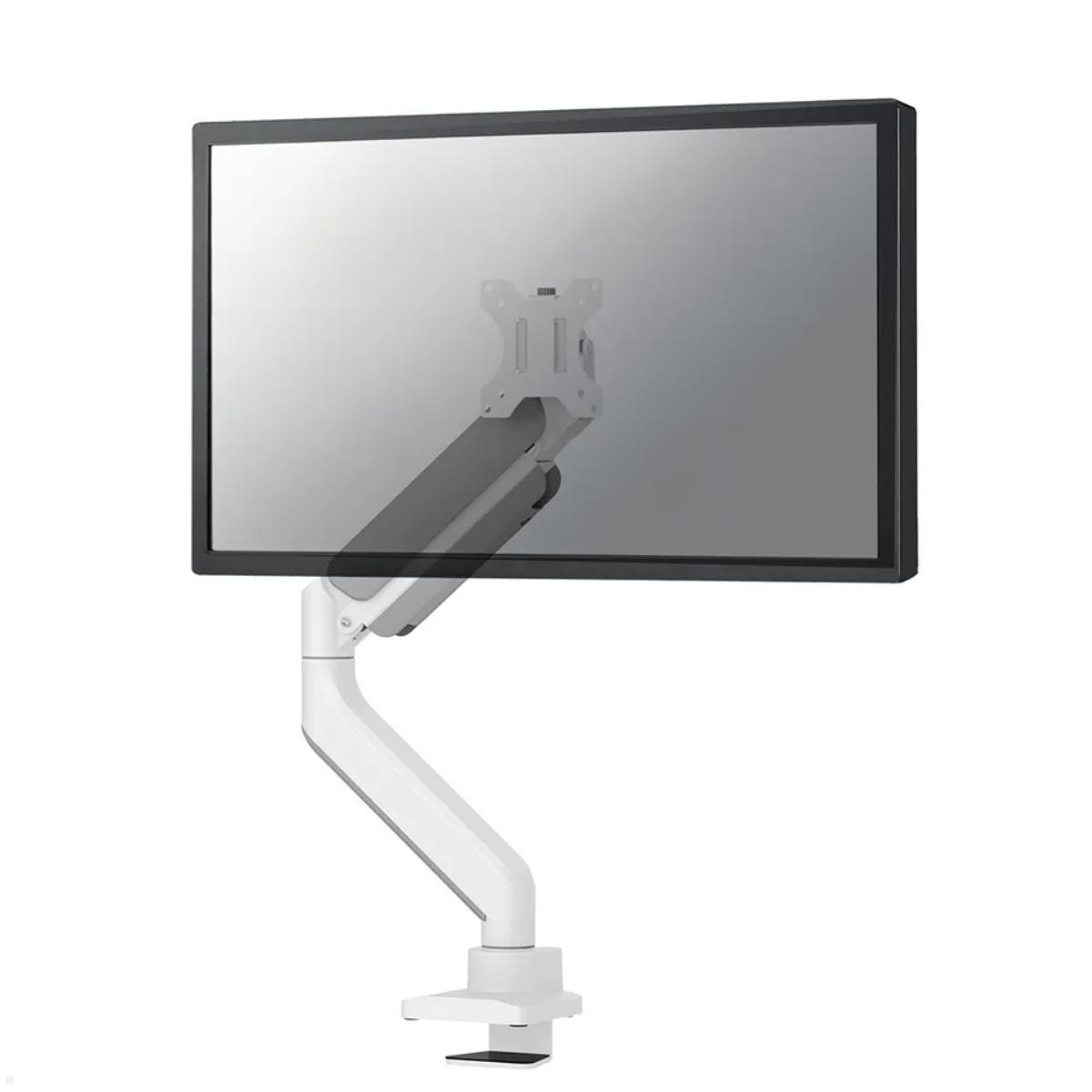

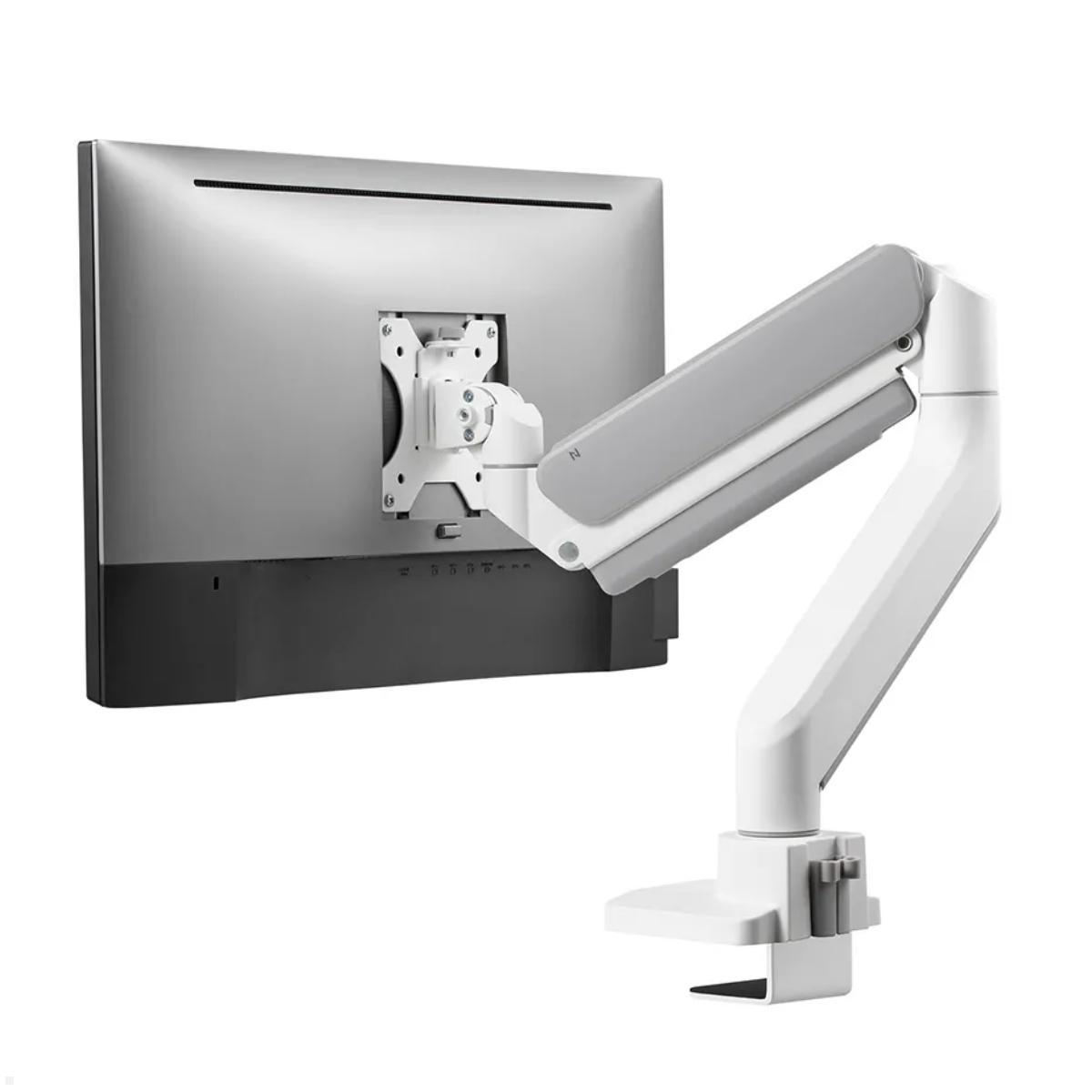

The Neomounts DS70-450WH1 NEXT Core is a flexible monitor desk mount that is suitable for flat screens up to 42" with a maximum weight of 15 kg. The monitor can be tilted, pivoted and rotated on the desk mount, guaranteeing an ergonomic viewing angle. In addition, the Neomounts monitor mount offers gas-sprung height adjustment for an optimal working position.
Screen adjustment in portrait or landscape format

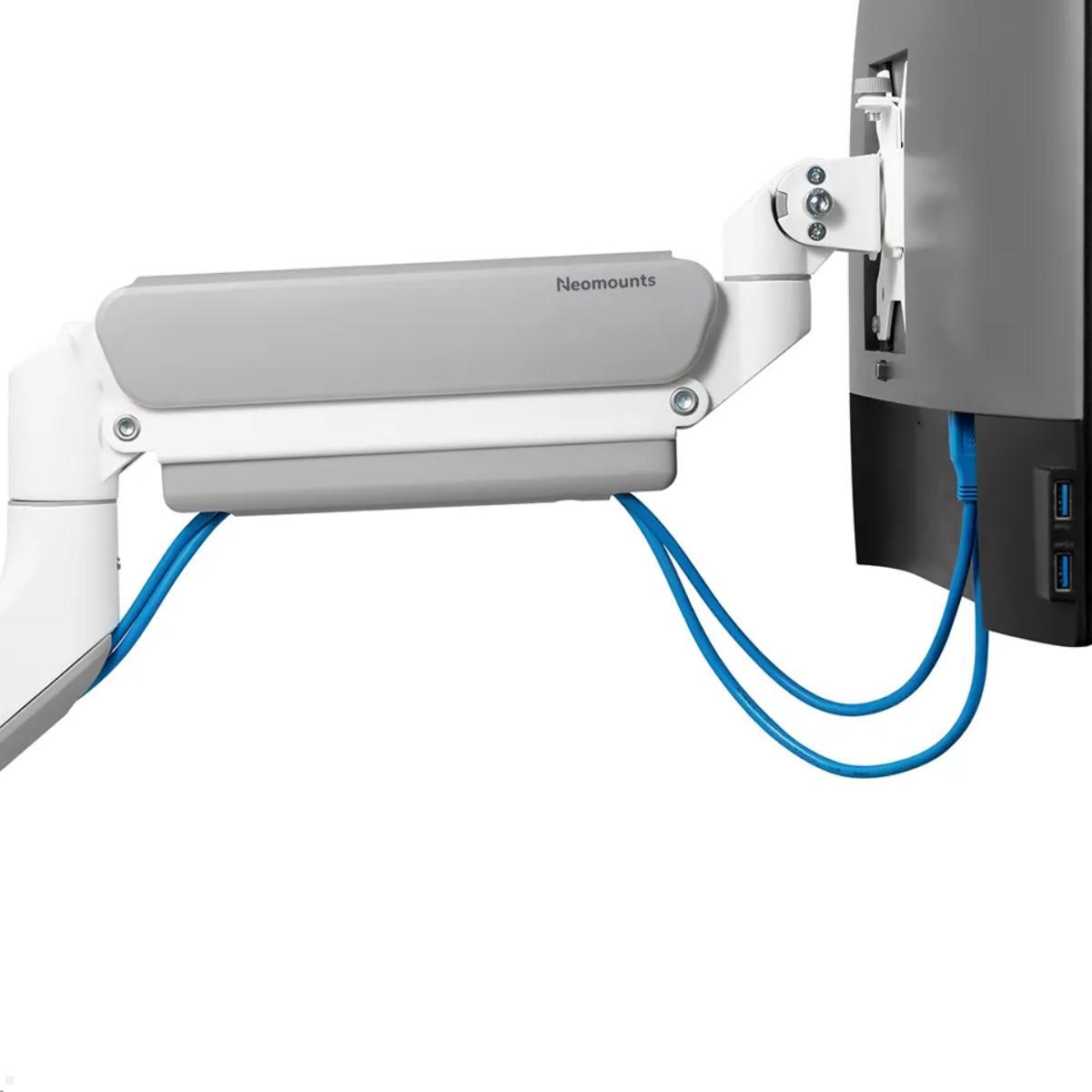

The DS70-450WH1 NEXT Core is equipped with an ingenious 180° stop mechanism that enables safe adjustment even close to walls or partitions without touching the wall. The intelligent cable management ensures neat cable routing and a tidy workplace. This screen mount is compatible with monitors that support the VESA standard 75x75 or 100x100 mm.
Key features height-adjustable monitor holder
- Screen size: 17 - 42 inch
- Capacity: min. 1kg - max. 15 kg
- Curved load capacity: min. 1kg - max. 11 kg

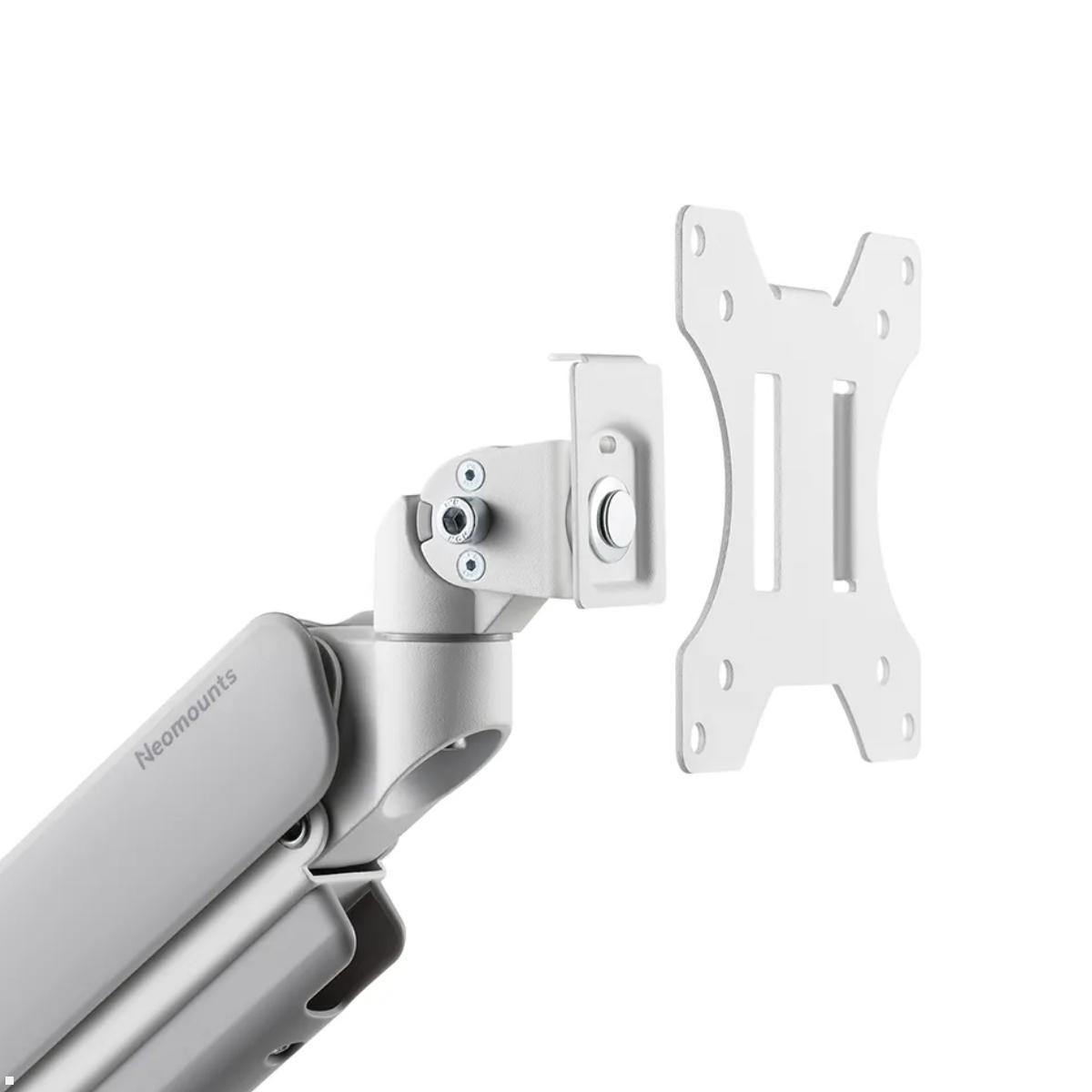

- VESA standard: 75x75, 100x100 mm
- Table mounting: C table clamp, screw-through mounting
- Wall distance: 108 - 568 mm
- Height adjustable: 261 x 555 mm
- Width adjustment: 920 mm
- Depth adjustment: 54 x 511 mm
- Tiltable: +45° / -45°
- Swivel: +90° / -90°
- Rotatable: +180° / -180°
- Dimensions (WxHxD): 120 x 653 x 568 mm

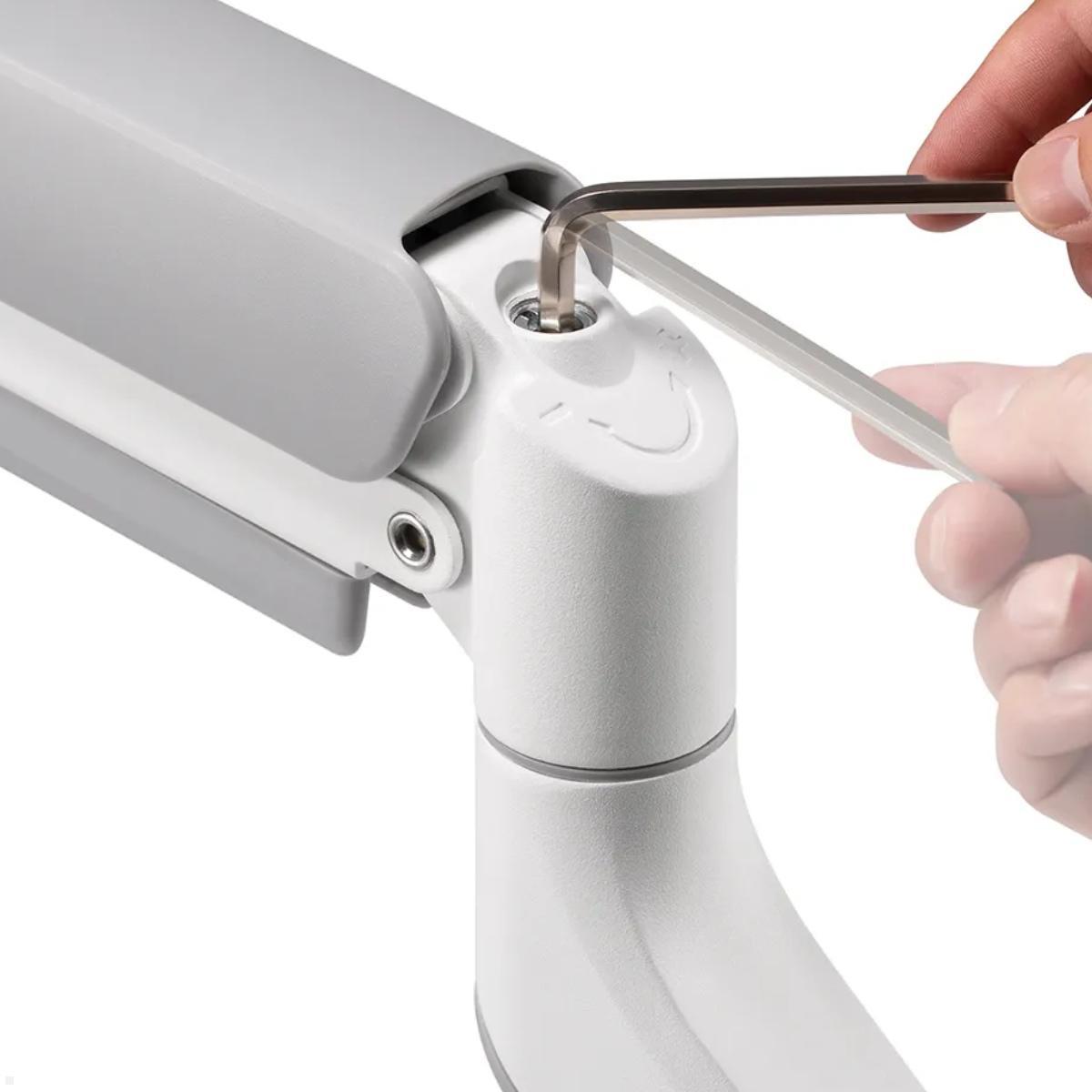

- Adjustment through gas spring in the joint
- Material: Aluminum / steel
- Finish: white
- Warranty: 5 years
Does your screen or display fit the monitor mount?
We will be happy to check whether your monitor is suitable for this Neomounts monitor desk mount in white (DS70-450WH1). Simply let us know your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.

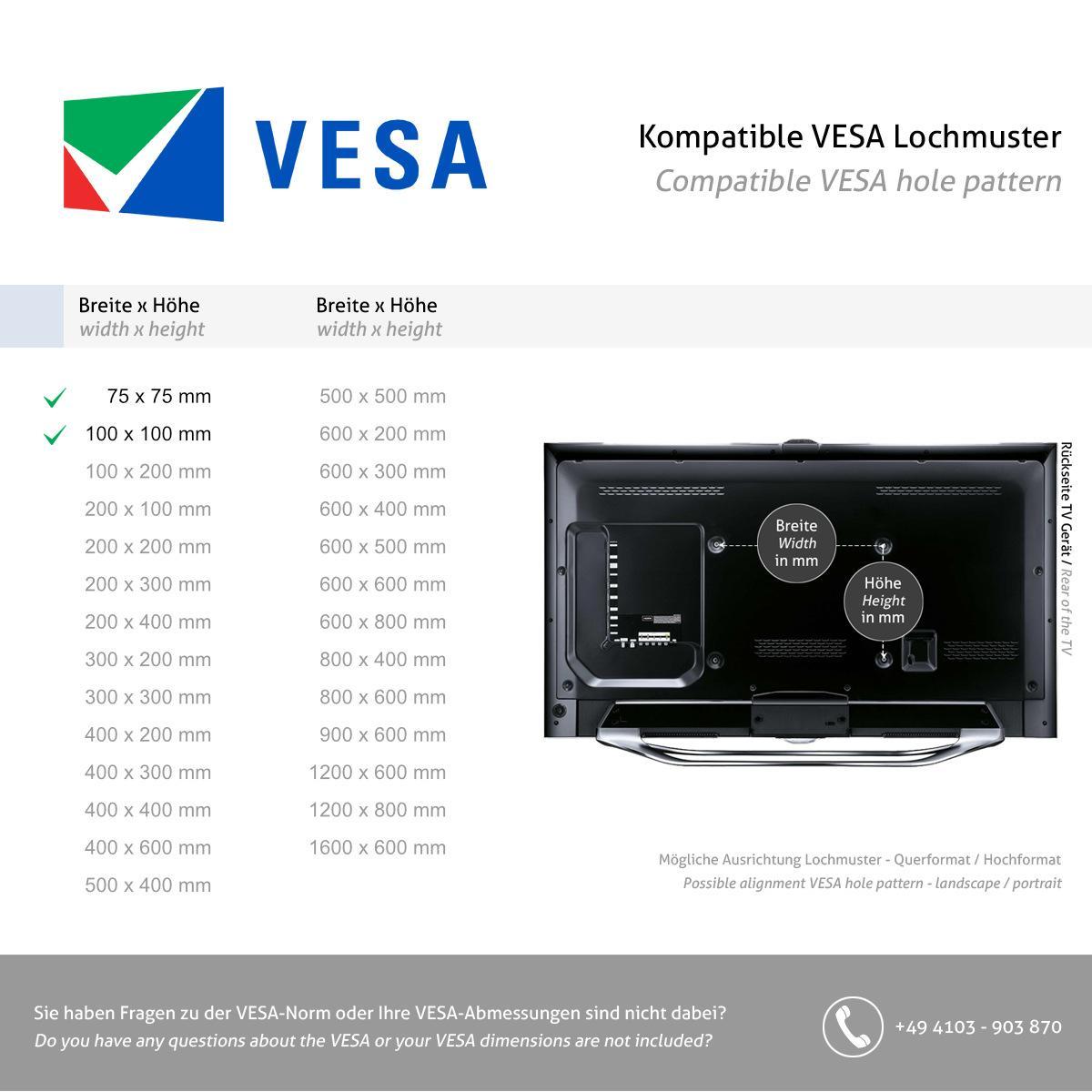

VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|

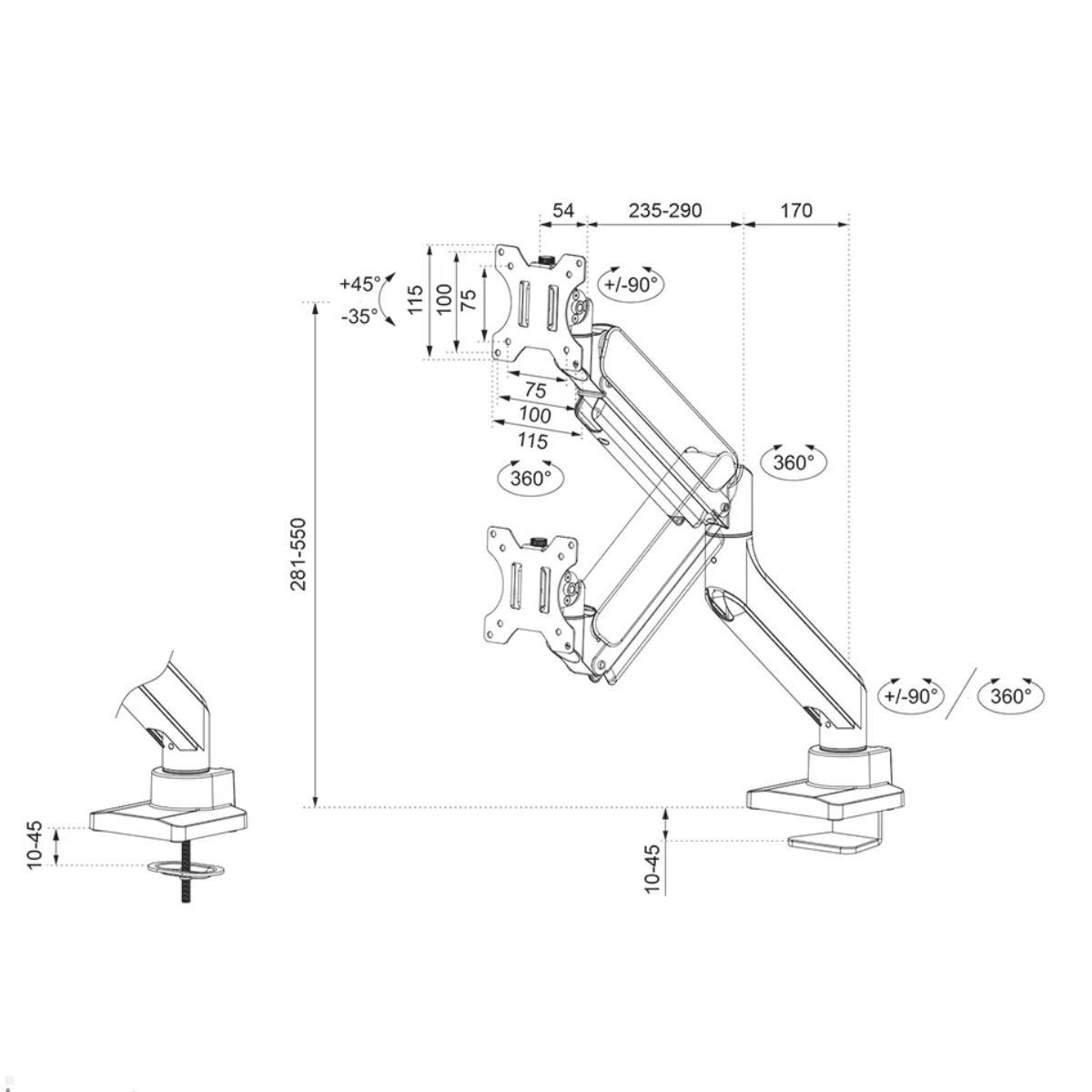

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 15 kg |
| Tilt: | +45° / -45° |
| Height range (mm): | 261 - 555 |
| Swivelling range: | +90° / -90° |
| Length of the swivel arm: | 405 - 460 mm |
| Screen size: | 17 - 42" |
| Thickness of table (mm): | 10 - 45 mm |
| Depth of the bracket: | 513 - 568 mm |
| Special features: | Serie: NEXT Core |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.de) |
| Suitable for: | Table thickness 10 to 45 mm |
| Packaging dimensions (LxWxH in mm): | 127 x 280 x 445 |
| Scope of delivery: | 1x monitor table mount, 1x table clamp, 1x screw-through mounting, installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Warranty: | 5 years |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | White |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
