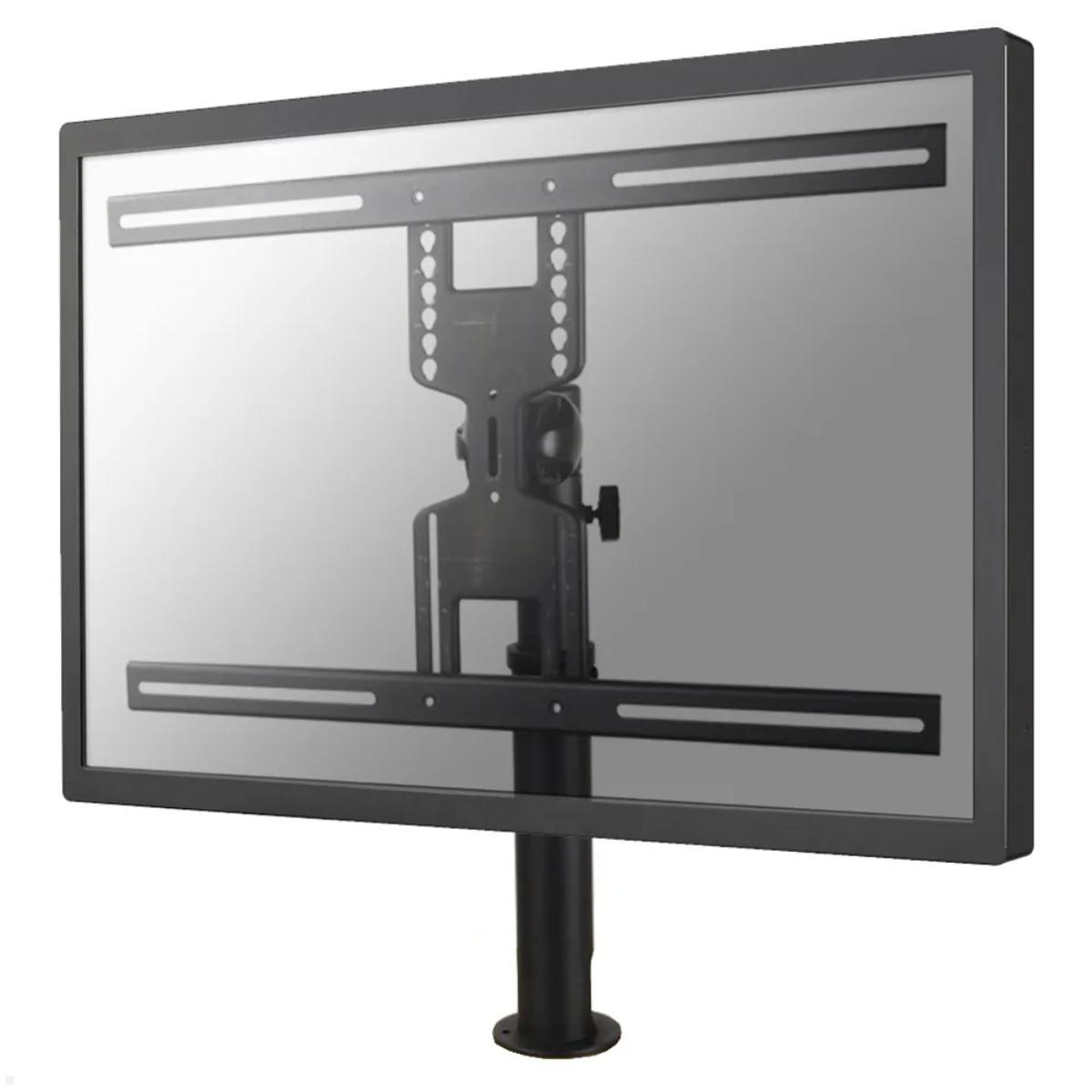

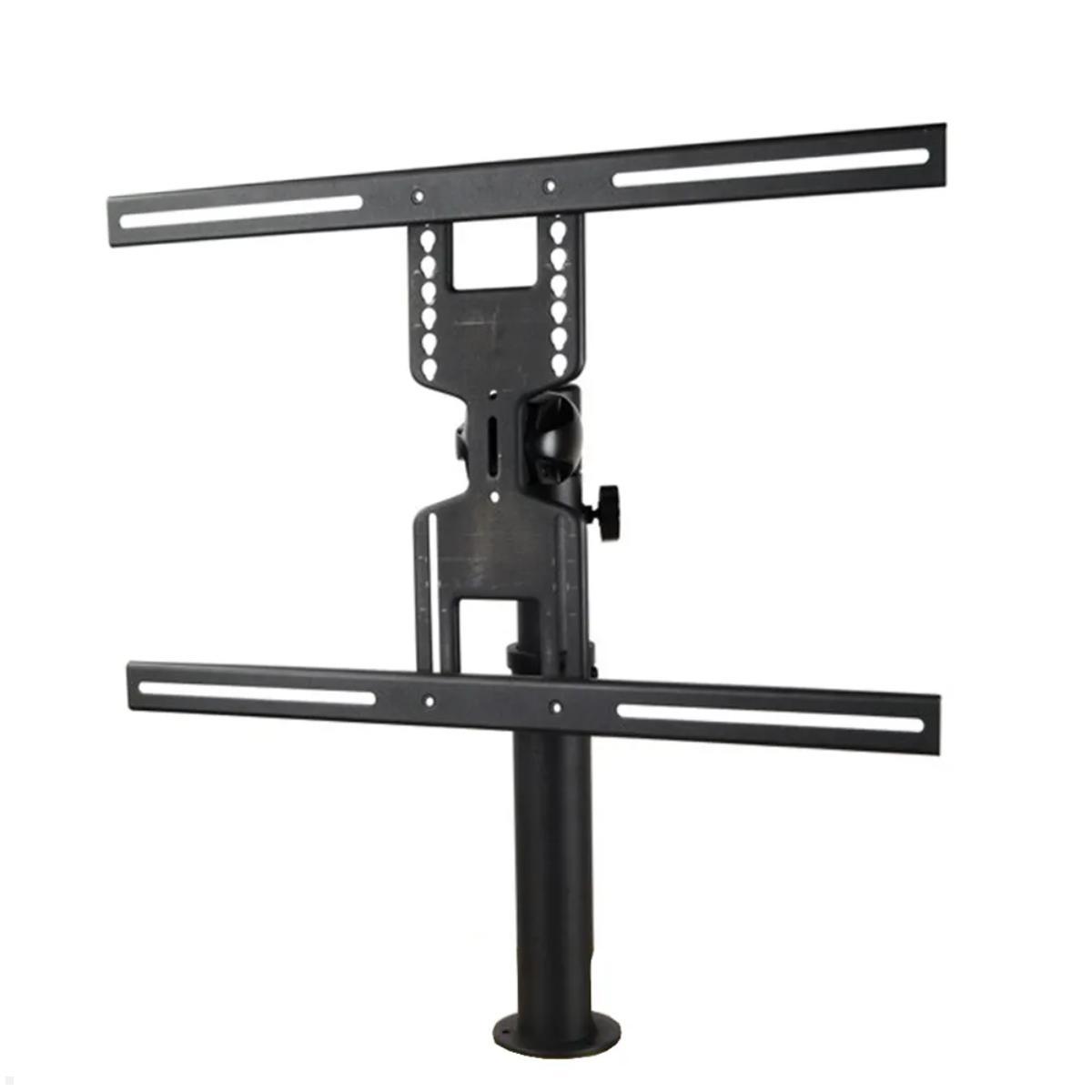

Neomounts FPMA-D1200BLACK monitor desk mount up to 40kg
The Neomounts FPMA-D1200BLACK monitor desk mount in black is a monitor mount with a pivot point for monitors, TVs and displays with 32 - 60 inch (152 cm) and up to 40 kg. The desk monitor holder is mounted on the desk by means of a through-bolt fastening.
Monitor desk mount
Neomounts versatile tilt (90°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is manually height adjustable from 46 to 60 centimetres. Depth 19 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The column of the Neomounts monitor table holder is inserted through the table top and locked with the special enclosed key and a ring.
The Neomounts monitor desk mount is a tilt- and swivel desk mount for flat screens up to 60”. This TV holder is a great choice for space saving placement on desks using a grommet mount. The TV bracket FPMA-D1200BLACK has one pivot point and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 40 kg each screen. The monitor desk holder is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm. Different hole patterns can be covered using NewStar VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product.
Key Features Neomounts FPMA-D1200BLACK monitor desk mount:
- Screen size: 32 - 60"
- Max. weight: 40 kg (88 lbs)
- Cable routing through the column
- Diameter hole for the column on the desk: 60 mm
- Mounting: column is locked with a special enclosed key and a ring
- VESA mount Standard: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400mm, VESA MIS-F (max. 600x400 mm)
- Depth: 190 mm
- Desk thickness: 30 to max. 50 mm
- Delivery with grommet mount
- Height adjustable: 460 - 600 mm
- Tilt: 90
- Swivel: 360°
- Finish: black
- Warranty: 5 years
Does your TV or display fit?
We would be happy to check whether your monitor is suitable for this table holder Neomounts FPMA-D1200BLACK. Simply send us your model (manufacturer + model no.) at the end of the ordering process. We then check for you whether the monitor or the display fits the monitor holder and if not, we will contact you.VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|

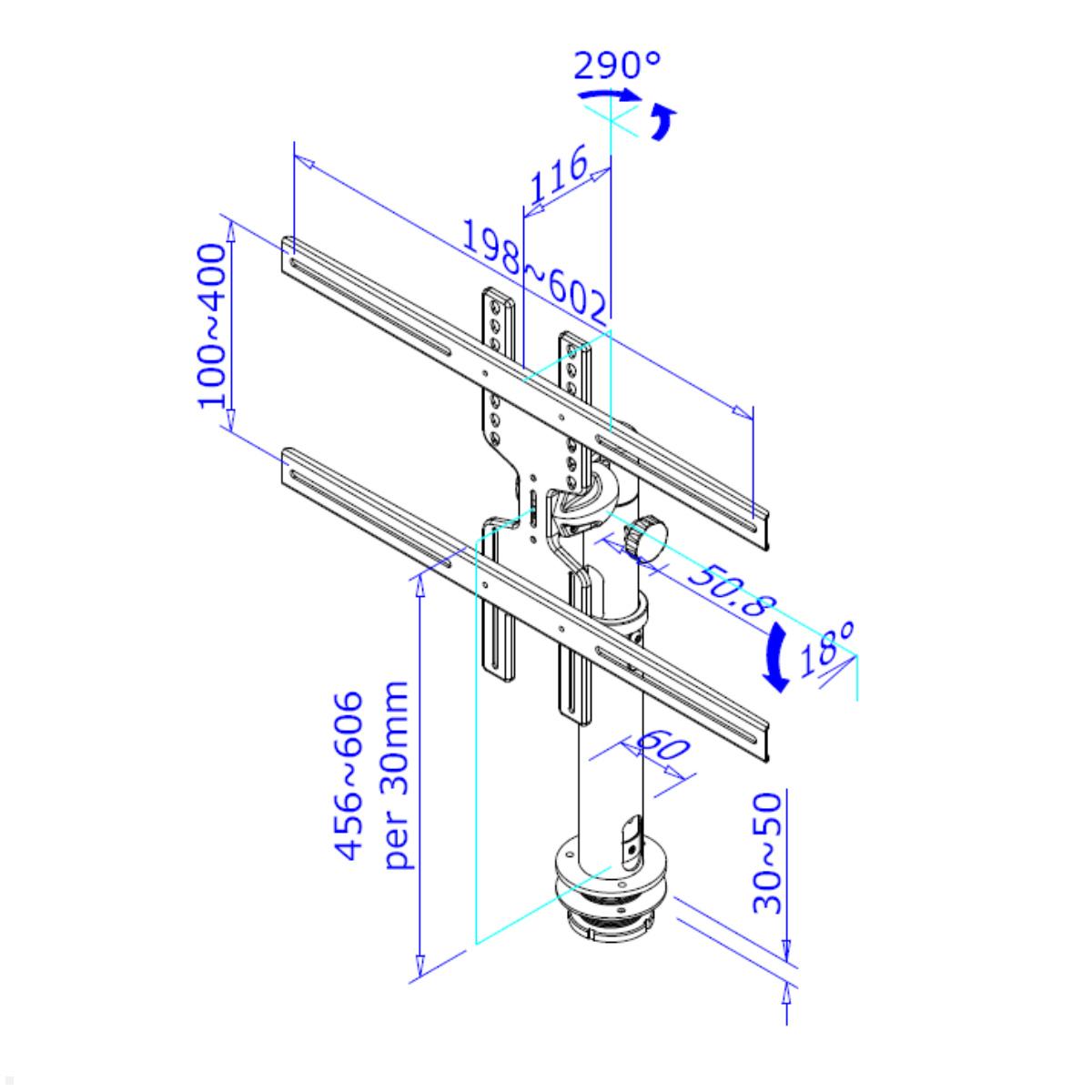

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 40 kg (88 lbs) |
| Tilt: | 90° |
| Height range (mm): | 460 - 600 mm |
| Swivelling range: | 360° |
| Screen size: | 32 - 60 " |
| Thickness of table (mm): | 30 - 50 |
| VESA Standard: | 200x200 - 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 767x152x142 |
| Scope of delivery: | 1x column | VESA mount | installation material |
| Contains installation material: | + |
| Manufacturer/Importer: | Neomounts B.V., Wateringweg 62, 2031 EJ Haarlem, Niederlande, info@neomounts.com |
| Warranty: | 5 years |
| Inch size: | 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
