MonLines V060 VESA adapter for Samsung displays C24FG73 / C27FG73
The MonLines V060 VESA Adapter extends the VESA hole pattern 50x50 mm to the VESA standard of 100x100 mm. The Samsung Curved screens C24FG73 & C27FG73 can be combined with the VESA-Standard 100x100 mm.
VESA Adapter for Samsung C24FG73 & C27FG73
In order to mount up the Curved Samsung Monitor C24FG73 or C27FG73 the screen can be expanded with the MonLines V060 Vesa adapter, the original VESA mount from 50x50 mm to the standard VESA mount of 100x100 mm. This makes the Samsung monitor compatible with any 100x100 mm VESA compliant monitor mount.
Whether wall mount, column mounting, monitor stand - there are no limits to your imagination! Simply screw the VESA adapter specially made for Samsung C24FG73 / C27FG73 TVs onto the existing 50x50 mm threaded holes on the back of the TV and thus expand the VESA mount to 100x100mm.
Key features VESA adapter for Samsung displays 24 inches, 27 inches
- Suitable for Samsung Curved C24FG73 or C27FG73
- VESA compliant hole pattern: 100x100mm
- Finish: black

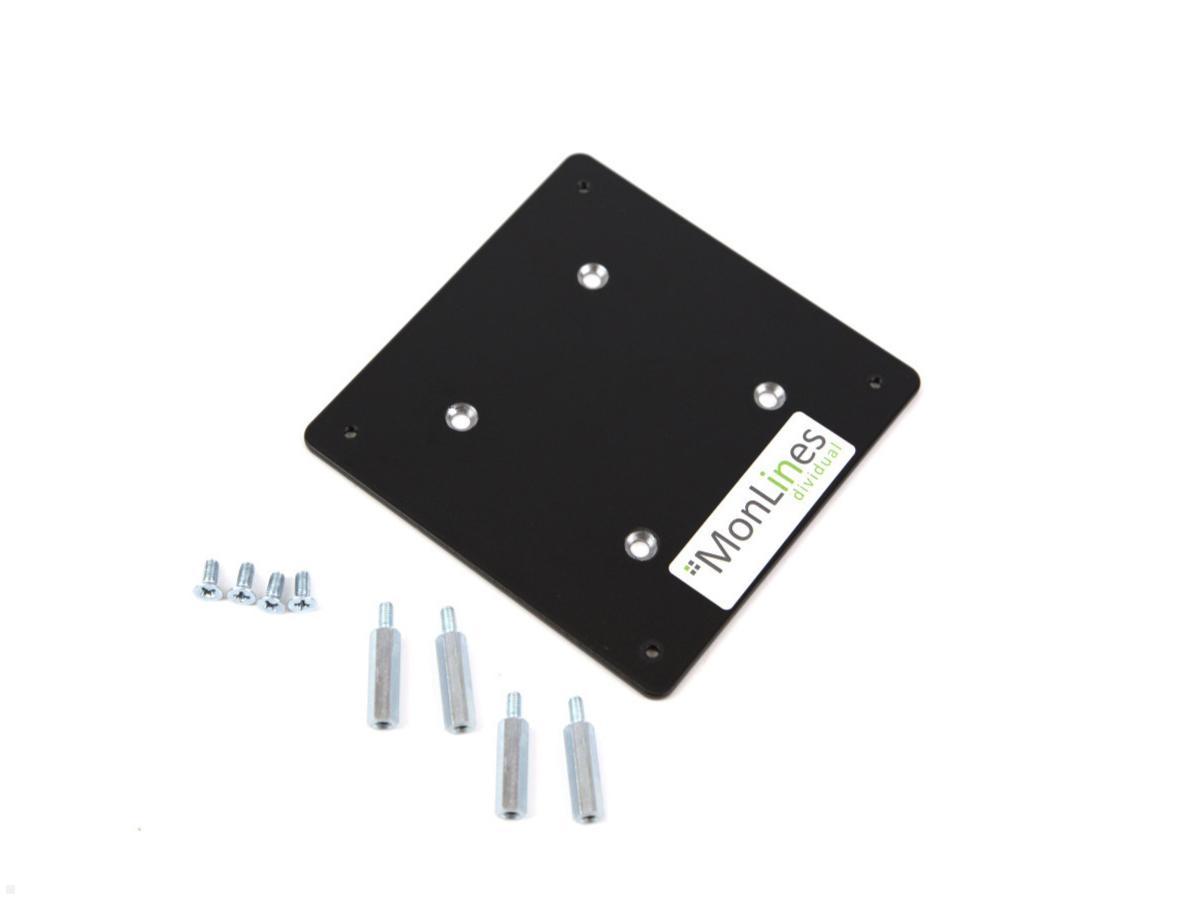

- Scope of delivery: MonLines adapter without screen mount
Does your Samsung fit your MonLines V060 adapter plate?
We will check if your Samsung monitor is suitable for this MonLines V060 adapter. Please send us your model number (manufacturer + model no.) at the end of the order process. We are going to check if your TV, monitor or display fits and or not. Afterwards we will contact you.
VESA standard - Read more about the VESA standards of monitor brackets!

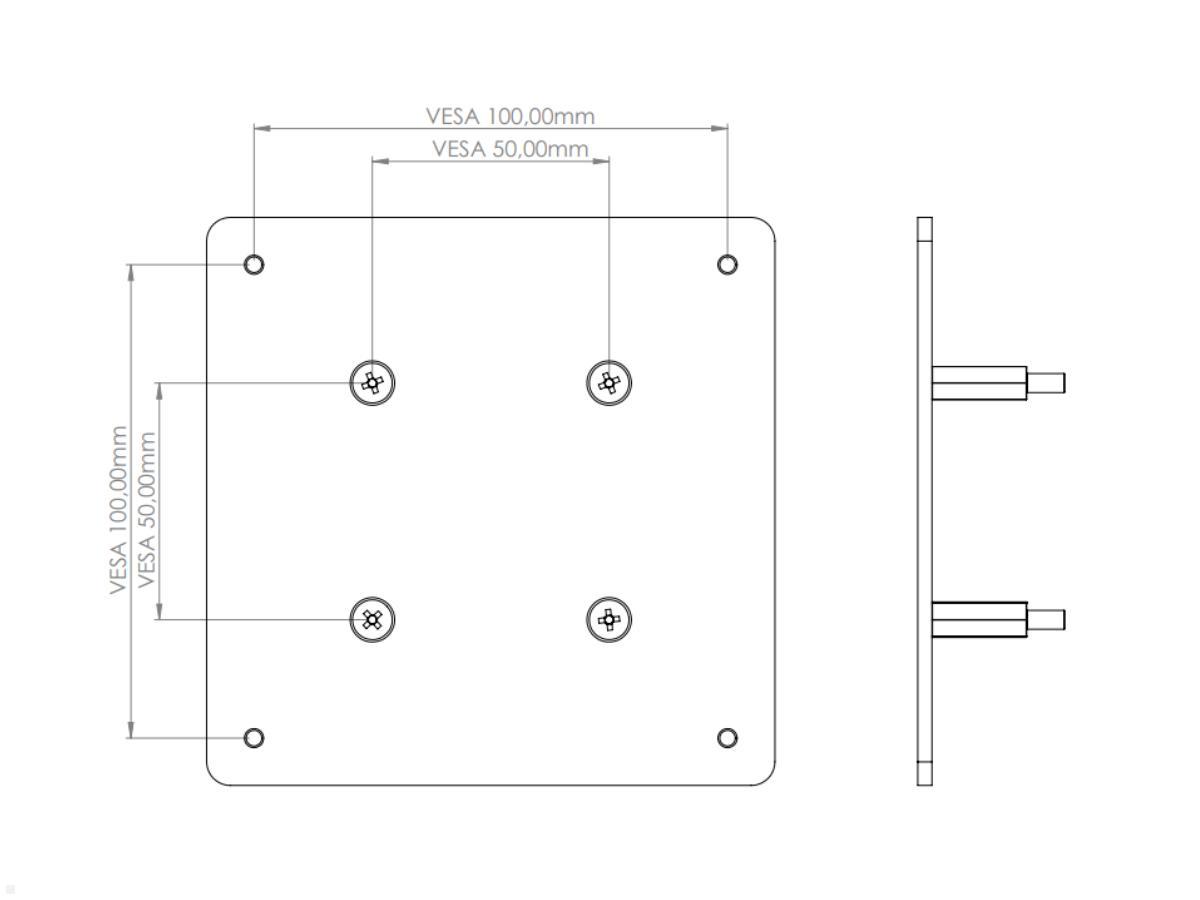

| Technical drawing: |  [pdf, 33 kb] |
|---|---|
| VESA Standard: | 100x100 mm (www.vesa-standard.com) |
| Suitable for: | Samsung C24FG73 & C27FG73 |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Mobility: | fixed |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
