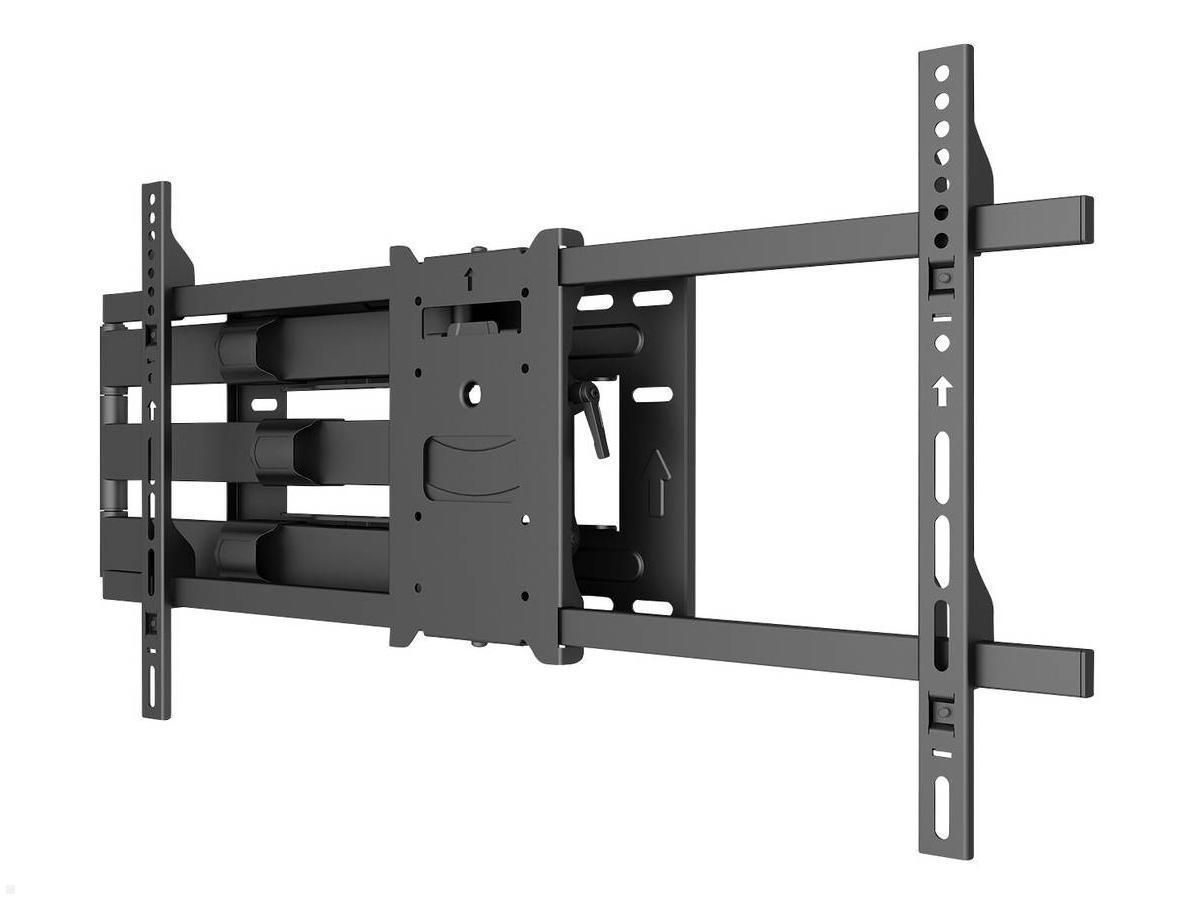

MonLines MWH016B swivel LCD TV mount up to 75 inches
The MonLines MWH016B TV wall mount with swivel arm is a functional wall mount for large and heavy screens. With a wall distance of up to 1010 mm, the wall mount impresses with its flexibility.
Swivel TV wall mount
With the MonLines extendable, rotatable, tiltable and swivel TV wall mount, the TV can be swivelled to any desired position in the room to provide the best possible view from any angle. The MonLines MWH016B wall mount is suitable for mounting large format monitors / screens with a size from 42" to 75 inches and a weight of up to 30 kg.
Equipped with a tilt angle from -5° to 10° and a 180 degree swivel, the TV screen can be placed in an excellent position. The extra great 1010 mm wall distance allows mounting in any position but also folding if needed. Monitors with a total width of up to 200 cm can be rotated by +/- 90°, i.e. at right angles to the mounting. Regarding the VESA compliant hole patterns from 100x100 to 800x400 mm, many TV manufacturers are compatible with this fully mobile monitor bracket for large and heavy LCD televisions.
Key features MonLines LCD TV wall bracket
- Screen sizes: 42", 43", 46", 47", 48", 49", 50", 52", 55", 58", 60", 65", 70", 75 inches
- Load capacity: 30 kg
- Tiltable: -5° to +10 degrees
- Mounting type: wall bracket

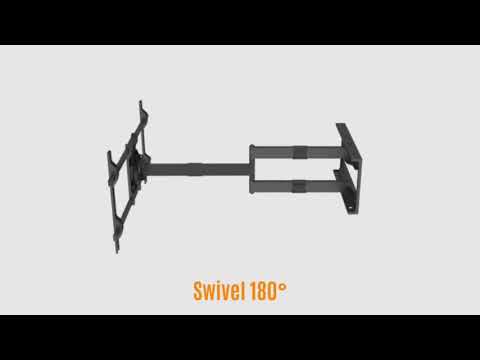

- Swivel: 180°
- Horizontally rotatable: + / - 5°
- VESA compliant hole patterns: 100x100, 100x200, 200x200, 200x300, 200x400, 300x300, 400x200, 400x300, 400x400, 400x600, 500x400, 500x500, 600x200, 600x300, 600x400, 600x500, 600x600, 600x800, 800x400 mm

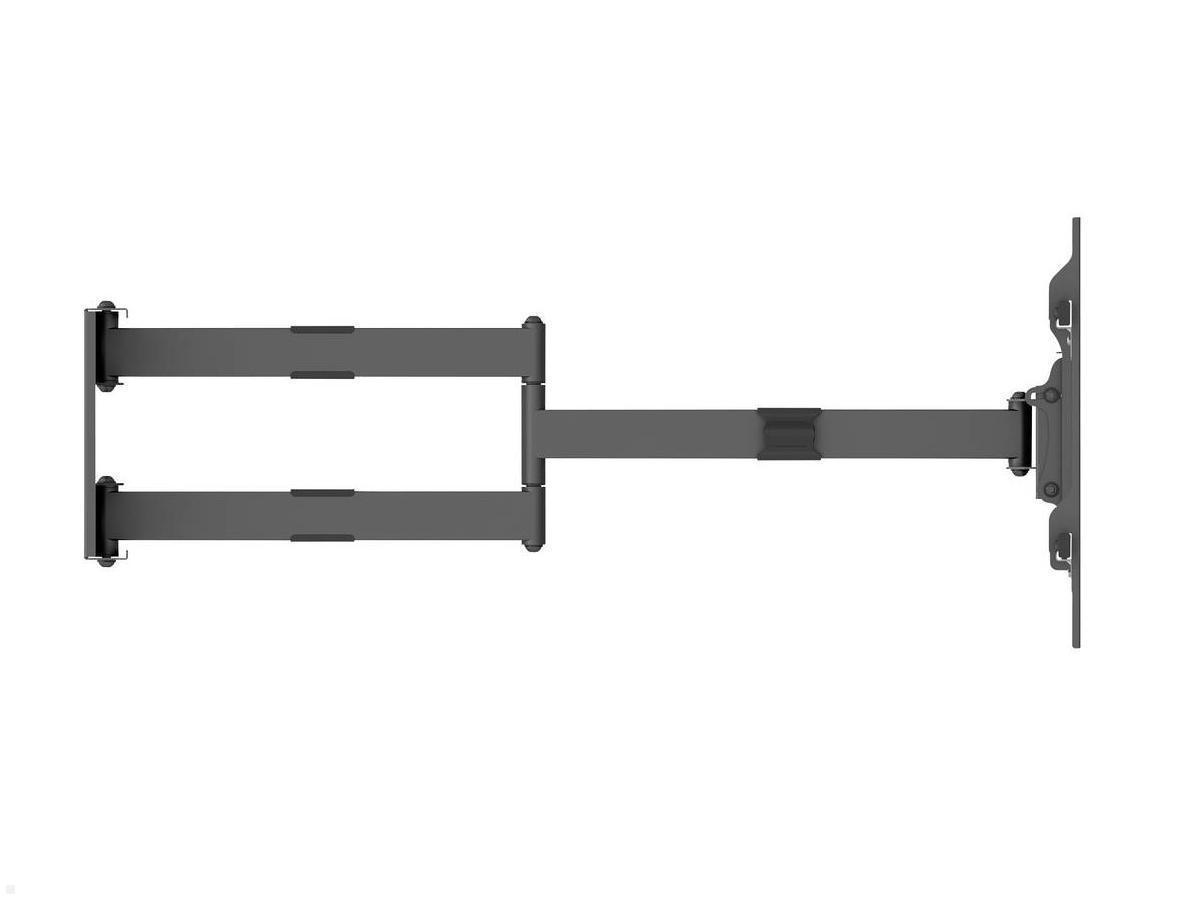

- Wall distance / extendable: 83 - 1010 mm
- Including integrated cable routing / cable management
- High quality powder coating
- Finish: Black

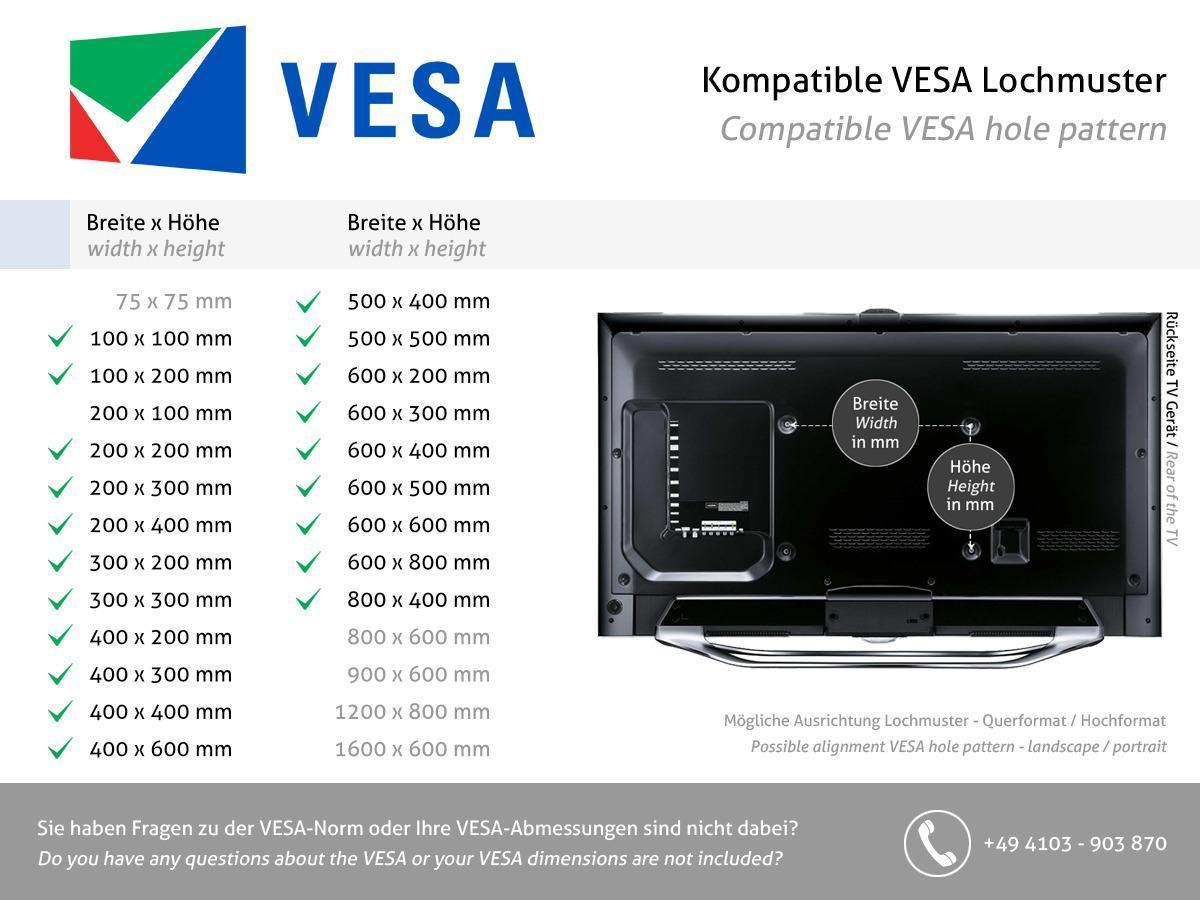

Does your TV fit the VESA mount?
We will check if your monitor (display, TV, LED, LCD, Plasma, TFT, screen) is suitable for this MonLines MWH016B TV wall mount. Please send us your model (manufacturer + model no.) in the comment field at the end of the order process. We will verify whether the TV fits or not and contact you.
VESA standard - Read more about VESA!
| Product sheet: |  [pdf] |
|---|---|

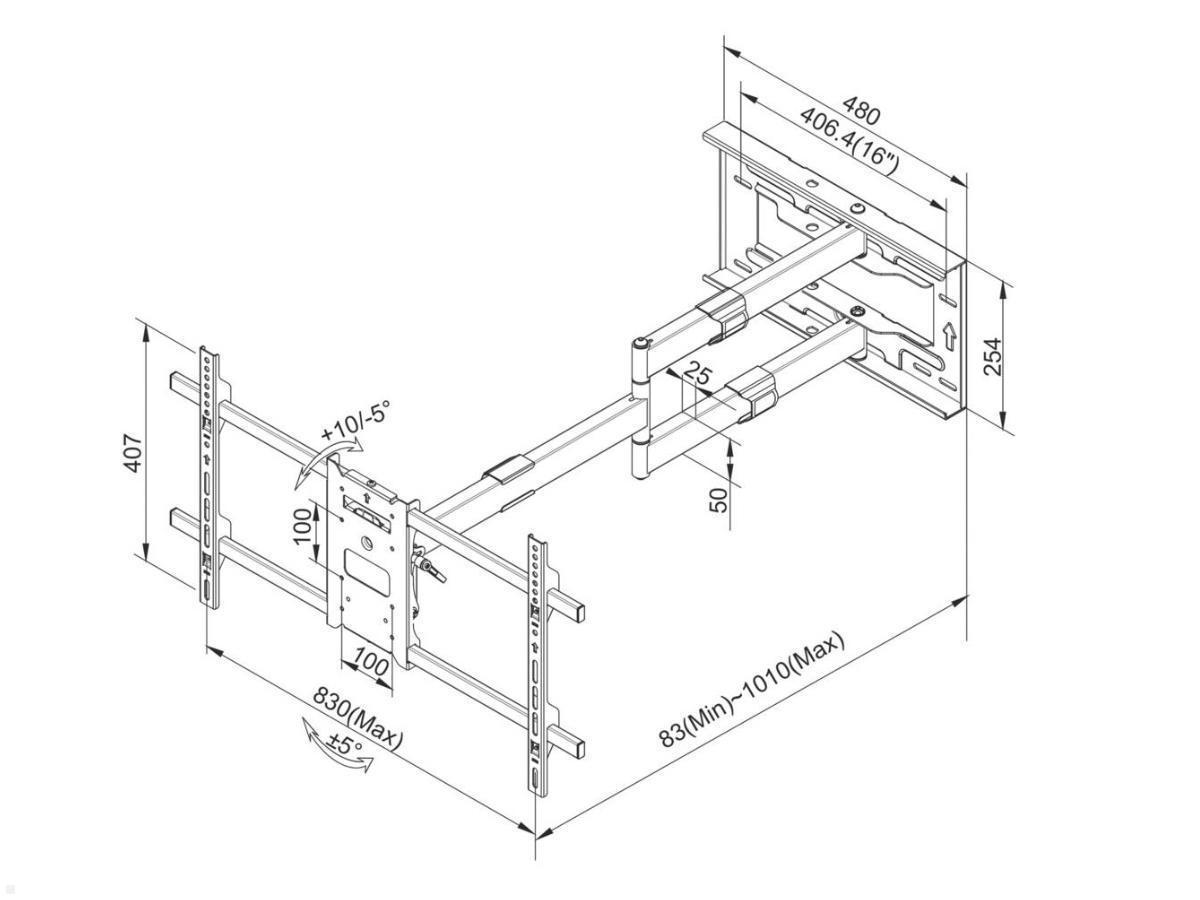

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 30 kg |
| Tilt: | -5° / + 10° |
| Rotate: | +/- 5° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 1010 mm |
| Screen size: | 42 - 75" |
| Material: | steel / powder coated |
| VESA Standard: | 100x100, 100x200, 200x200, 200x300, 200x400, 300x300, 400x200, 400x300, 400x400, 400x600, 500x400, 500x500, 600x200, 600x400, 600x600, 600x800, 800x400mm |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch |
| Mobility: | rotatable, swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 100x100, VESA 100x200, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 400x600, VESA 500x400, VESA 500x500, VESA 600x200, VESA 600x300, VESA 600x400, VESA 600x500, VESA 600x600, VESA 600x800, VESA 800x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
