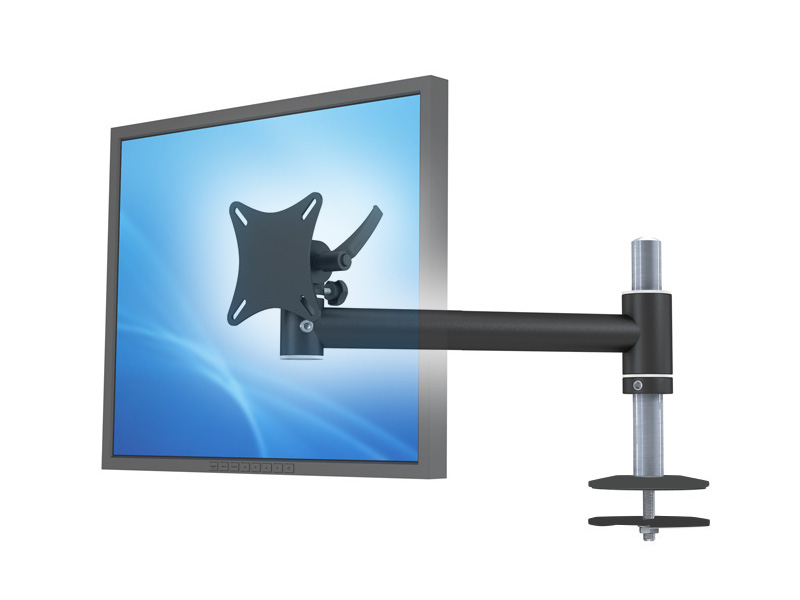

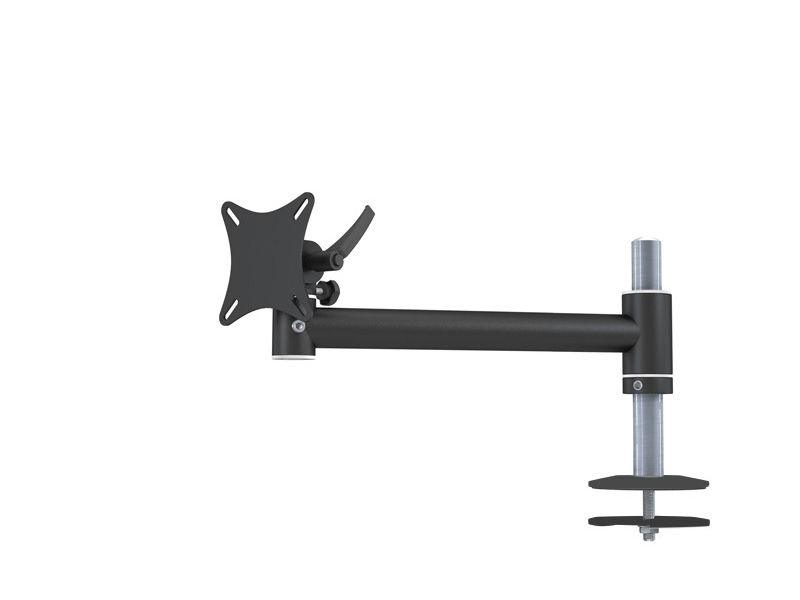

MonLines MTH233B TFT-Star table screw mount without cable outlet, black
The MonLines TFT-Star table screw mount without cable outlet in black RAL 9011 is a bracket with mounting screw through a monitor with a swivel arm and a capacity of 25 kg per monitor holder.
TFT-Star desk monitor mount

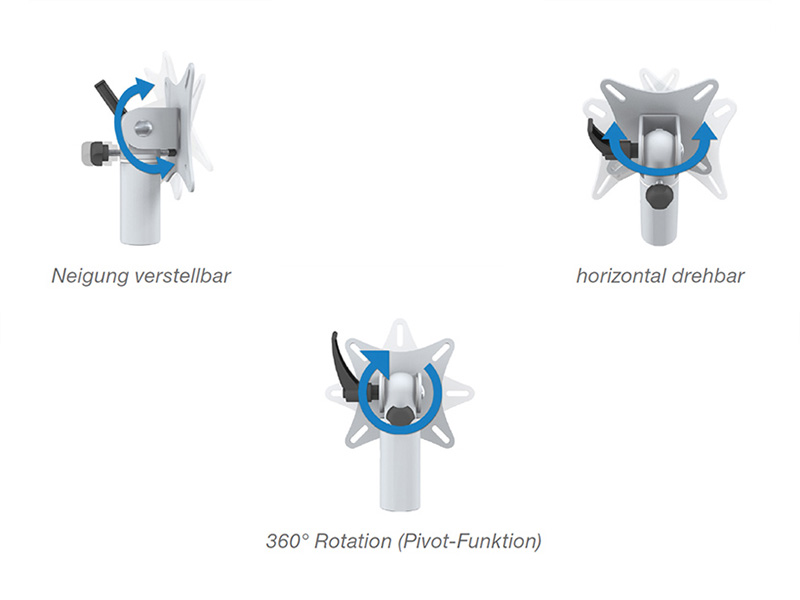

MonLines MTH233B TFT-Star is available for different desk and wall mounts and perfect for 17“ – 24“ screens. Stable metall construction and high-quality powder coating give durability. Height setting with adjusting collar, 360° slewing range and optional keyboard and mouse shelf allow MonLines TFT-Star to be a versatile mount with swivel screen-arm up to 360 mm.
Key features MonLines TFT-Star desk screw mount without cable outlet
- Mounting: table mount with mounting screw
- Capacity: 25 kg monitor holder
- Monitorsize: 17" - 24"

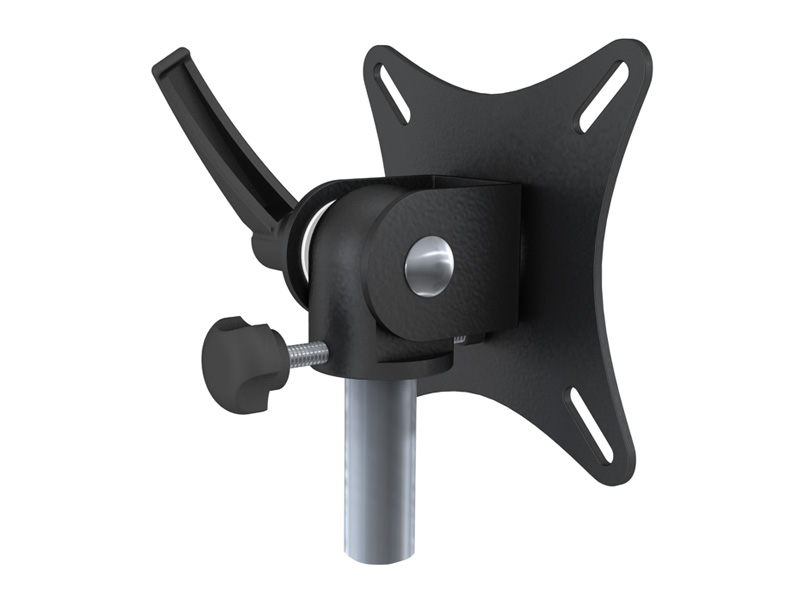

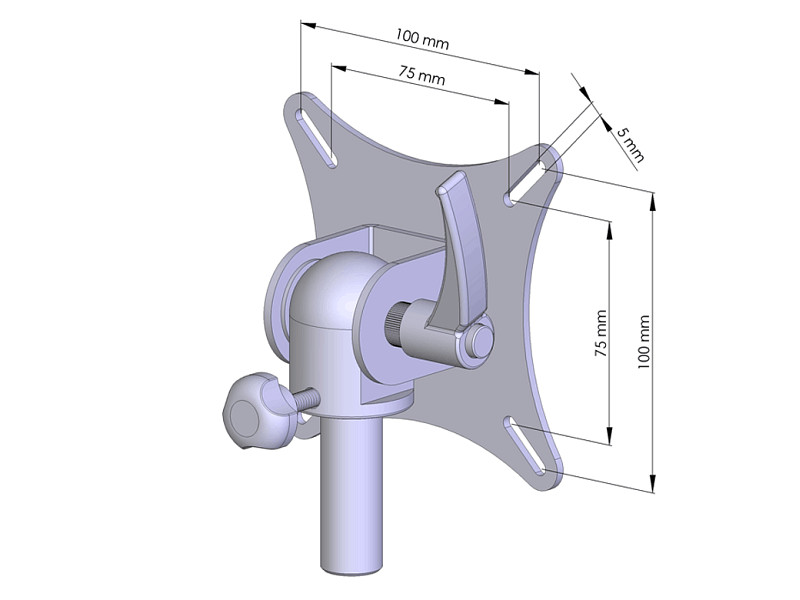

- Monitor mount: VESA mounting 75x75 mm and 100x100 mm

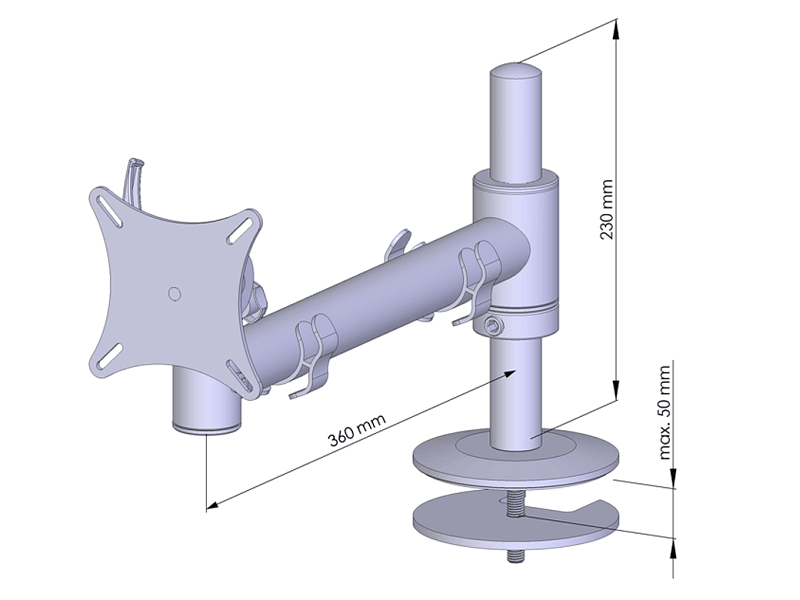

- Column length 230 mm for a plane
- Monitorarm length360 mm
- Stepless height adjustment of the monitor mount
- Finish: RAL 9011 black
Available colors:
RAL 7035 light gray structure
RAL 9011 black structure
Special colors (RAL) on request
Optional
- Special sizes and special colors
- individual production according to customer requirements
- Single part and series production
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 3 kg |
| Capacity: | 25 kg |
| Tilt: | +/-10° |
| Swivelling range: | +/- 360° |
| Length of the swivel arm: | 360 mm |
| Screen size: | 17 - 24" |
| Thickness of table (mm): | 15 - 50 |
| Material: | Steel |
| Old model no.: | 25.03.10.18 |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mounting type: | desk - cable hole fastening |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
