MonLines MLS006B electrical built in TV lift 37-65 inches, 890 mm stroke
The MonLines MLS006B electric TV lift is suitable for displays from 37 "to 65". The monitor can be extended on the ca. 900 mm television lift. The remote control is equipped with a position memory function, which enables different positions to be saved.
Built in TV Lift

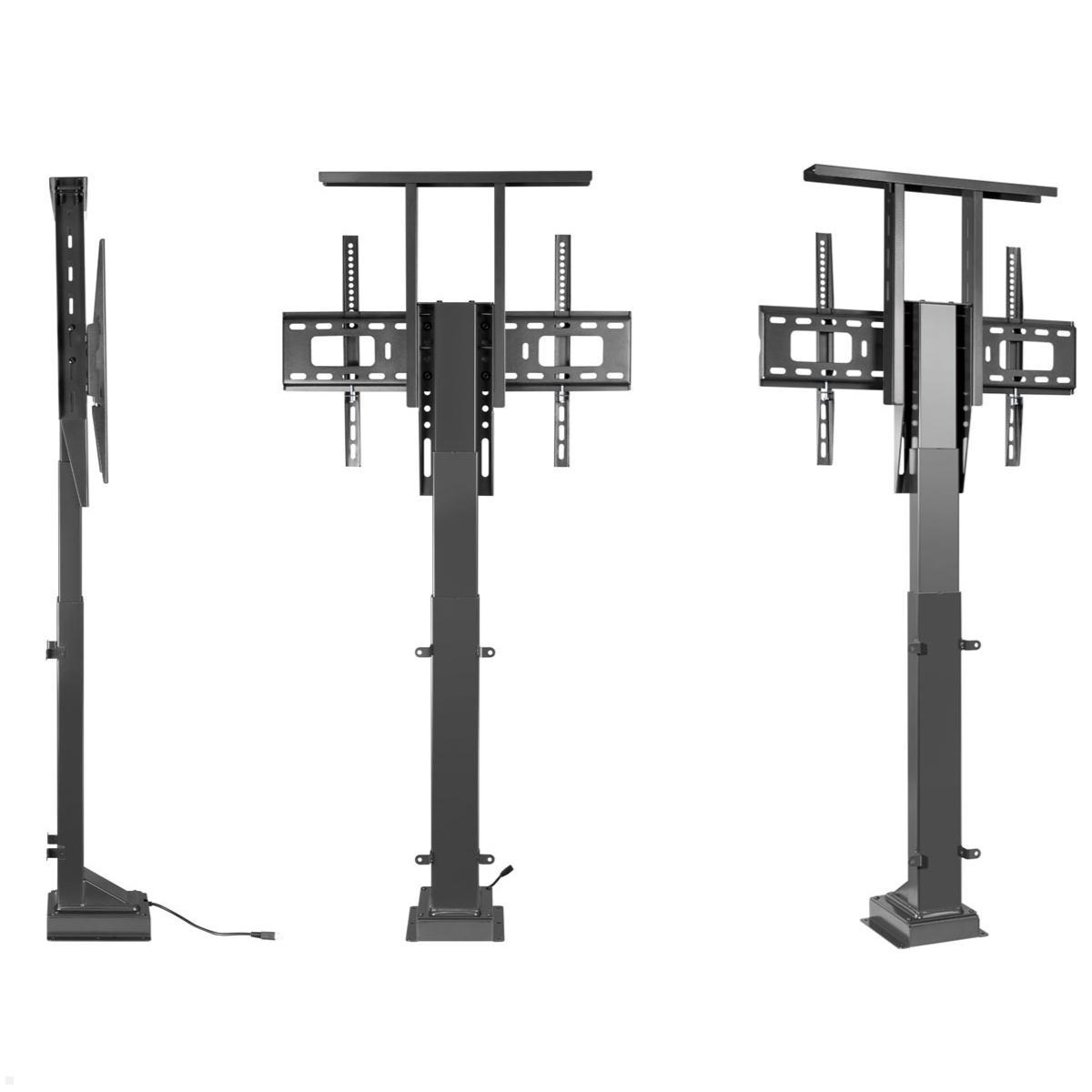

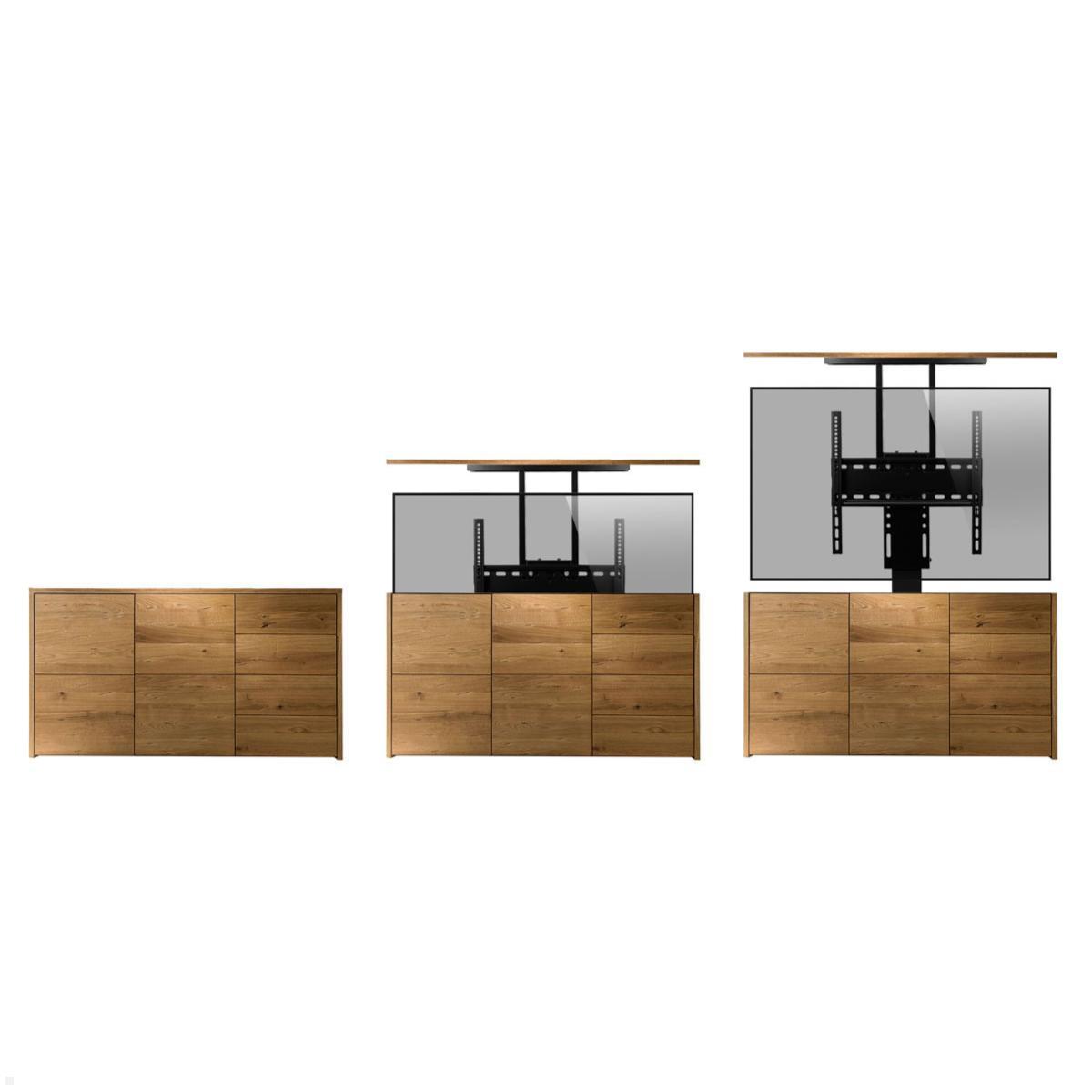

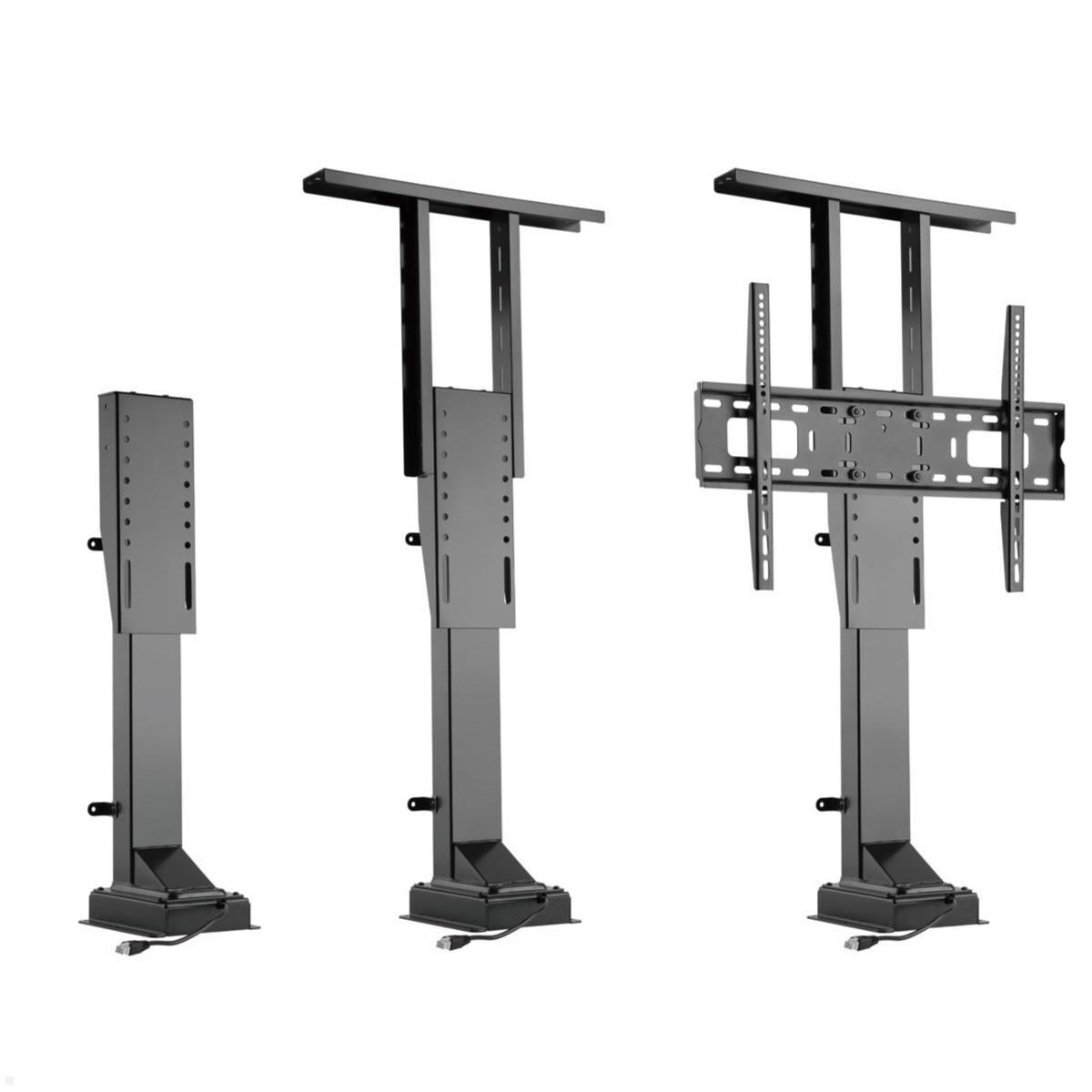

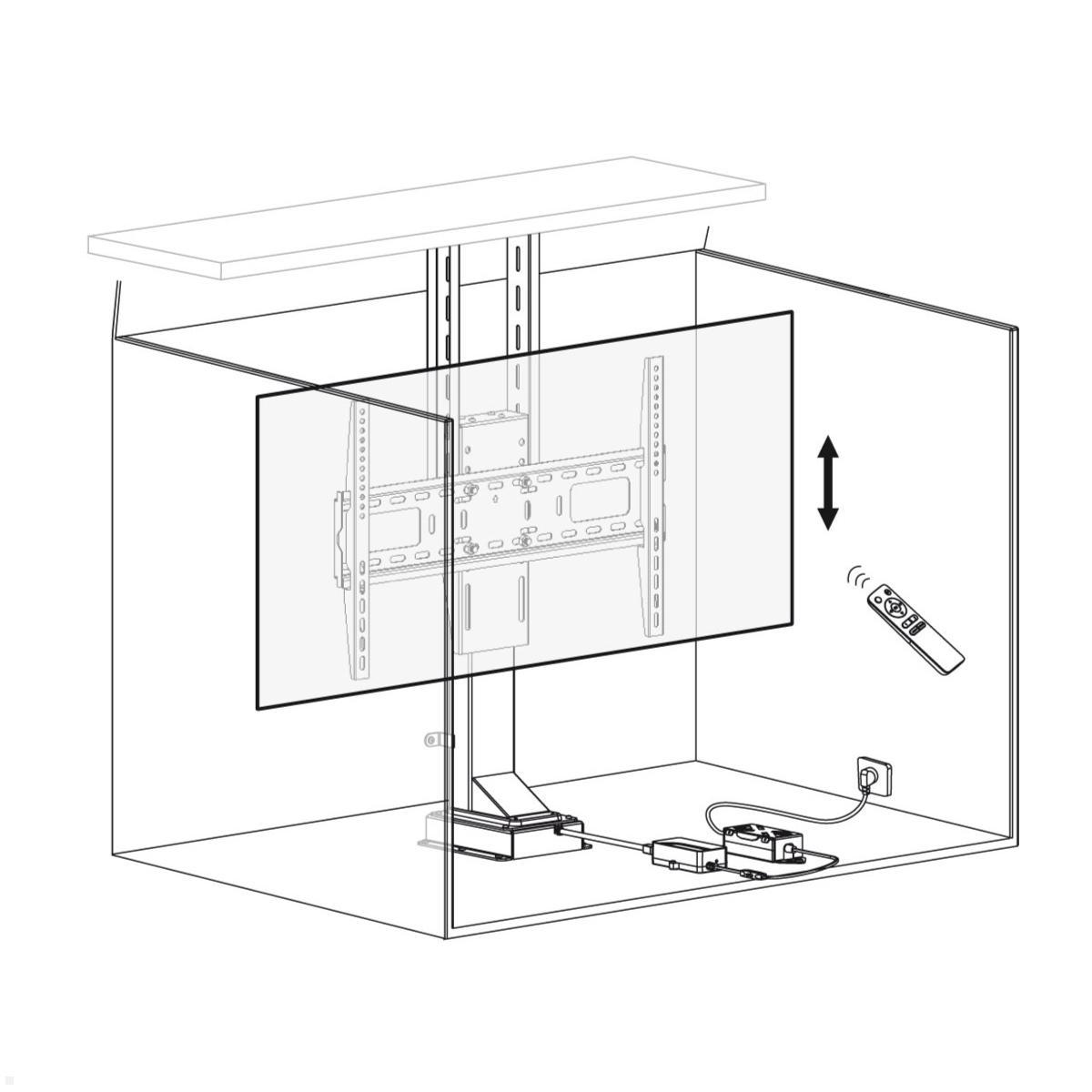

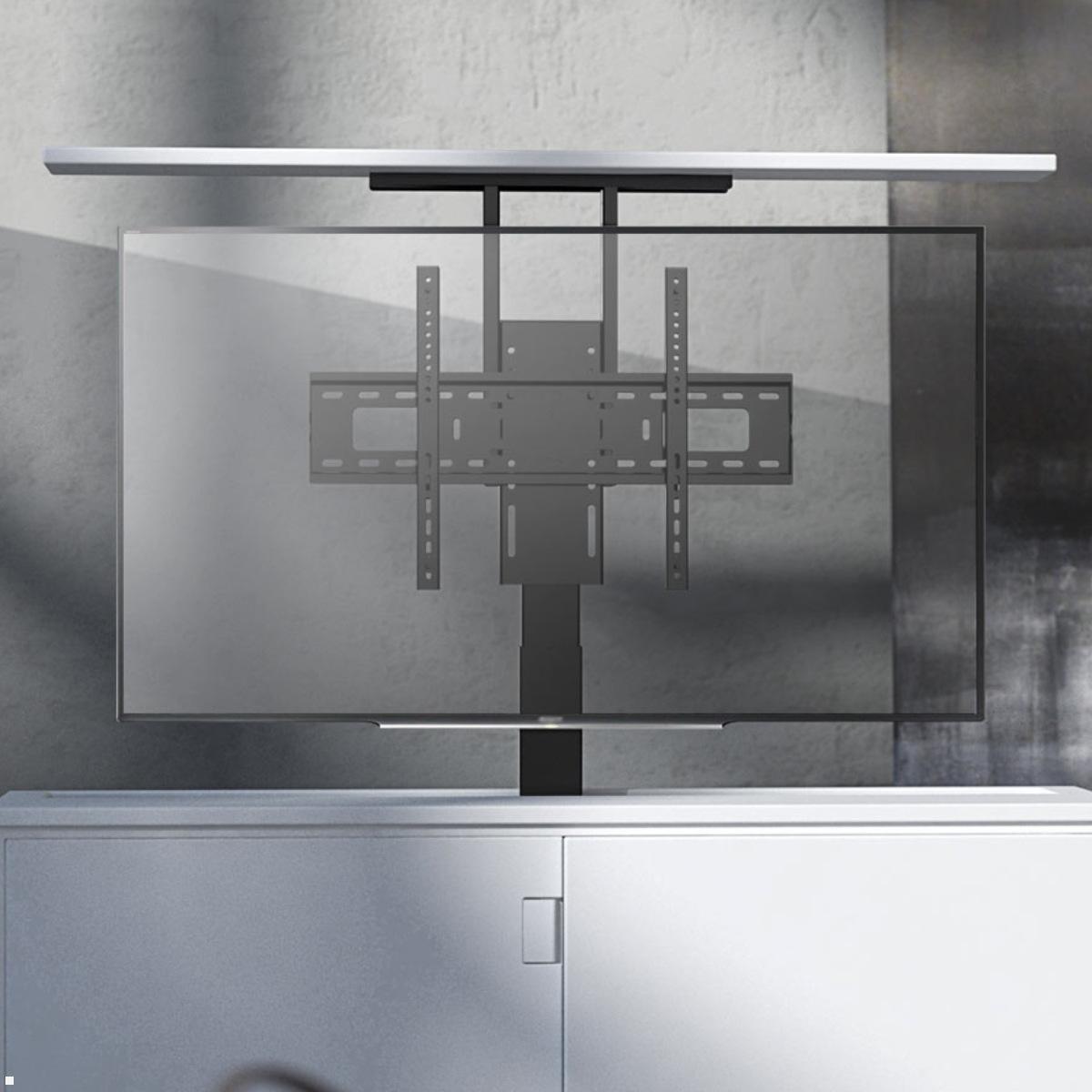

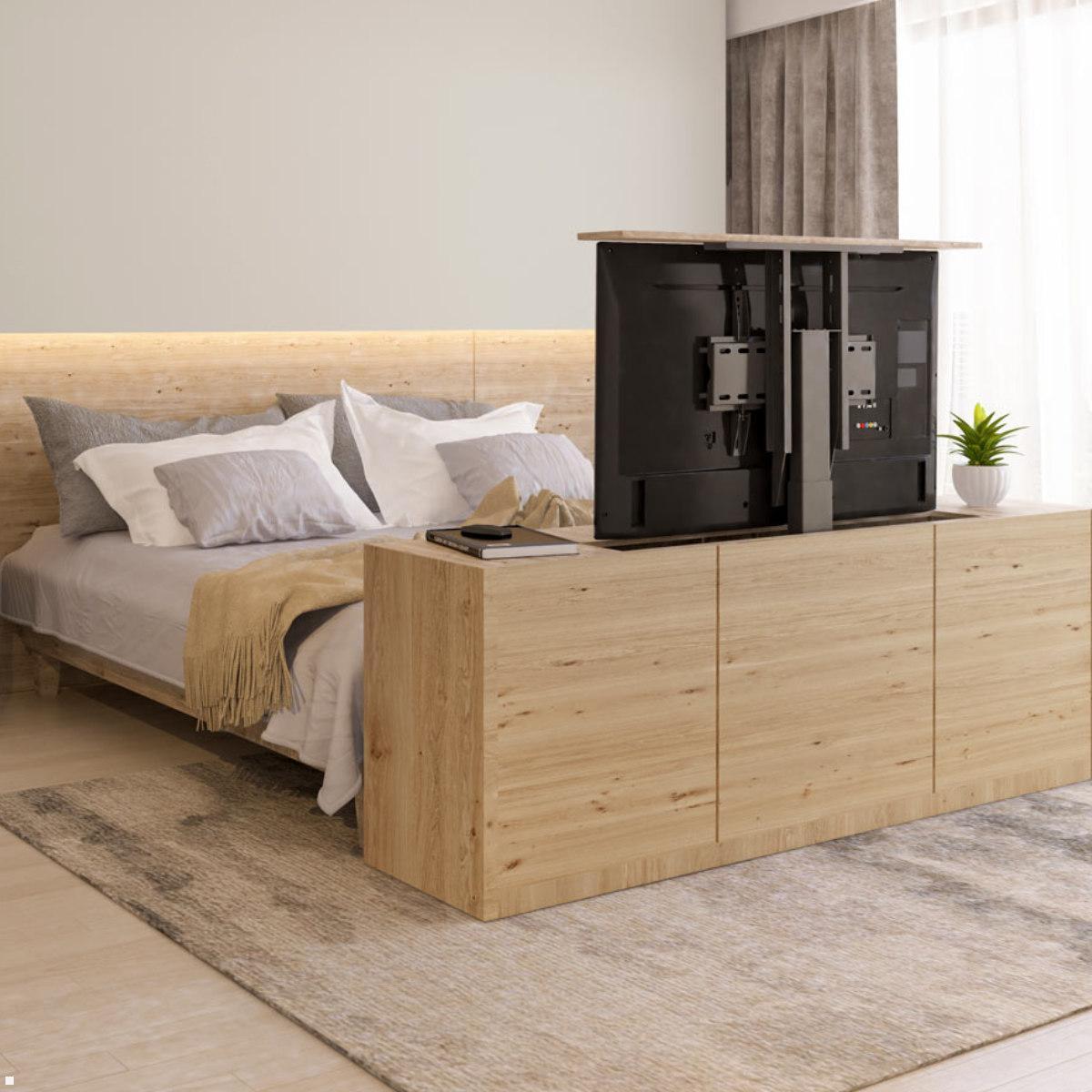

The motorized TV built-in lift MLS006B is for integration into furniture such as in a TV dresser or a cabinet. Monitors with a size of 37 to 65 inches and a weight of up to 50 kg can be attached to the MonLines TV Lift. With a remote control, the TV can be easily extended 890 mm from the piece of furniture. The remote control is equipped with a position memory function, which makes it possible to save favorite positions. Thanks to the anti-collision function, the TV Lift MLS006B stops automatically as soon as there is an obstacle in the way when extending.
Motorized height-adjustable monitor holder

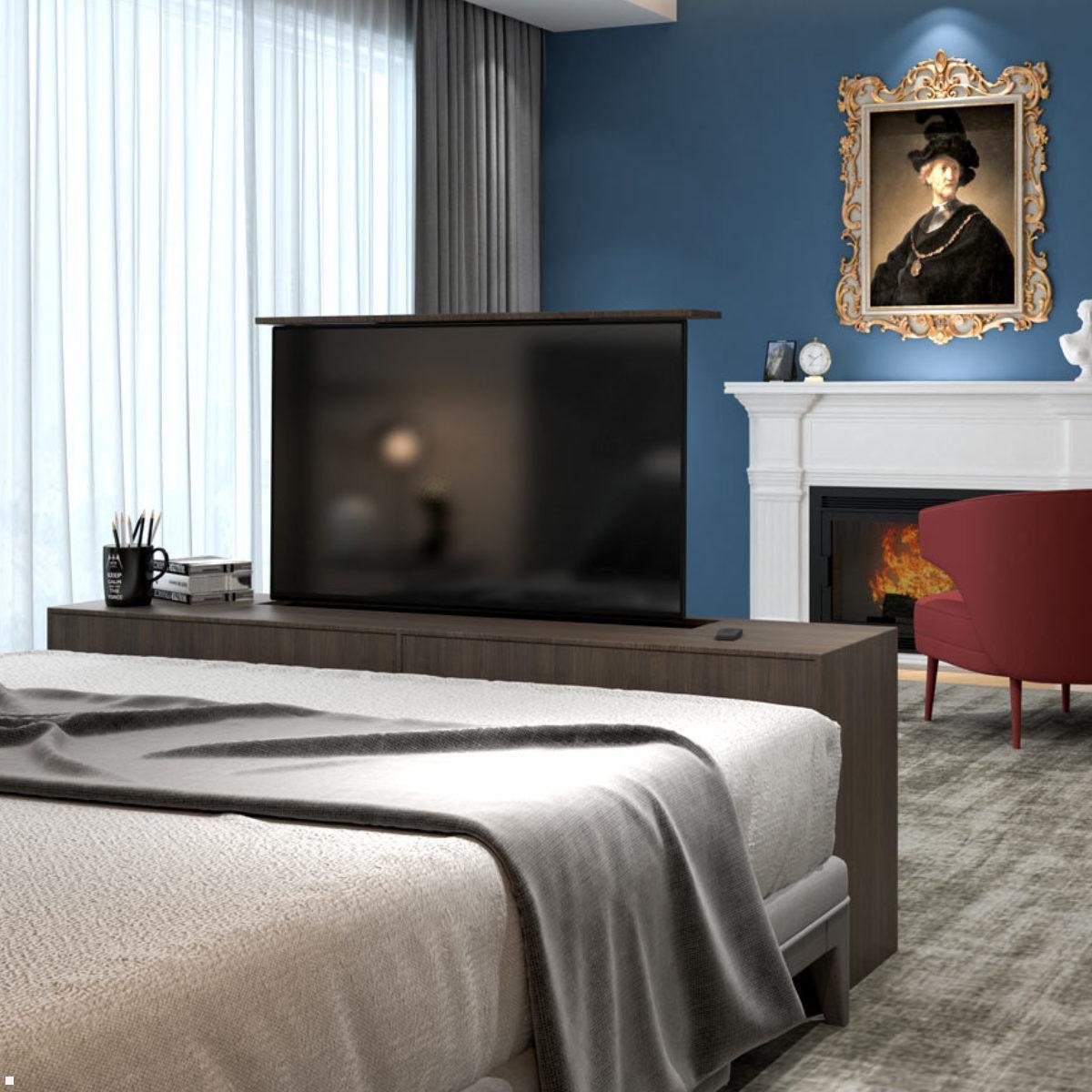

Ideal areas of application are in the living room, at trade fairs, in meeting rooms and conference rooms, in universities and schools in congress centers or conference centers. The monitor can be extended and controlled nobly and discreetly using the remote control. The monitor in the piece of furniture can play presentations for training purposes or for workshops.
Key features TV Lift 890 mm extendable
- Screen size: 37", 39", 40", 42", 43", 46", 47", 48", 49", 50", 52", 55", 58", 60", 65" (94 - 165 cm)
- Capacity: 50 kg

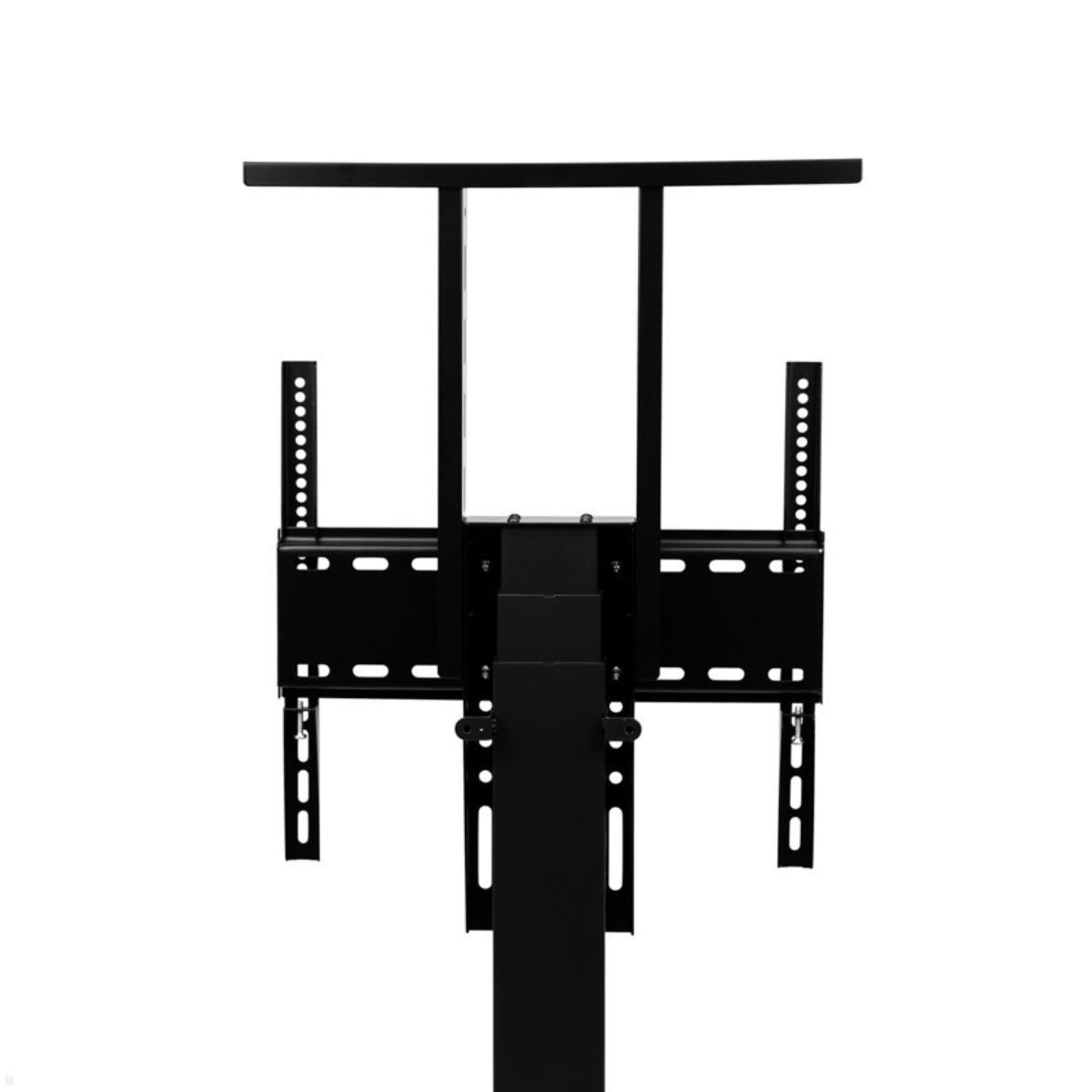

- VESA mount: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 mm
- Stroke height: ca. 900 mm

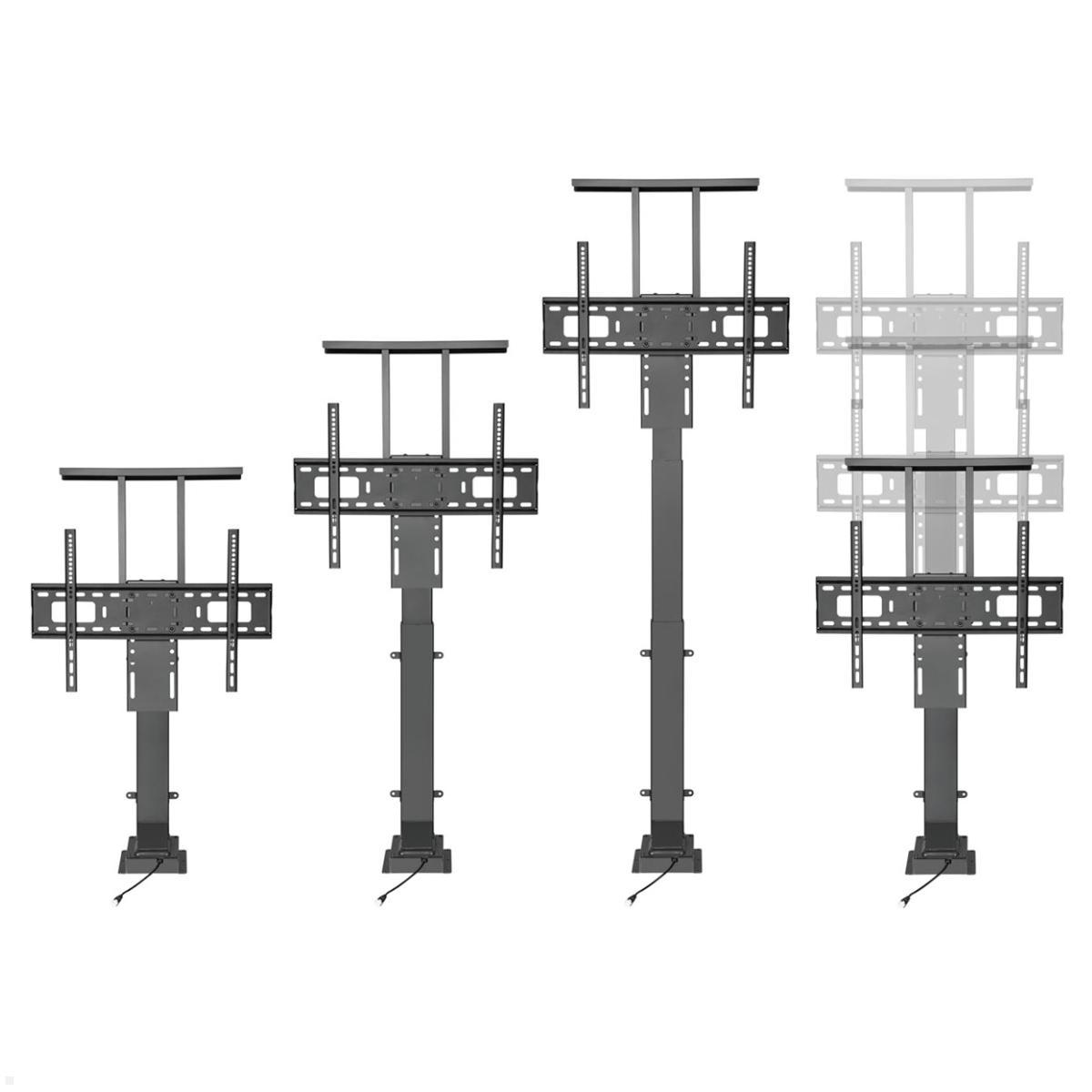

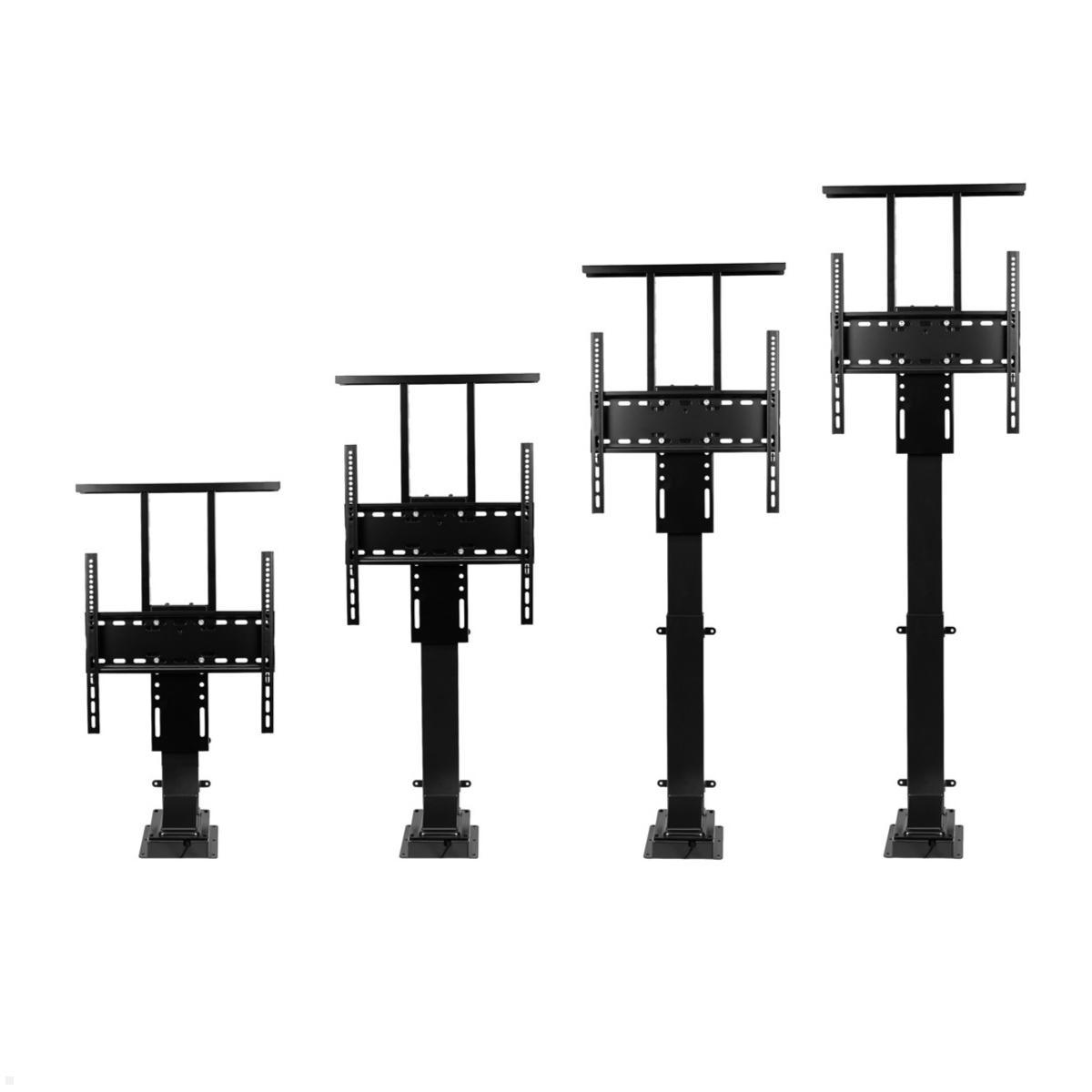

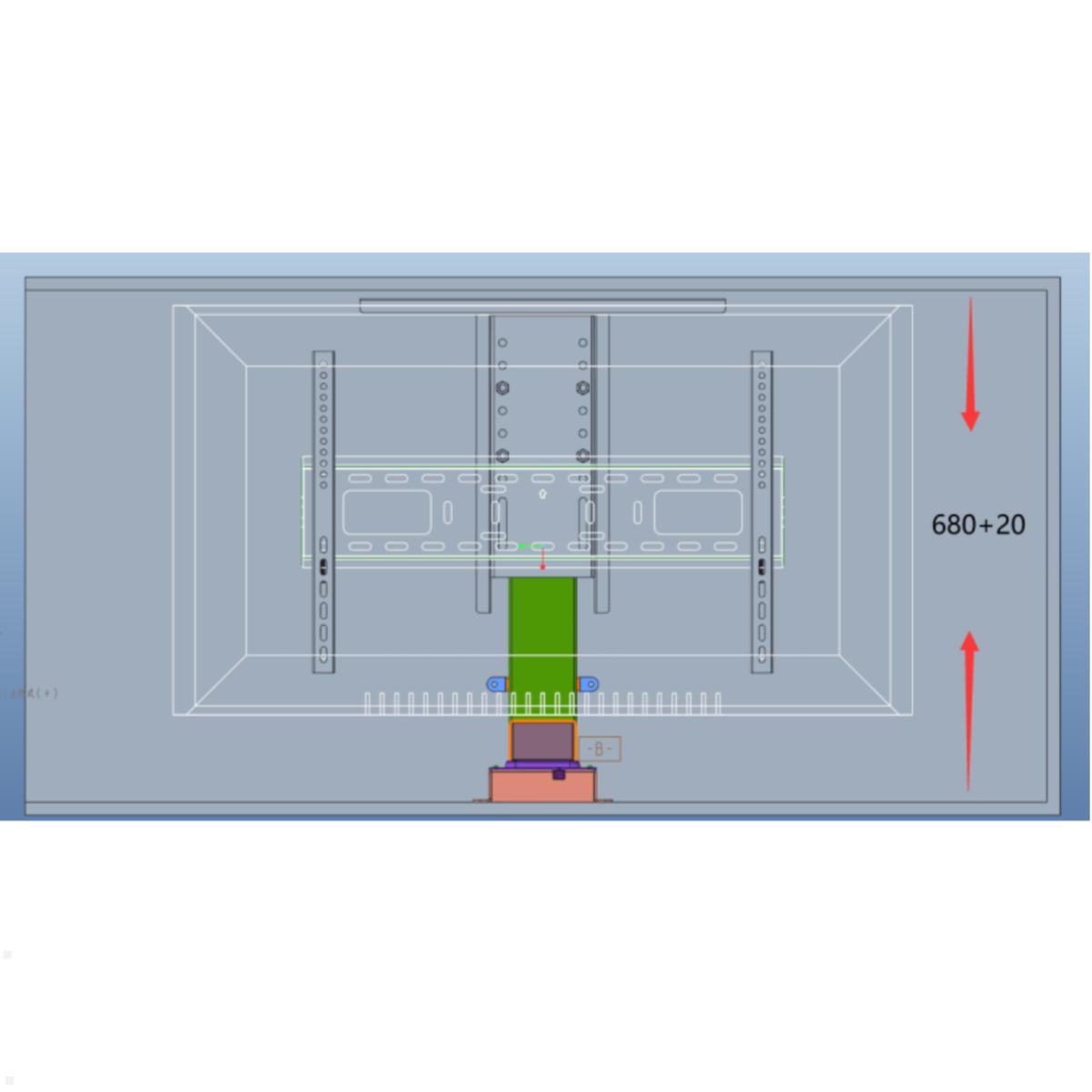

- Height Lift: 680 - 1580 mm

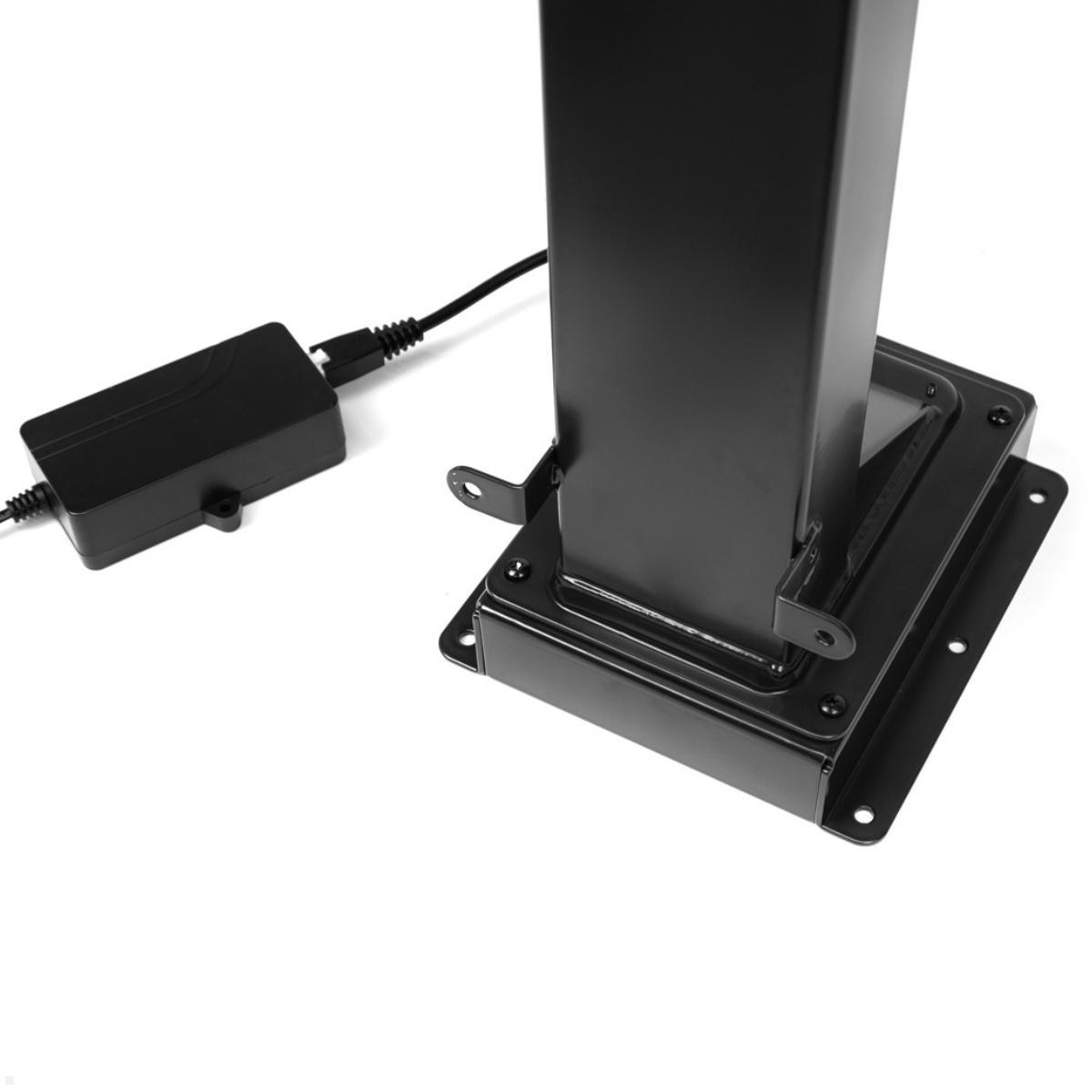

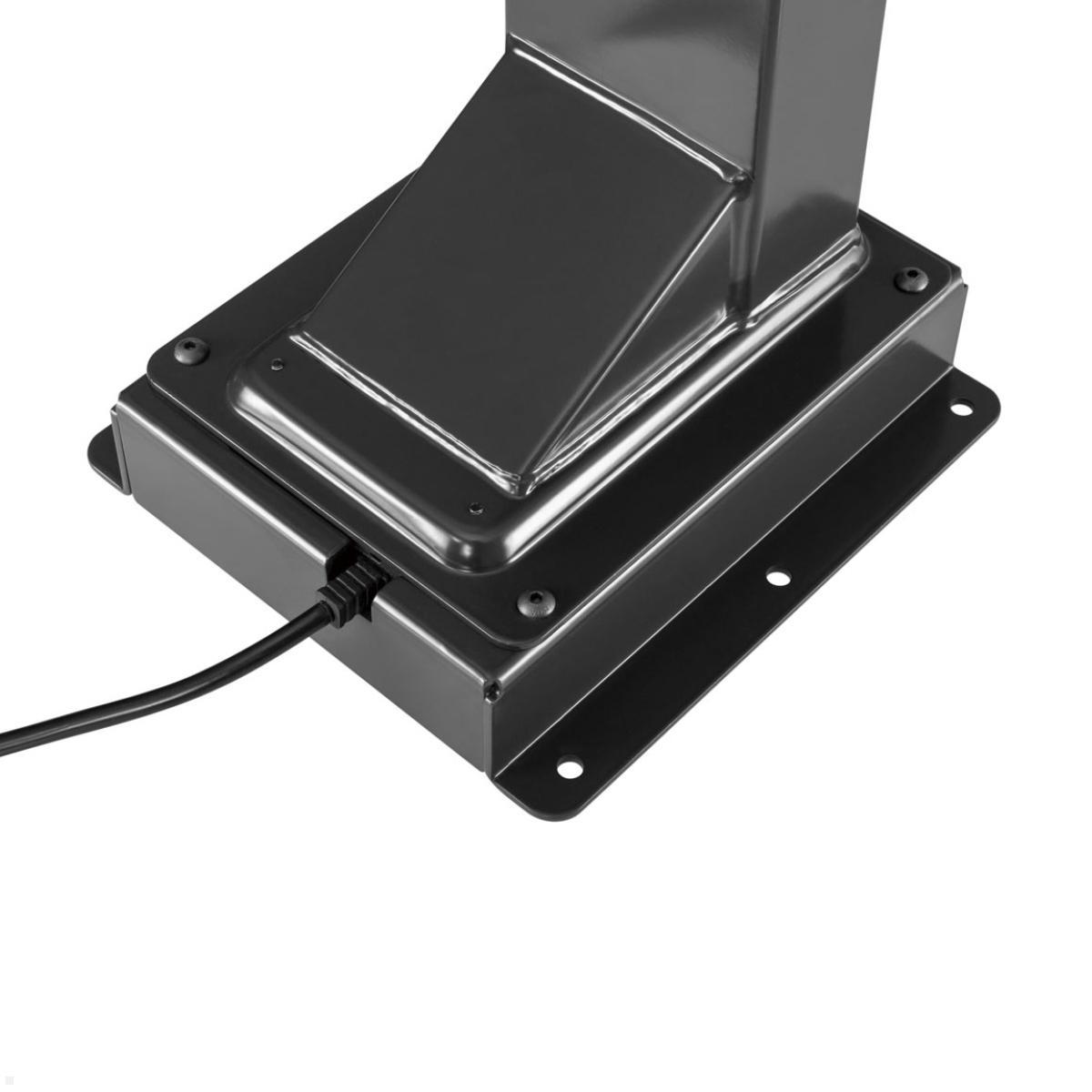

- Mounting plate dimensions: 191 x 205 mm
- Incl. Anti-collision function

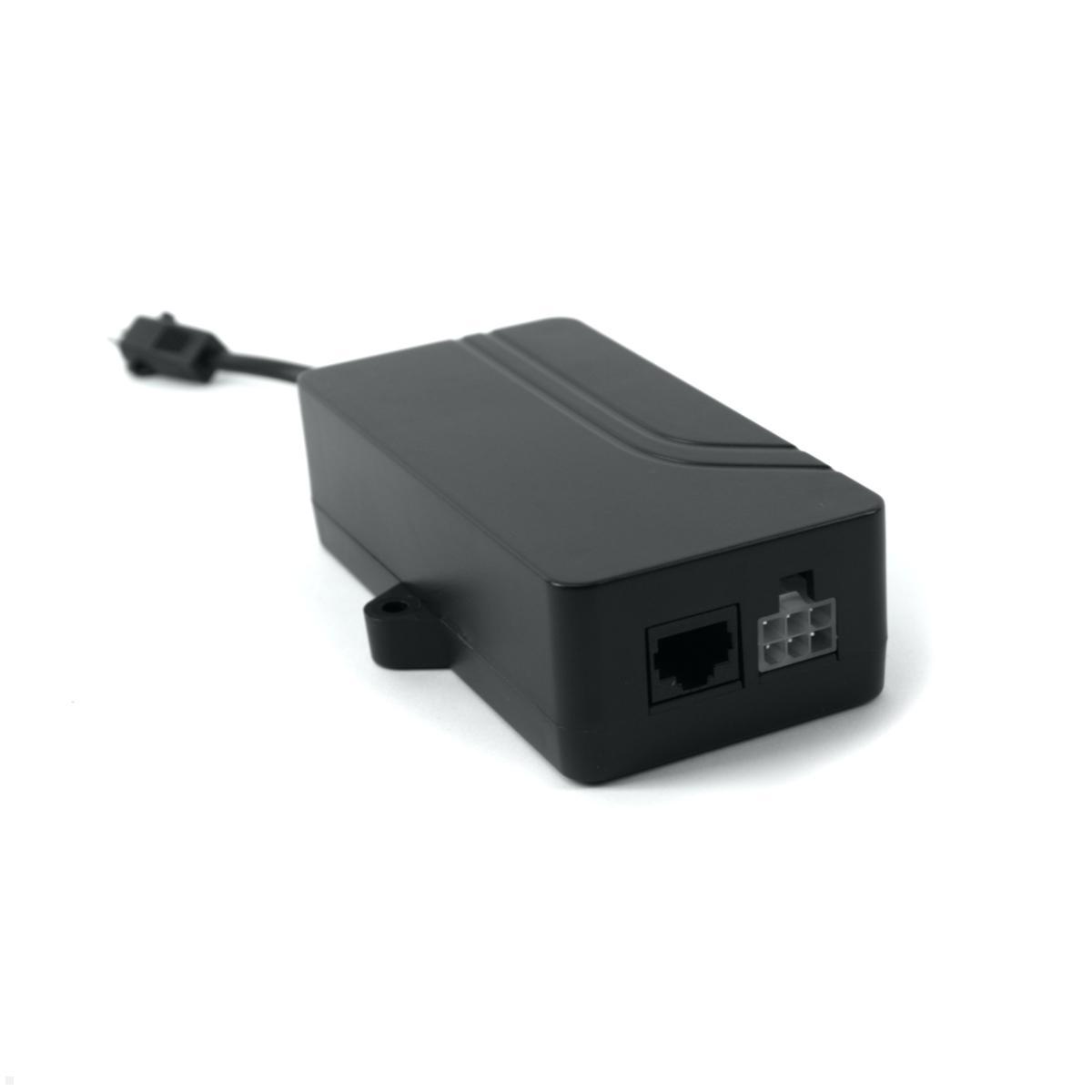

- Quality engine installed

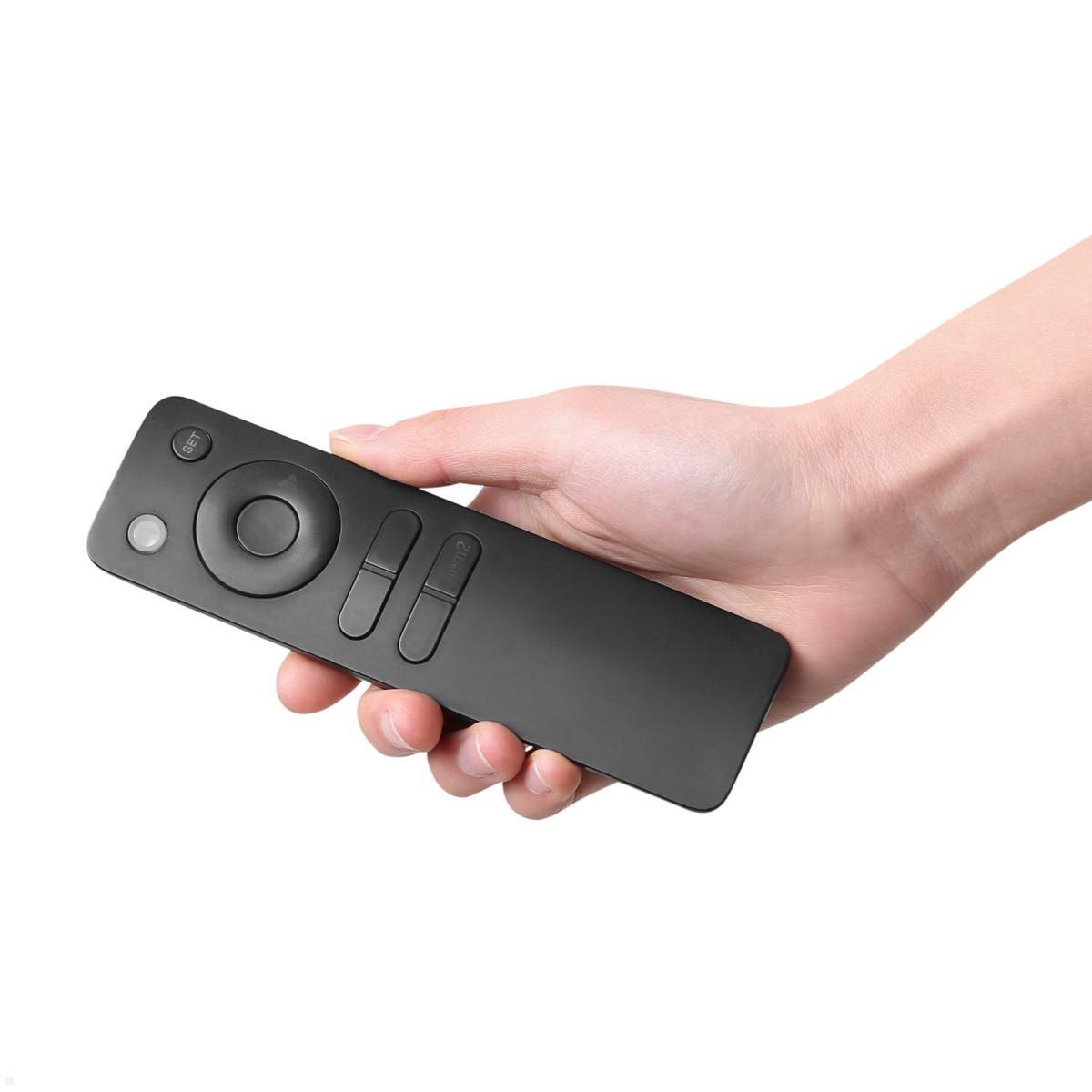

- Incl. Remote control with position memory function
- Remote control range: up to 9 meters

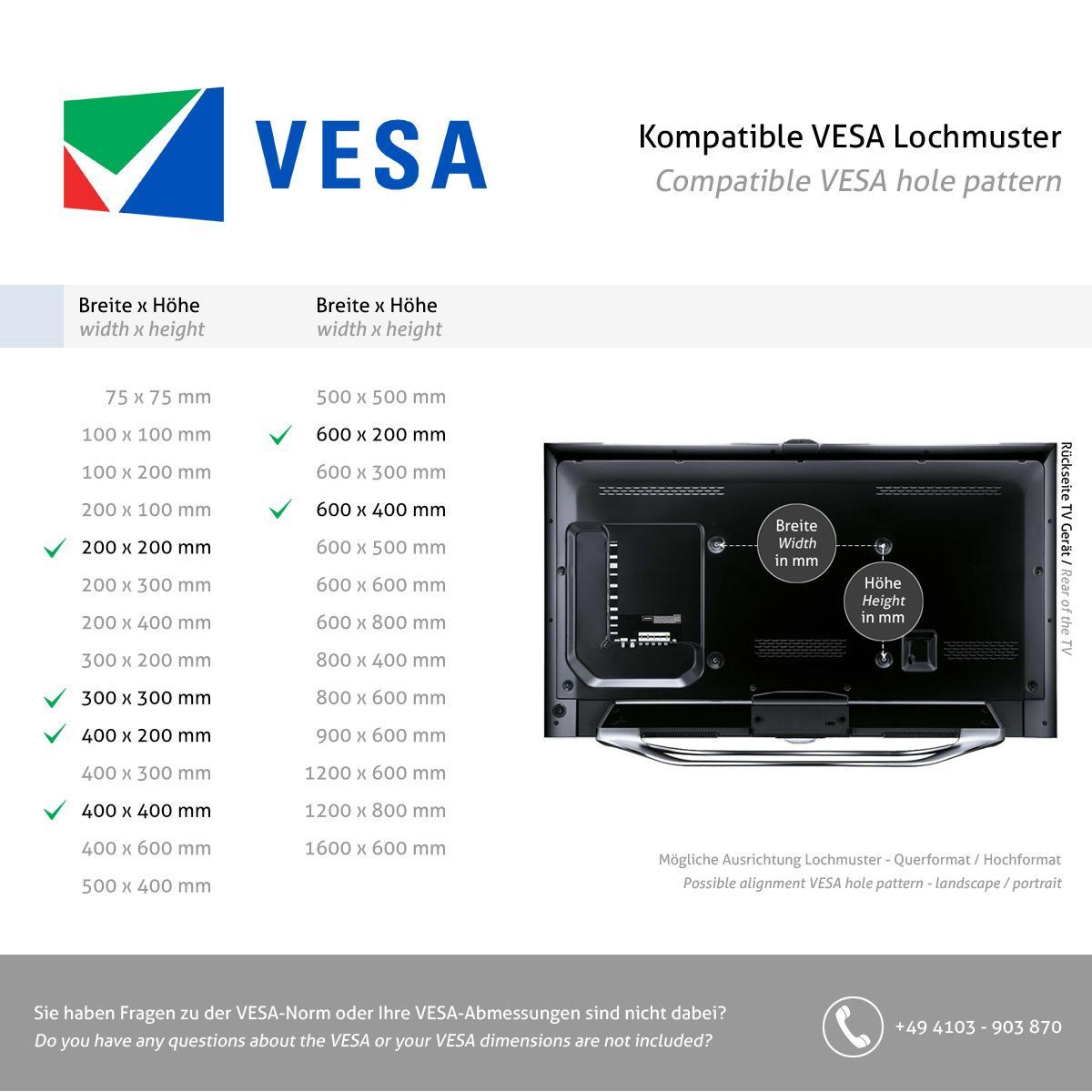

VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf] |
|---|---|

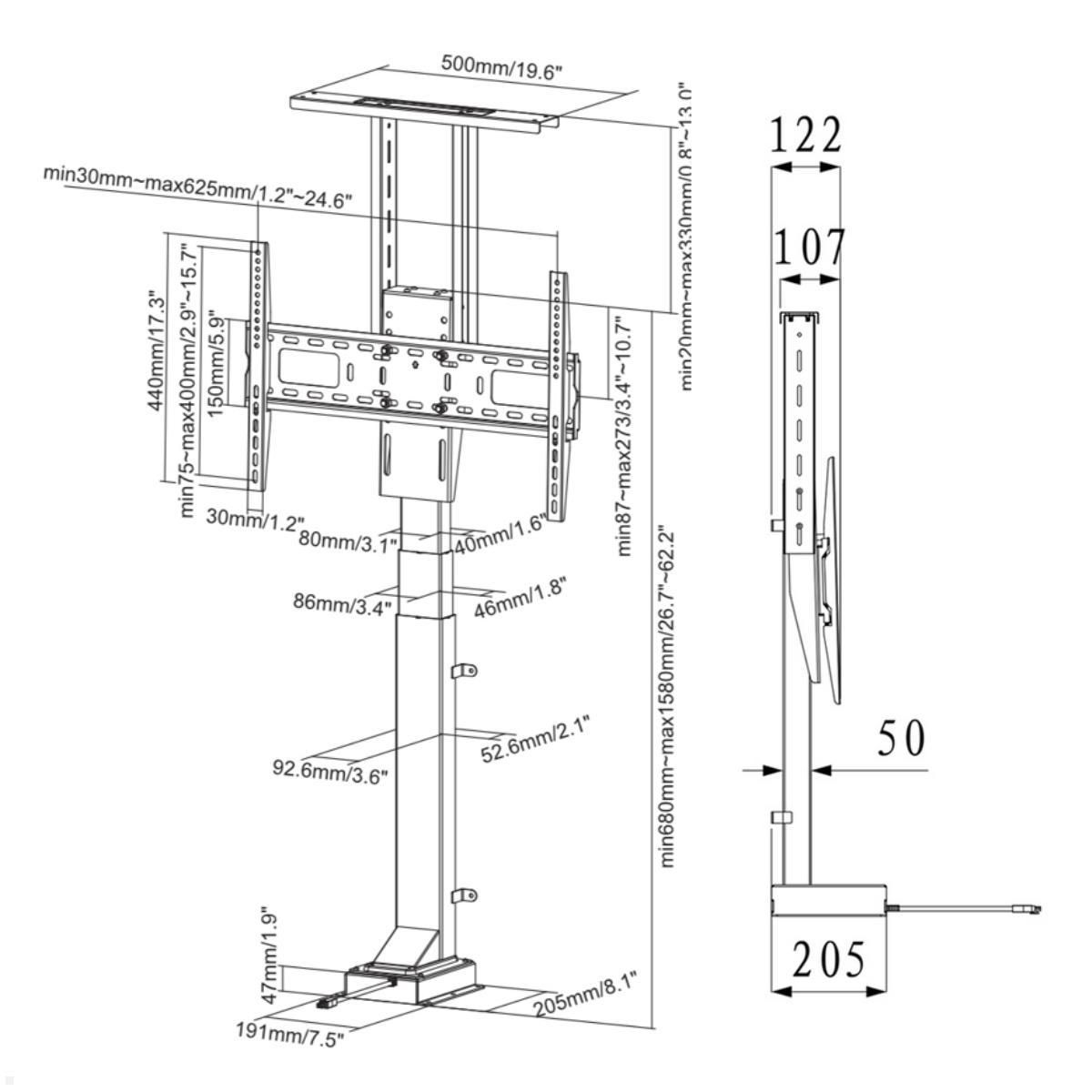

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 50 kg |
| Tilt: | - |
| Height range (mm): | 1050 |
| Swivelling range: | - |
| Screen size: | 37 - 80 " |
| Depth of the bracket: | 115 mm VESA mount to wall |
| VESA Standard: | 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 850 x 290 x 220 |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch, 52 inch, 55 inch, 58 inch, 60 inch, 63 inch, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch |
| Mobility: | Höhenverstellbar lift, electrical |
| Mounting type: | Lift |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | Nein |
| color: | Black |
| VESA (in mm): | VESA 200x200, VESA 300x200, VESA 300x300, VESA 400x200, VESA 400x300, VESA 400x400, VESA 600x200, VESA 600x400 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
