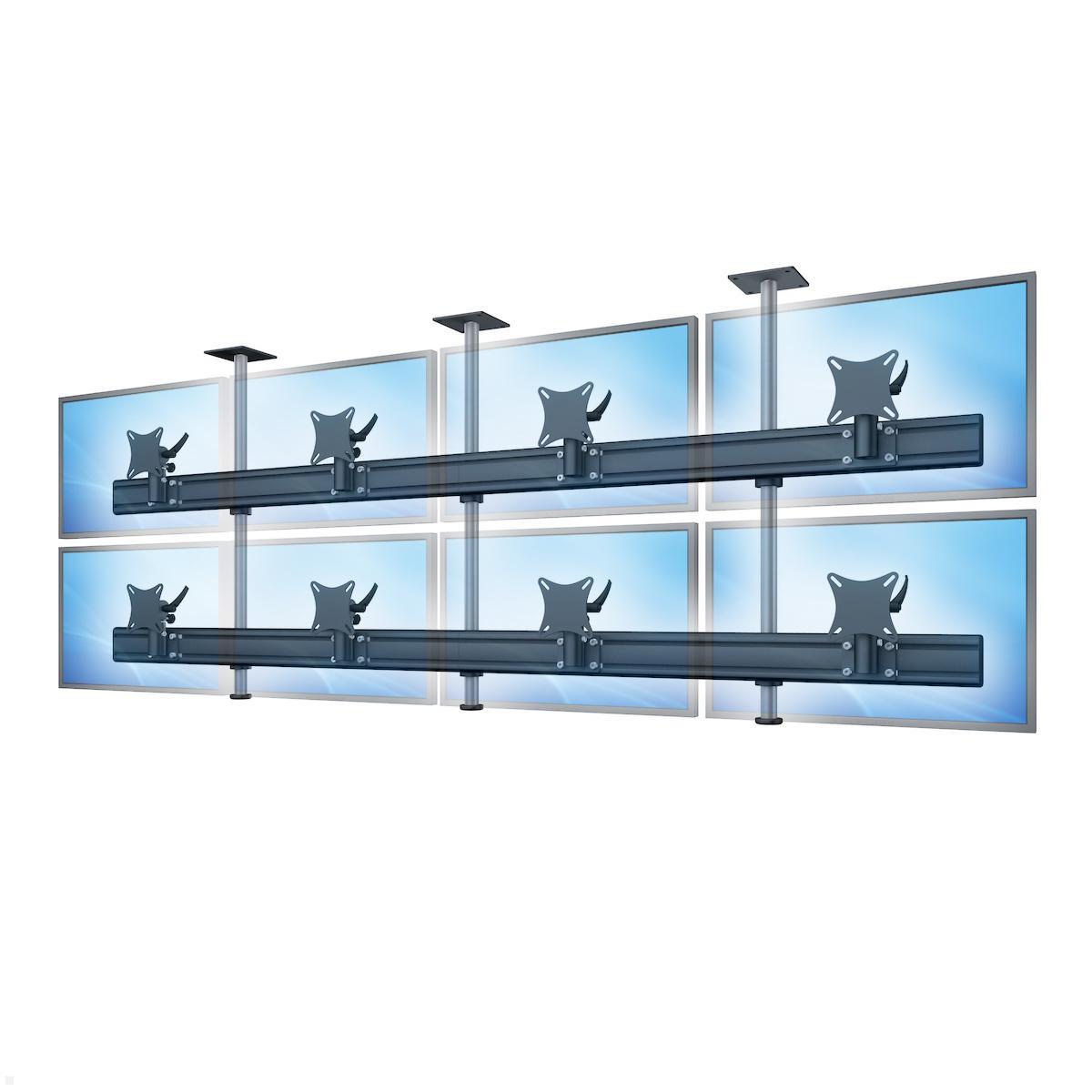

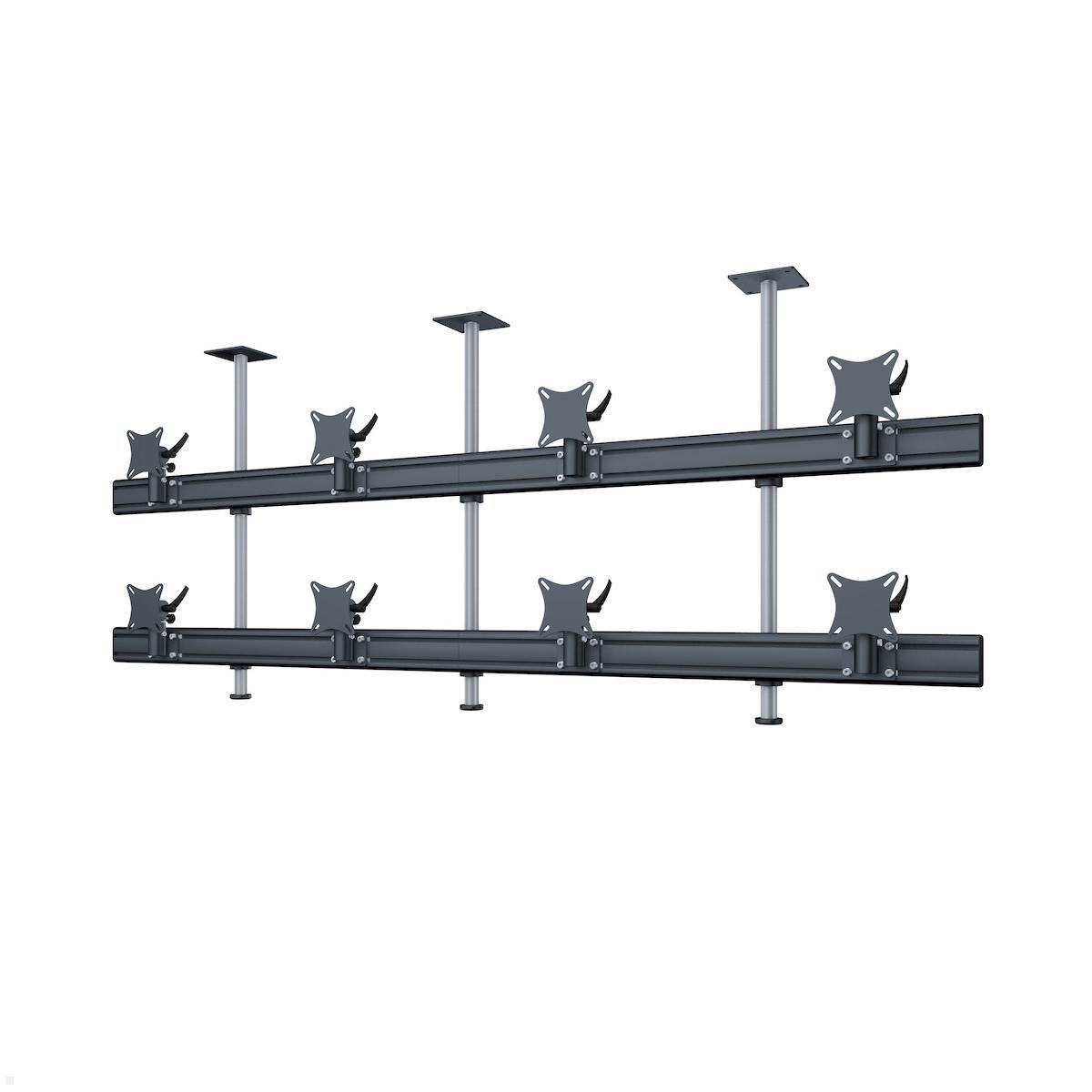

MonLines MDH222B Flat 4+4 monitor ceiling mount up to 32 inches, black
The MonLines MDH222B monitor ceiling mount Flat 4+4 in black enables a universal vertical suspension of a total of eight monitors on 2 levels with a load capacity of 15 kg per monitor mount.
Ceiling mount Flat 4+4 for 8 monitors in black
The MonLines ceiling mount Flat 4+4 system is a multi-monitor solution fo 8 monitors in black, where four displays can be continuously adjusted horizontally and vertically in two levels. The stable metal construction of the holder with high-quality powder coating is available in different colors and mounting options. The flat system for the straight arrangement of the monitors offers investment security through its modular expandability and a load capacity of up to 15 kg per monitor. Special sizes are available on request.
Key features MonLines monitor ceiling mount Flat 4+4
- Mounting: ceiling mount
- Colour: black RAL 9011
- Load capacity: 15 kg per monitor holder

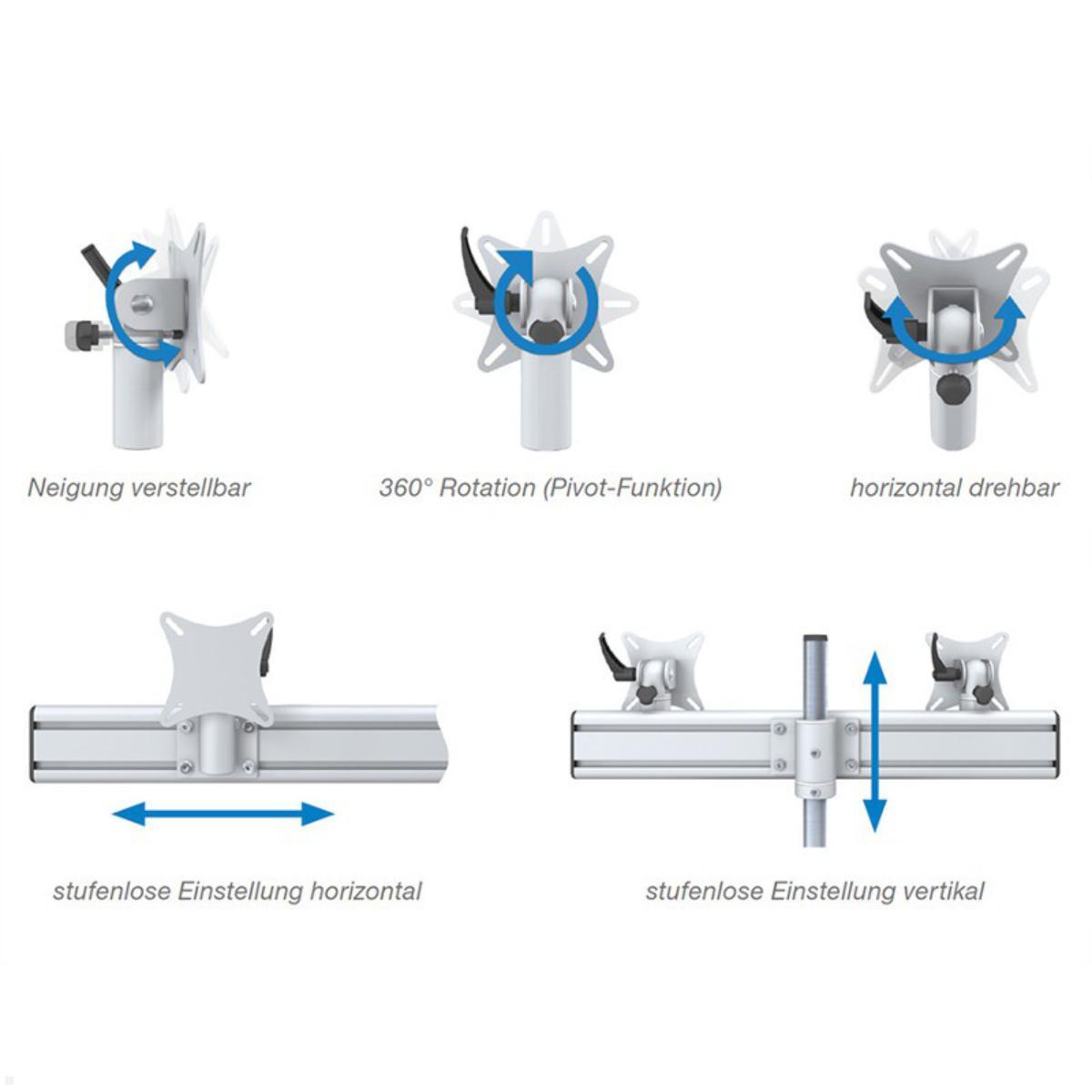

- Infinitely variable height adjustment of the traverses
- Infinitely variable width adjustment of the monitors on the traverses
Scope of delivery
- 3 x ceiling panel 130 x 130 x 5 mm
- 3 x column 1,000 mm with fuse M10
- 6 x Column holder with adjusting ring
- 2 x traverse (straight) 2,200 mm - divided

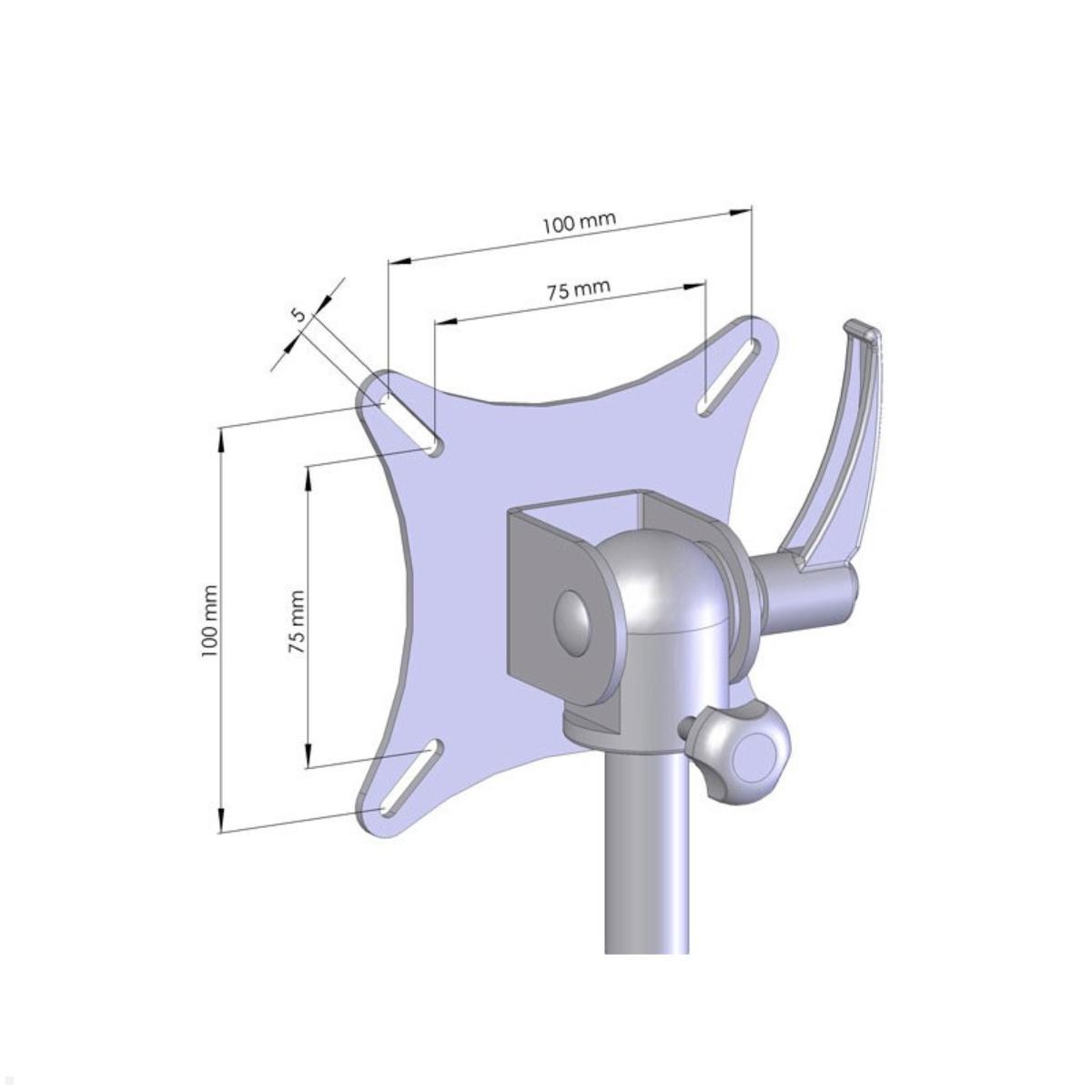

- 8 x VESA 75/100 mm with VESA slide
Optional

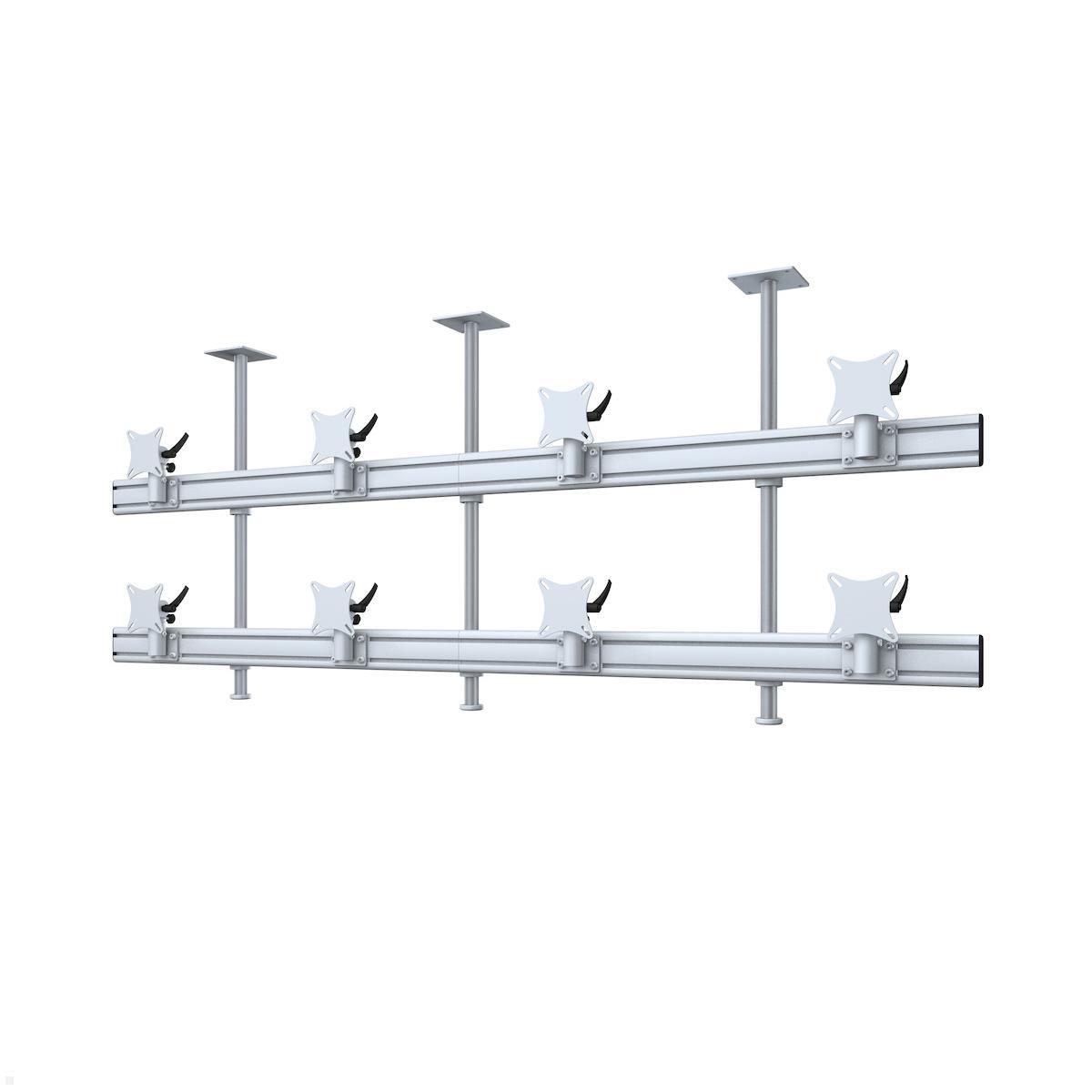

- Special sizes and special colours
You can get the bracket in any RAL colour. Please select "color of your choice" and enter the RAL color in the comment field during the ordering process! - Individual production according to customer requirements
- One-off and series production
VESA Standard - Learn more about the VESA standard for monitor mounts!

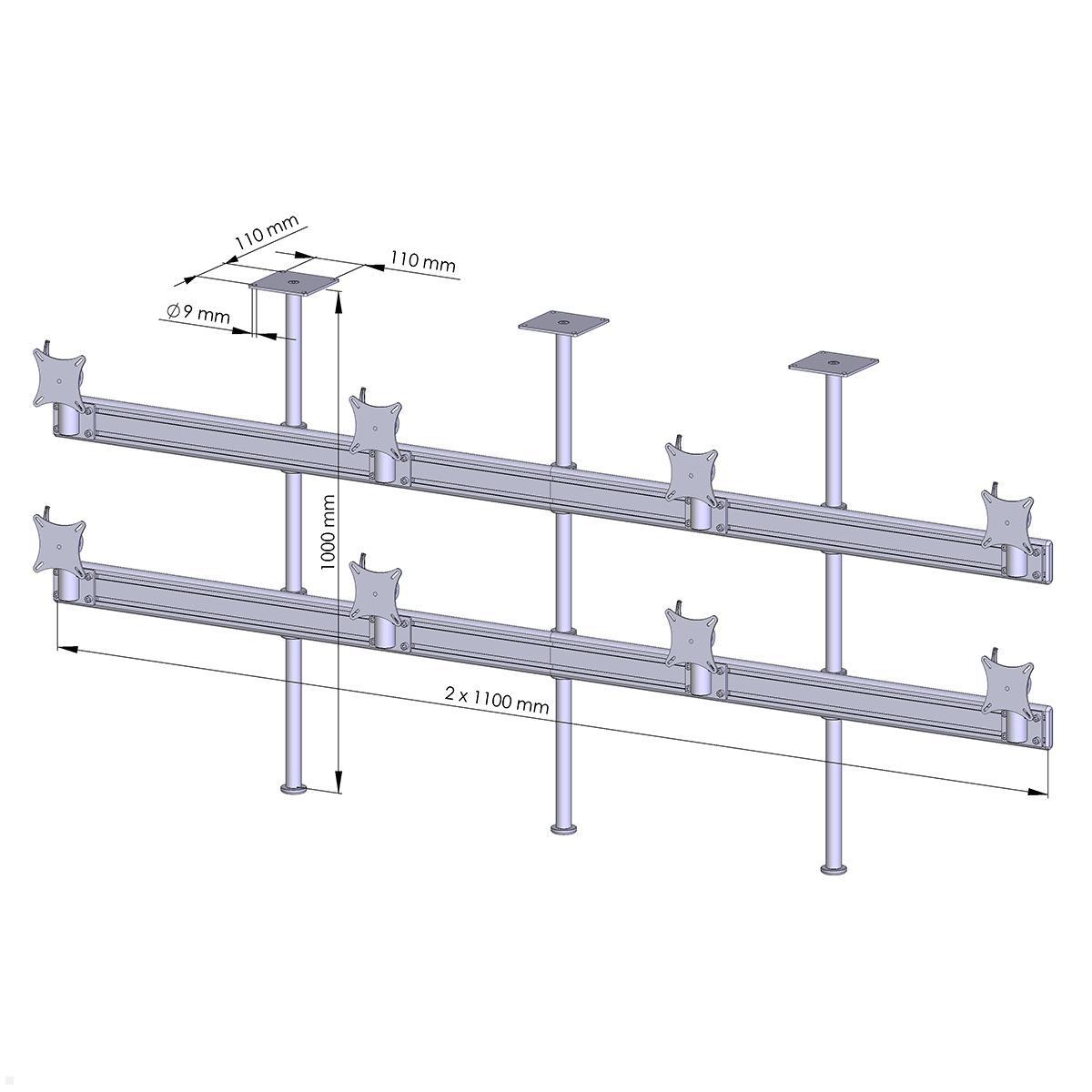

| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf - German] |
| Capacity: | 15 kg per monitor holder |
| Tilt: | 25° nach oben / 9° nach unten |
| Screen size: | max. 32 " |
| Material: | metal, aluminum |
| Special features: | Neigung arretierbar durch Feststellschraube |

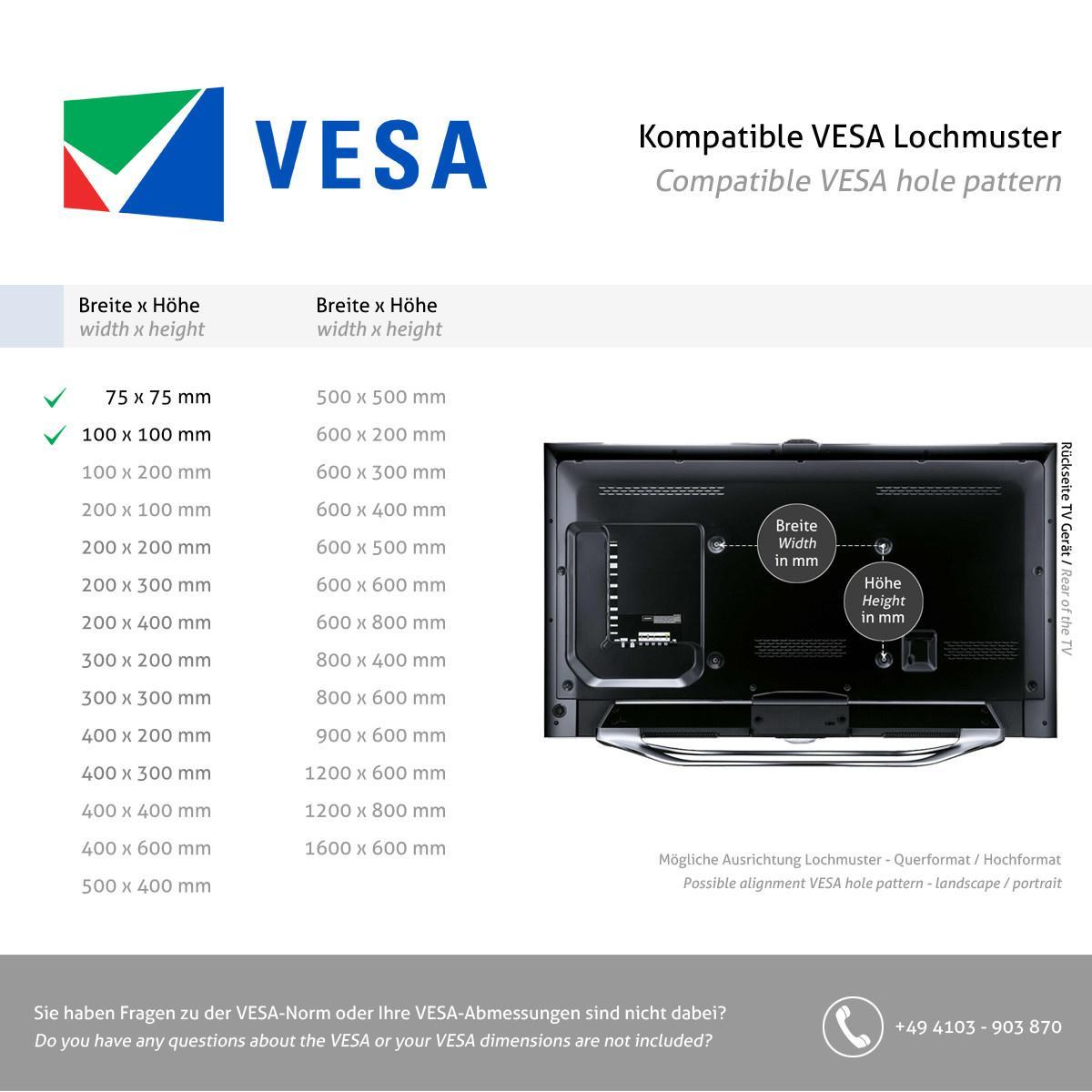

| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 3 x ceiling plate 130 x 130 x 5 mm, 3 x column 1,000 mm with M10 fuse, 6 x column mount with adjusting ring, 2 x traverse (straight) 2,200 mm - divided, 8 x VESA 75/100 mm with VESA slide |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Ceiling distance in m: | < 2m |
| Inch size: | 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | Solution for 8 |
| Theft-proof: | No |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
