EVOline Port CUISINE retractable power strip
The high-quality aluminum housing of EVOline Port CUISINE triple power socket in silver can be raised with the press of the finger and lowered, flush with the working surface, even while in use.
EVOline Port CUISINE 3-fold retractable power strip
EVOline Port Cuisine, the vertically or horizontally retractable power strip with three 60º sockets, is the perfect upgrade for kitchens of the highest standards. The high-quality aluminum housing can be raised with the press of the finger and lowered, flush with the working surface, even while in use. The see-saw cover allows room for the cords. All the plugs accessible – but not in the way.
Key features EVOline Port CUISINE 3x power socket
- Aluminium housing, silver anodised
- Rocking cover made of silver lacquered plastic
- Collar made of grey plastic
- For work surface with thickness up to 50 mm
- Mounting hole ø 102 mm
- 3x sockets, VDE-compliant, 60°, 16 A, contact-protected
- Fixed supply cable 2.5 m with wire end ferrules
- Plug supplied unattached
| Product sheet: |  [pdf, 360 kb] |
|---|---|

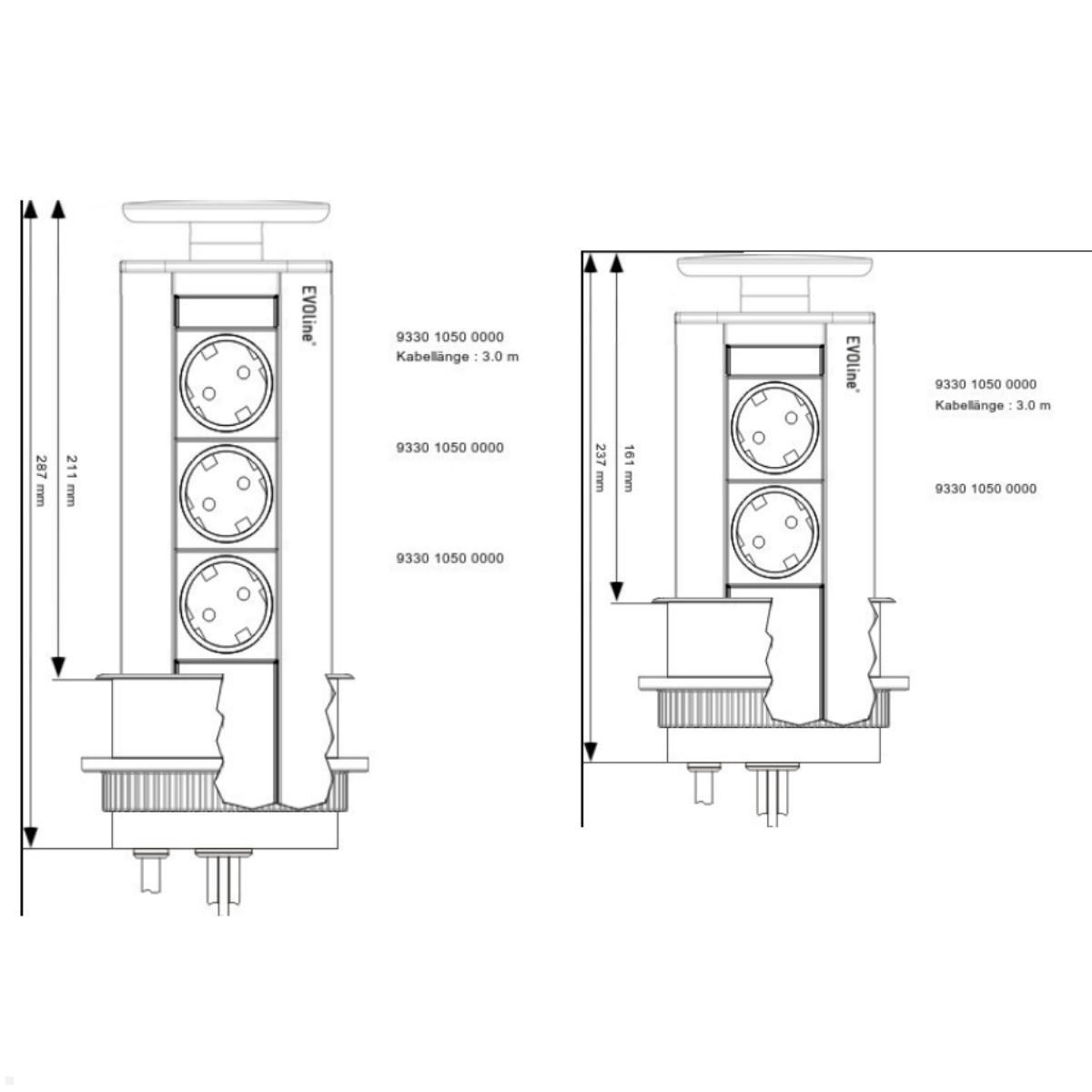

| Technical drawing: | [pdf, 157 kb] |
| Installation manual: | [pdf, 566 kb] |
| Suitable for: | For countertops with max. 50 mm thickness |
| Accessories: | EVOline Port Nightlight (available in blue, red, green or white) |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Silver/Anthracite |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
