EVOline One with double USB charger in white
EVOline One USB socket is space-saving and suitable for installation in a table, cabinet, other furniture and kitchen. The decorative ring and the housing of the USB charging station are white. The USB built-in socket has a touch protection and has a 3m long connection cable with protective contact angle plug.
Built-in double USB charging station

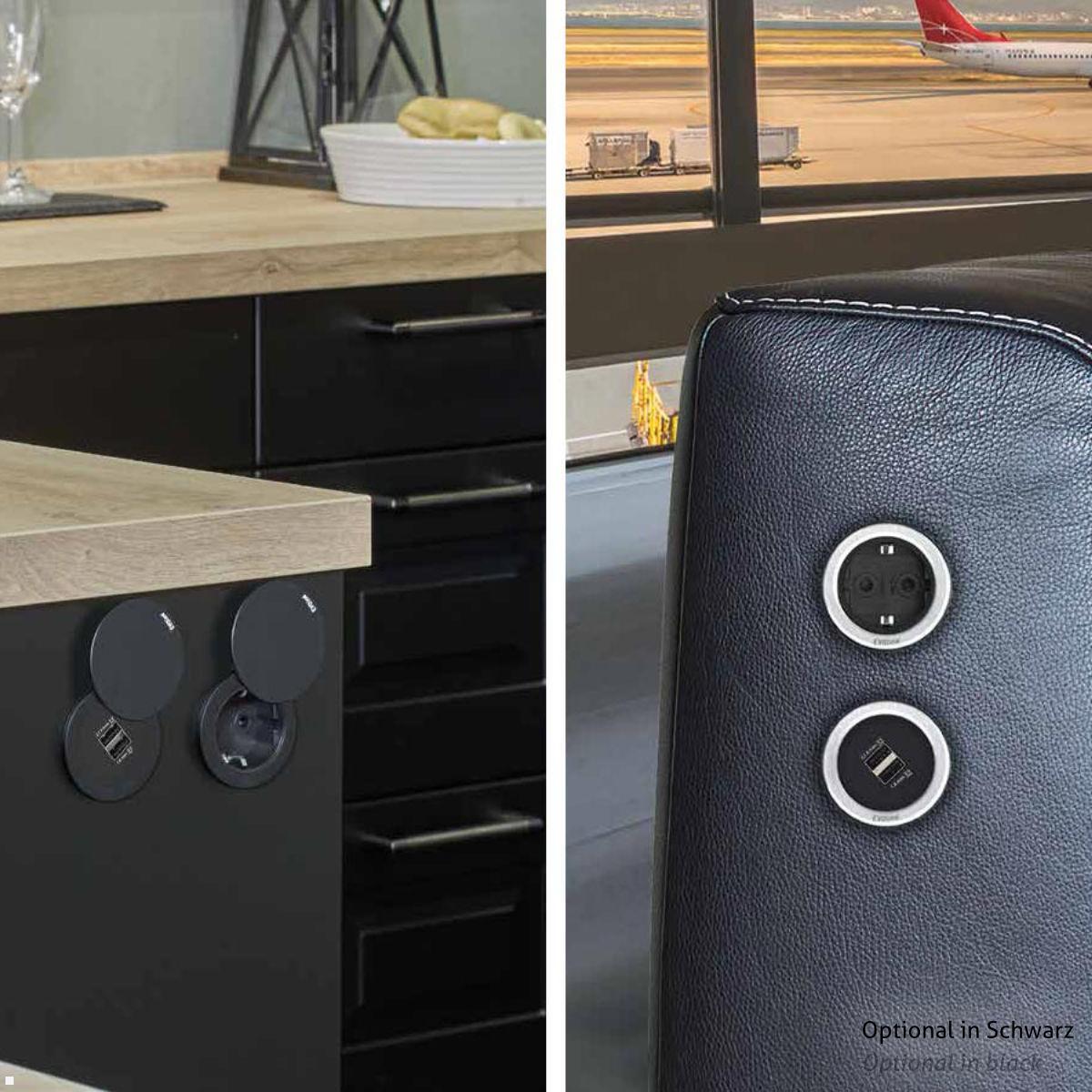

The EVOline One recessed USB port in white can be installed flush to the surface up to 4 mm and thus integrates into the environment. Devices with a USB type A connector can be charged at the EVOline USB input. The EVOline One built-in double USB charging station brings power wherever it is needed. Whether in the conference room, kitchen or living room, the high-quality double USB charger is space-saving and discreet.
Simple and variable installation

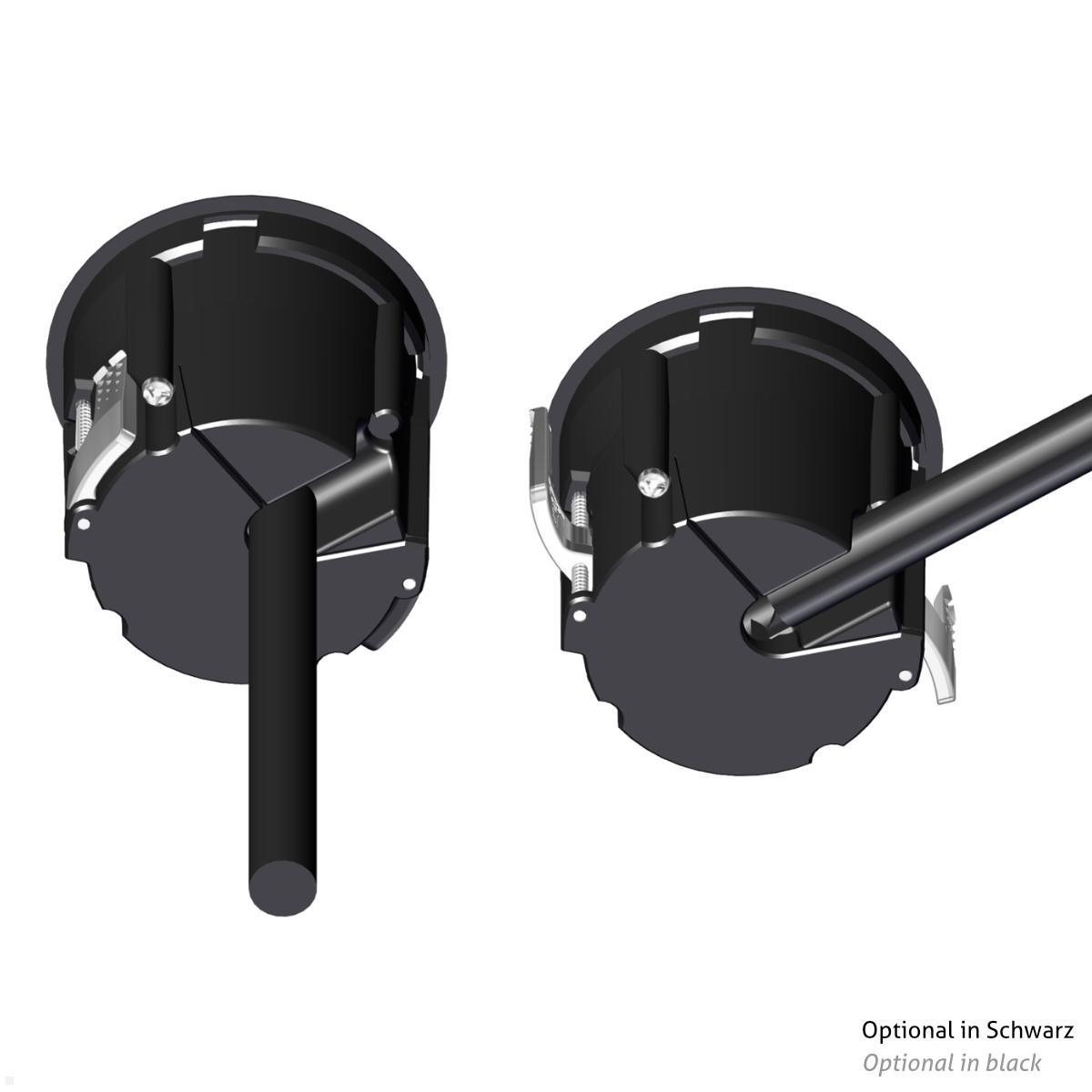

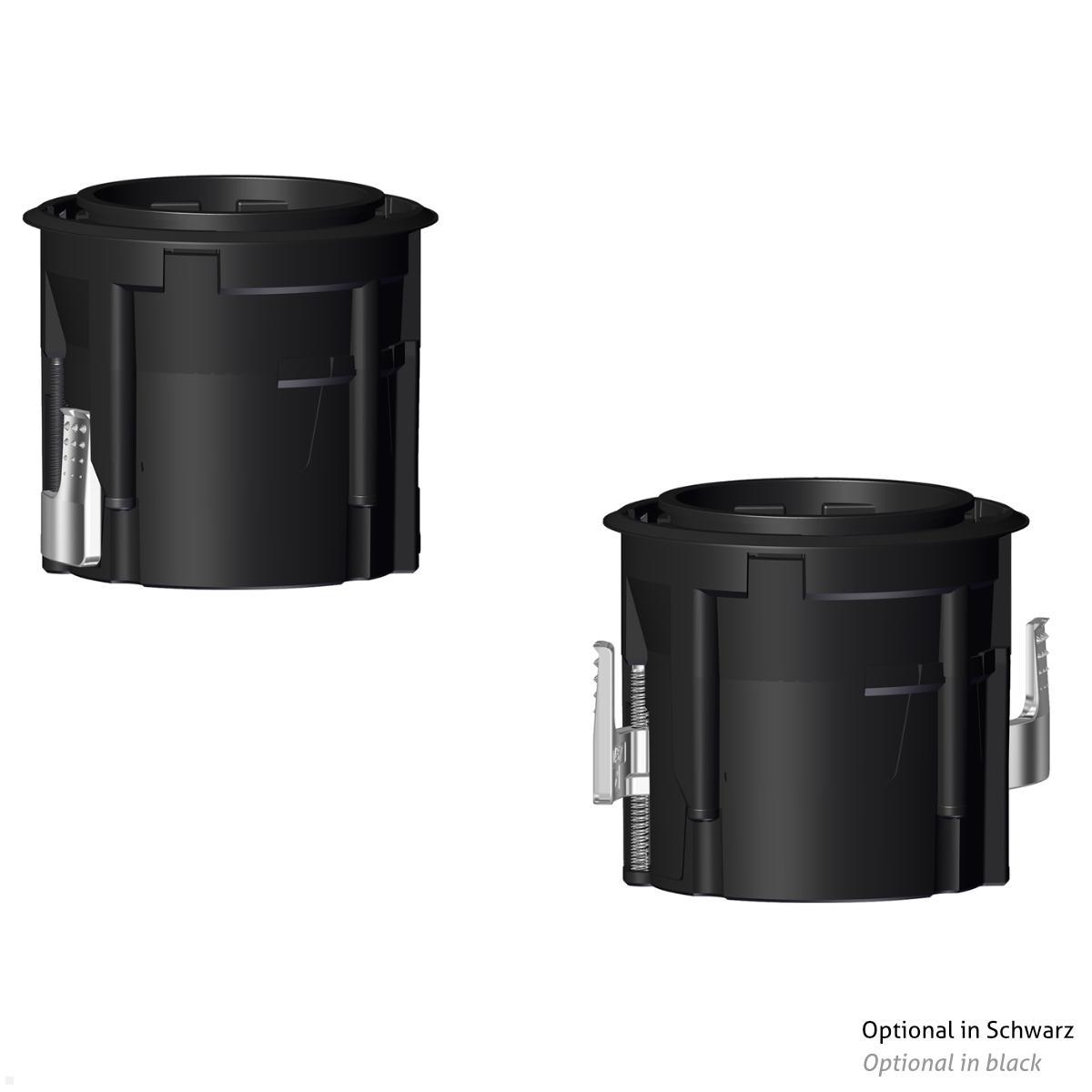

The built-in socket with double USB socket EVOline One has a flexible cable input, which results in versatile mounting options. With the variable cable entry, the minimum installation depth of only 50 mm is guaranteed. The diameter for the installation is just 54 mm and thus takes up little space. For the installation of the USB socket, a material thickness of the worktop, table, desk or cabinet of 9 mm is required; there is no maximum material thickness. Metal clamps hold the EVOline USB charger with decorative ring in place without anything slipping.
Key features EVOline One dual USB Charger in white
- Finish housing & trim ring: white
- Material: plastic, metal clamp
- Installation opening: Ø 54 mm
- Installation depth: 50 mm
- 3 m mains cable with safety angled plug
- USB type A / 2,1 A max.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 294 x 134 x 96 |
| Scope of delivery: | 1x EVOline One double USB charger in white, 1x decorative ring white |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | White |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
