EVOline One USB Charger housing / decorative ring black with stainless steel
The EVOline One charging station USB is space saving and suitable for installations in the kitchen, table, cabinet and other furniture. The housing and the decorative ring of the USB built-in socket are colored in black and stainless steel. The USB socket has a protection against accidental contact and a 3m long connection cable with angled earthing contact.

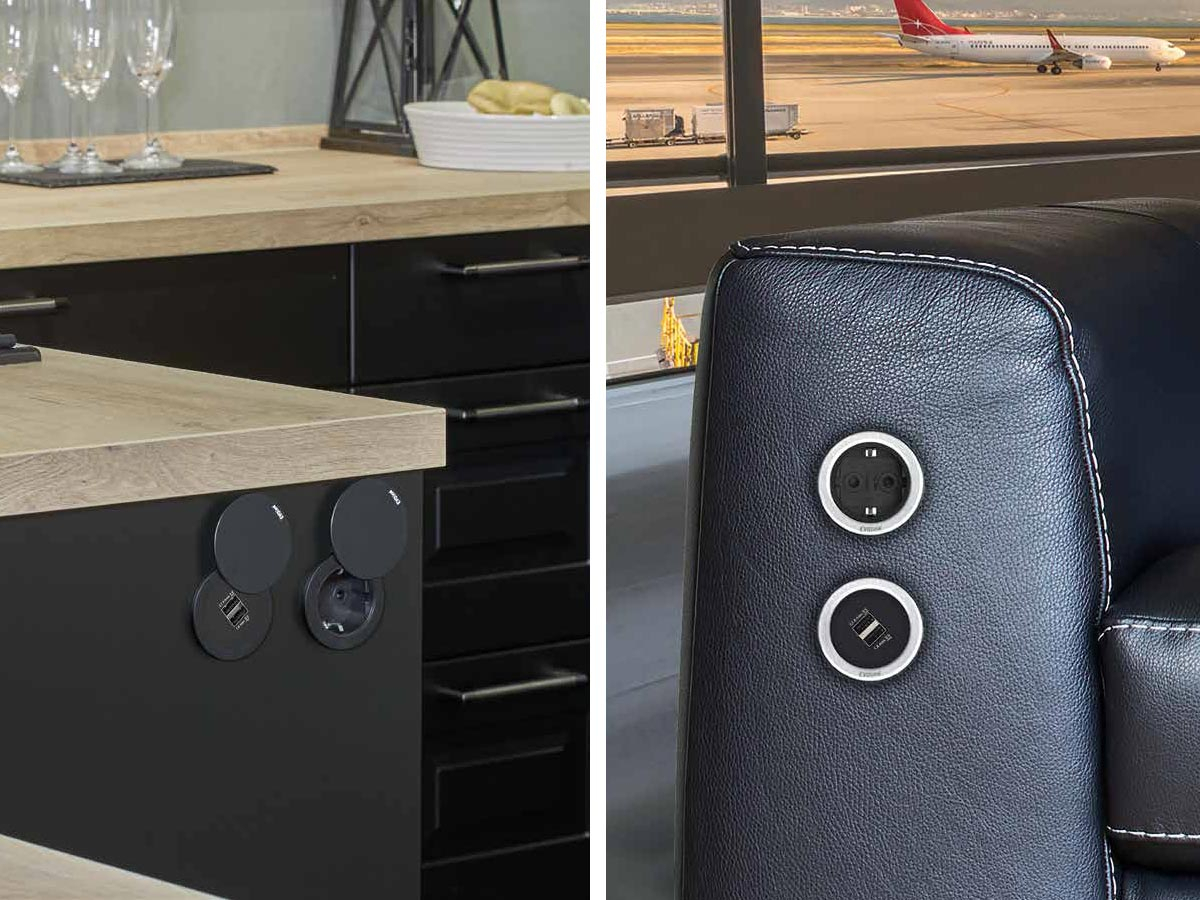

Design double USB charging station for installation in furniture, table, kitchen
The EVOline One USB electrification system brings electricity wherever it is needed. Whether in the conference room, in the kitchen or in the living room, the modern design double USB charger is space-saving and decent. The EVOline One built-in USB connection in black with stainless steel can be flush-mounted up to 4 mm and thus integrates into the environment. Devices with a USB Type A connection can be charged at the EVOline USB input.
Simple and variable assembly

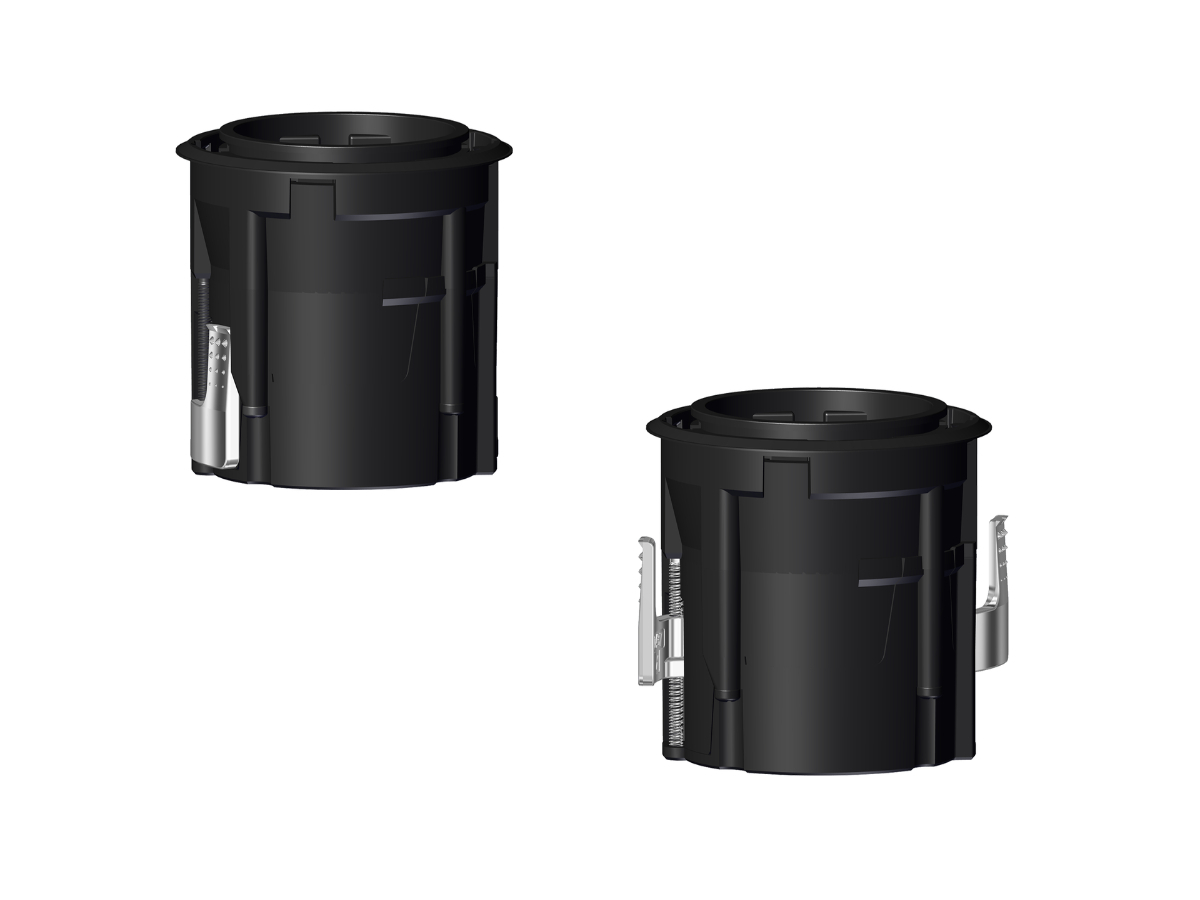

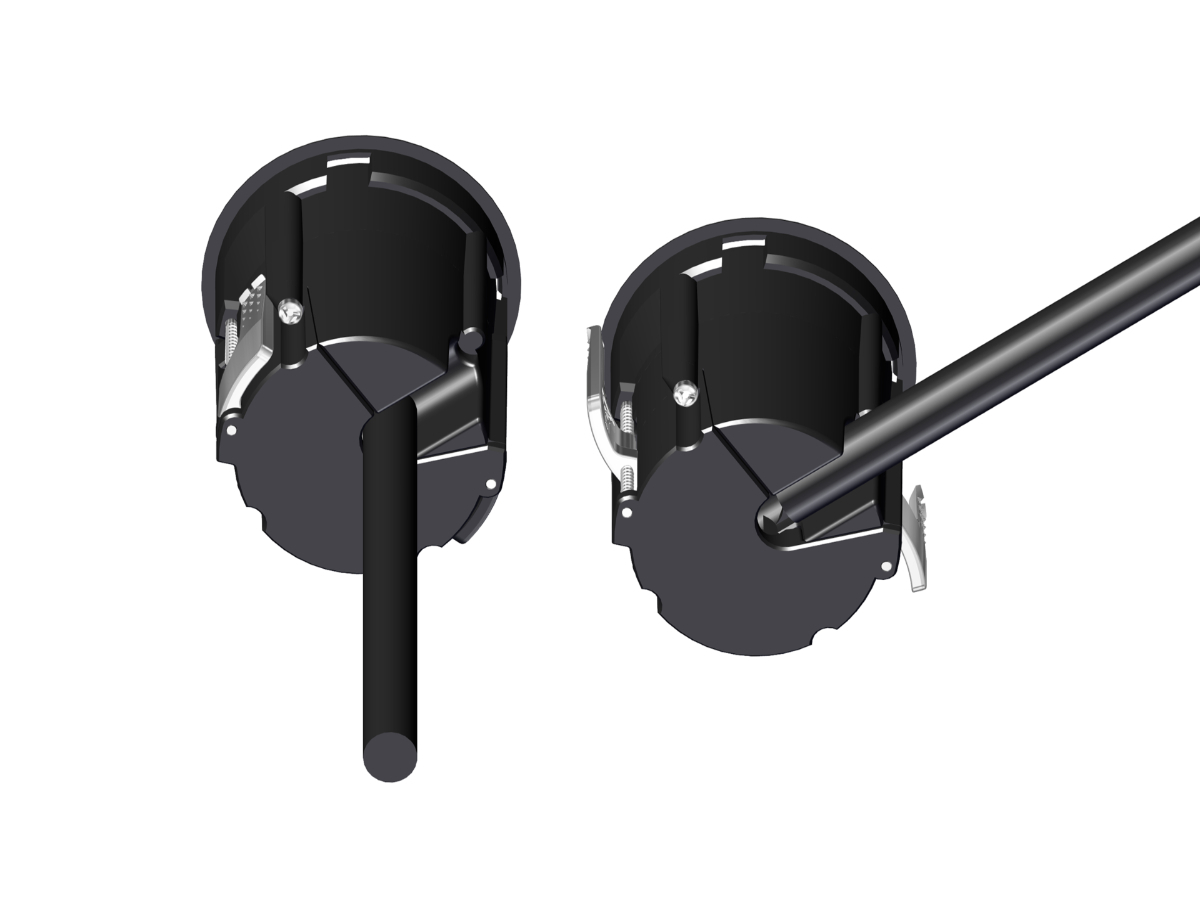

The built-in USB socket EVOline One has a flexible cable input, which results in various attachment options. With the variable cable entry, the minimum installation depth of only 50 mm is guaranteed. The diameter for installation is just 54 mm and takes up little space. For the installation of the USB socket, a material thickness of 9 mm for the worktop, table, desk or cabinet is required; there is no maximum material thickness. Clamps made of metal hold the EVOline USB charging station with decorative ring in place without anything slipping.
Key features EvoLine One
• Finish: housing: black, cover: stainless steel
• Material: plastic, clamps are metal
• Installation diameter: Ø 54 mm
• Installation depth: 50 mm
• USB Type A / 2,1 A max.
| Product sheet: |  [pdf, 740 kb] |
|---|---|
| Technical drawing: | [pdf, 135 kb] |
| RoHS / REACH: | [pdf, 228 kb] |
| Installation manual: | [pdf, 594 kb] |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
