EVOline One USB charger A/C with cover, black
Built-in socket with USB A/C charger and cover

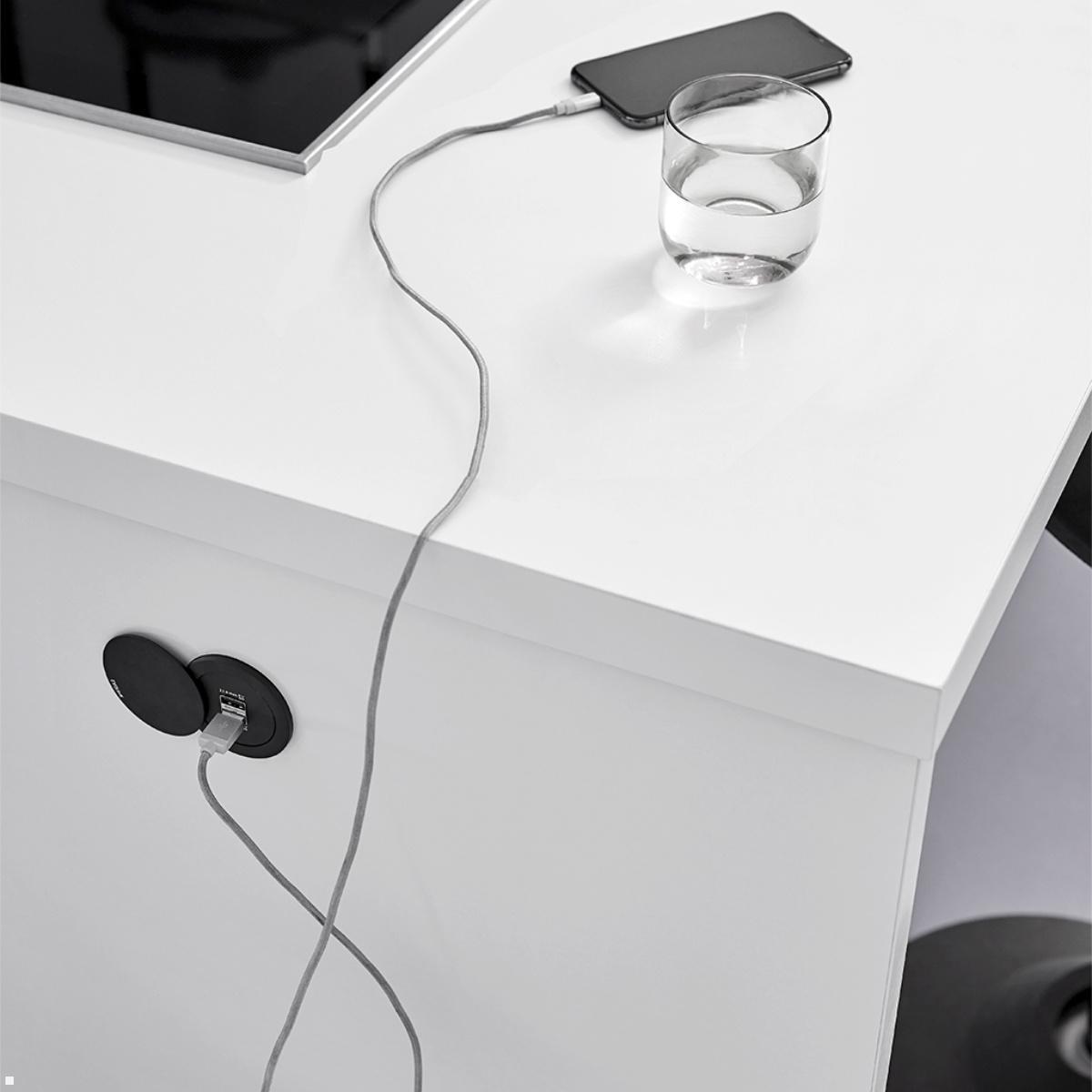

The EVOline One built-in socket with USB A/C charger and cover in black is an elegant solution to bring power wherever it is needed. With an installation depth of just 4 mm, it blends seamlessly into any environment. The 360 degree rotatable cover protects the connections and makes the built-in socket even more flexible to use. The dual USB charging station is compatible with various devices such as smartphones or tablets with USB type A or USB type C connection. The discreetly designed built-in socket saves space and is perfectly suited for use in the kitchen, in the living room or in the conference room.
Simple and variable mounting

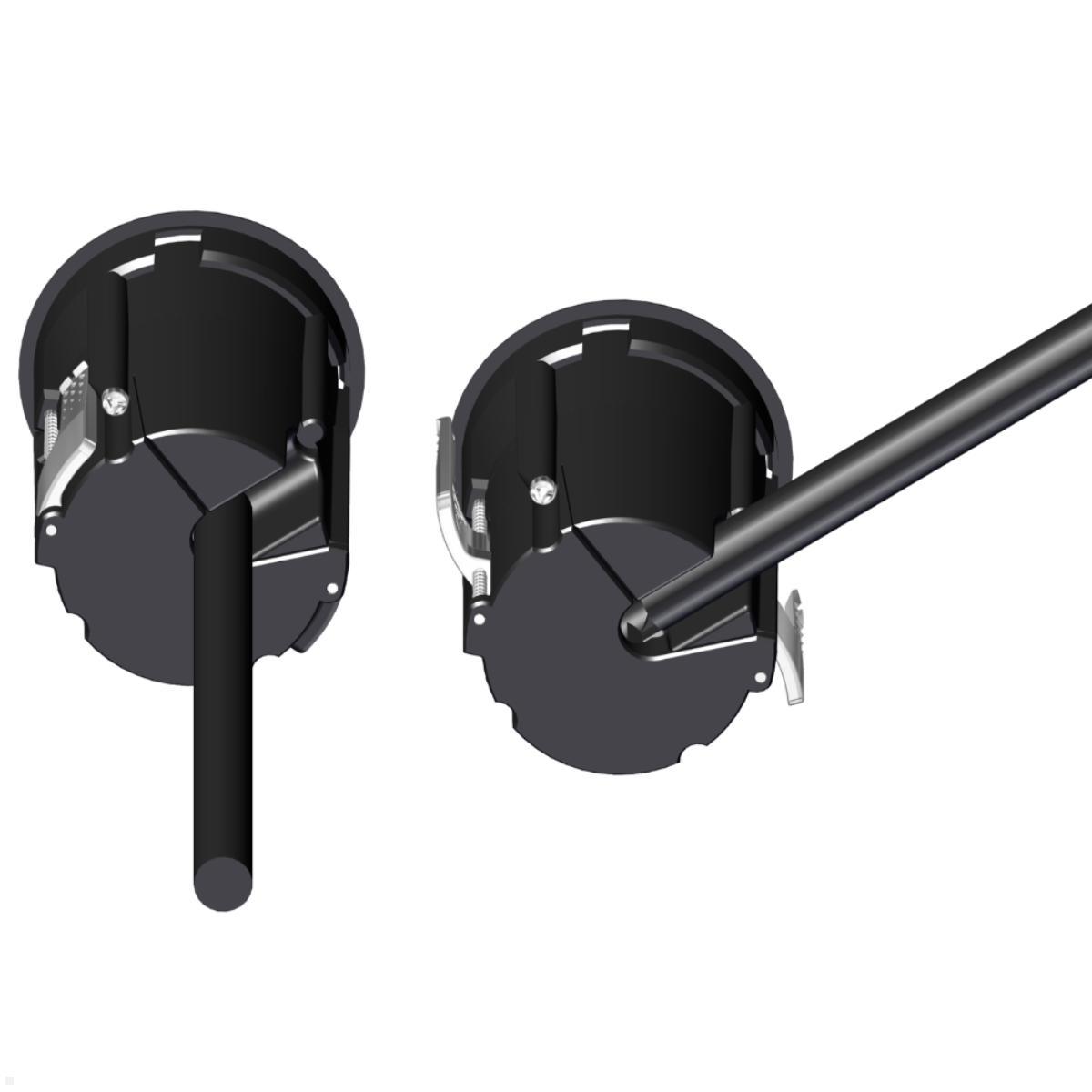

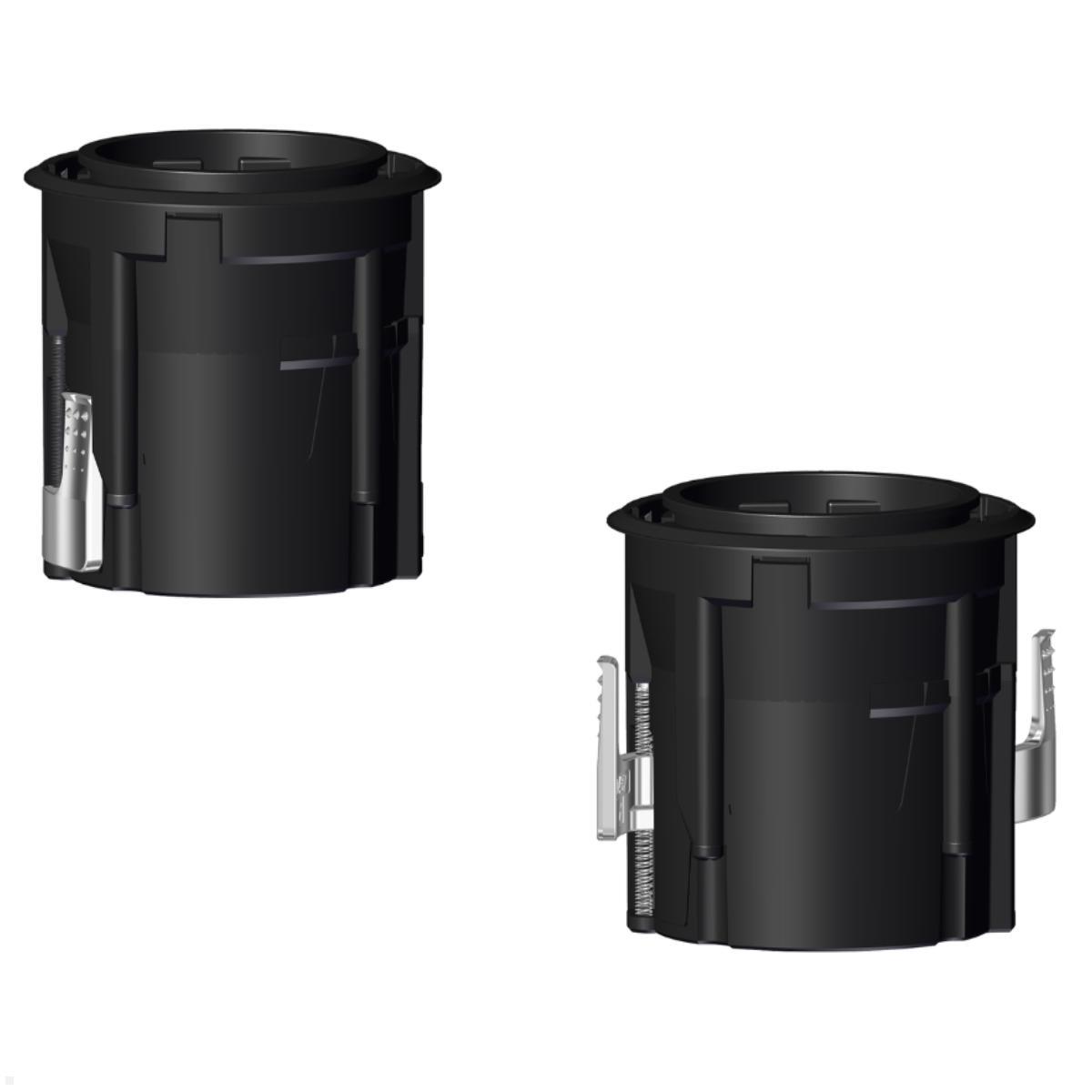

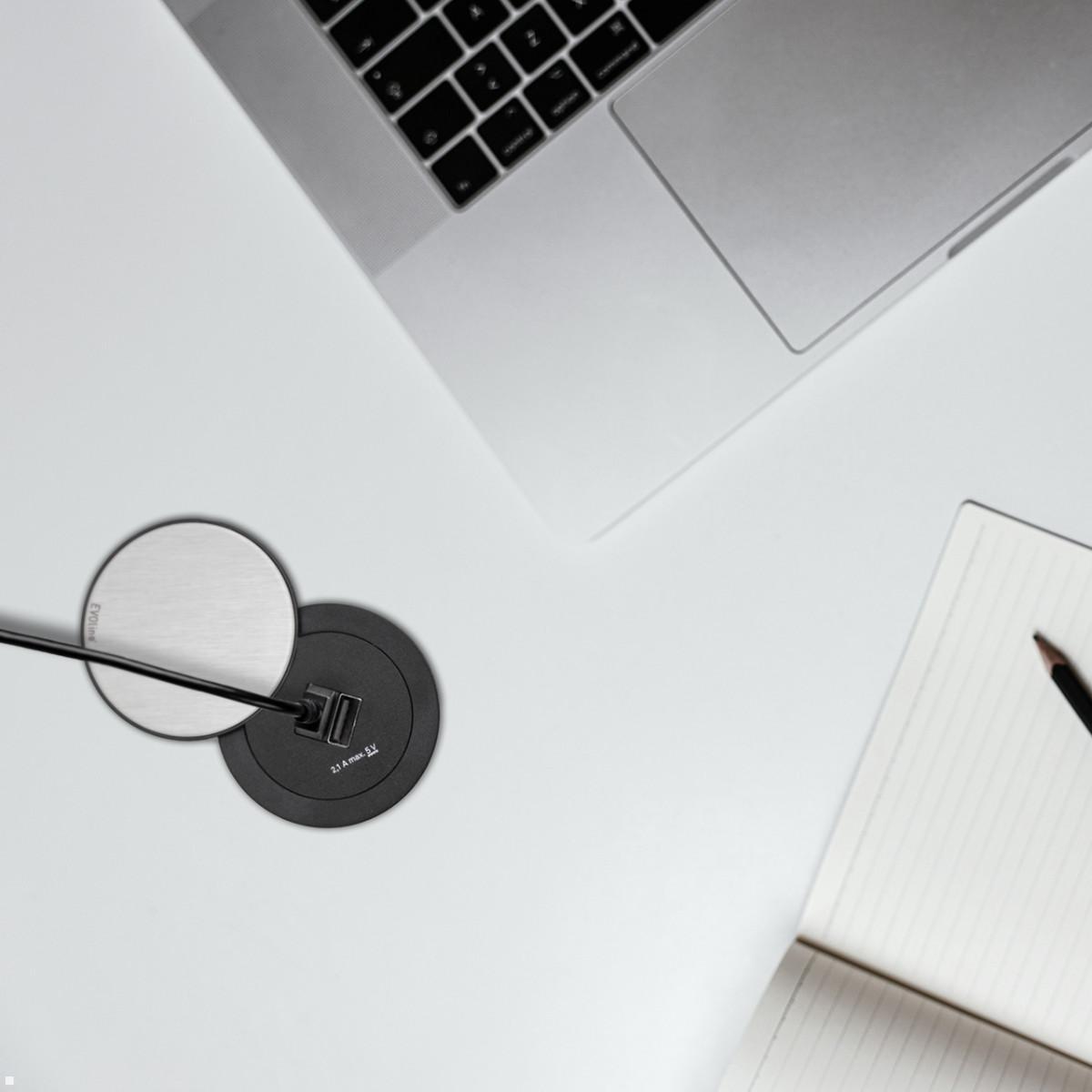

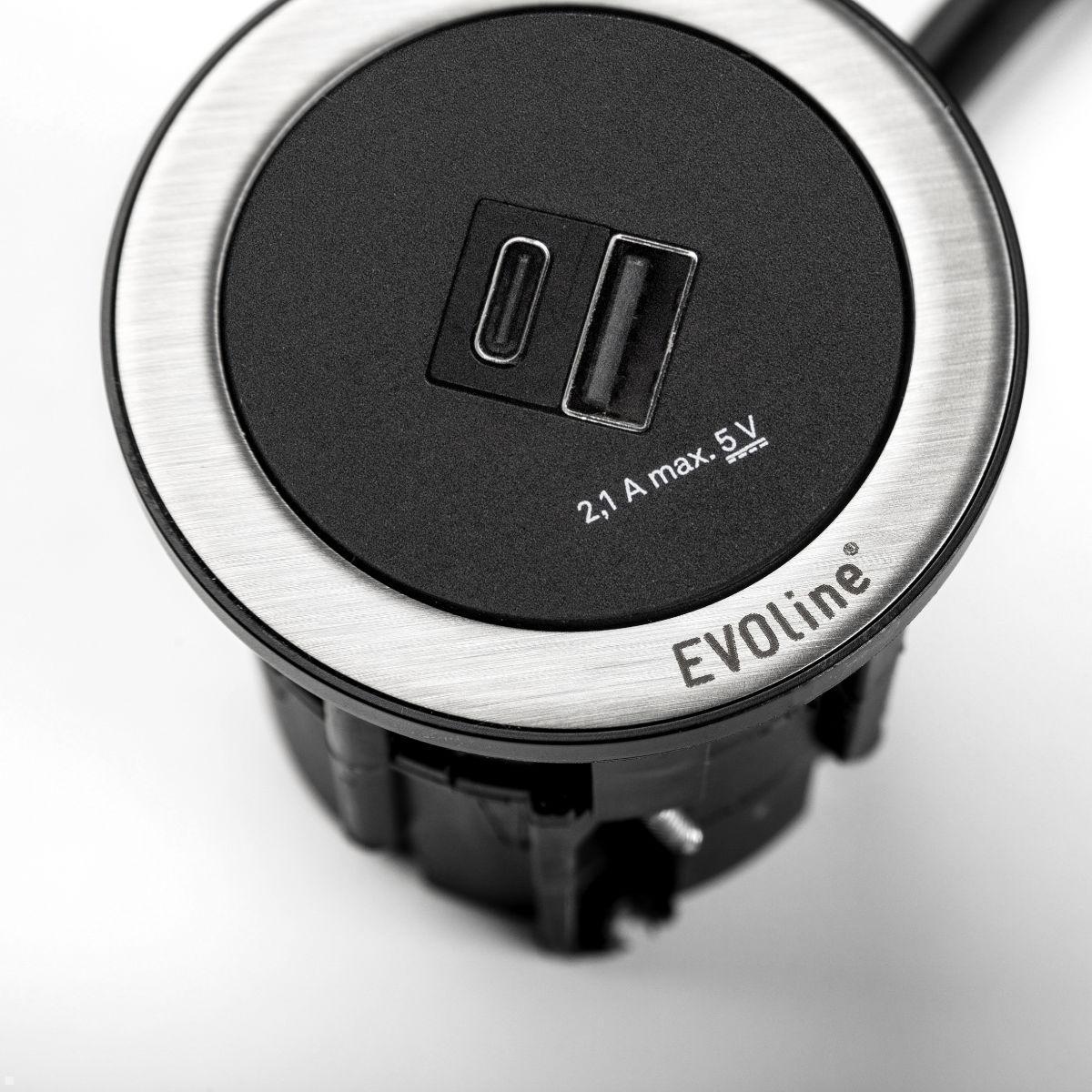

The EVOline One USB-A / USB-C built-in socket is equipped with a flexible cable entry and offers a variety of mounting options. Despite its small size of only 50 mm installation depth and a diameter of 54 mm, it requires little space on worktops, tables, desks or cupboards. The minimum material thickness is only 9 mm, while there is no maximum material thickness. Metal clamps ensure that the EVOline USB-A / USB-C socket with its black decorative ring stays in place without slipping. The lid protects against dirt. The power connection is made via the integrated 3 m long connection cable with an angle plug with earthing contact. Adaptation to the corporate design: The decorative rings and 360° Rotatable lids can be individually designed - either with stainless steel inserts or printed plastic surfaces. It is possible to design them in company colors or even to print graphics.
Key features EVOline One socket with USB charger with cover
- Double USB charger A/C
- Voltage: 5 V
- Charging current: 2.1 A
- Installation opening: Ø 54 mm
- Installation depth: 50 mm
- 3 m mains connection cable with right angle plug with earthing contact
- Protection class: IP20
- Color housing & Decorative ring: Black
- Color of lid: Black
- Material: Plastic, metal clamp
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 294 x 134 x 96 |
| Scope of delivery: | 1x EVOline One USB A/C Charger in black | 1x decorative ring black | 1x cover black |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
