EVOline One USB charger A/C with black cover, stainless steel insert
Built-in socket with USB A/C charger and cover

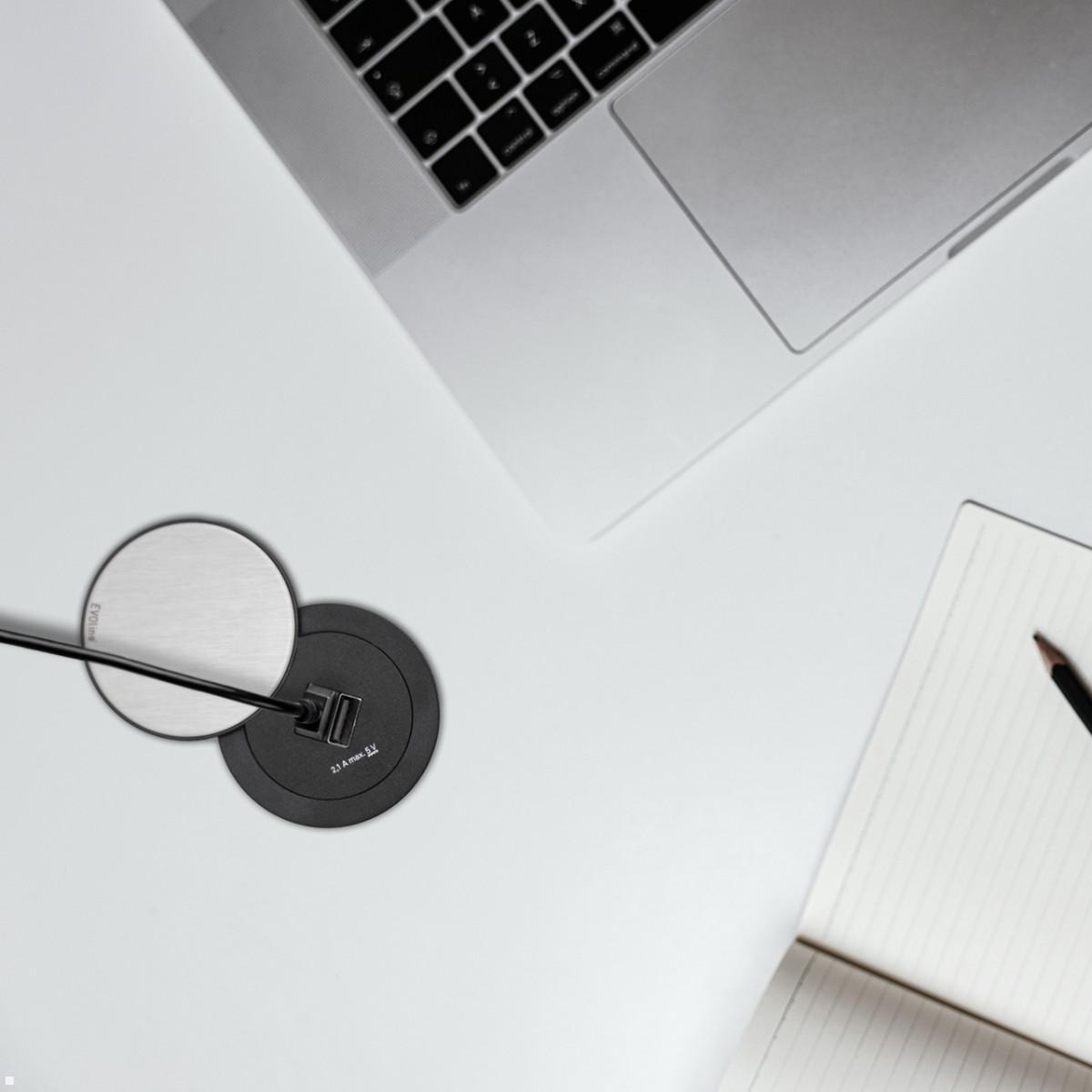

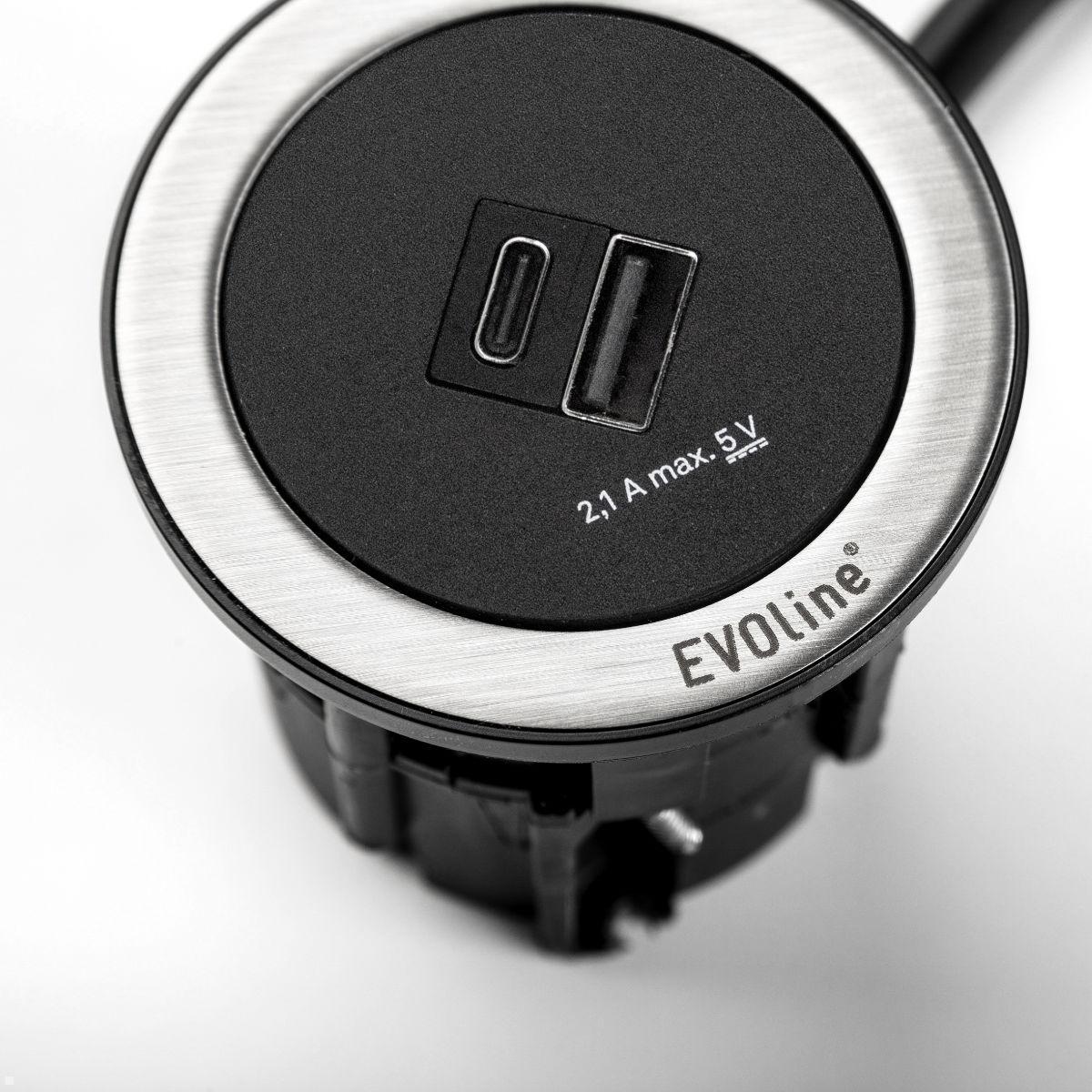

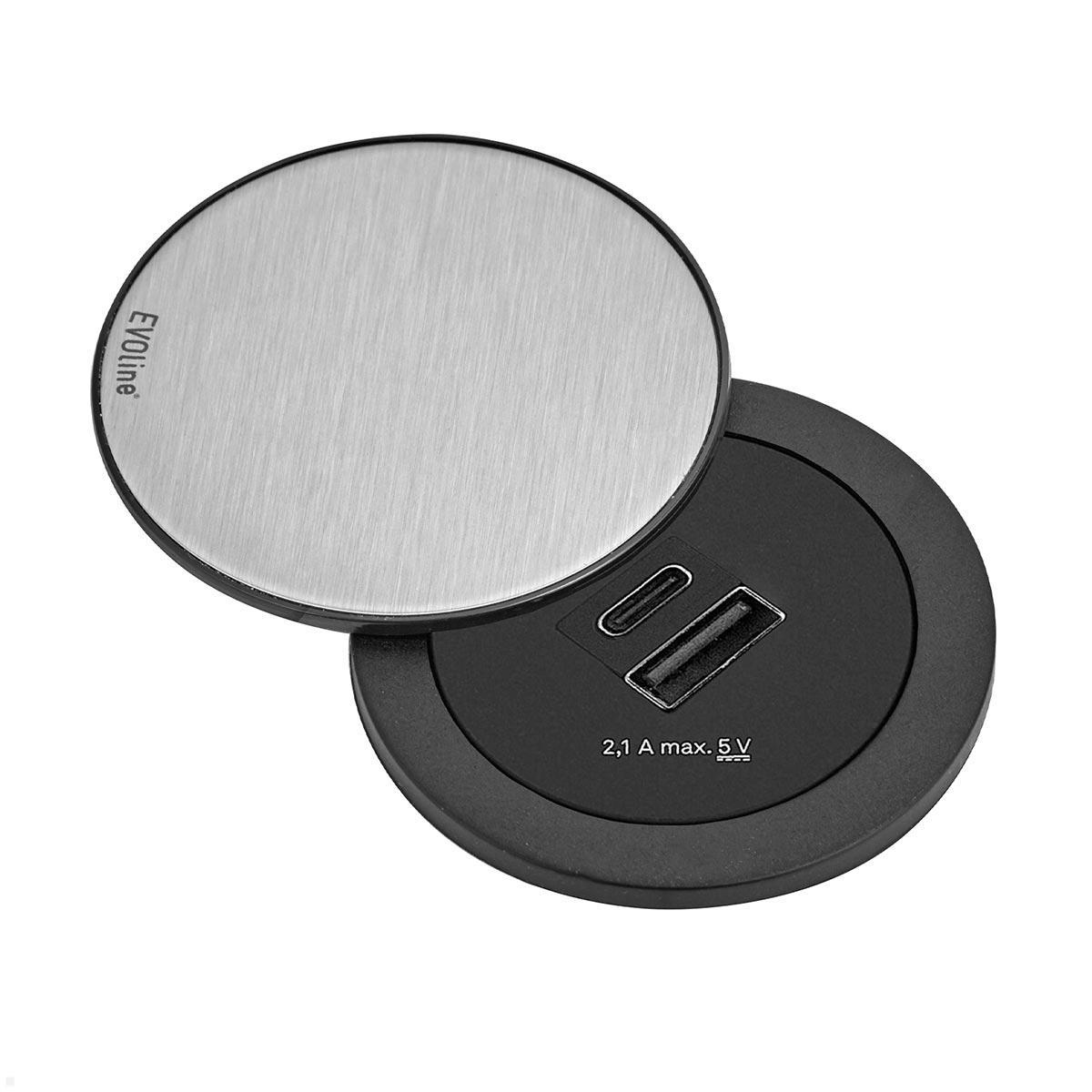

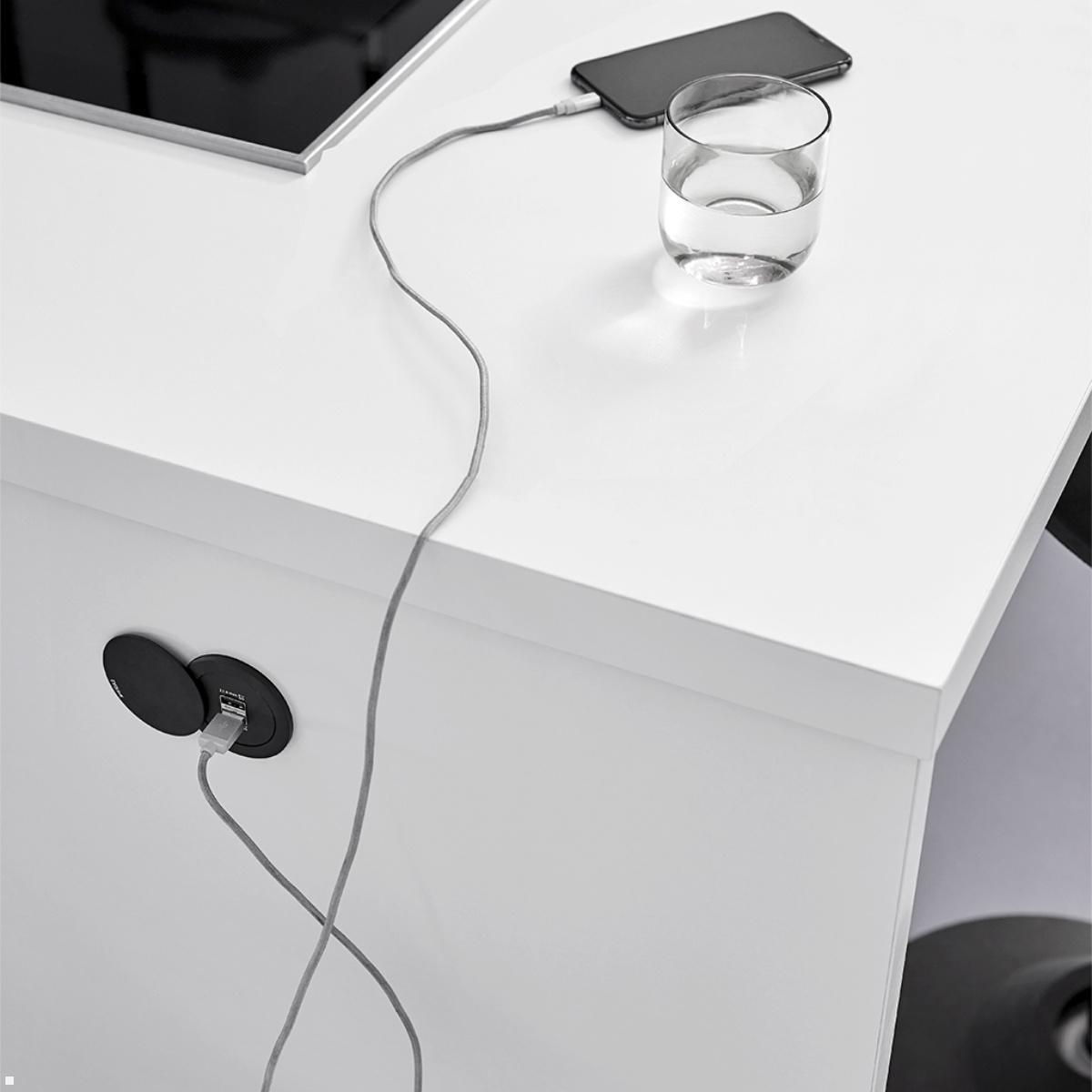

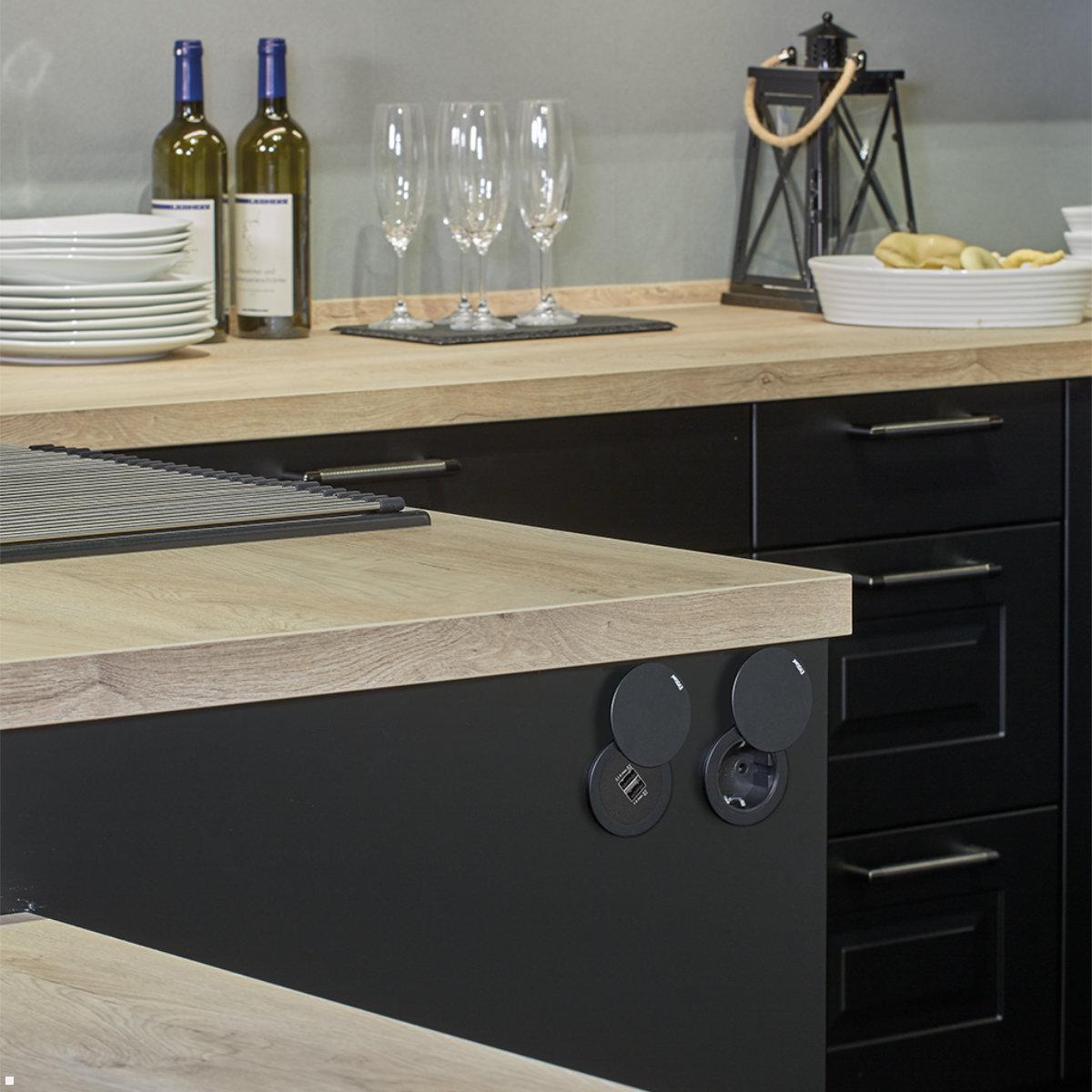

The EVOline One Built-in socket with USB A/C charger in black can be installed flush with the surface up to 4 mm and thus fits seamlessly into any environment. The lid is black with a stainless steel insert and can be rotated 360 degrees. Various devices such as smartphones or tablets with a USB type A or USB type C connection can be charged on the dual charger. The EVOline USB charging station brings electricity to wherever it is needed. In the kitchen, in the living room or in the conference room, the discreetly designed double USB built-in socket makes an elegant impression and saves space.
Easy and variable assembly

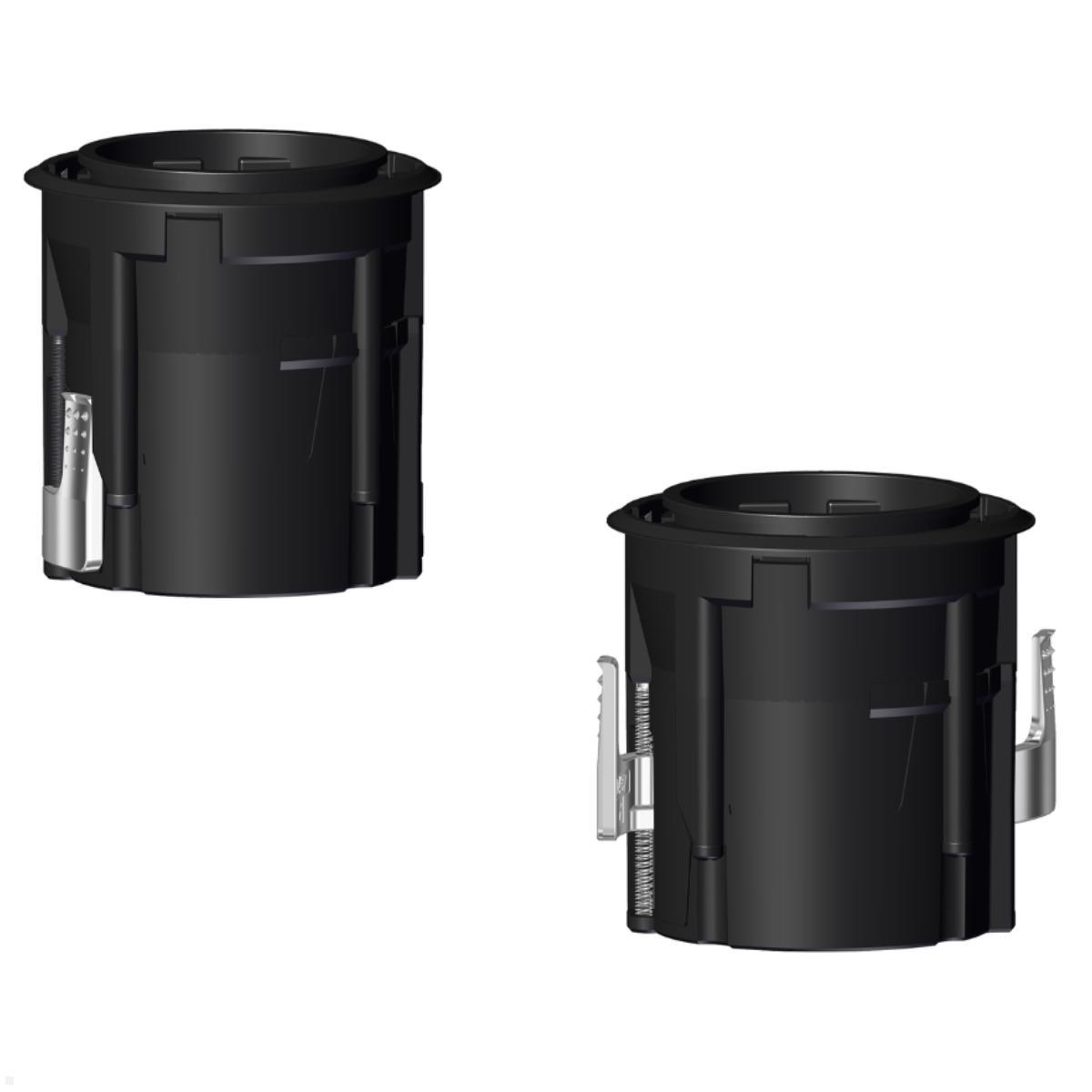

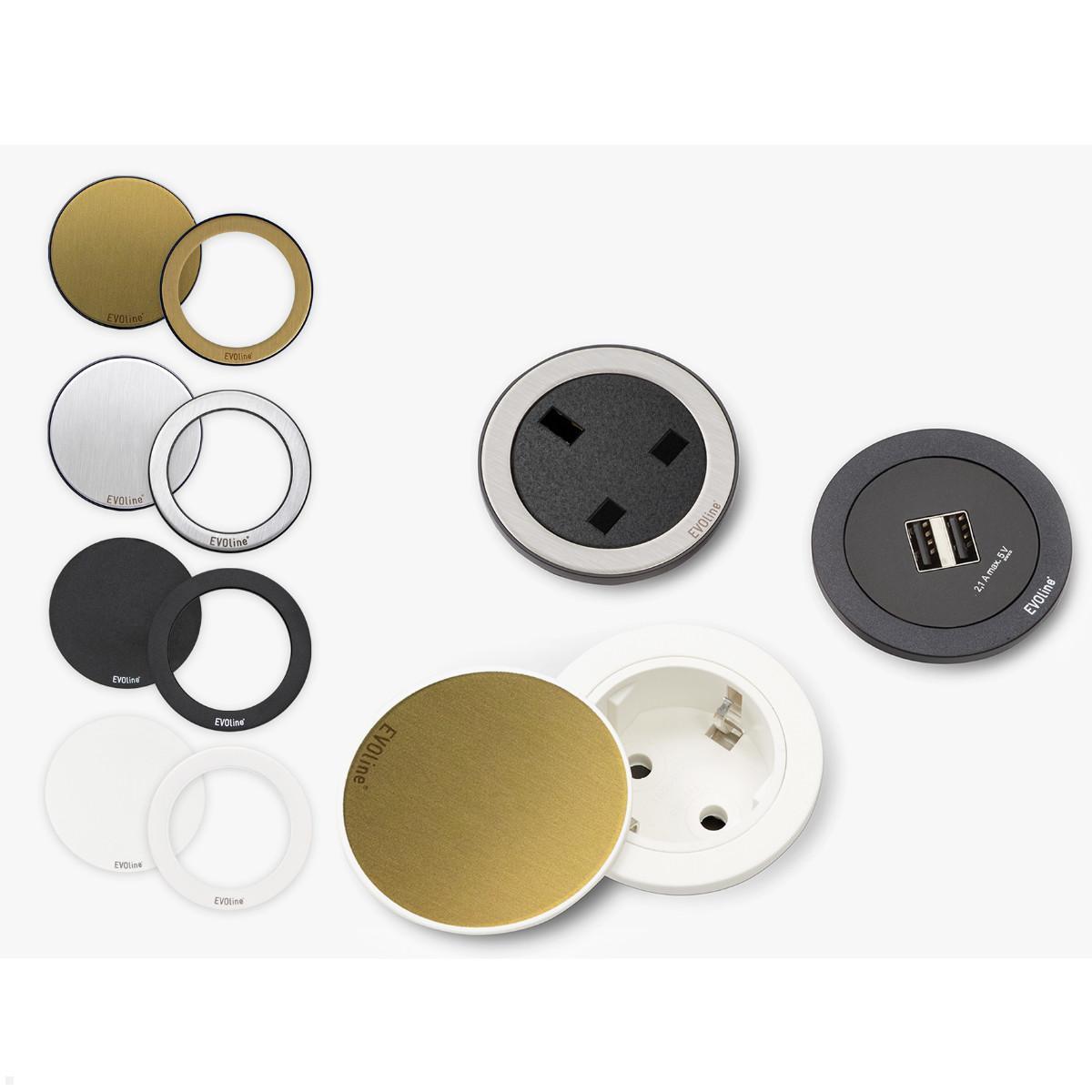

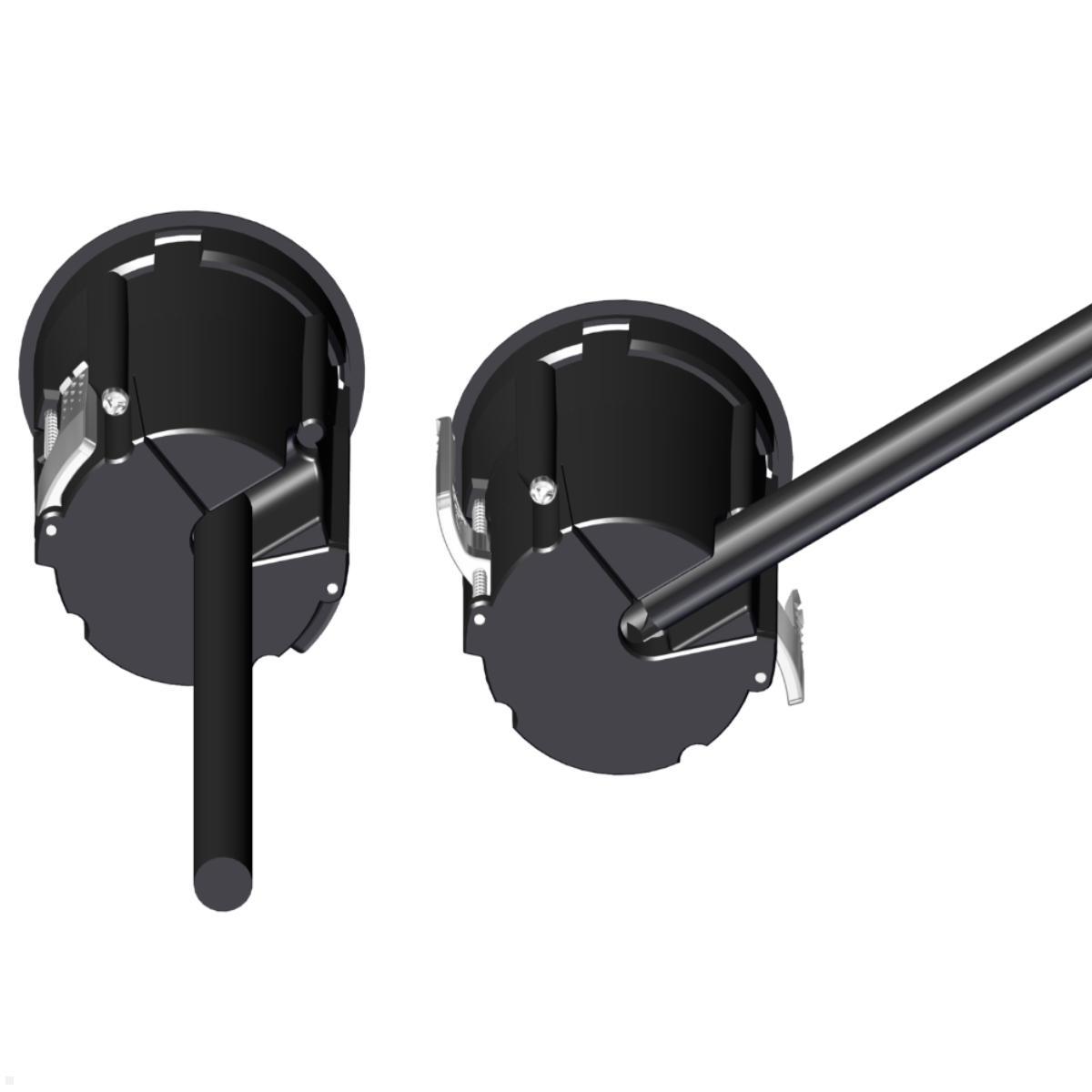

The USB-A / USB-C built-in socket has a flexible cable entry with a variety of mounting options. With a minimum installation depth of just 50 mm and a diameter of 54 mm, EVOline One takes up very little space. The minimum material thickness of the worktop, table, desk or cupboard only has to be 9 mm, there is no maximum material thickness. Metal clamps hold the EVOline USB A / C socket with black decorative ring in place without anything slipping and the lid with stainless steel insert prevents dirt. The power connection is via the integrated 3 m long connection cable with protective contact angled plug. Adaptation to the corporate design: The decorative rings and 360° rotatable lids can be individually designed - either with stainless steel inserts or printed plastic surfaces. It is possible to design them in company colors or even to print graphics.
Key features EVOline One socket with USB charger with cover
- Double USB charger A/C
- Voltage: 5 V
- Charging current: 2.1 A
- Installation opening: Ø 54 mm
- Installation depth: 50 mm
- 3 m mains connection cable with right angle plug with earthing contact
- Protection class: IP20
- Color housing & Decorative ring: black
- Colour of lid: black with stainless steel insert
- Material: plastic, metal clamp
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 294 x 134 x 96 |
| Scope of delivery: | 1x EVOline One USB A/C Charger in black | 1x decorative ring black | 1x black cover with stainless steel insert |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Stainless steel/black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
25 October 2023 06:30
Top für den Meetingraum
Wir haben uns mehrere solche Steckdosen im Zuge der Neueinrichtung unseres Besprechungsraums zugelegt. Funktionieren einwandfrei. Fixe Lieferung, Einbau relativ einfach (mit der passenden Säge!) - mehr kann man nicht verlangen.
