EVOline One built-in socket with USB charger A/C, white
Built-in socket with USB A/C charger in white

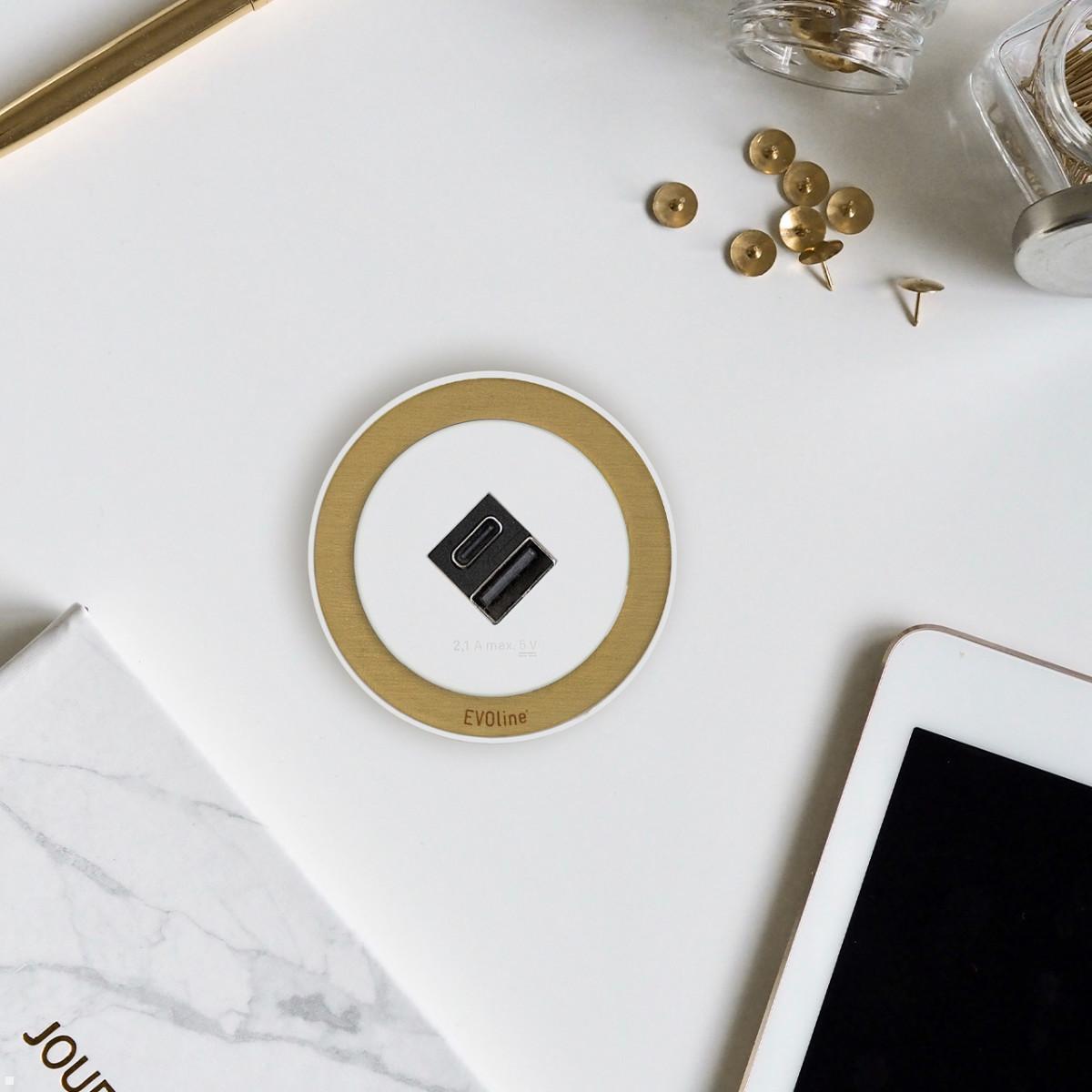

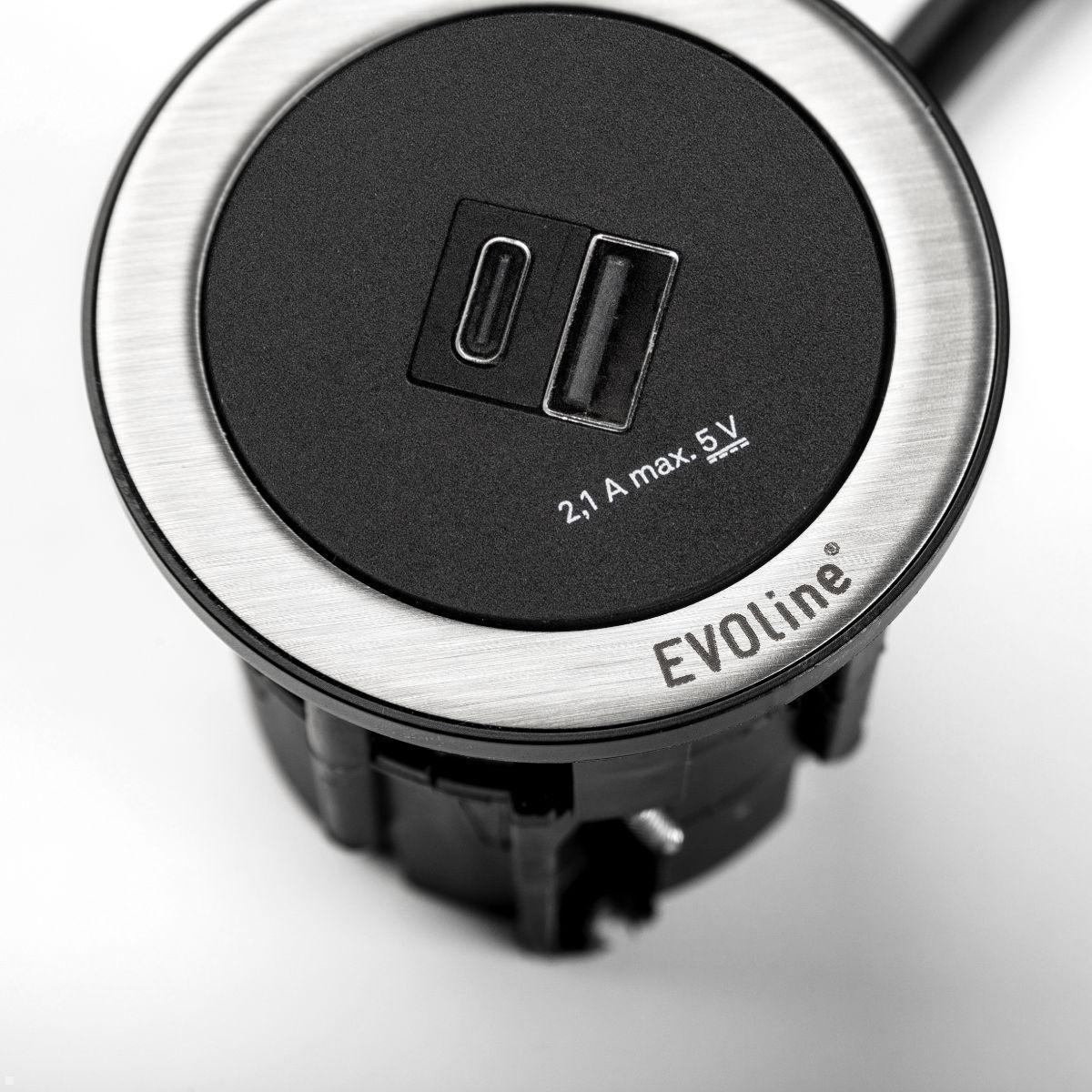

The EVOline One built-in socket with USB A/C charger in white can be opened up 4 mm flush to the surface and thus blends seamlessly into any environment. Various devices such as smartphones or tablets with USB type A or USB type C connection can be charged on the double charger. The EVOline USB charging station brings electricity to wherever it is needed. In the kitchen, in the living room or in the conference room, the discreetly designed double USB built-in socket makes an elegant impression and saves space.
Easy and variable assembly

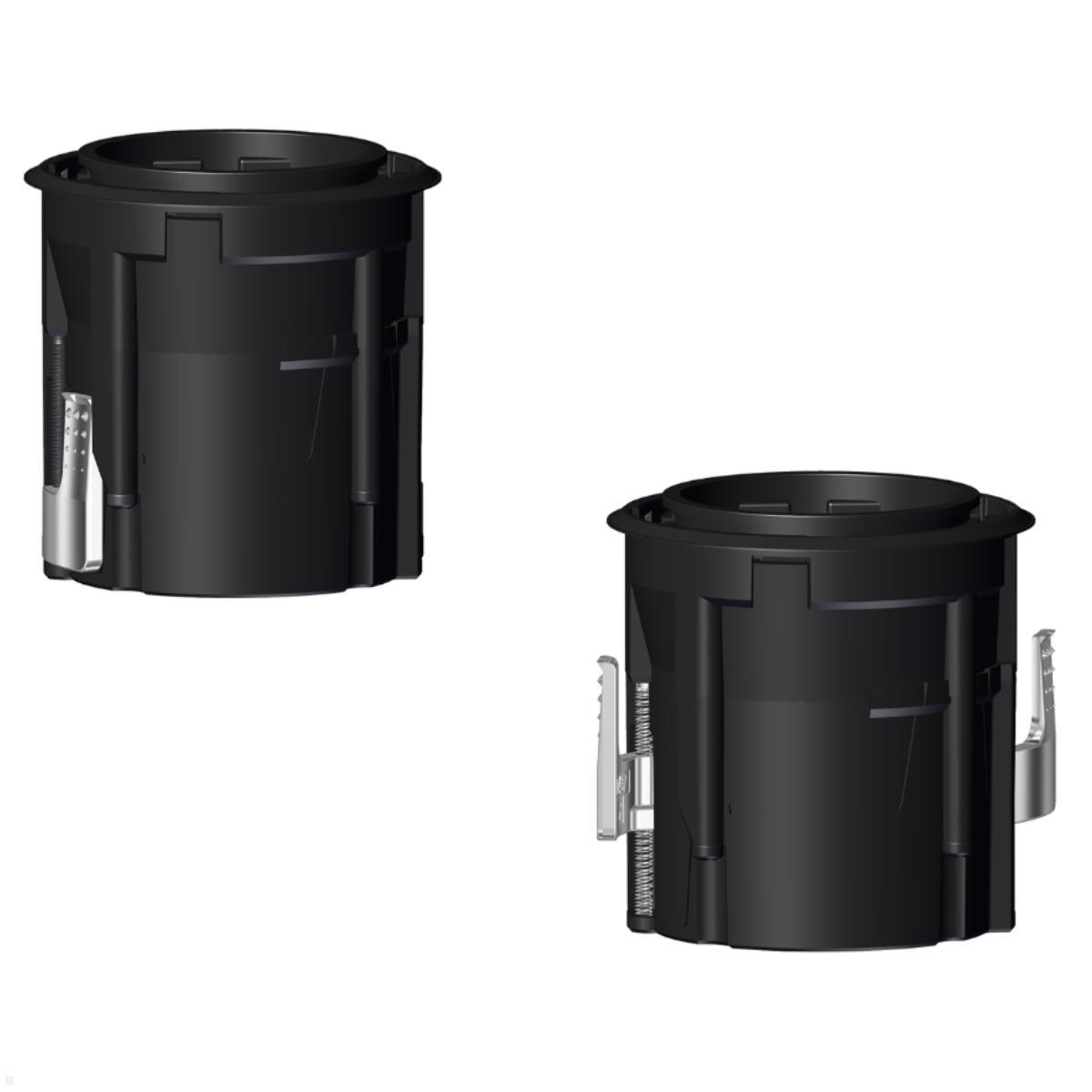

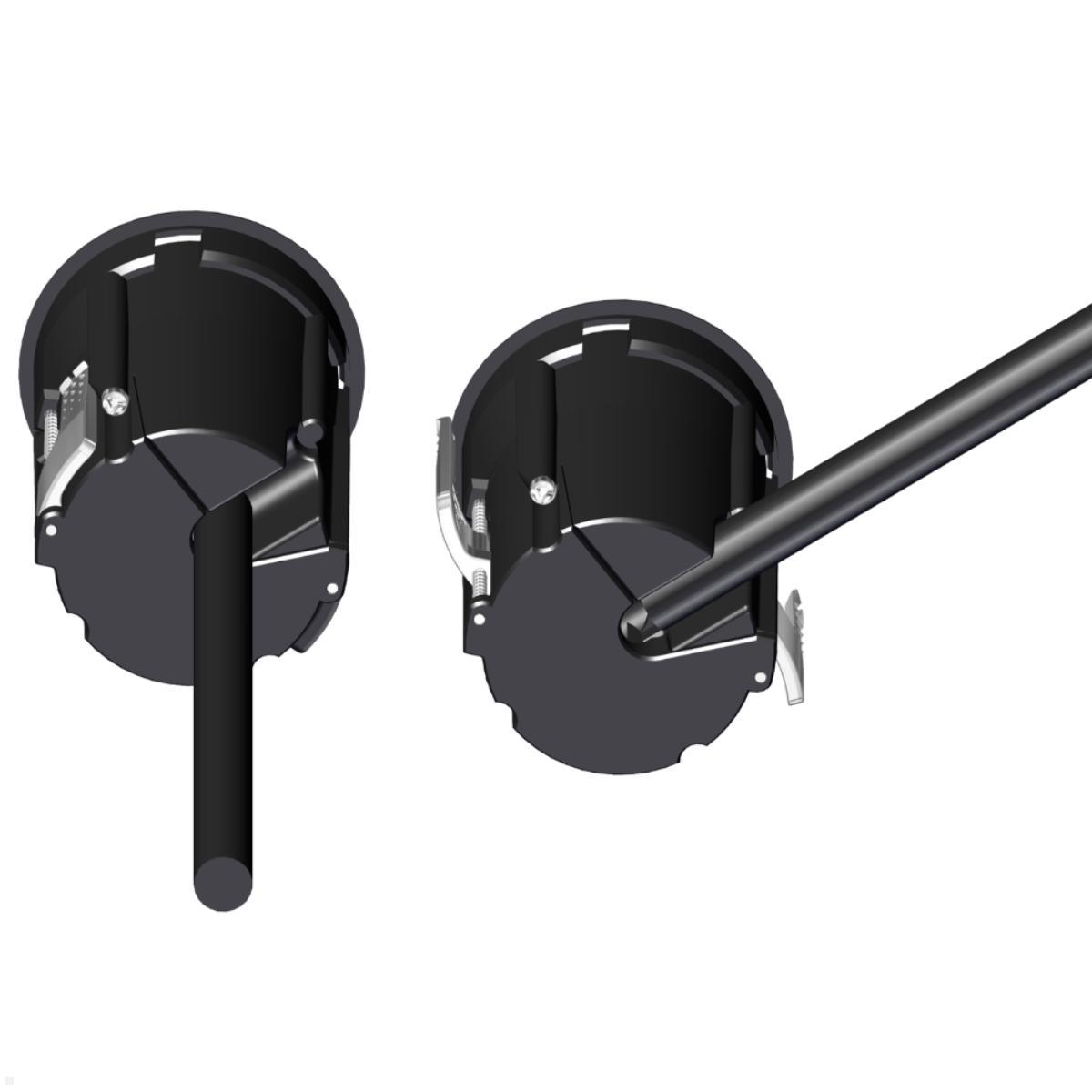

The USB-A / USB-C built-in socket has a flexible cable entry with a variety of mounting options. With a minimum installation depth of just 50 mm and a diameter of 54 mm, EVOline One takes up very little space. The minimum material thickness of the worktop, table, desk or cupboard only has to be 9 mm, there is no maximum material thickness. Metal clamps hold the EVOline USB A / C socket with decorative ring in place without anything slipping. The power connection is made via the integrated 3 m long connection cable with an angle plug with earthing contact.
Key features EVOline One socket with USB charger in white
- Double USB charger A /C
- Voltage: 5 V
- Charging current: 2.1 A
- Installation opening: Ø 54 mm
- Installation depth: 50 mm
- 3 m mains connection cable with right angle plug with earthing contact
- Protection class: IP20
- Color housing & Decorative ring: white
- Material: plastic, clamping piece made of metal
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 294 x 134 x 96 |
| Scope of delivery: | 1x EVOline One USB A/C Charger in white | 1x decorative ring white |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | White |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
