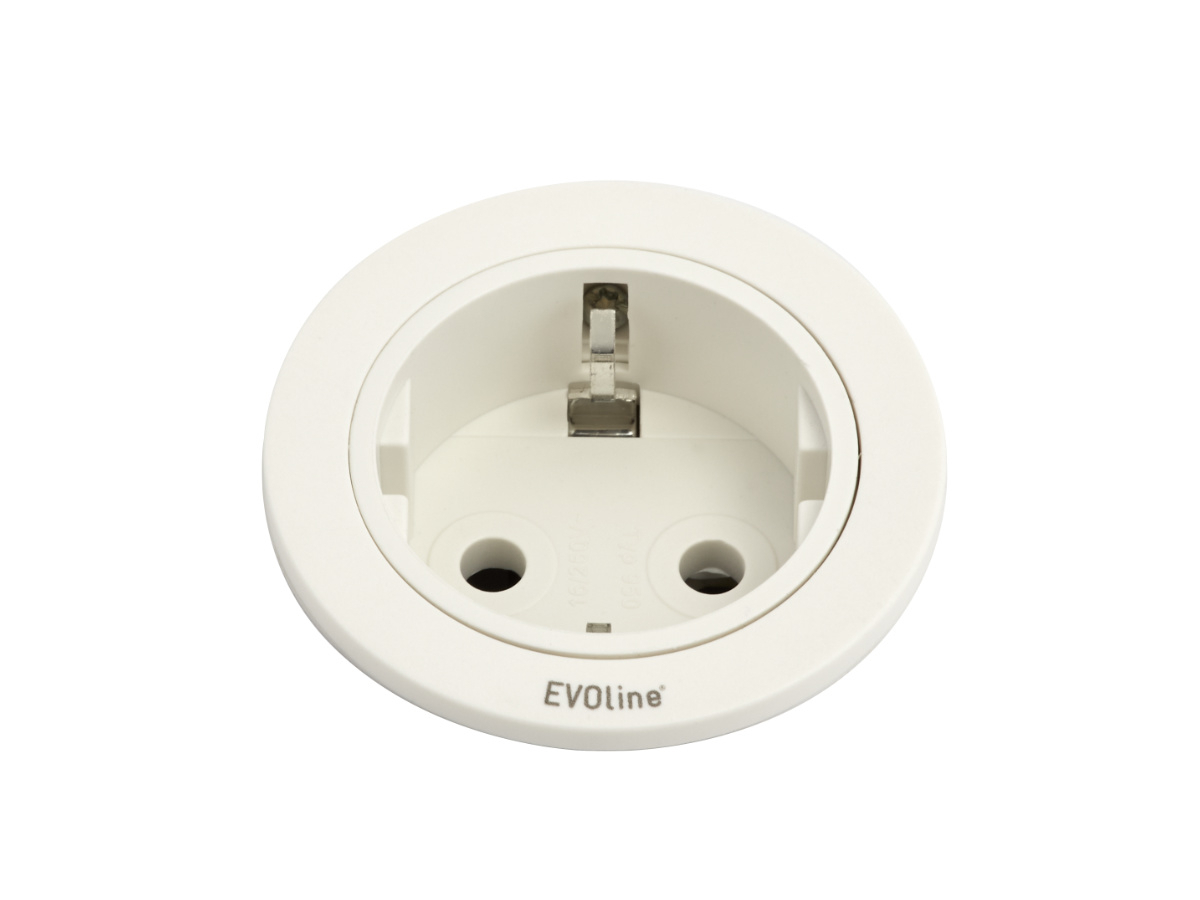

EVOline One built-in socket housing / decorative ring white
The EVOline One built-in sockets are space saving and are made for the installation in a table, kitchen, closet or other furniture. The decorative ring and the housing of the socket are white. The single socket has a protection against accidental contact and a 3m long power cable with angled plug.
Qualitative socket for installation in furniture, table, kitchen

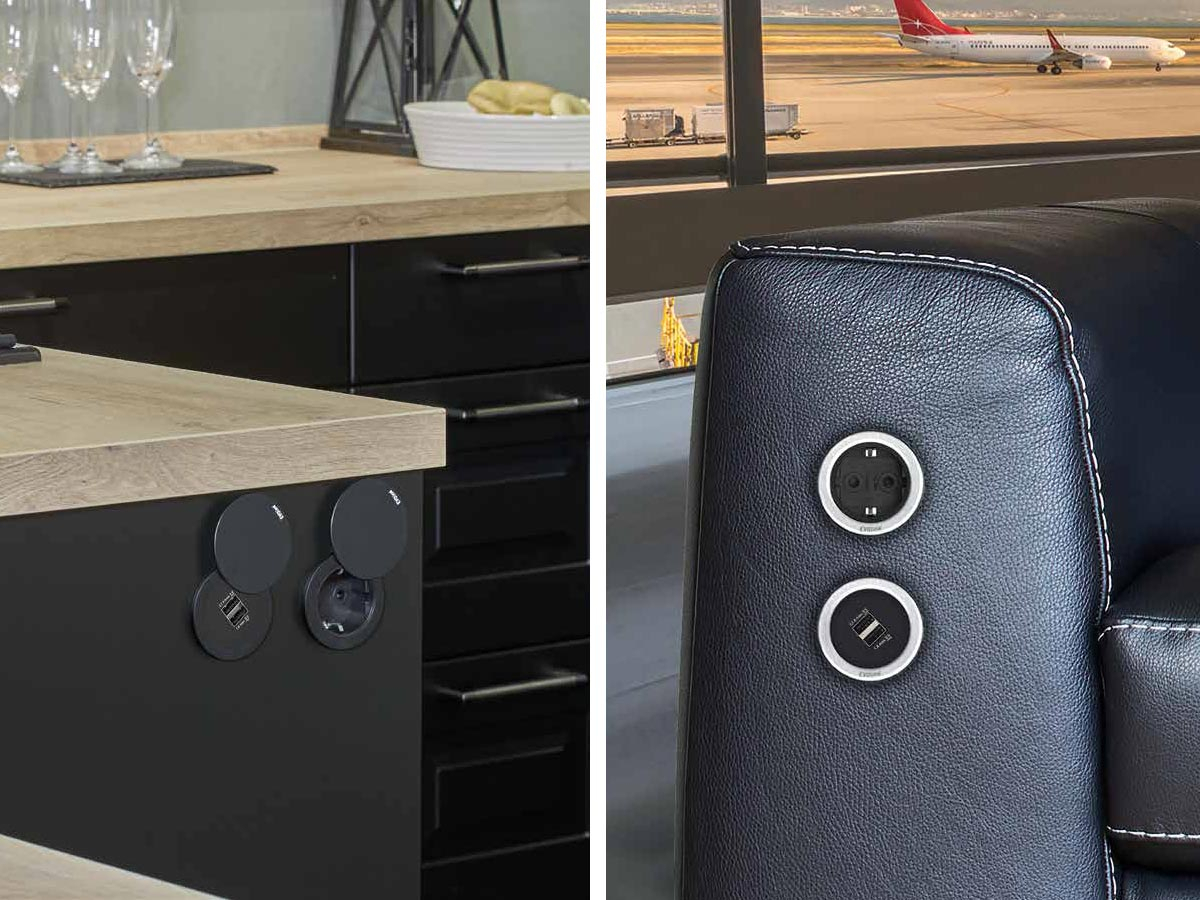

The EVOline One single socket brings power to wherever it is needed. Whether in the living room, in the kitchen or in the conference room, the modern design built-in sockets are space-saving and decent. The EVOline One sockets in white can be flush-mounted up to 4 mm and integrate well into the environment.
Countless installation options

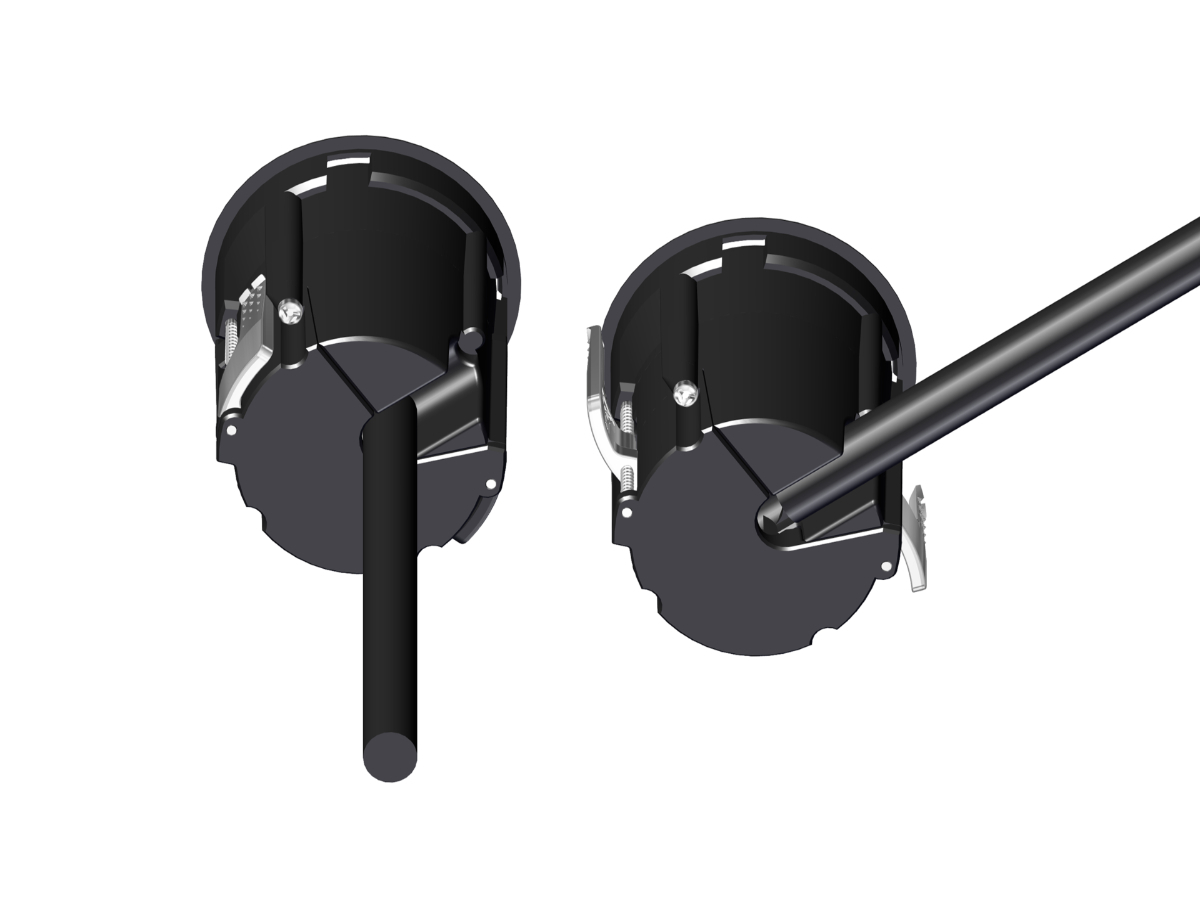

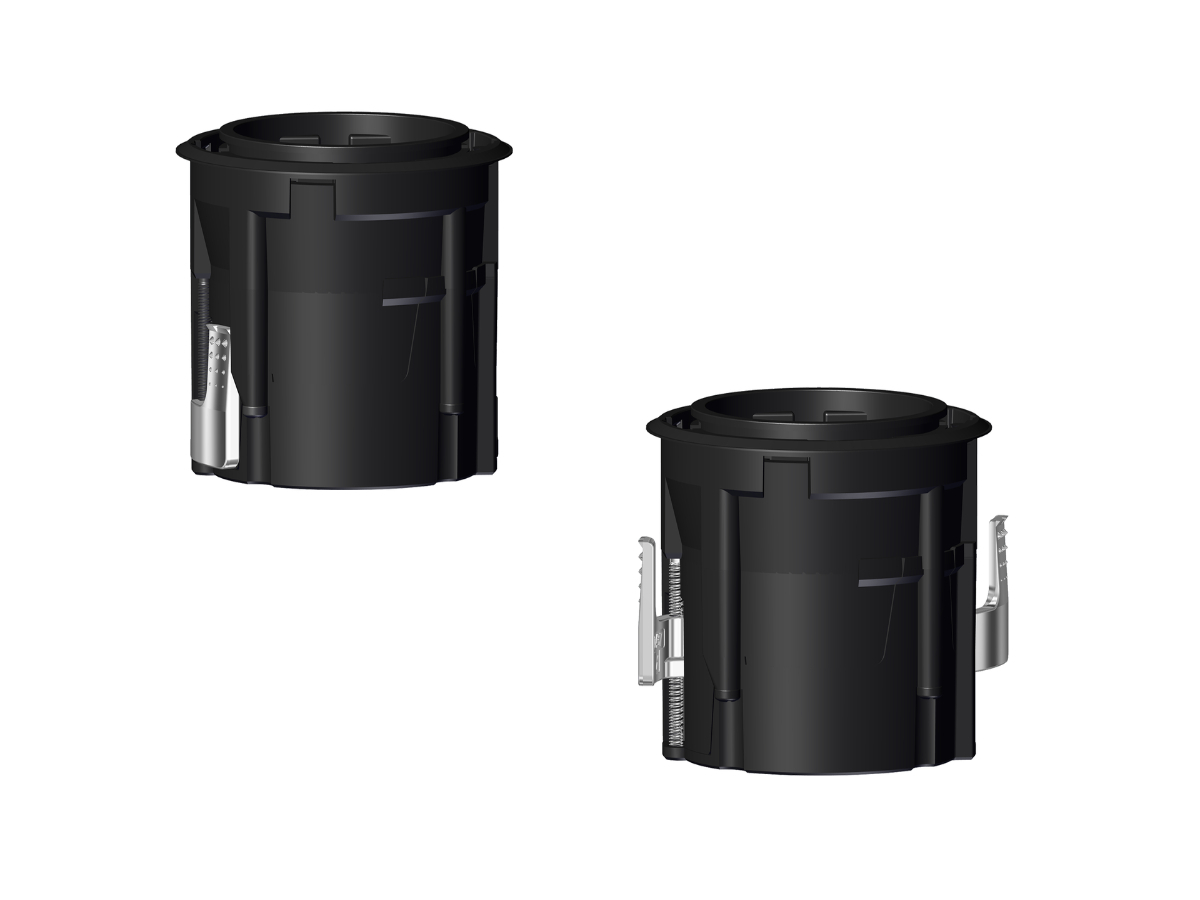

The EVOline socket for installations has a flexible cable entry, which opens up numerous possibilities for mounting. With the variable cable entry, the minimum installation depth of only mm is achieved. The installation diameter is small at 54 mm and takes up little space. To install the VDE outlet, a material thickness of 9 mm of the worktop, table, desk or cabinet is required; there is no maximum material thickness. Two metal clamps prevent the EVOline One socket with decorative ring from falling out or slipping.
Key features Evoline One
• Finish: housing & decorative ring: white
• Material: plastic, clamps are metal
• Installation diameter: Ø 54 mm
• Installation depth: 50 mm
• VDE-socket 16 A
• Protection against accidental contact

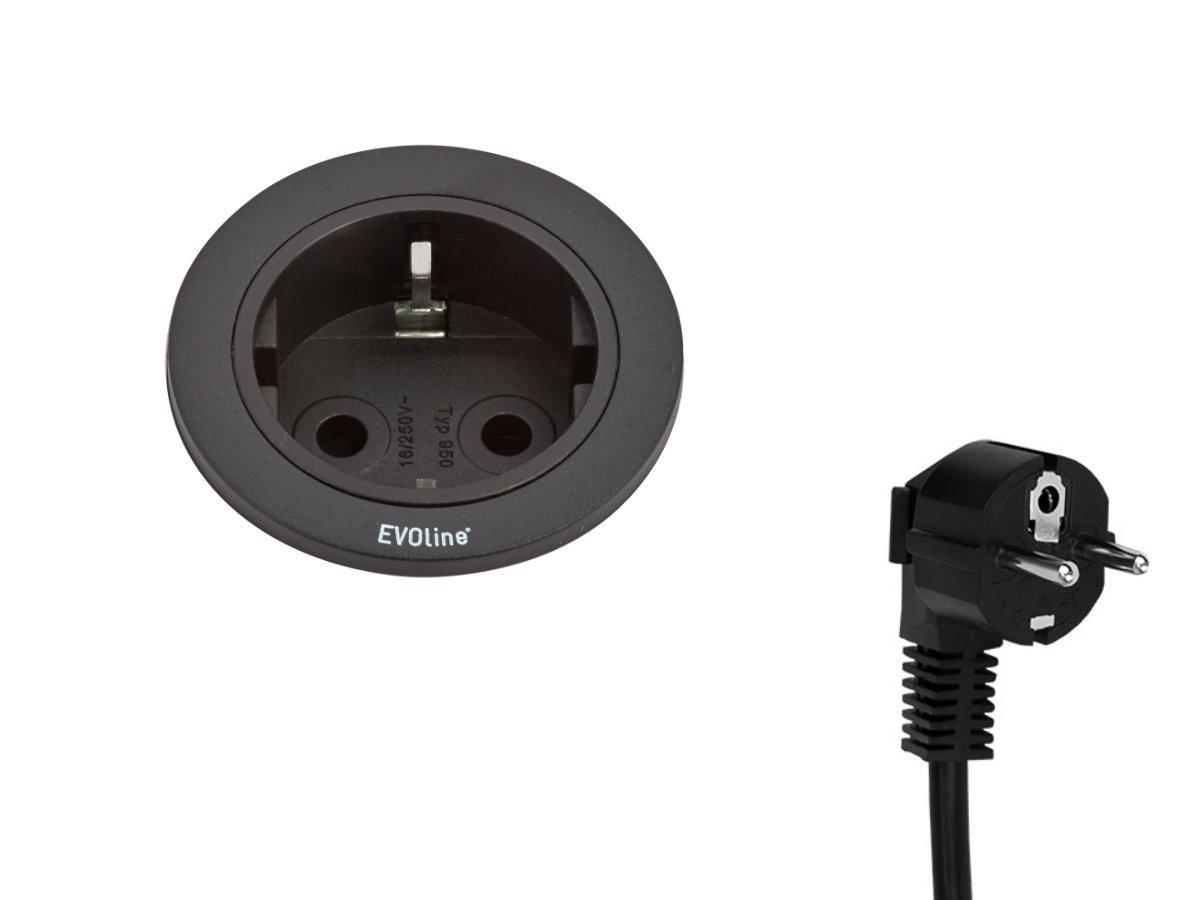

• 3 m power cable with earthing contact plug
| Product sheet: |  [pdf, 740 kb] |
|---|---|
| Technical drawing: | [pdf, 135 kb] |
| RoHS / REACH: | [pdf, 228 kb] |
| Installation manual: | [pdf, 594 kb] |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | White |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
