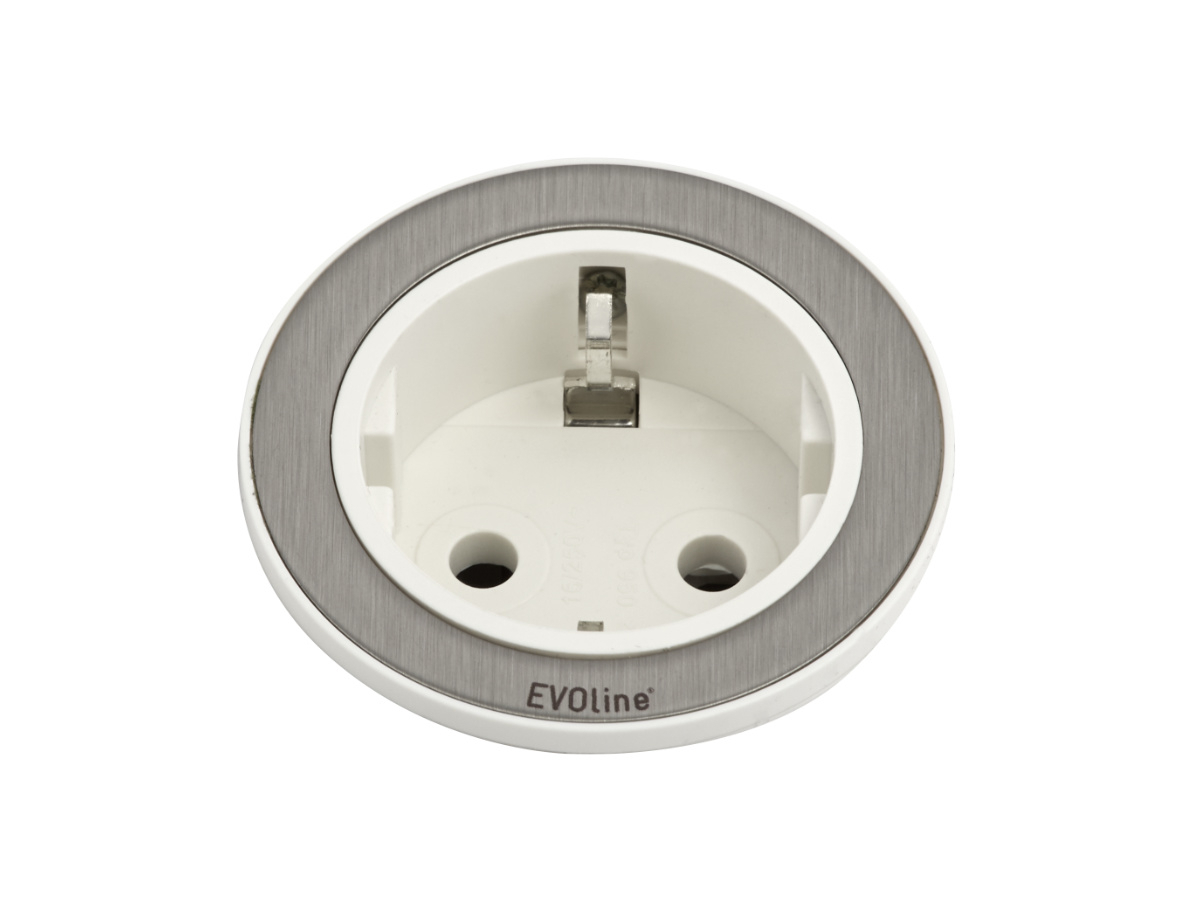

EVOline One built-in housing / cover white with stainless steel
The EVOline One built-in socket saves space and is suitable for the installation in a table, kitchen, cupboard and other furniture. The housing and cover of the EVOline socket are white and stainless steel colored. The single socket has a protection against accidental contact and has a 3m connecting cable with angled earthing contact.
High quality built-in socket for installation in the kitchen, table, furniture

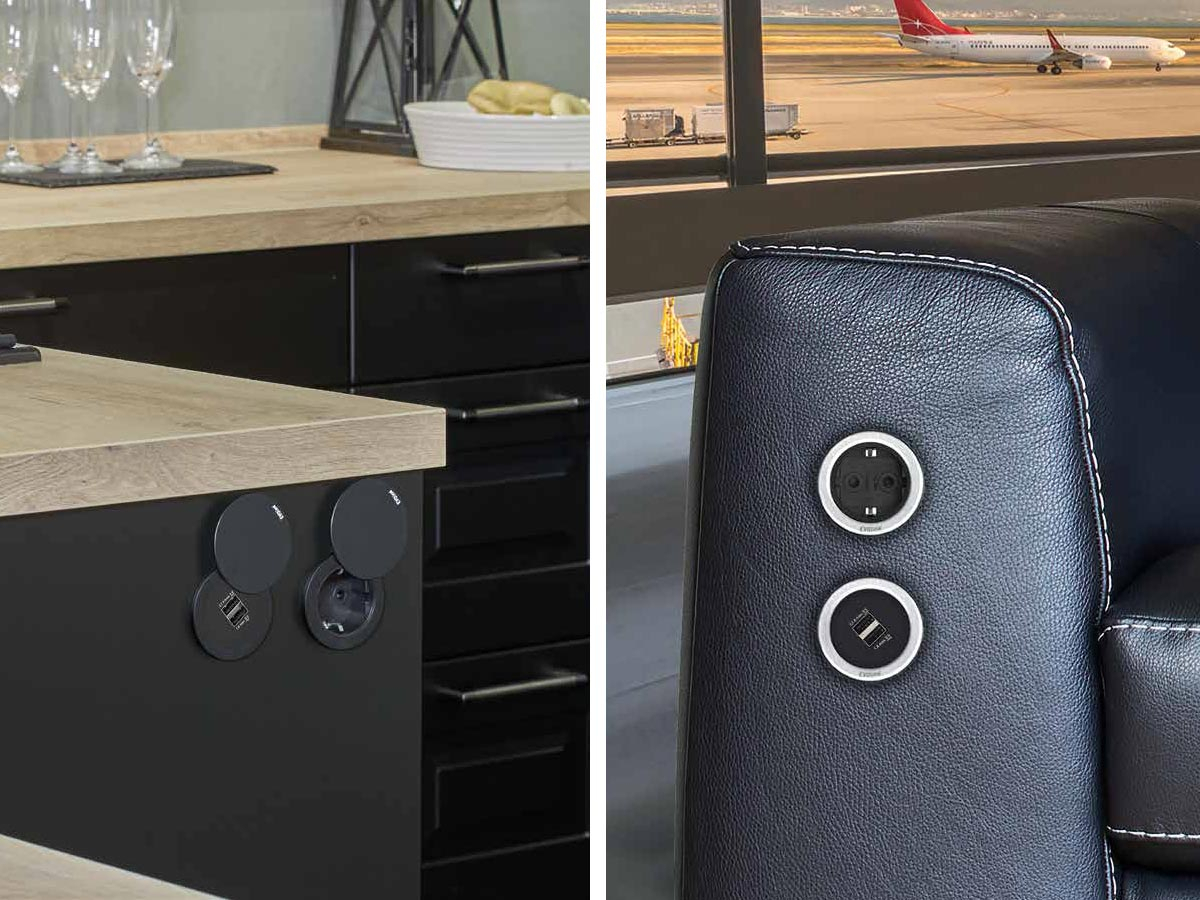

The EVOline One socket for installation brings electricity wherever it is needed. Whether in the kitchen, living room or conference room, the modern design built-in socket is space-saving and decent. The EVOline One VDE sockets in white and with stainless steel can be installed flush to 4 mm and thus integrate into the environment.
Variable mounting options

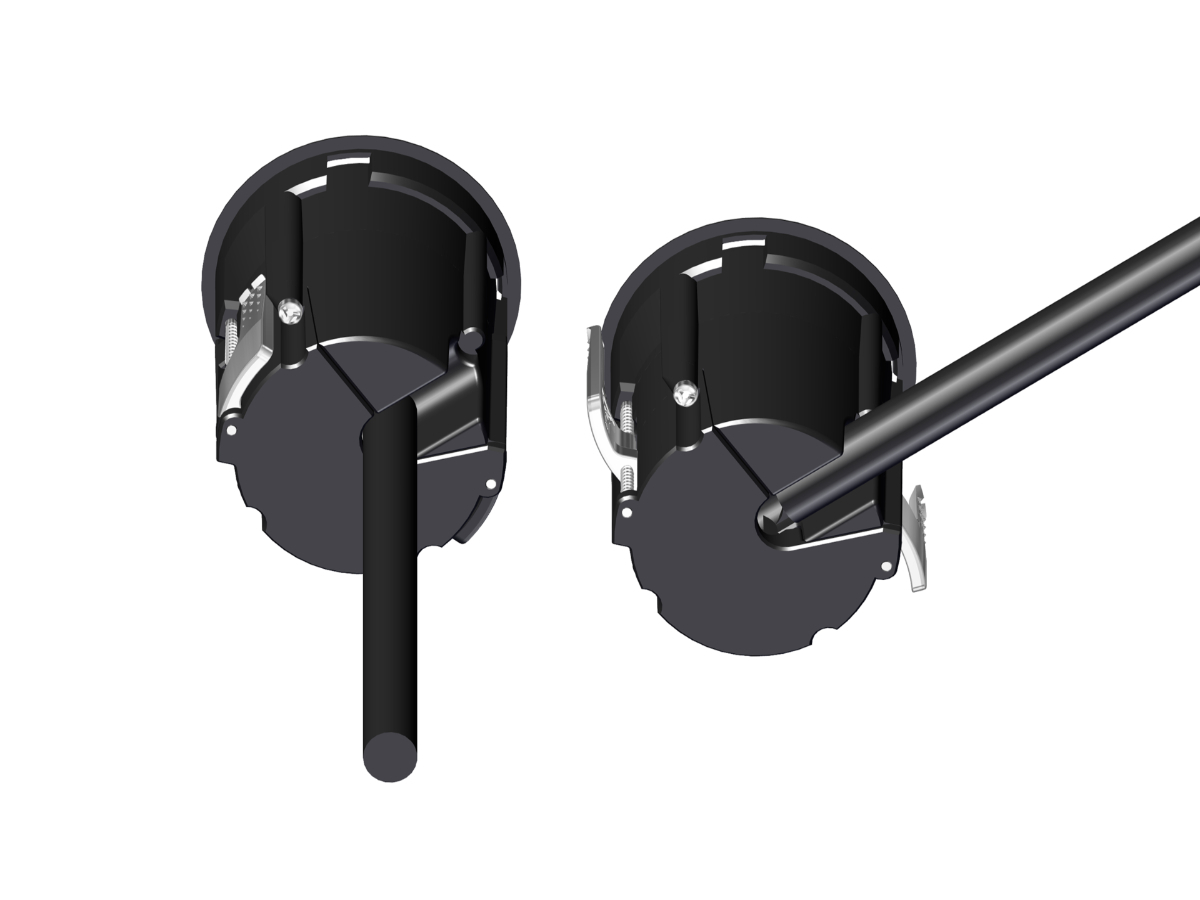

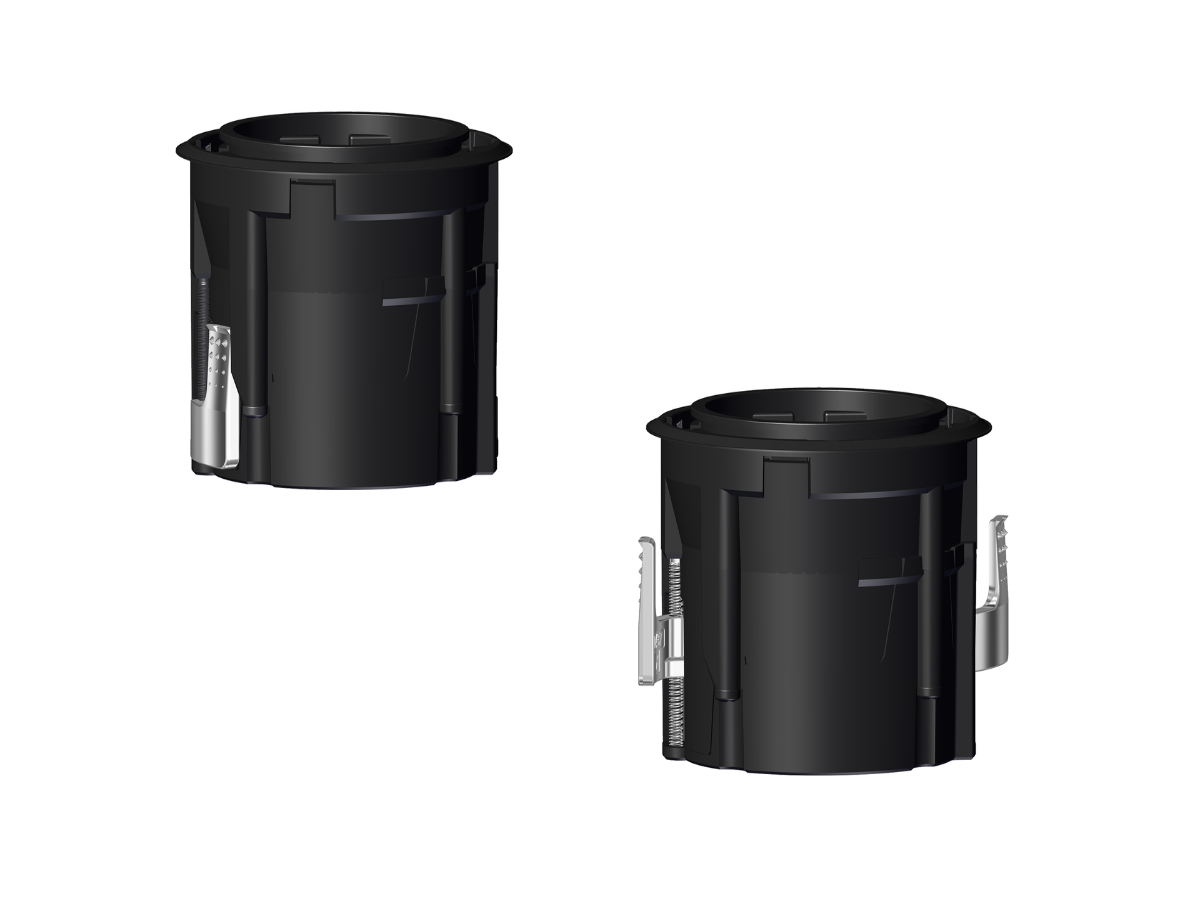

The single EVOline One socket has a flexible cable entry, which gives a wide range of mounting options. With the variable cable entry, the minimum installation depth of only 50 mm is achieved. The installation diameter is just 54 mm and only takes up little space. A material thickness of 9 mm of the table, desk, cupboard or worktop is required to install the power outlet; there is no maximum material thickness. Metal clamps prevent the EVOline built-in socket with cover from slipping or falling out.
Key features EvoLine One
• Finish: housing: white, cover: stainless steel
• Material: plastic, clamps are metal
• Installation diameter: Ø 54 mm
• Installation depth: 50 mm
• VDE-socket 16 A
• Protection against accidental contact

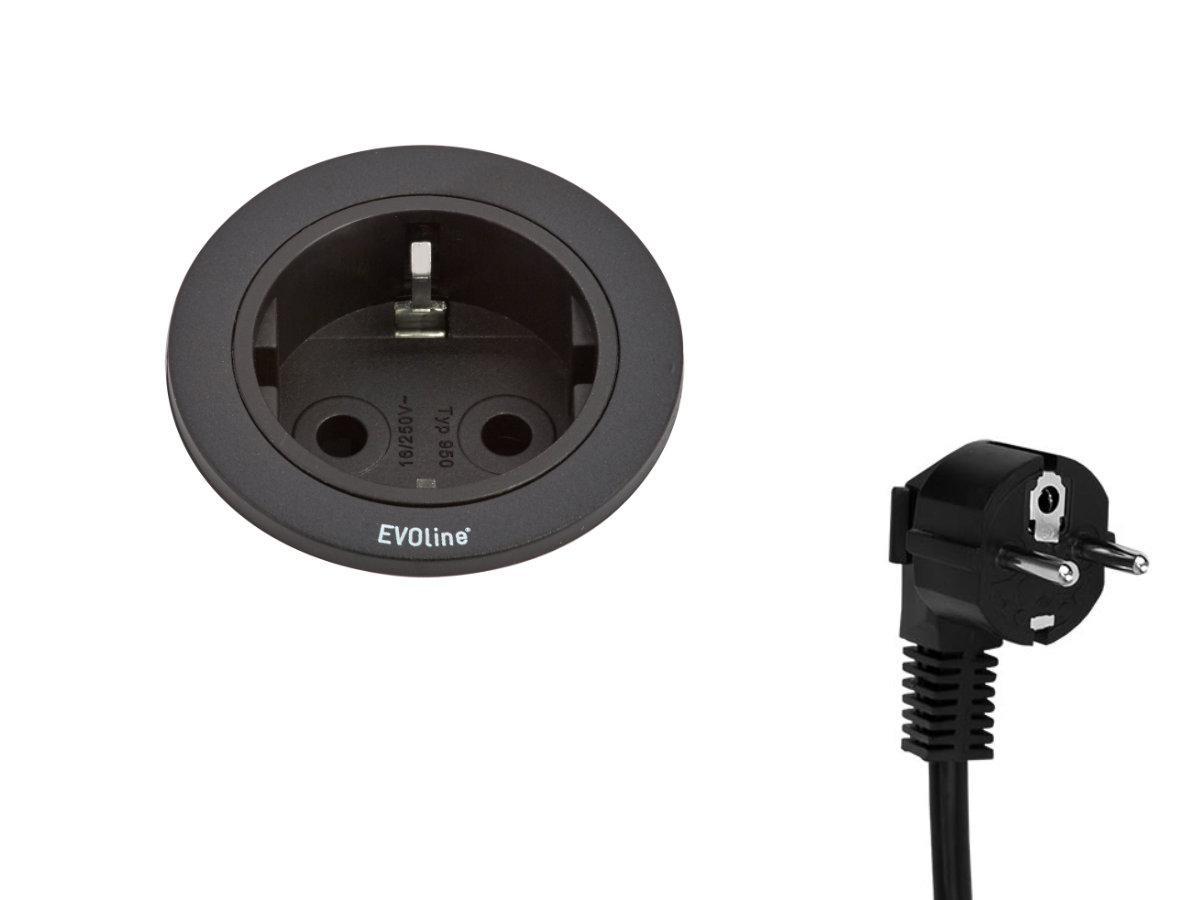

• 3 m power cable with earthing contact plug
| Product sheet: |  [pdf, 740 kb] |
|---|---|
| Technical drawing: | [pdf, 135 kb] |
| RoHS / REACH: | [pdf, 228 kb] |
| Installation manual: | [pdf, 594 kb] |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
