EVOline One built-in housing / cover white
The EVOline One socket saves space and is suitable for installation in the kitchen, cupboard, table and other furniture. The housing and cover of the EVOline built-in socket are white. The single socket has a protection against accidental contact 3m long power cord with angled earthing contact.
High quality socket with cover for installation in furniture, kitchen

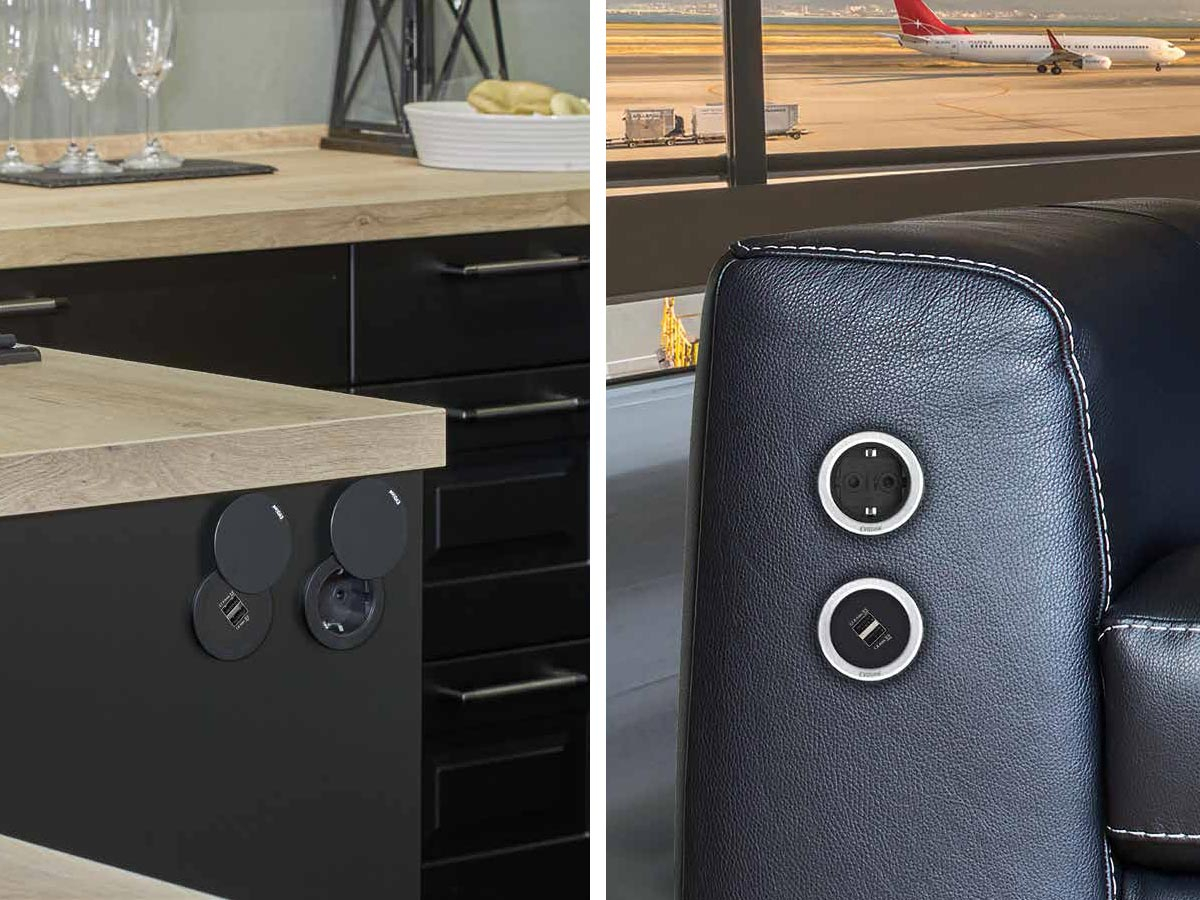

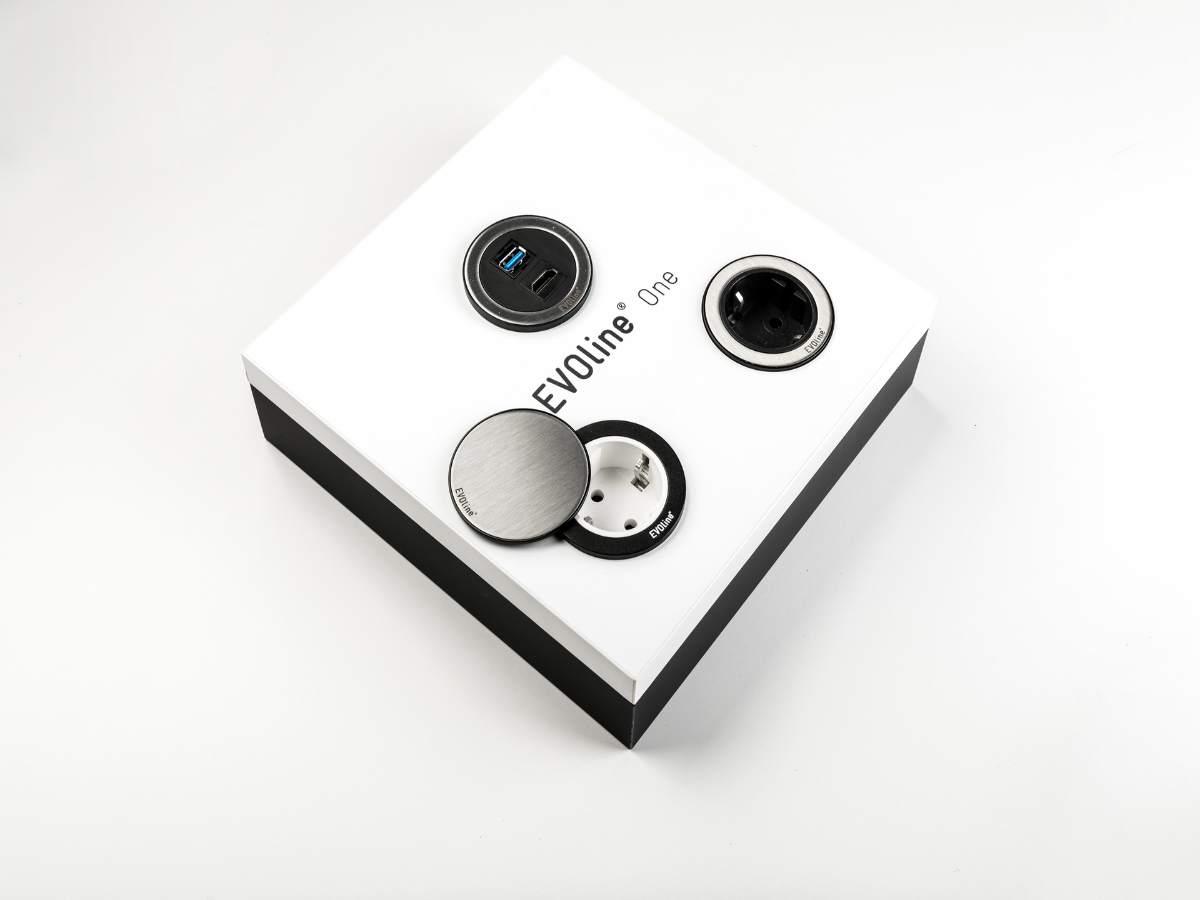

The EVOline One built-in socket transports electricity wherever it is needed. Whether in the conference room on the couch in the living room or the counter in the kitchen, the modern design socket is space-saving and decent. The EVOline One single sockets in white can be flush-mounted up to 4 mm and thus integrate into the environment.
Flexible installation options

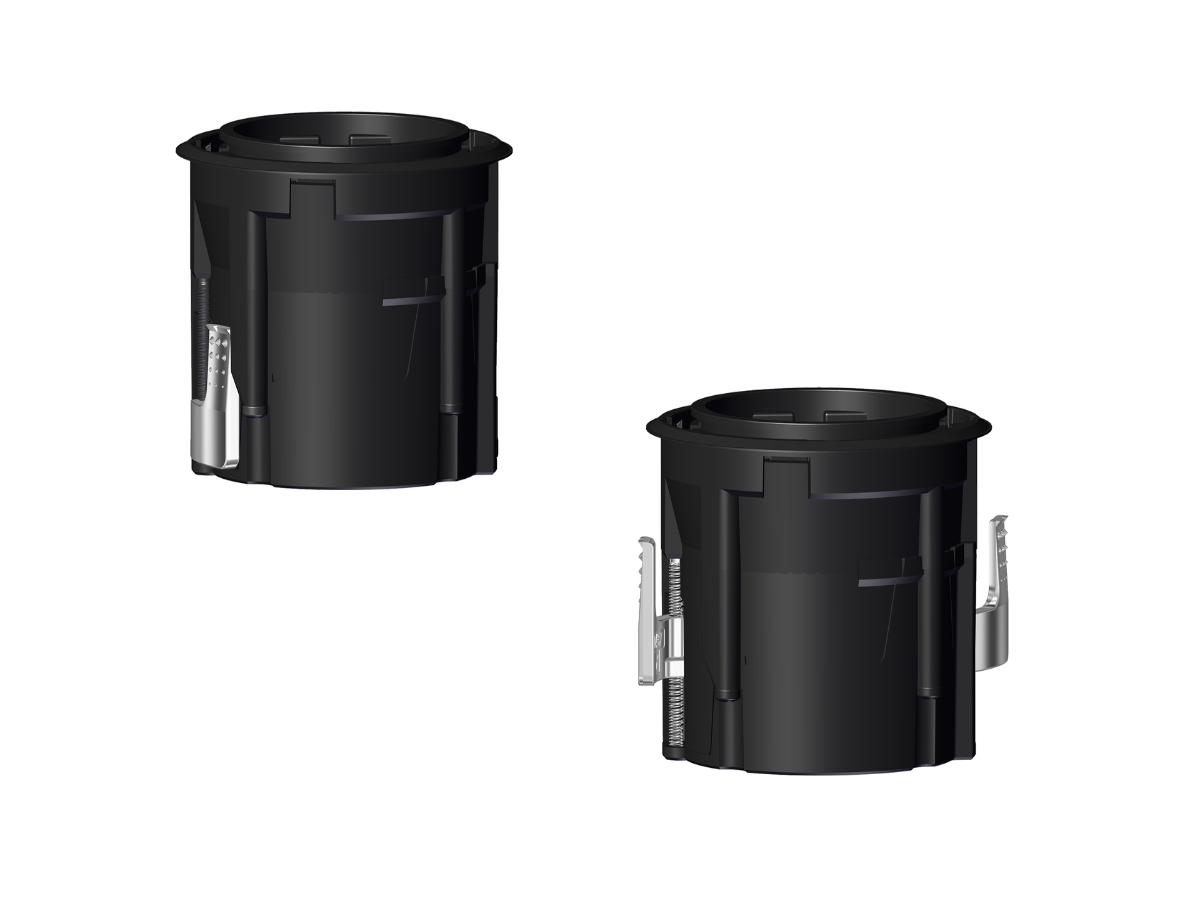

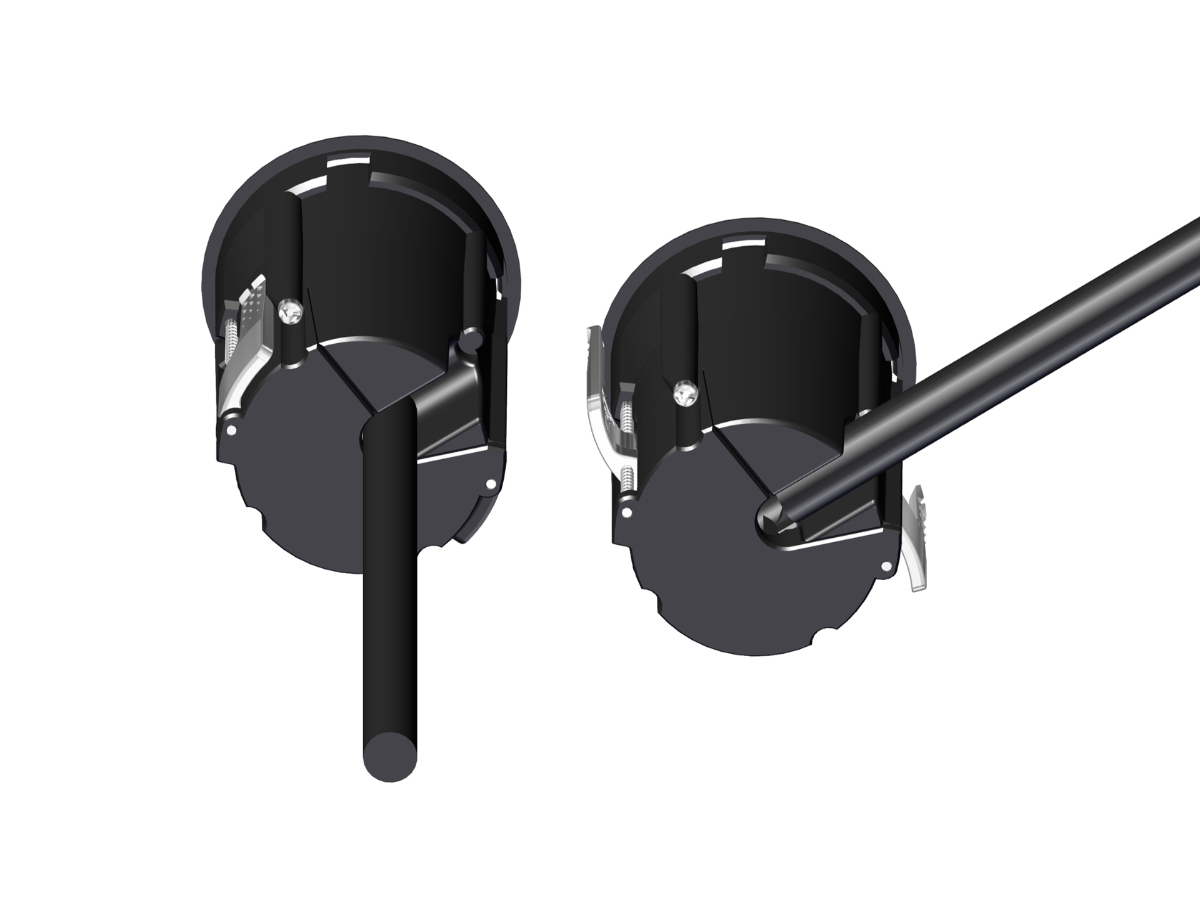

The socket for installation EVOline One has a variable cable entry and a wide variety of attachment options. With the flexible cable entry, the minimum installation depth of only 50 mm is guaranteed. The installation diameter is 54 mm wide and takes up little space. For the installation of the VDE single socket, a material thickness of 9 mm of the desk, table, cabinet or worktop is required; there is no maximum material thickness. Two metal clamps prevent the EVOline One built-in socket with cover from slipping or falling out.
Key features EvoLine One
• Finish: housing & cover: white
• Material: plastic, clamps are metal
• Installation diameter: Ø 54 mm
• Installation depth: 50 mm
• VDE-socket 16 A
• Protection against accidental contact

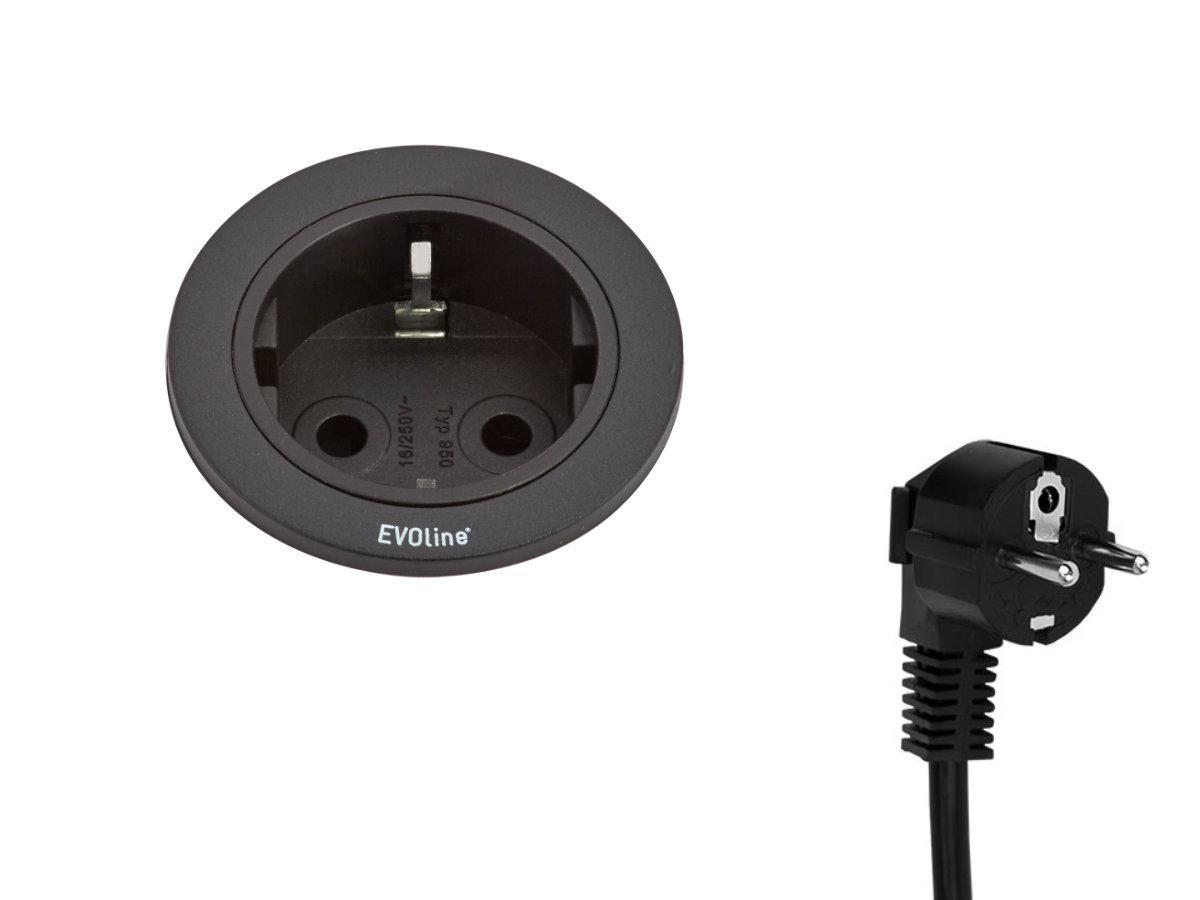

• 3 m power cable with earthing contact plug
| Product sheet: |  [pdf, 740 kb] |
|---|---|
| Technical drawing: | [pdf, 135 kb] |
| RoHS / REACH: | [pdf, 228 kb] |
| Installation manual: | [pdf, 594 kb] |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | White |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
