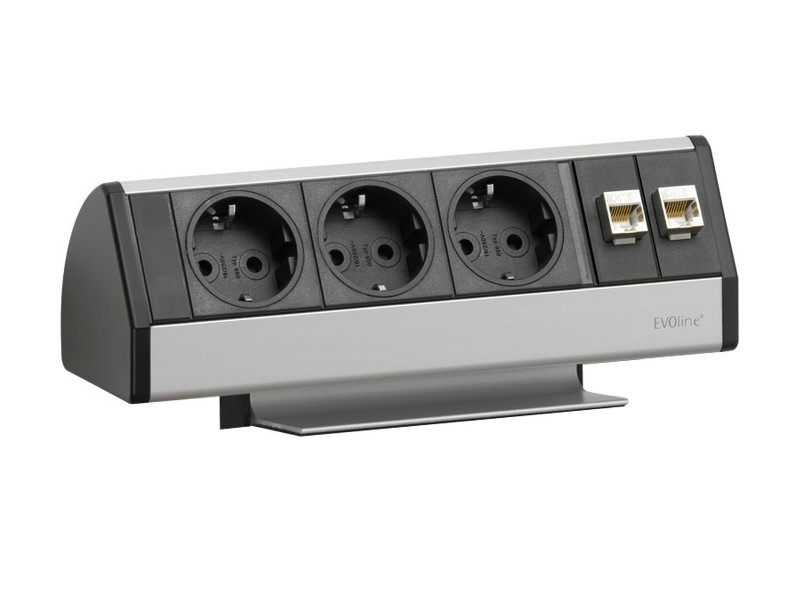

EVOline Dock Data 3x socket with QuickLock, silver
The EVOline Dock Data 3x power socket with 2x modular couplings RJ45 to RJ45 CAT6 shielded with Quicklock 150 mm + bracket for EVOline WireLane connection for table tops with 18 - 32 mm thickness in silver concentrates all the outlets directly on the work surface. Configured as desired – as a docking station for smartphone and camera, augmented with USB, audio, VGA and FireWire outlets – it integrates all your needs.
EVOline Dock Data 3x socket with QuickLock in silver

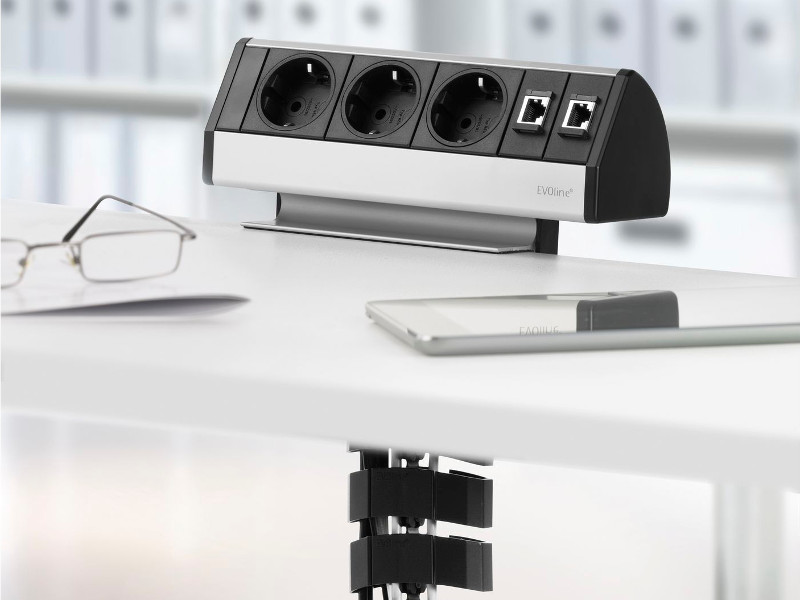

EVOline Dock sits above desk surface allowing maximum workspace. It‘s supported either by patened raising plastic mounting clamps or fixed in position by stainless steel clamps.
The configurable charging and data station extends your work, private or social zone, including hotel rooms, equipped with international electrical sockets, and various multimedia, data and saftey modules and switches.
Key features EVOline Dock Data 3x power strip with QuickLock
- Aluminium housing
- Profile silver anodised
- Fixing system: EVOline Quicklock 150 mm + bracket for EVOline WireLane connection
- For table tops with a thickness of 18 - 32 mm
- 3x sockets, VDE compliant, 0°, 16 A, contact-protected
- 2x modular couplings RJ45 to RJ45 CAT6 shielded, 1:1 interconnected
- Power supply cable entry left side in the bottom of the profile
- Fixed supply cable 3,0 m with angled plug
| Product sheet: |  [pdf, 376 kb] |
|---|---|

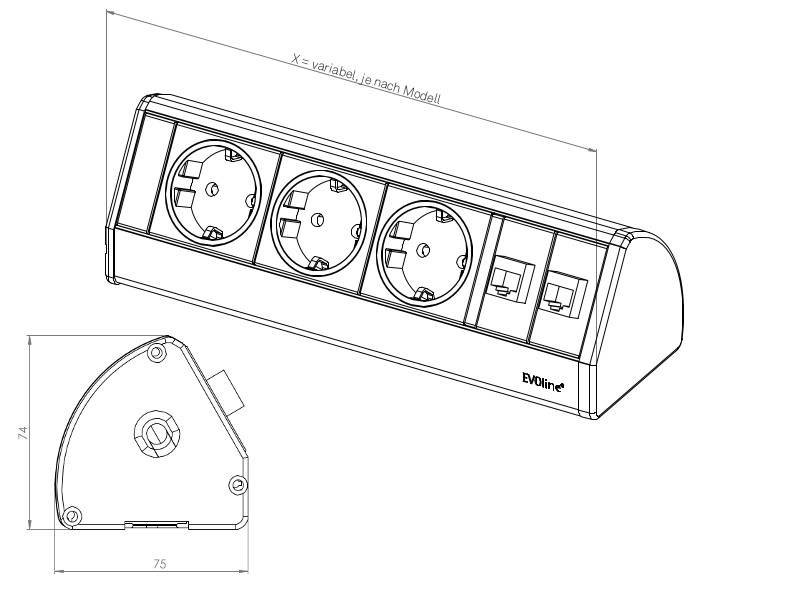

| Technical drawing: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
