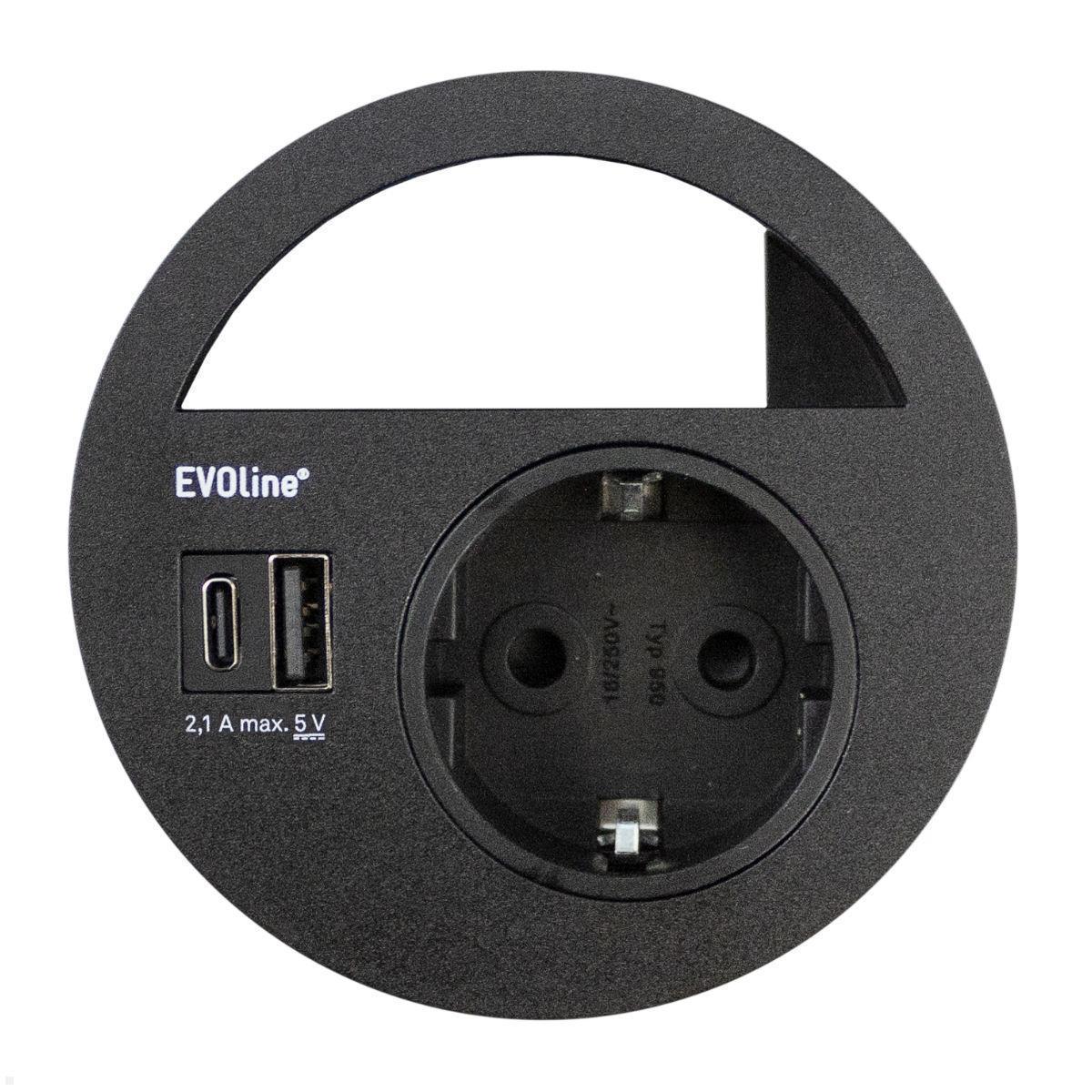

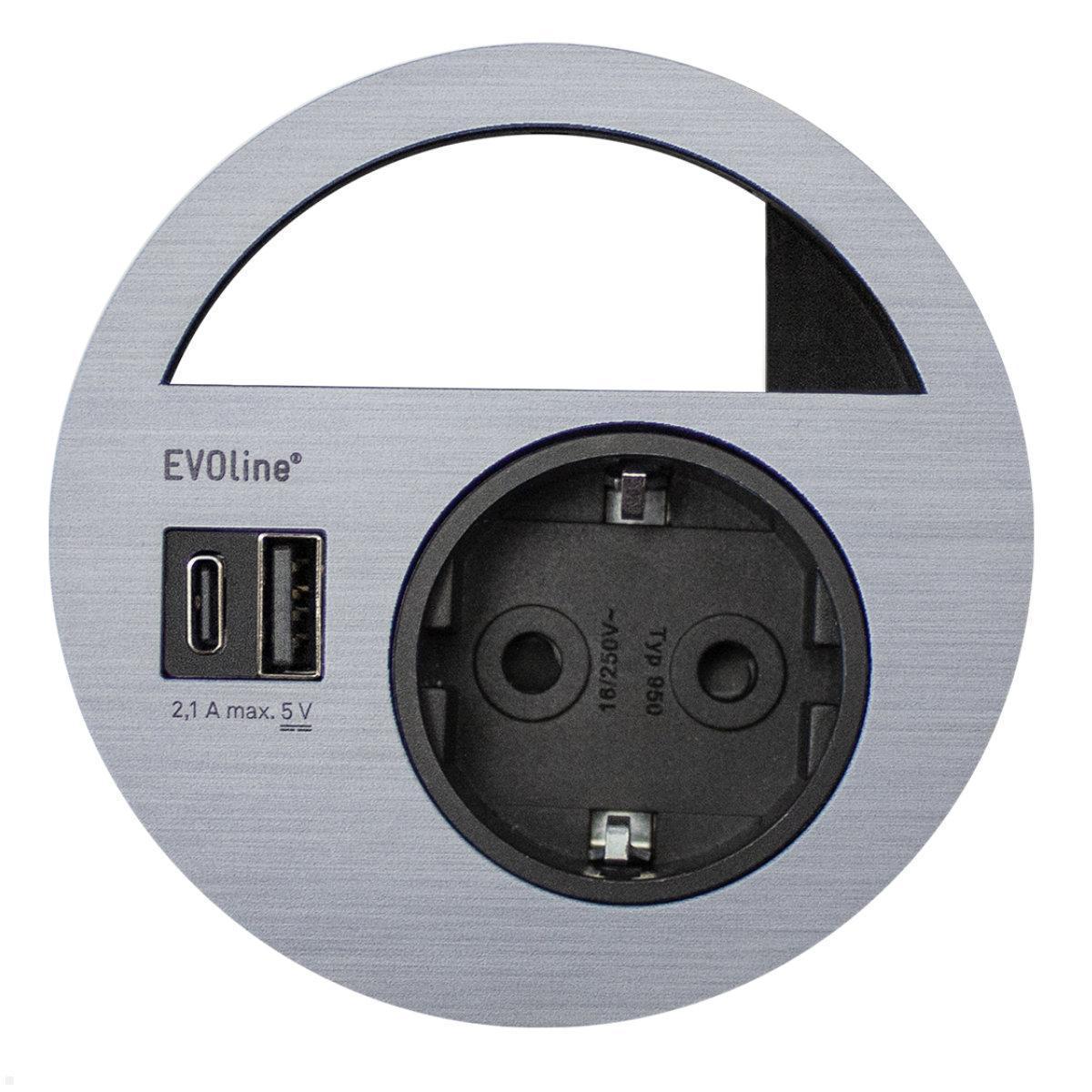

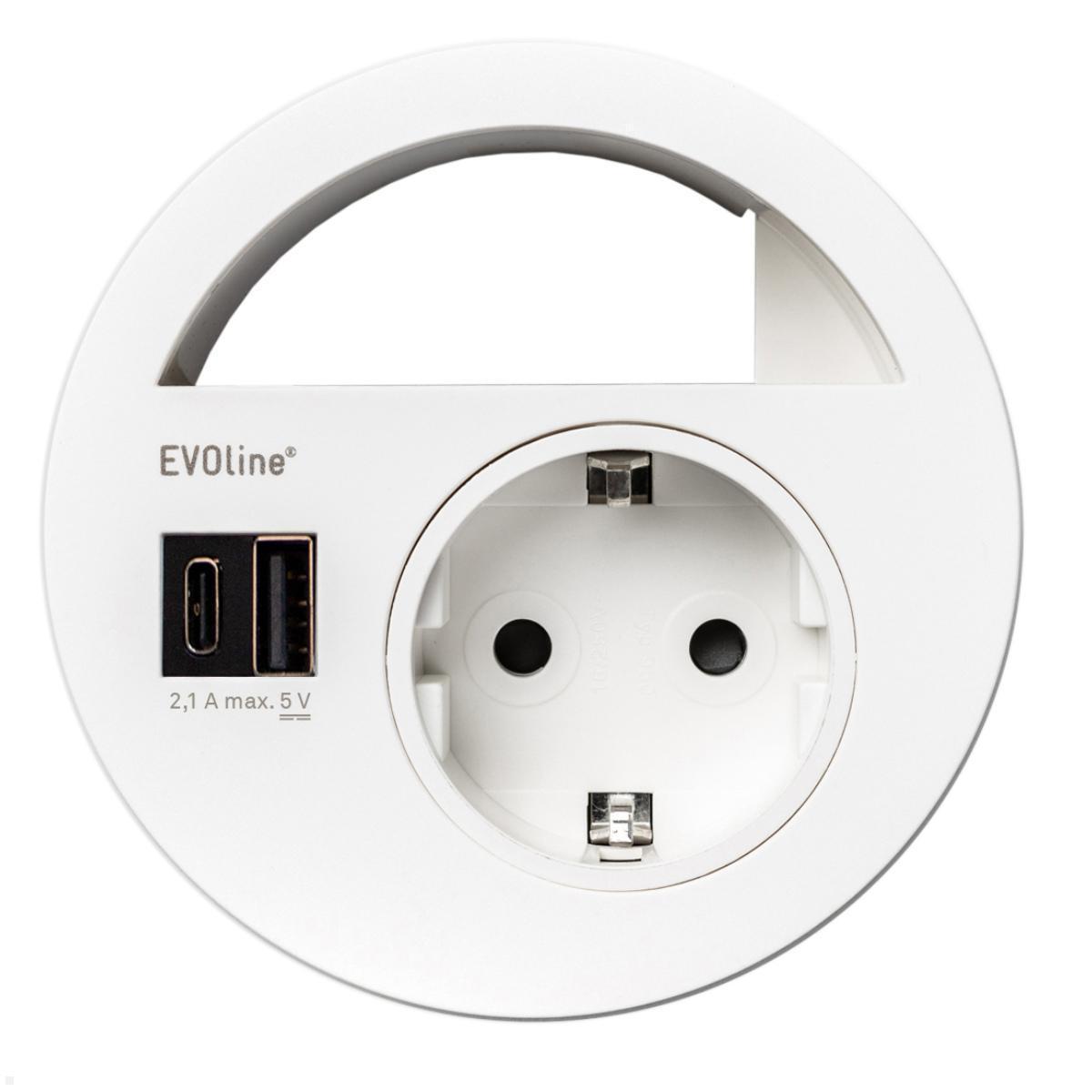

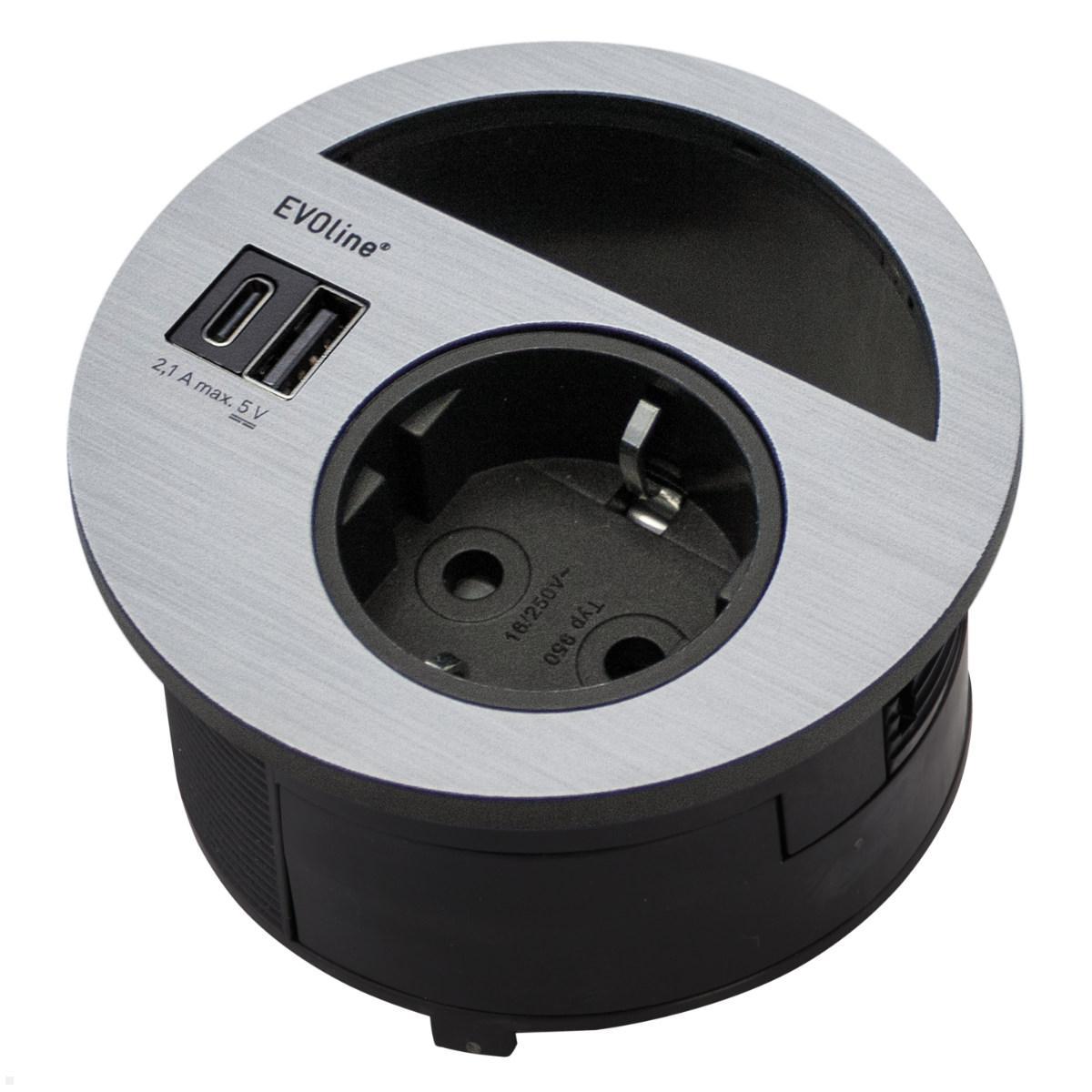

EVOline Circle80 built-in socket with 1x USB-A / 1x USB-C charger, stainless steel

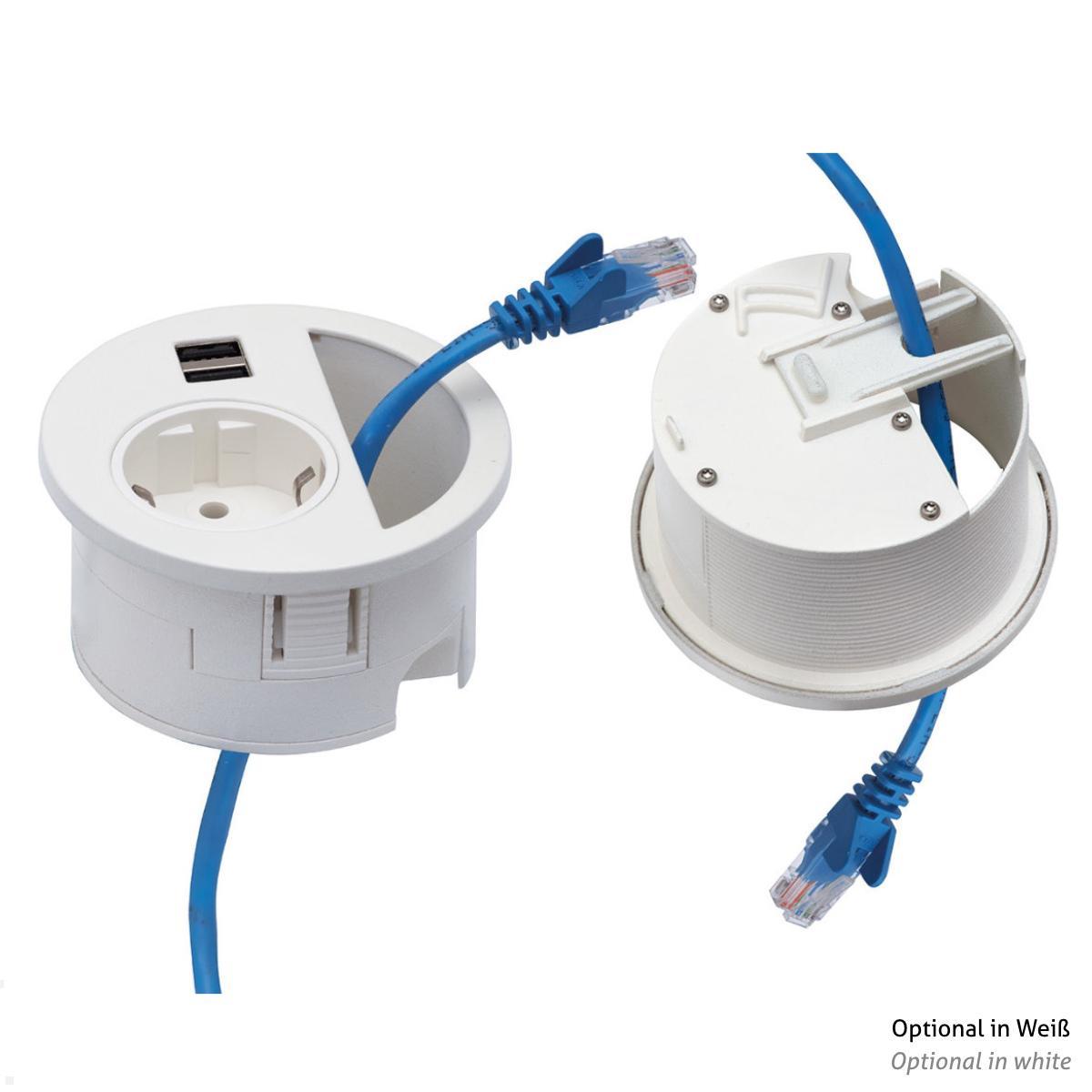

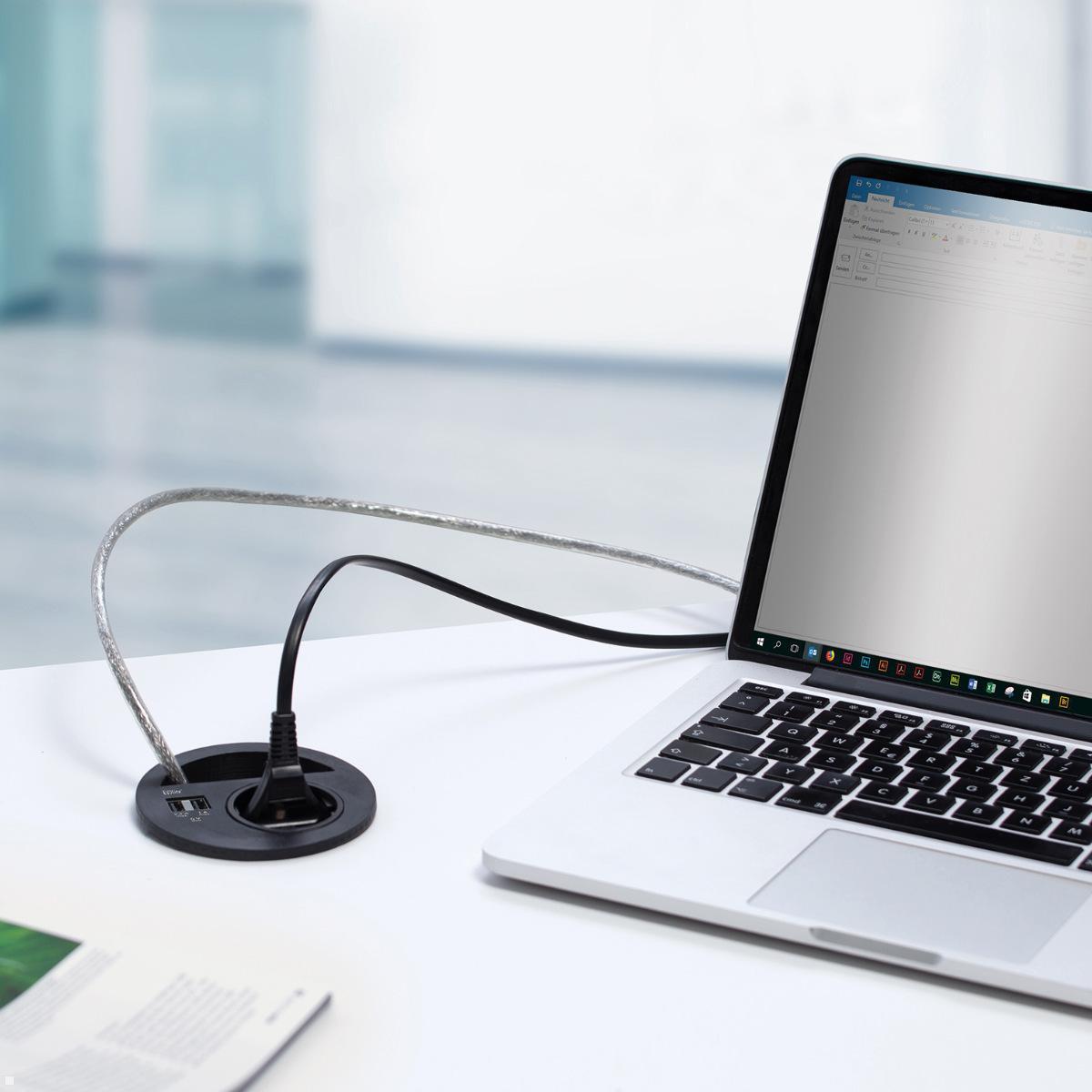

The EVOline Circle80 built-in socket combines the most popular connections in one: socket, USB-C and USB-A charger. In addition, the practical cable aperture allows cables to disappear elegantly from the table. The low installation depth and the EVOline mounting system guarantee simple and quick installation.
Desktop built-in socket USB-C & USB-A

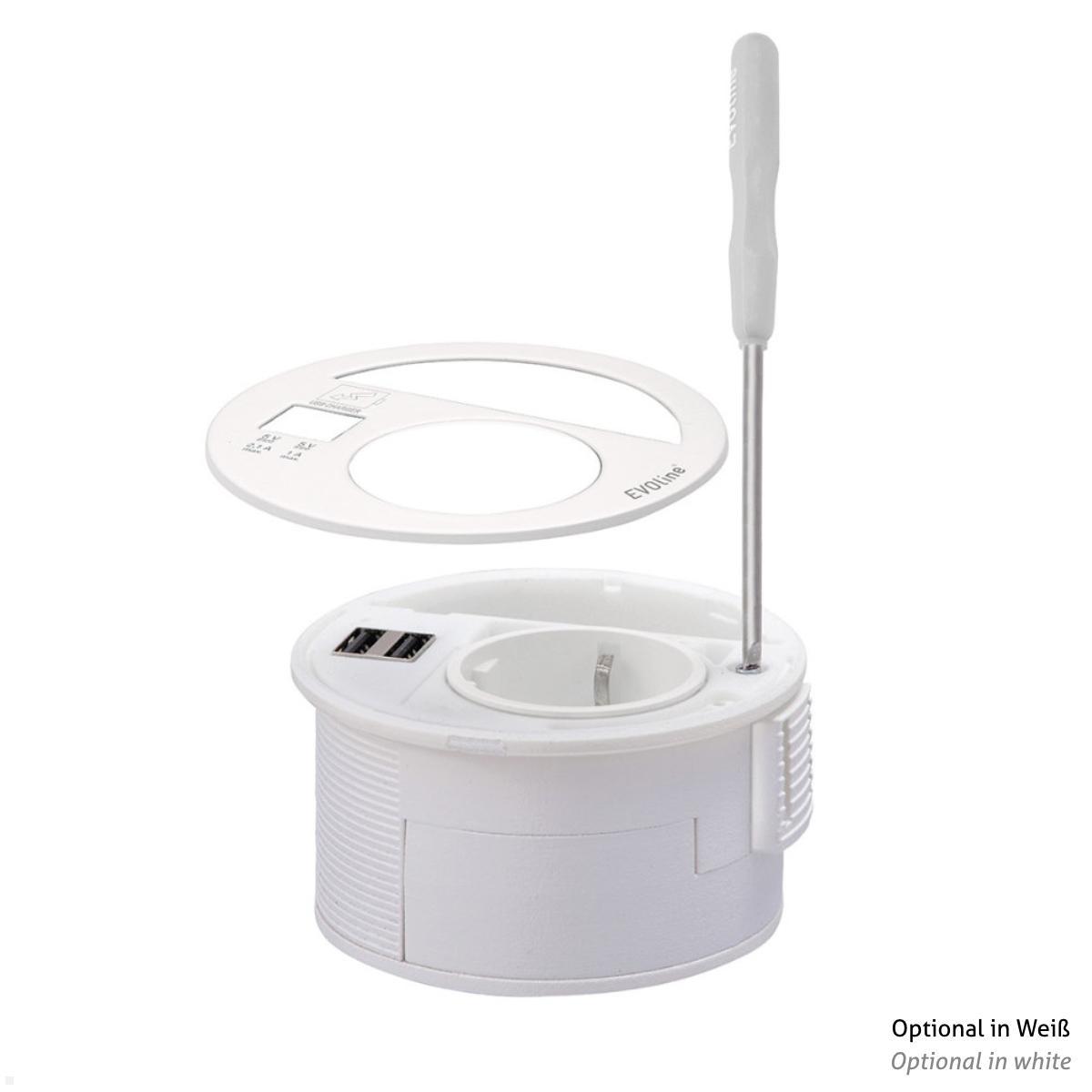

The desktop built-in socket with USB-C & USB-A from the EVOline Circle80 series ensures order and short cable runs at the workplace. The built-in socket with USB-C & USB-A Charger is suitable for a panel thickness of 10 mm or more and is securely fastened from above with a simple screw turn. A maximum material thickness is not specified. The socket has a circumference of 92 mm on the table, is installed flush to within 5.5 mm of the surface and thus integrates flatly into the table surface. This practical table connection panel with double USB charger in stainless steel can be installed in worktops, desks, boards or in the kitchen. The built-in socket with USB-C connection and USB-A connection has a 3 m long connection cable with angled plug.
Key features EVOline Circle80 built-in socket with double USB-C / USB-A charger
- Finish: stainless steel
- Material: plastic
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- 3 m mains connection cable with protective contact angled plug
- 1x USB-A, 1x USB-C with 2.1 A and 5 V each
- 1 x socket VDE, 16 A, with touch protection
- Voltage: 230V AC
- Suitable for Apple iPhone, Apple iPad, Samsung Galaxy Tablet and many more.
- Quick and easy installation
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Suitable for: | For worktops from 10 mm thickness |
| Packaging dimensions (LxWxH in mm): | 340 x 240 x 180 |
| Scope of delivery: | 1x EVOline Circle80 |
| Contains installation material: | + |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| color: | Stainless Steel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
