EVOline Circle80 built-in socket USB A/C charger with cover, black

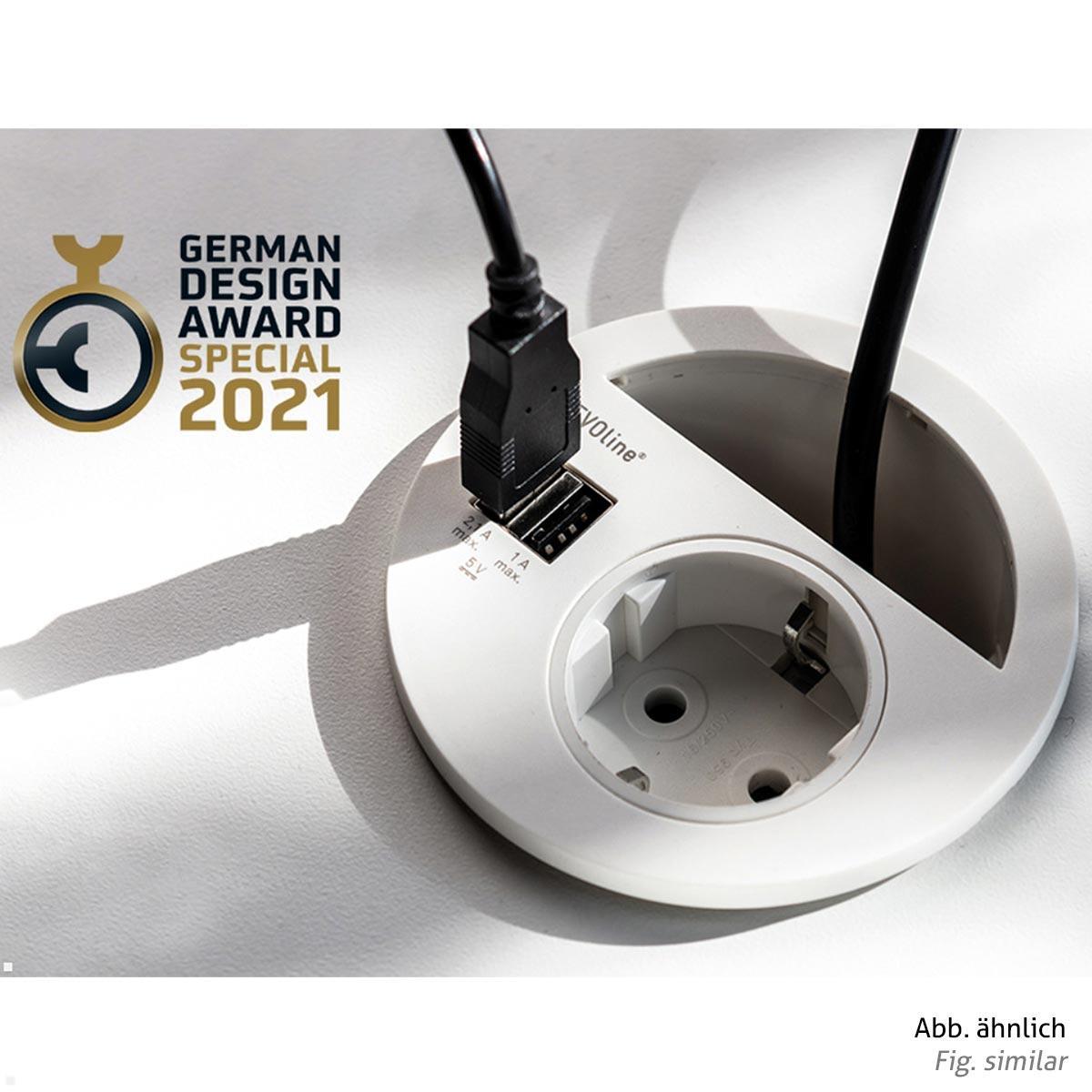

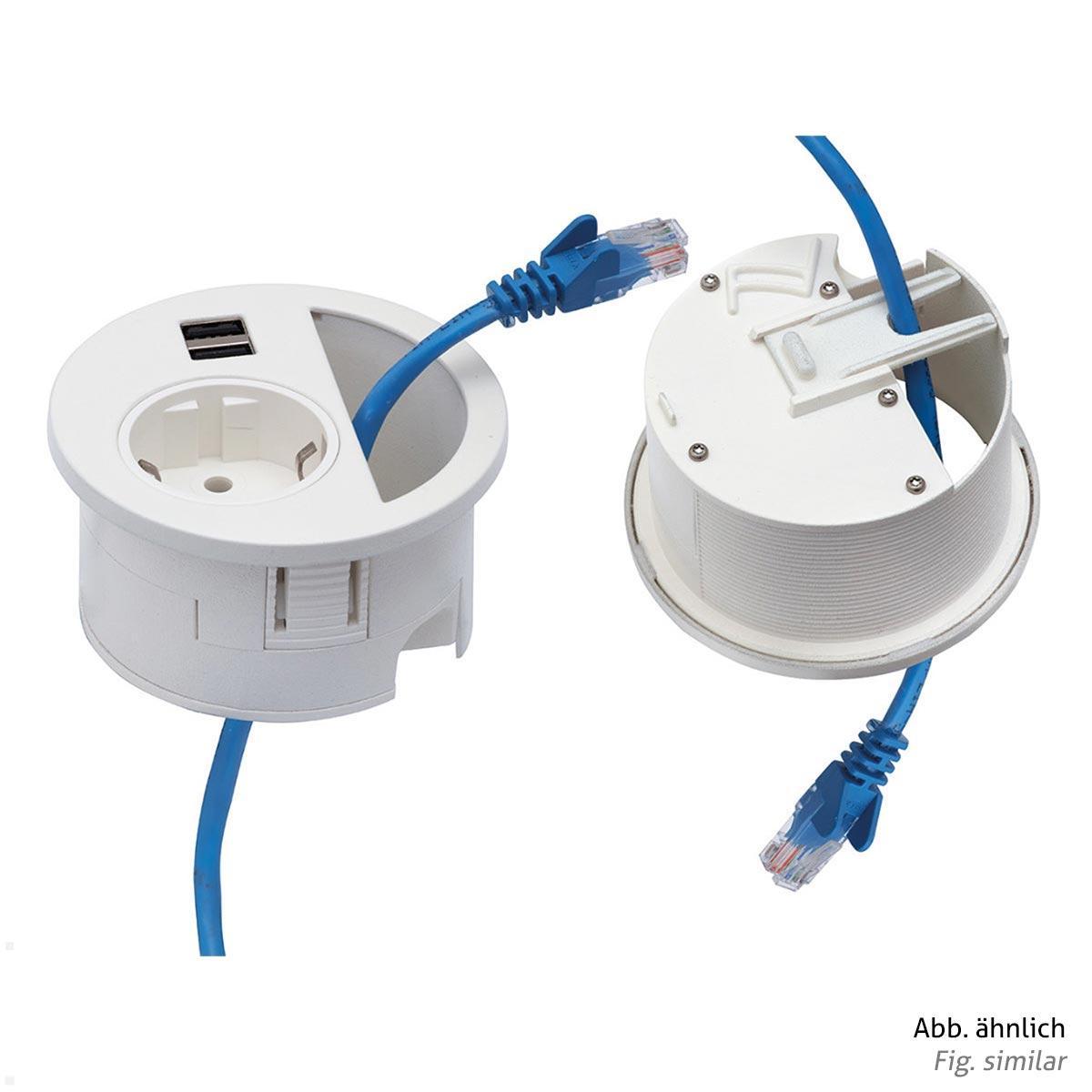

The EVOline Circle80 built-in socket intelligently combines three functions in one: socket, USB-A/C charger and cable outlet with the same coloured cover. The practical cable outlet with integrated slide for cable locking also allows excess cables to disappear elegantly from the table. The cable passage can be completely closed with the cover (lid). The small installation depth and the EVOline fastening system guarantee a simple and quick installation. The built-in socket is black and has a 3m long connection cable with angled plug. successor of 159273003000
Built-in socket with USB-A/C, cable outlet and cover for modern desks

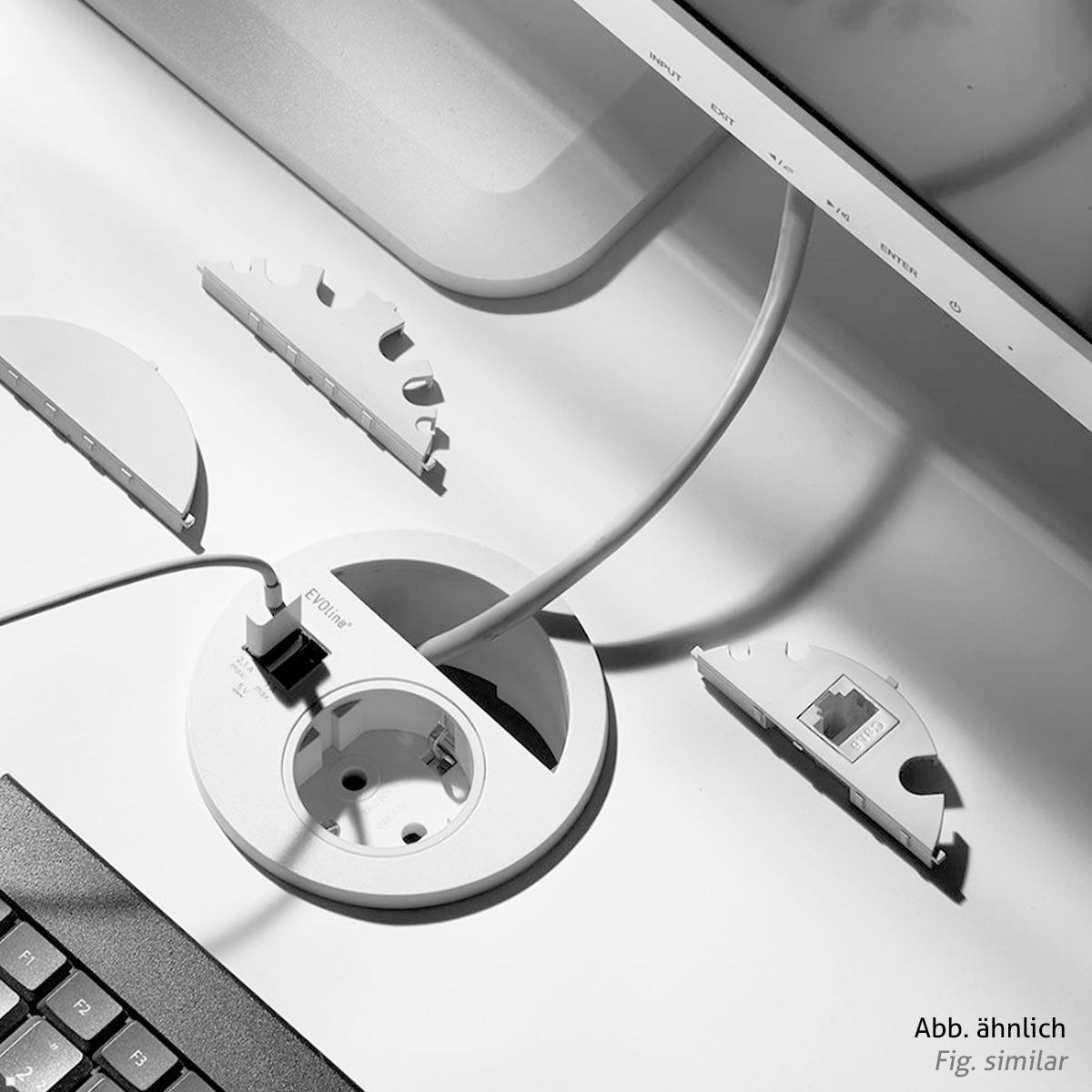

EVOline Circle80 built-in sockets modernise your desk by combining cables and charging options in a space-saving way. With the socket in black with USB A/C charger, fast charging is guaranteed by supported charging protocols. The cable passage with slide holds required cables in place and keeps your desk tidy. If it is not needed, close the opening completely with the cover.
Quick and easy installation
The built-in socket with USB is suitable for a panel thickness from 10 mm and is securely fastened from above with a simple screw turn. A maximum material thickness is not specified. The socket has a circumference of 92 mm on the table, is installed flush with the surface up to 5.5 mm and thus integrates itself flat into the environment. Use the modern built-in socket wherever you need the practical charging option: in worktops, on the desk, in the office or in the kitchen.
Technical details EVOline Circle80
- Colour: black
- Material: plastic
- Installation opening: Ø 79 mm
- Installation depth: 48.5 mm
- 3 m mains connection cable with earthing contact angled plug
- 1x USB Type A, 1x USB Type C, each type USB Charger with 2.1 A and 1 A
- Supported charging protocols:
- Revision 1.2 (downward compatible)
- Charging capacity: 2A (Apple, Samsung Galaxy Tablet)
- successor of 159273003000
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Old model no.: | 159273003000 |
| Suitable for: | For worktops from 10 mm thickness |
| Contains installation material: | - |
| Manufacturer/Importer: | Schulte - Elektrotechnik GmbH & Co. KG / EVOline, Jüngerstraße 21, D-58515 Lüdenscheid, info@schulte.com |
| Number of sockets: | 1 |
| color: | Black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
