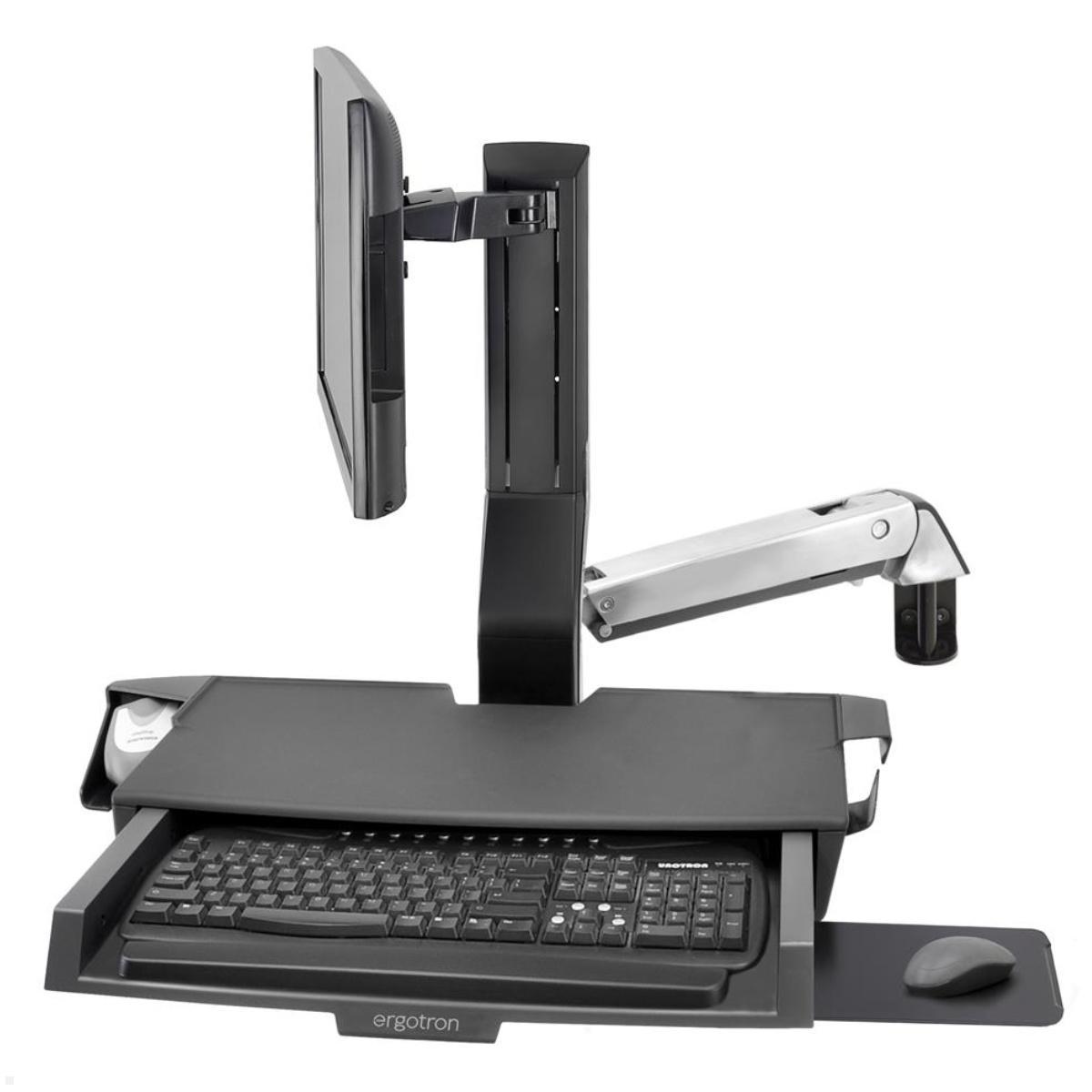

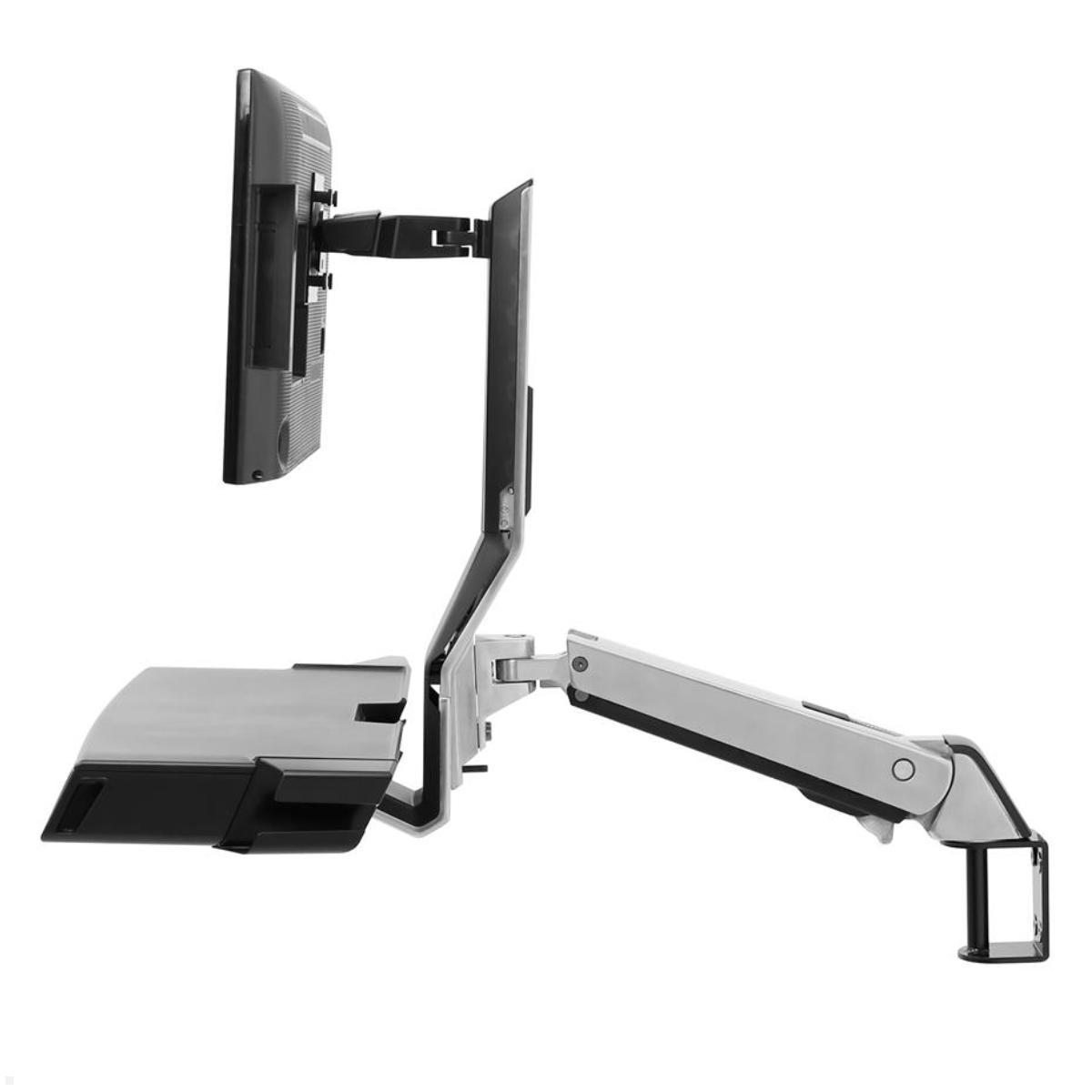

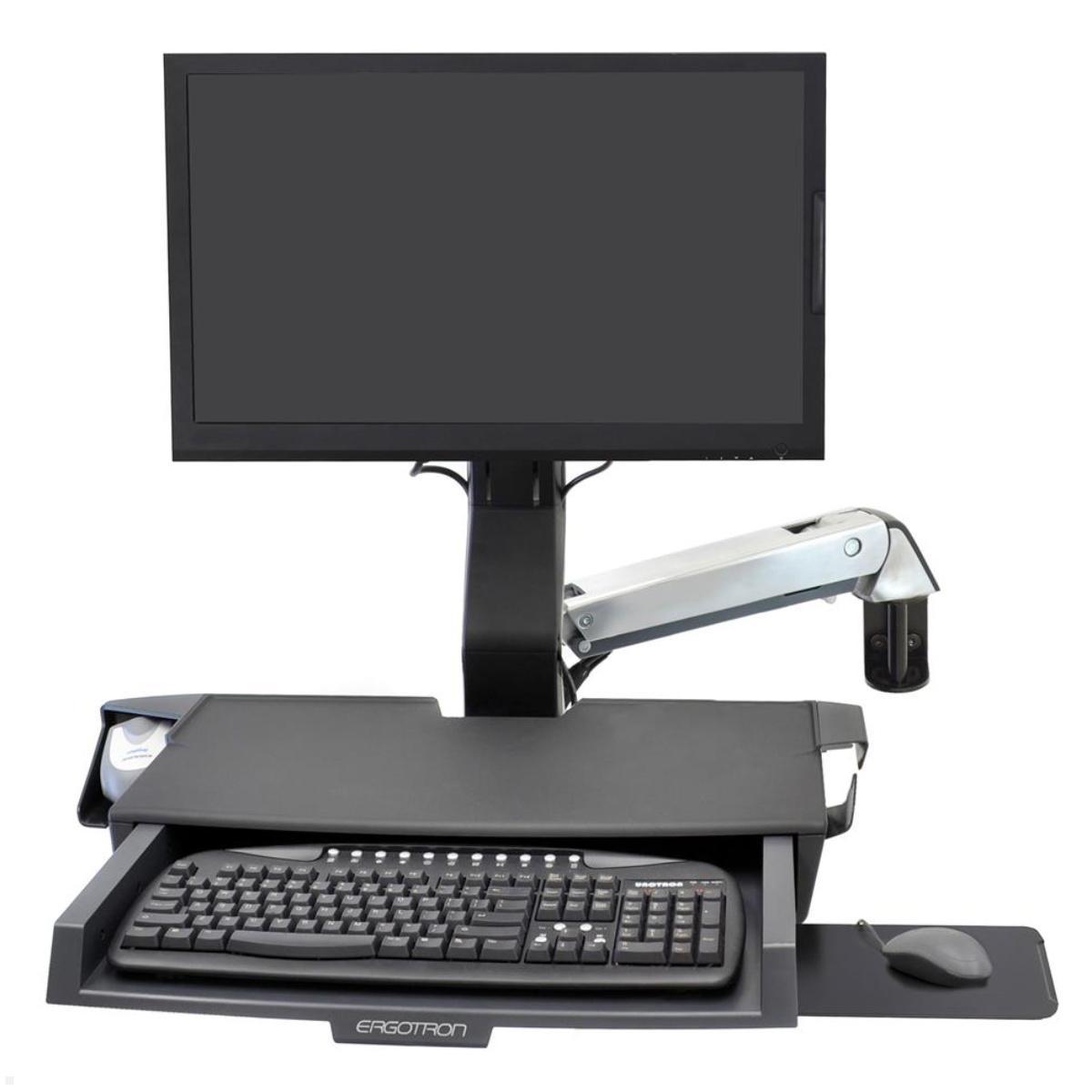

Ergotron StyleView Combo Arm wall mount for monitor, keyboard (45-583-026)

Swivel wall workstation

The Ergotron StyleView Combo Arm is designed for use in hospitals, clinics and care facilities. As a swivel wall workstation, it facilitates documentation and the exchange of information with patients or colleagues. Thanks to separate height adjustment of the monitor holder and keyboard holder, ergonomic adjustment for different users is easily possible. The entire sit-stand workstation can be swiveled 360°, while the monitor can be tilted 30° and rotated from landscape to portrait format. The pull-out mouse and keyboard holder is located under the generously dimensioned work surface, and a barcode scanner can also be stored on the side. Concealed cable routing along the swivel arm provides a tidy look and simplifies cleaning of the combo system. When the wall workplace is not in use, it can be pushed completely against the wall to save space, and the keyboard shelf can be folded away separately. By means of various accessories, the medical wall-mounted workstation can be further customized in numerous configurations.

Key features Ergotron StyleView Combo System monitor / keyboard wall mount (45-583-026)

• Ergonomic wall-mounted workstation for use in the healthcare sector

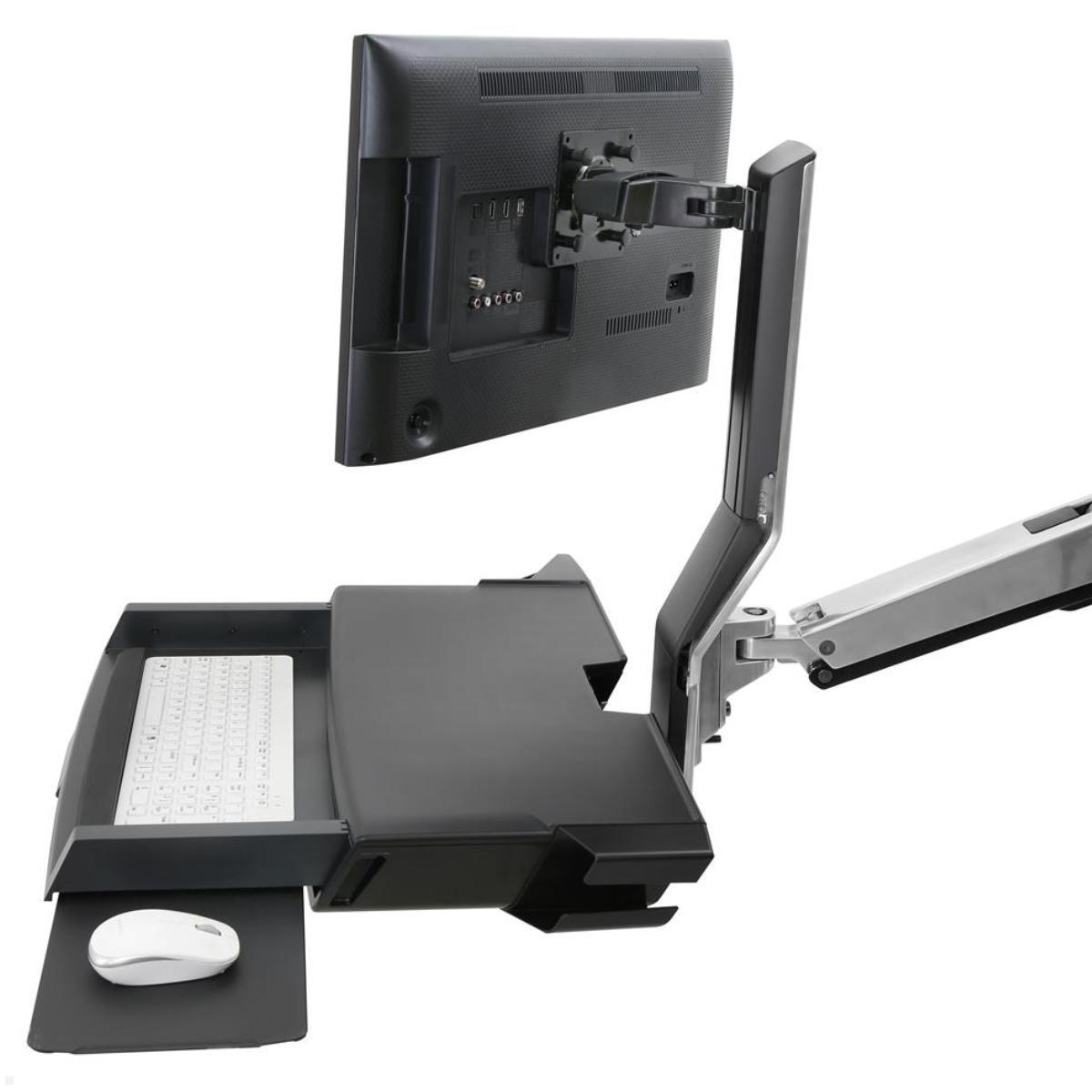

• Comfortable work surface with pull-out keyboard holder
• Side holders for scanner and mouse
• Workstation can be pushed against the wall to save space when not in use
• Keyboard holder can be folded away separately
• Screen size: up to 24 inch
• Total load capacity: 14.5 kg (monitor: 8.2 kg; work surface: 4.5 kg; keyboard, mouse and scanner holder: 1.8 kg)
• VESA mount: 75x75, 100x100 mm
• Swivel: Arm 360°, monitor 180°
• Height adjustable: 640 mm (monitor mount + keyboard mount together: 510 mm, monitor mount separately: 130 mm)
• Tilt: 30 degrees
• Rotate: 90° (pivot)
• Integrated cable management
• Easy cleaning

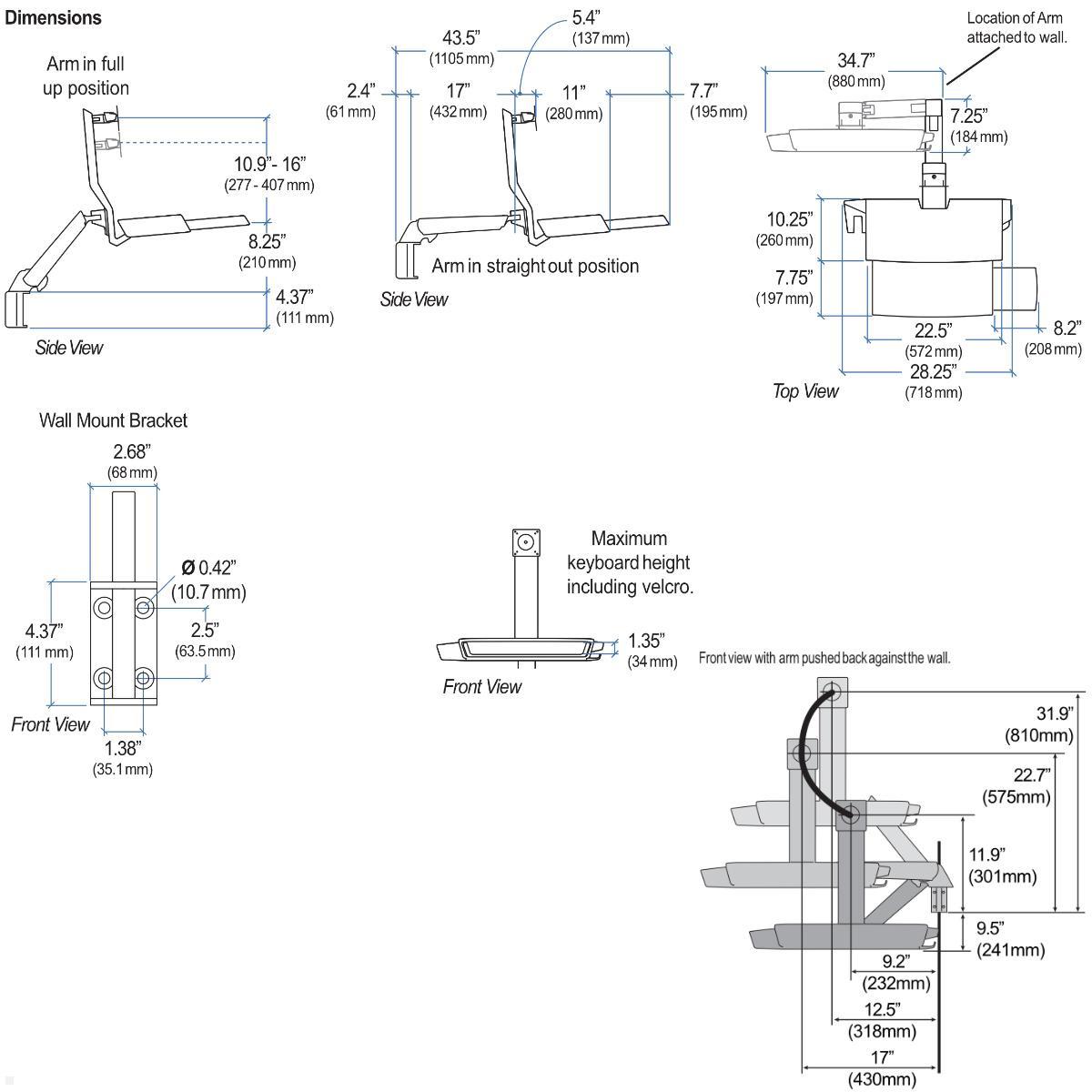

• Dimensions work surface (WxD): 578 x 269 mm
• Dimensions keyboard tray (WxD): 472 x 228 mm
• Material: aluminum, plastic
• Color: polished aluminum
• Warranty: 5 years

Does your display fit the monitor mount?

We would be happy to check whether your monitor is suitable for this Ergotron StyleView wall-mounted workstation (45-583-026). Just tell us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.

VESA standard - Learn more about the VESA standard of monitor mounts!
