Ergotron HX arm triple monitor desk mount

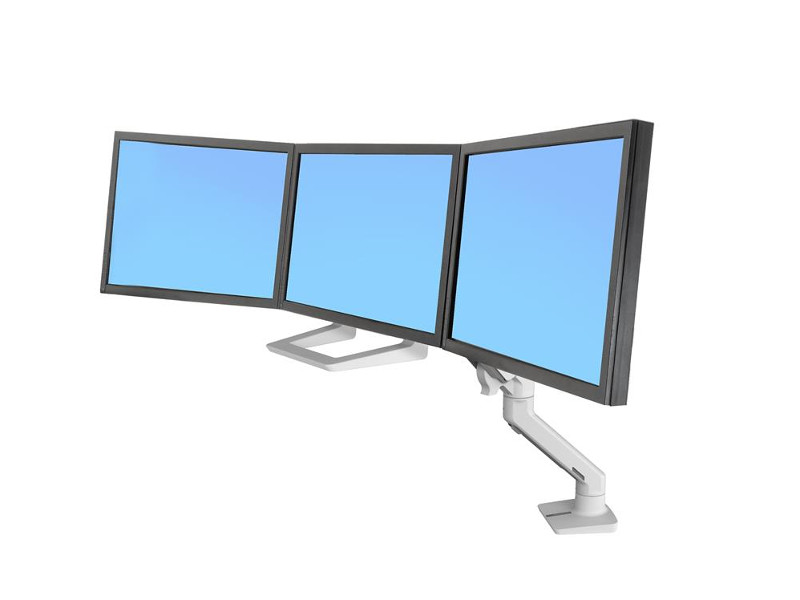

The Ergotron HX Arm 3-way monitor table stand 45-475-216 + 98-009-216 in white is a swivel- and tiltable and height-adjustable monitor holder for three screens up to 24" in size and each with a maximum weight of 4.6 kg.
Ergotron HX monitor arm triple monitor desk mount
Sleek new design: the Ergotron HX Triple Monitor Arm is the perfect accessory for your monitors and offers additional flexibility and excellent ergonomics. The monitor arm can be attached to a 10 - 60 mm thick table top using the table clamp included in the delivery or by means of desk-through mounting.
Slim and streamlined, the Ergotron 3-way desk mount is suitable for monitors up to 24" each with a weight of up to 4.6 kg each. The tilt and tilt capability as well as height adjustment promote ease of operation.
Key features Ergotron HX monitor arm triple monitor desk mount
- Capacity: each 0,9 - 4,6 kg
- Screen size: each ≤24"
- Swivel: 180°
- Tilt: +70/-5°
- Rotation: 360°
- Height adjustable: 292 mm
- Finish: White
- VESA mount: 75x75 and 100x100 mm
- Increases viewing comfort: Helps reduce eye, back and neck strain
- Patented CF™ motion technology provides premium ease-of-use display adjustment
- Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
- Folding arm frees up space in constrained areas
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

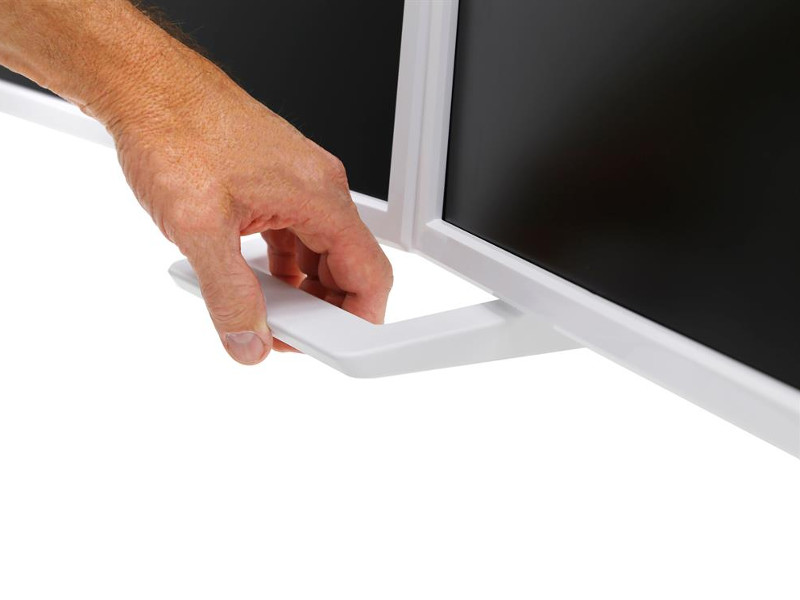

- Delivery includes handle for easy positioning

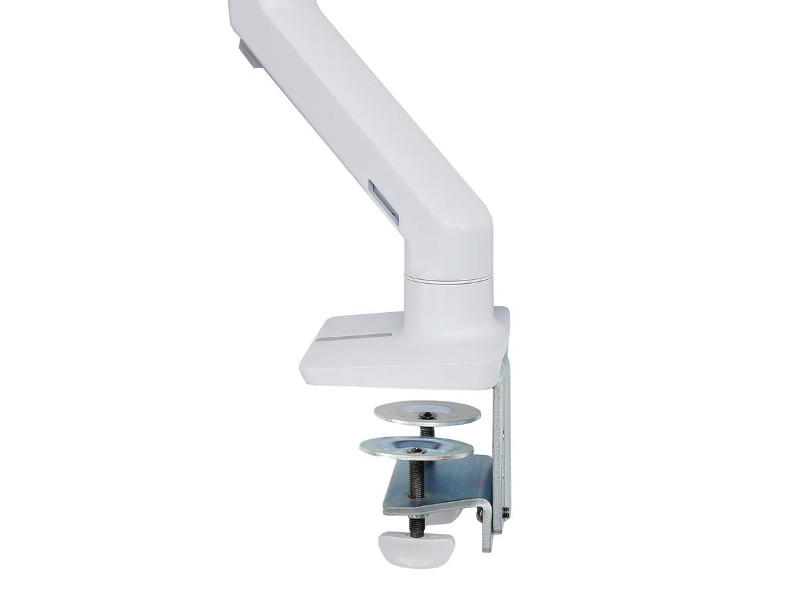

- Delivery includes desk clamp and grommet mount
- Desk clamp attaches to surface edge 0.4" to 2.4" (1 to 6 cm) thick
- 10 years warranty
Delivery consists of:
- Ergotron HX Arm Monitor desk mount (45-475-216)
- Ergotron accessory HX Arm Triple Monitor Kit (98-009-216)
Does your monitor or display fit?
We will be happy to check if your TV is suitable for this mount. Simply send us your model (manufacturer + model no.) At the end of the ordering process. We then check for you whether the monitor fits and if not, we will contact you.VESA standard - Read more about the VESA standards of monitor brackets!
| Product sheet: |  [pdf, 243 kb] |
|---|---|

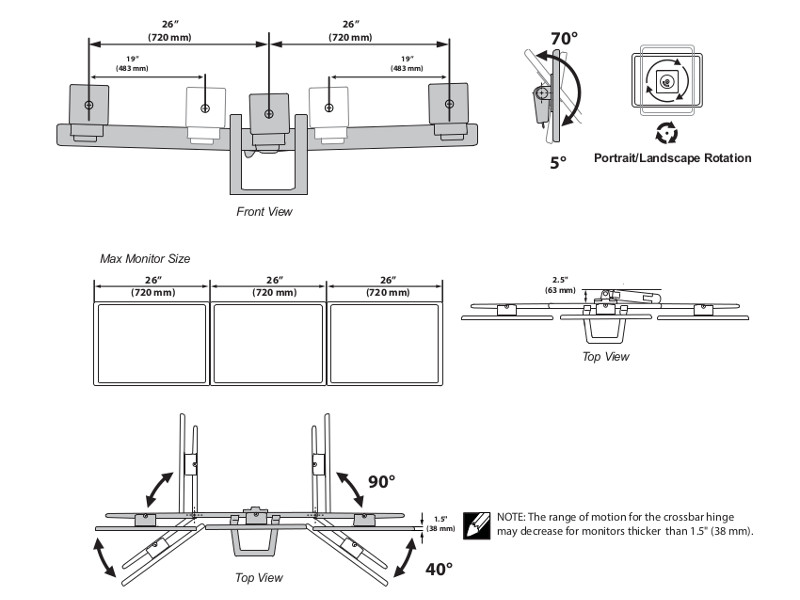

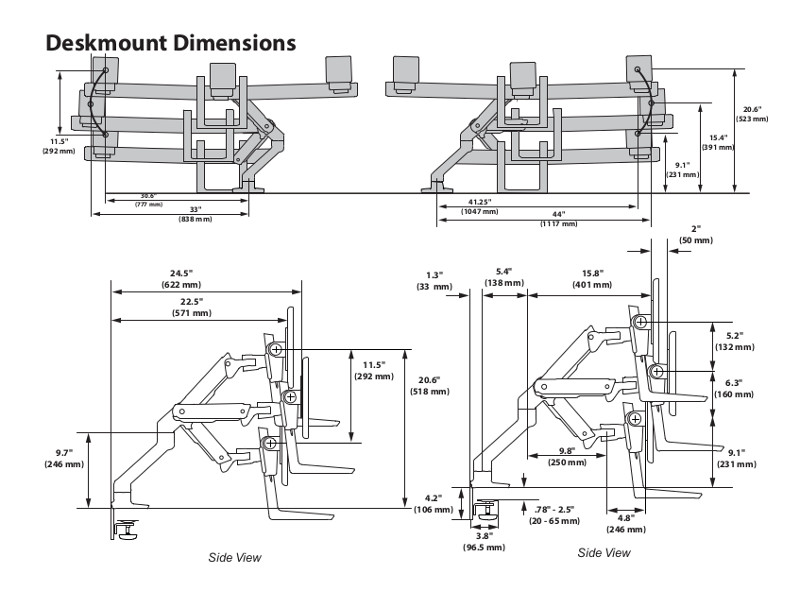

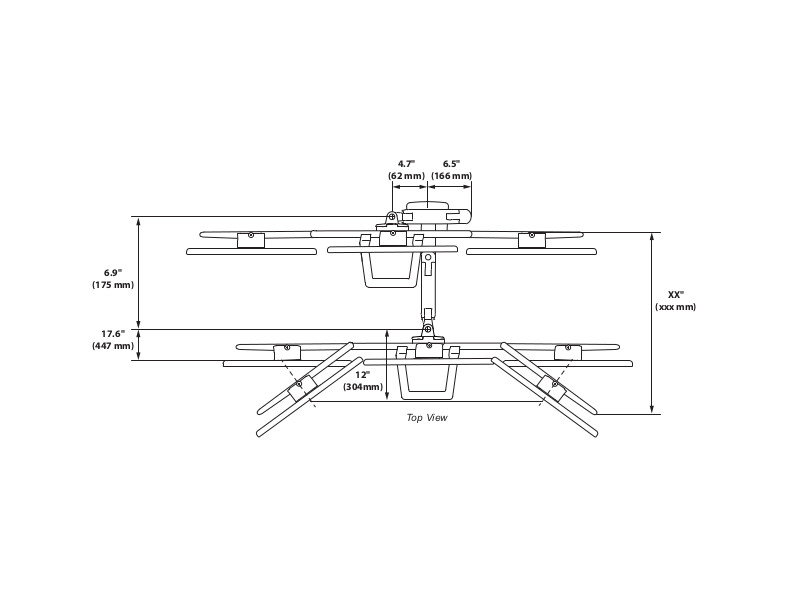

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 0,9 kg |
| Capacity: | each 4,6 kg |
| Tilt: | 75° |
| Rotate: | 90° |
| Height range (mm): | 292 mm |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 601 mm |
| Screen size: | 15 - 24'' |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.de) |
| Contains installation material: | + |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Warranty: | 10 years |
| Inch size: | 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Triple solution |
| Theft-proof: | No |
| color: | White |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
