Ergotron CareFit Combo System wall workstation (45-618-251)
Modular wall workstation

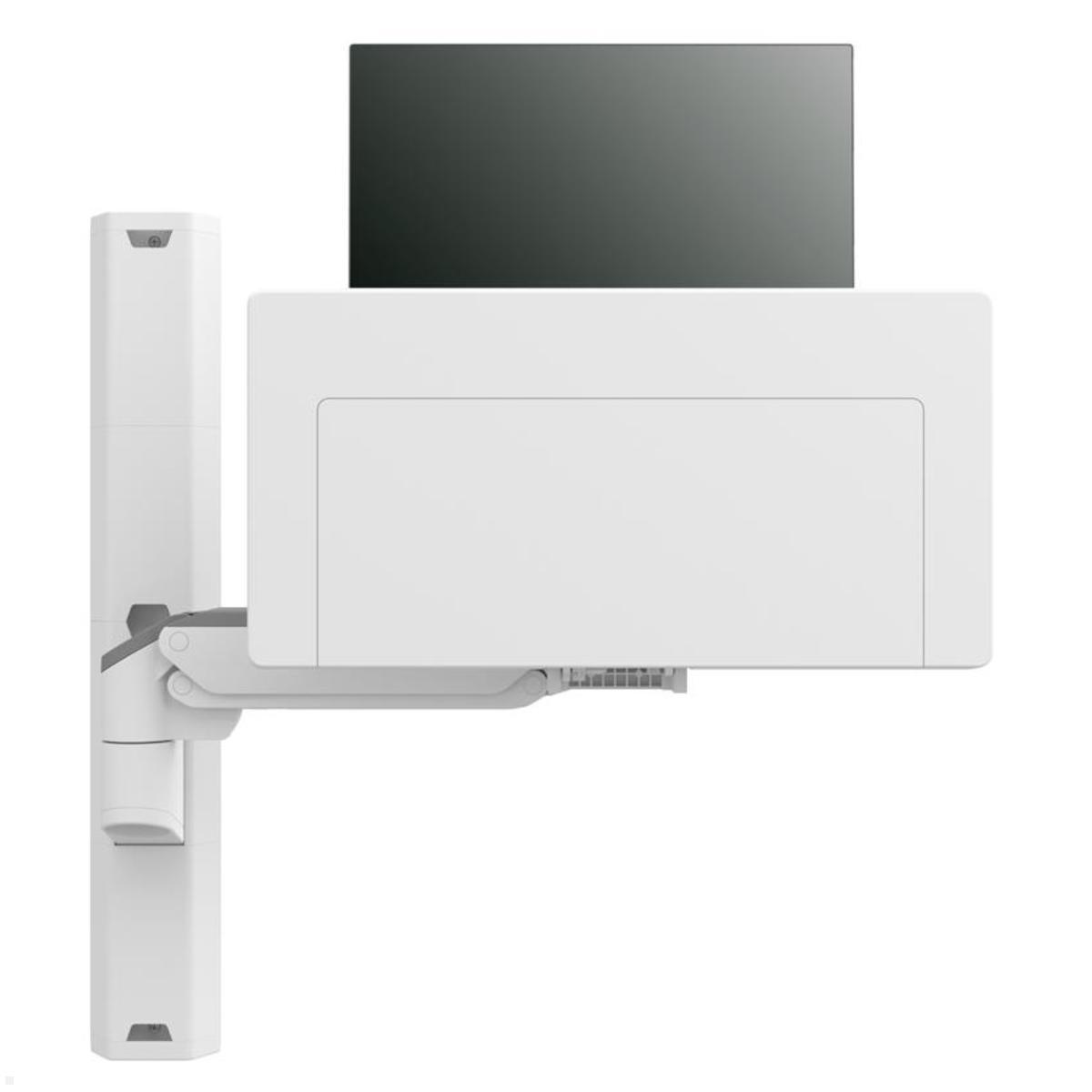

The Ergotron CareFit Combo System is designed for use in hospitals, clinics and care facilities. The modular wall workstation increases the comfort of nursing staff, strengthens the relationship between nurses and patients, and facilitates efficient data entry / documentation. Thanks to ergonomic height adjustment of monitor mount and keyboard holder, individual positioning for different users is easily possible. The entire sit-stand workstation can be swiveled 180°, while the monitor can be tilted 25° and rotated 360° from landscape to portrait mode. Concealed cable routing within the swivel arm and wall rail covers keep the work area tidy. Additionally, a convenient RFID reader for employee badges is integrated on the keyboard mount. When the wall workplace is not in use, it can be pushed completely against the wall to save space, and the keyboard holder can be folded away separately. The surfaces of the combo system can be easily cleaned to meet the necessary hygienic conditions in the healthcare sector. By means of various accessories, the medical workstation can be further personalized in numerous configurations.
Key features Ergotron CareFit Combo System monitor / keyboard wall mount (45-618-251)
- Ergonomic wall-mounted workstation for use in the healthcare sector
- Wall rail cover with hidden cable management
- Workstation can be pushed against the wall to save space when not in use
- Keyboard holder can be folded away separately

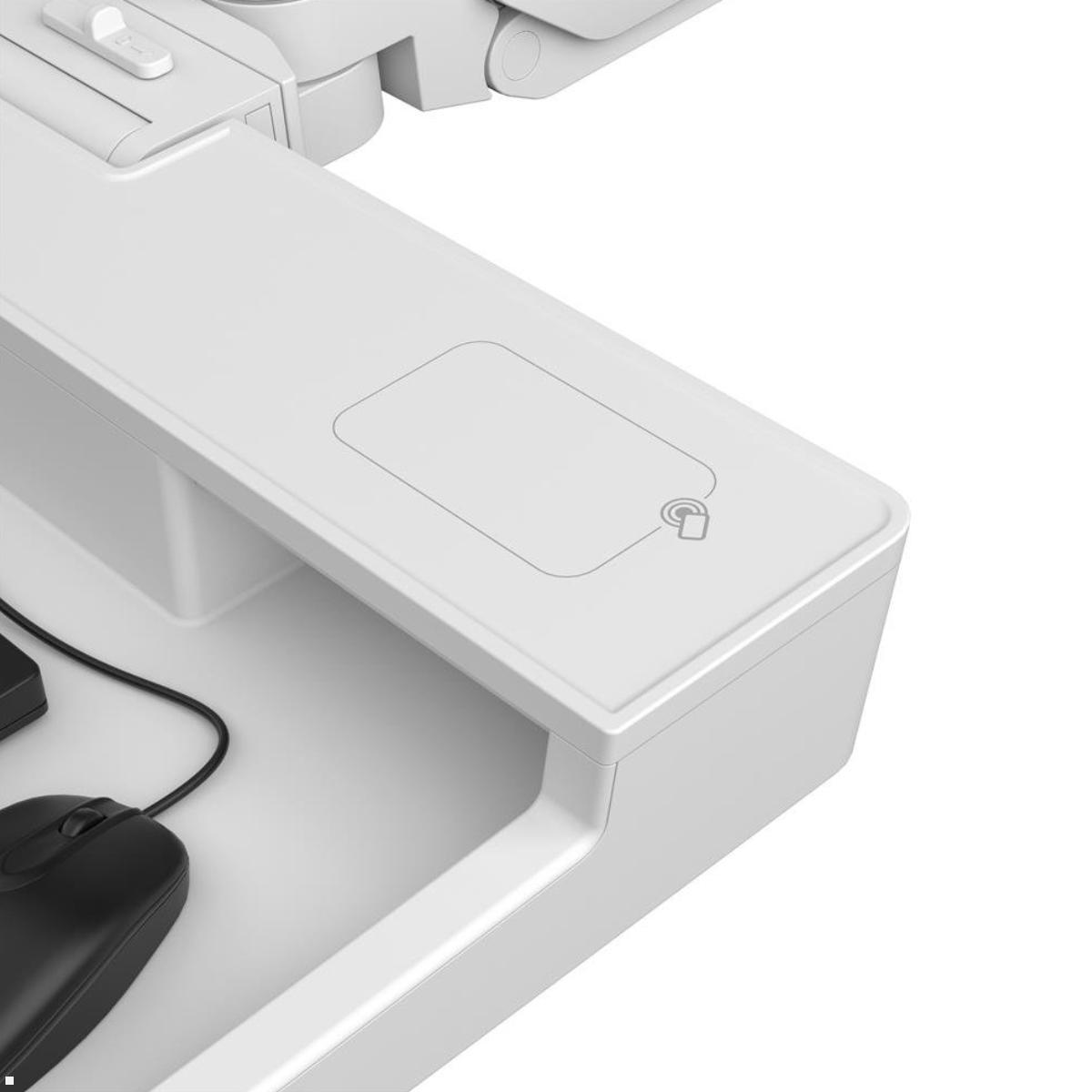

- Integrated RFID reader for employee badges
- Easy cleaning
- Modularly customizable
- Screen size: up to 27 inch
- Load capacity monitor holder: 10 kg
- Load capacity keyboard holder: 0.7 kg
- VESA mount: 75x75, 100x100 mm
- Swivel: 180 degrees
- Height adjustable: 640 mm (monitor mount + keyboard mount together: 510 mm, monitor mount separately: 130 mm)
- Tilt: 25 degrees
- Rotate: 360° (Pivot)
- Wall distance: 255 - 989 mm
- Material: aluminum, plastic
- Color: White
- Warranty: 5 years
Does your display fit the monitor mount?
We would be happy to check whether your monitor is suitable for this Ergotron CareFit wall-mounted workstation (45-618-251). Just tell us your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10,7 kg (monitor: 10 kg) |
| Tilt: | 25° |
| Rotate: | 90° |
| Height range (mm): | 640 |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 469 mm |
| Screen size: | 14 - 27" |
| Material: | Aluminum, plastic |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 940 x 560 x 280 |
| Scope of delivery: | Combo arm, keyboard tray, wall mount, rail adapter, 34" wall rail, rail bracket, wall rail covers, cable ties, mounting hardware |
| Contains installation material: | + |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Warranty: | 5 years |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | White |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
