Dataflex Viewprime monitor desk mount with desk clamp, black
Monitor desk mount
With the Viewprime monitor mount (03.026) in black, Dataflex offers a monitor desk mount that convinces in every aspect through its flexibility. The monitor arm is height adjustable by 355 mm and adjustable in depth by 516 mm. Thanks to the built-in gas pressure spring, the monitor swivel arm can be easily tilted, swiveled and rotated. The screen table mount can be rotated 360° thanks to the pivot function so that you can work in both landscape and portrait format.
The display can be attached and removed quickly and easily using the VESA quick release system. The swiveling monitor bracket has a load capacity of 1.5 to 9 kg and is suitable for screens with a maximum size of 1034 mm. The integrated cable management ensures an orderly overall picture at the workplace. The desk holder is attached using the Viewprime table clamp supplied, which can be screwed on quickly and easily and is suitable for tabletos from 12 to 50 mm.
Dataflex Viewprime screen desk holder (65.113)
- Screen sizes: approx. 19 - 37 inches
- Load capacity: 1.5 to max. 9 kg
- VESA standard: 75x75, 100x100 mm
- Max. height of monitor: 1034 mm

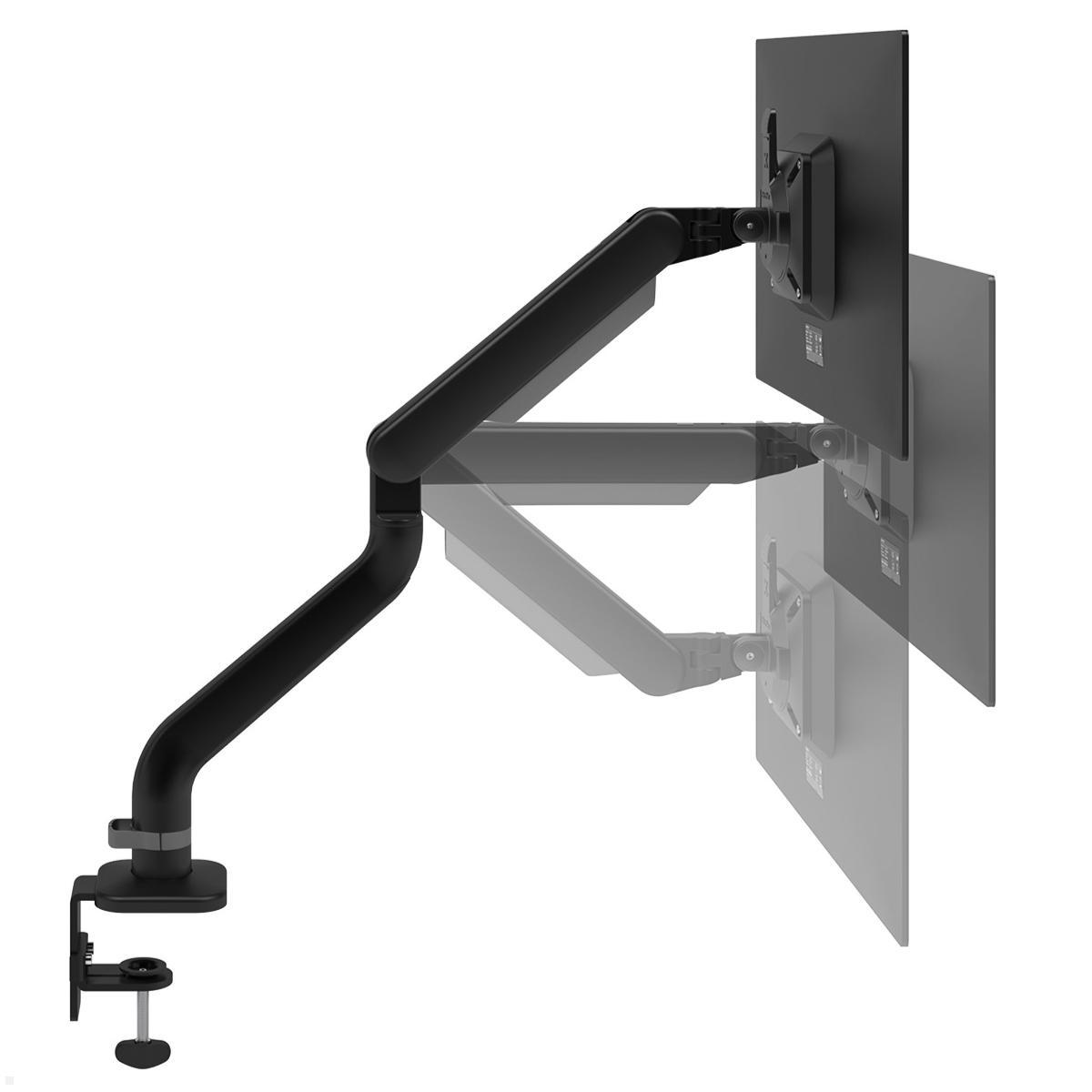

- Dynamic height adjustment by 355 mm

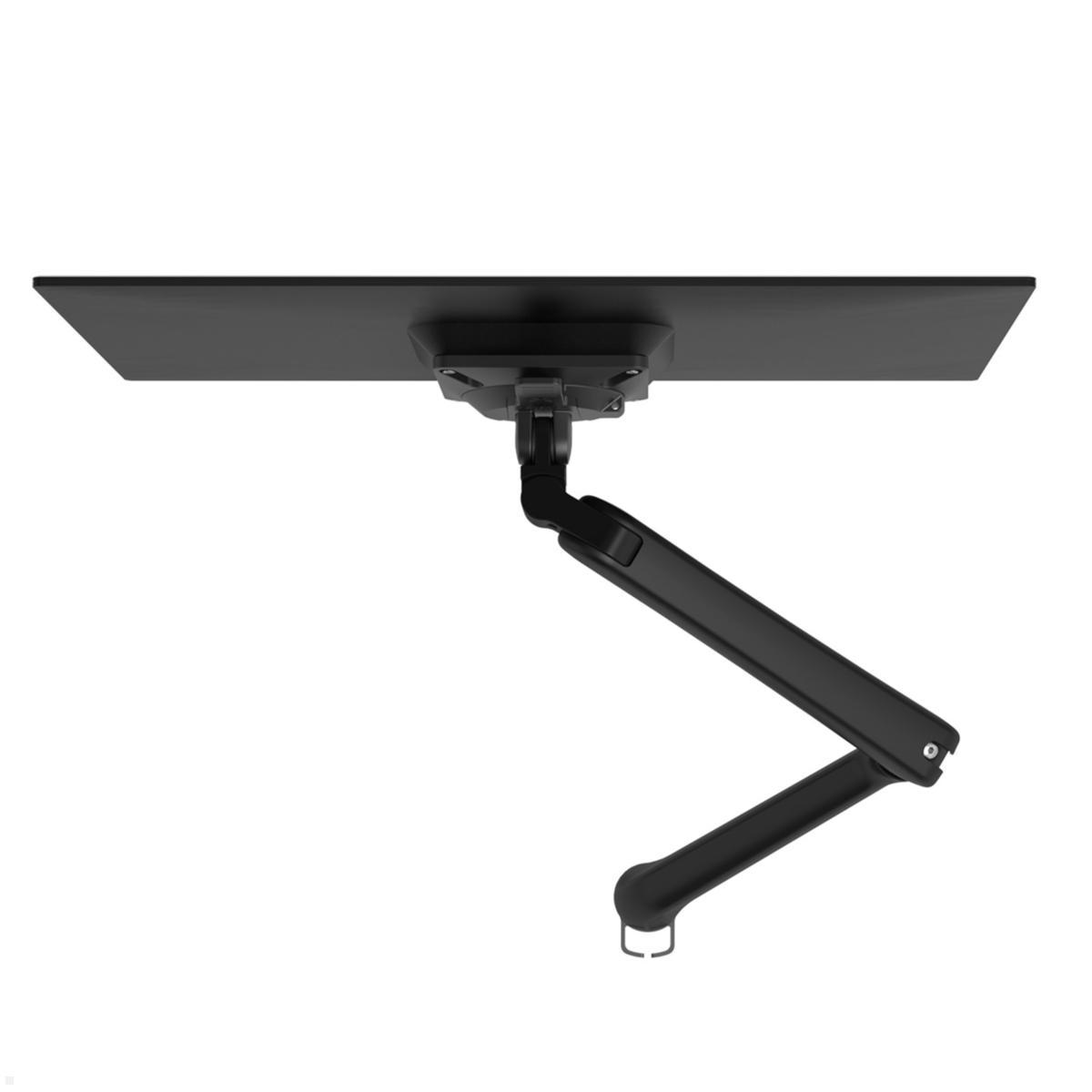

- Independent depth adjustment of 516 mm
- Tension adjustment indicator for precision installation
- Tiltable: +90° / -50°
- Swiveling: +90° / -90°
- Rotatable: 360° (Pivot)
- Monitor arms can be swiveled through 360 degrees, limited to 180° adjustable
- With VESA quick release system
- Delivery incl. table clamp
- Optional: drill / screw-through attachment
- Integrated cable management
- Warranty: 5 years
- Finish: Black

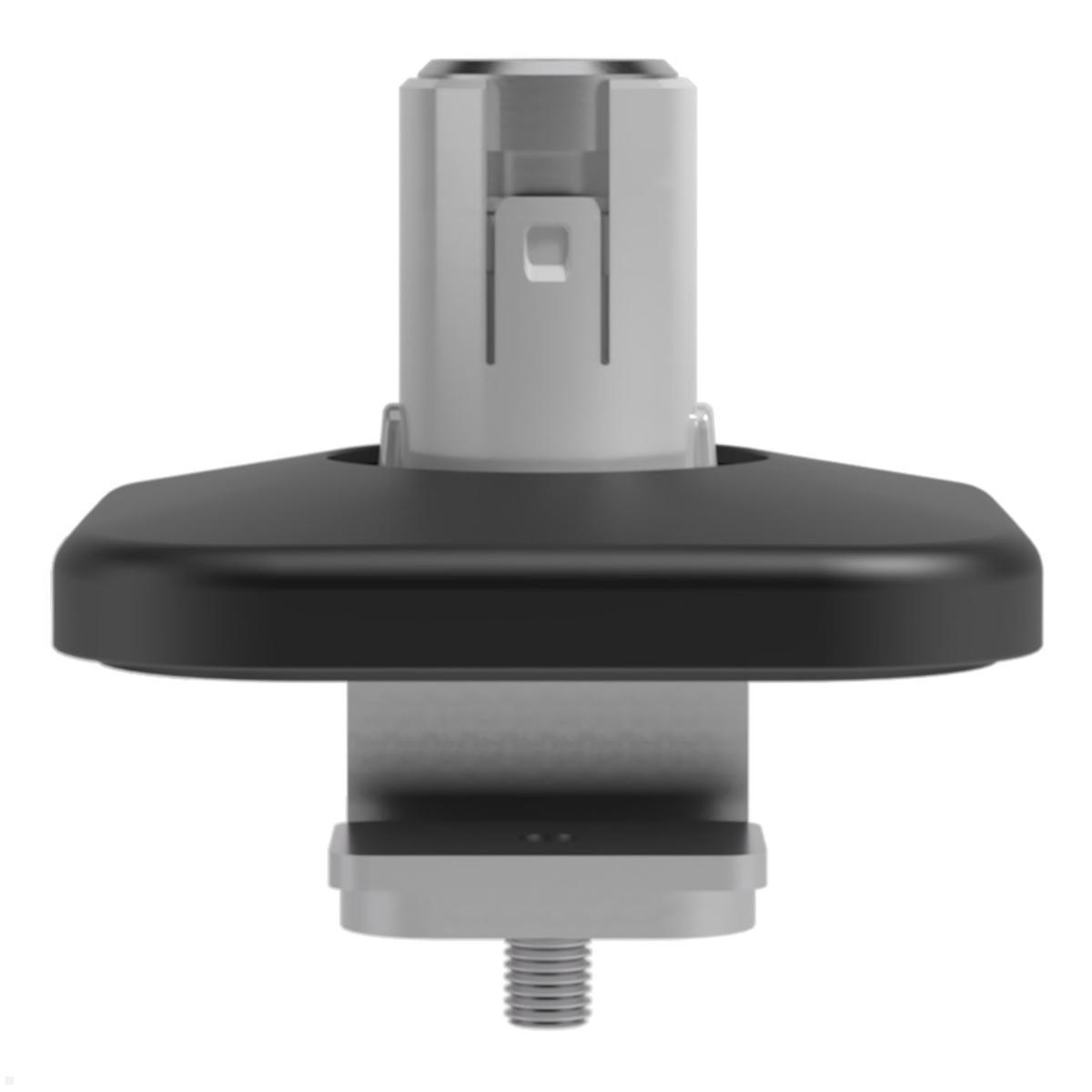

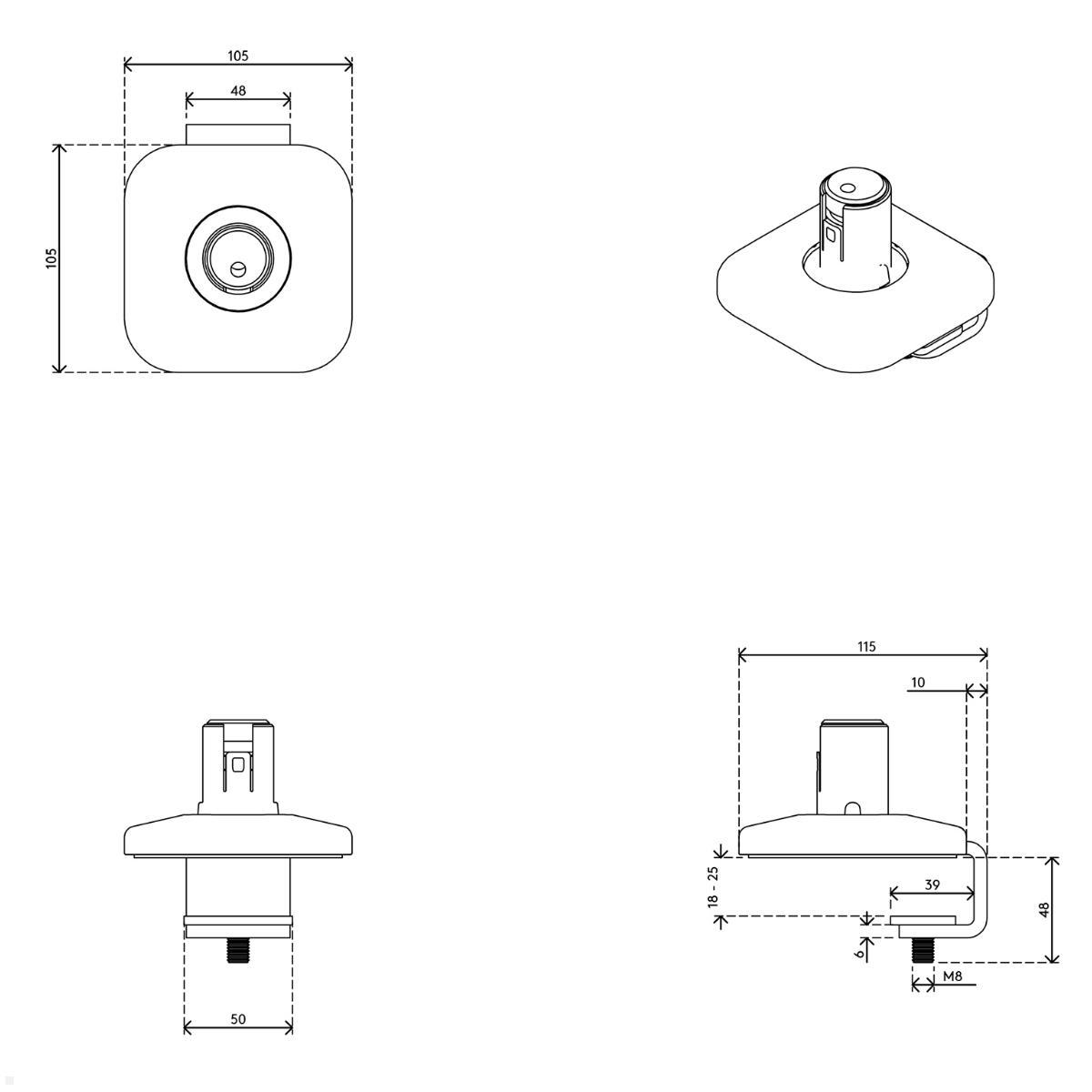

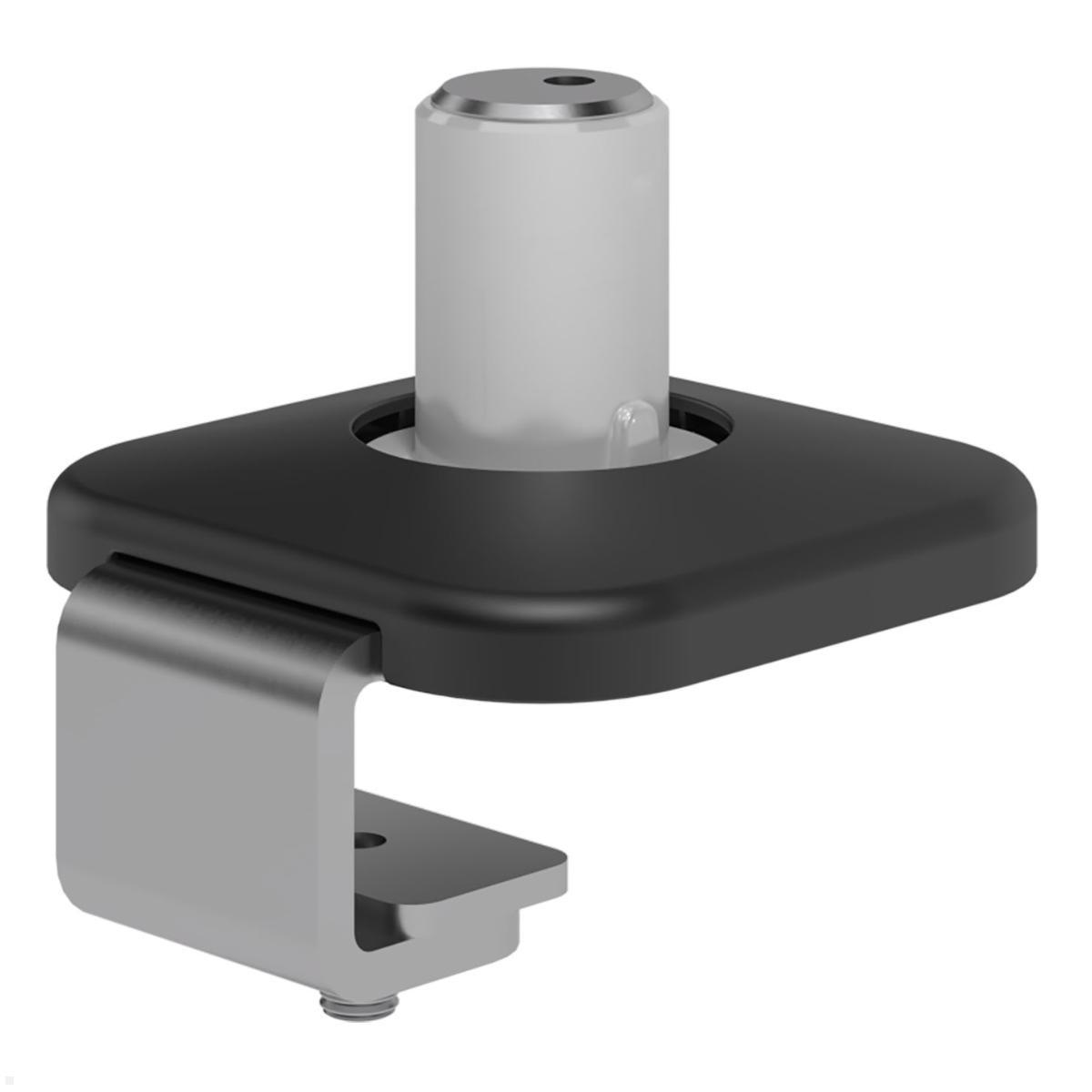

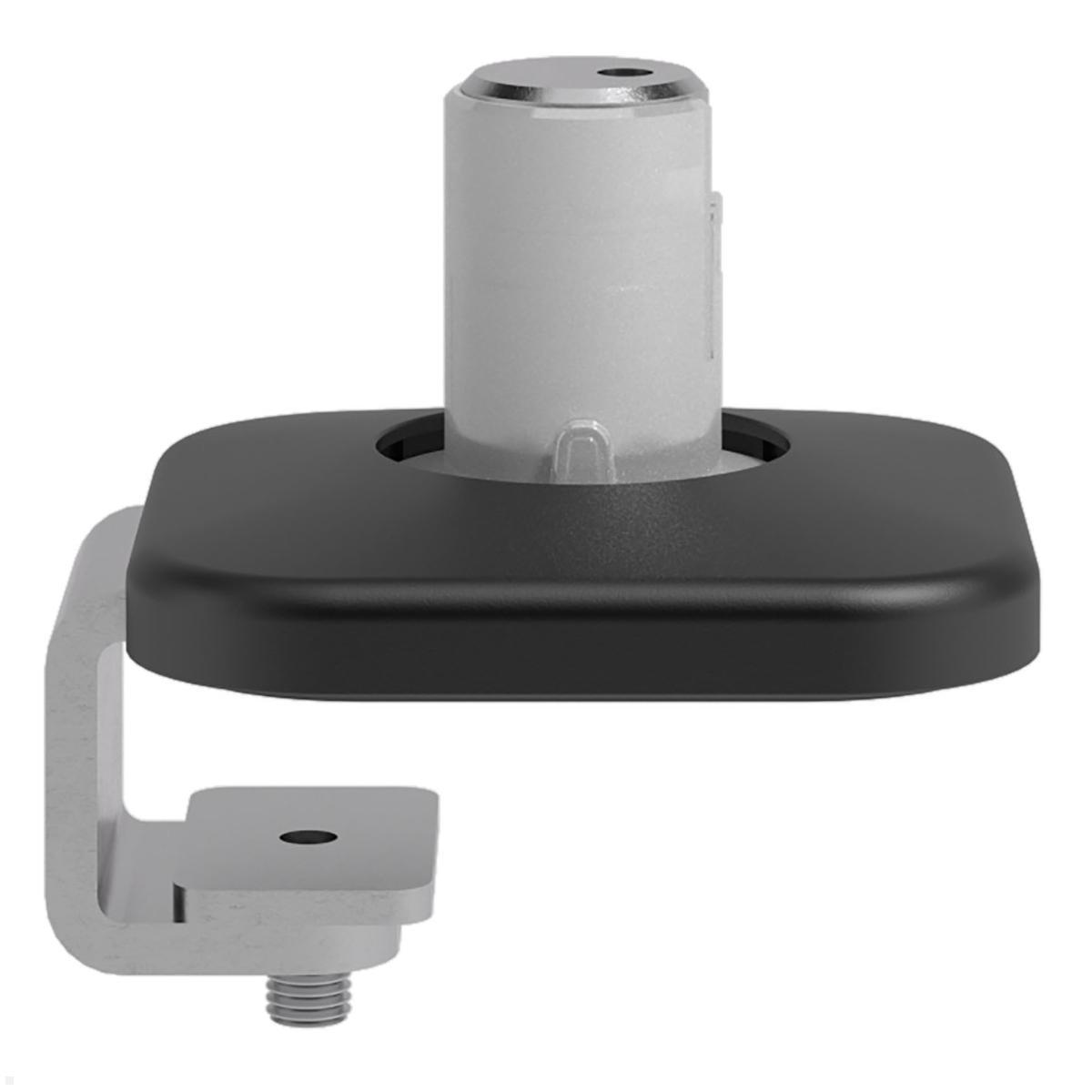

Dataflex Viewprime table clamp (65.913)
- For table mounting of the Dataflex Viewprime monitor holder
- Suitable for a table top thickness of 12 - 12 cm. 50 mm
- Finish: Black
Does your screen or display match the monitor holder?
We would be happy to check whether your monitor is suitable for this Dataflex Viewprime 03.026 monitor bracket. Simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or the display fits the monitor bracket and if not, we will contact you.

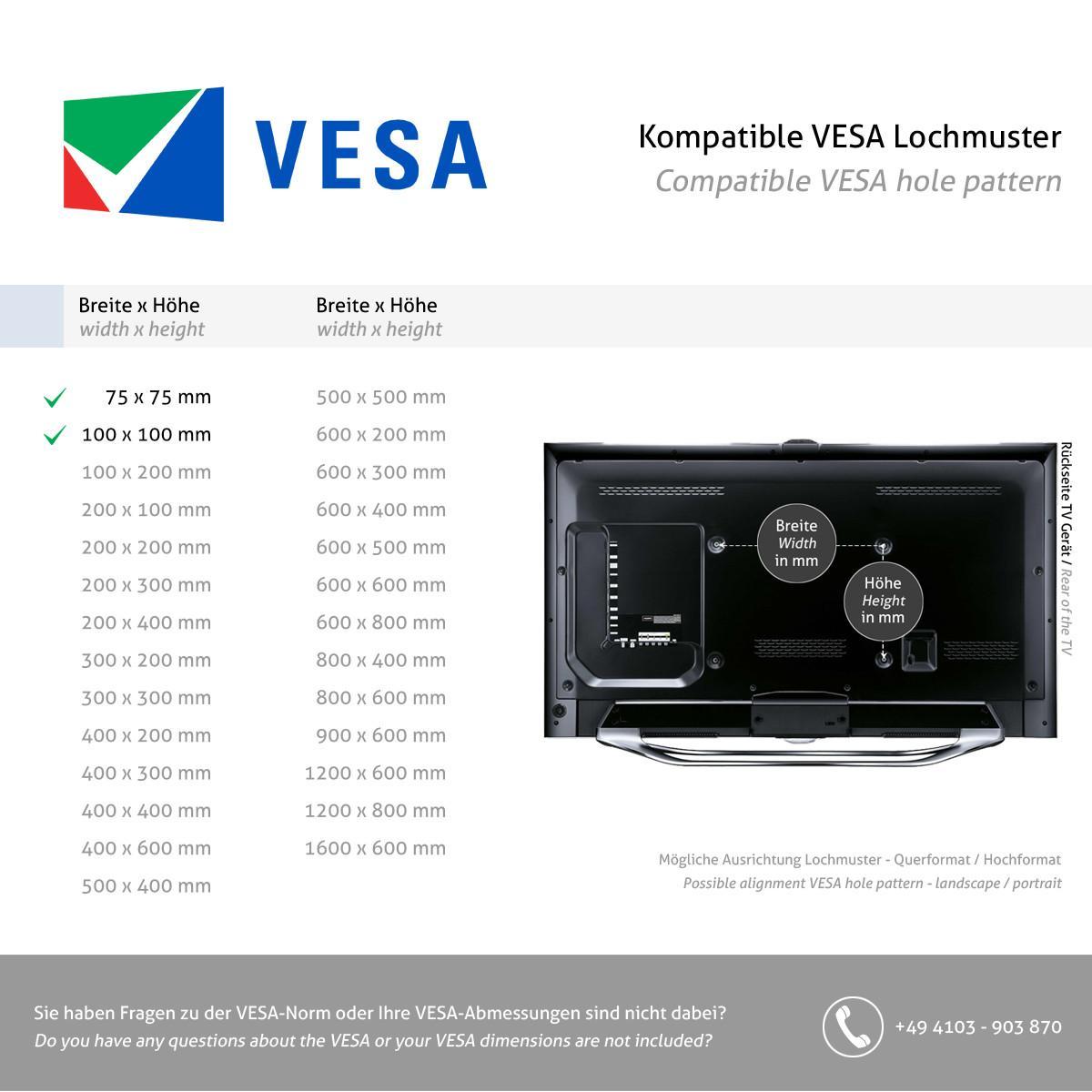

VESA Standard - Find out more about the VESA norm for monitor mounts !
| Product sheet: |  [pdf] |
|---|---|

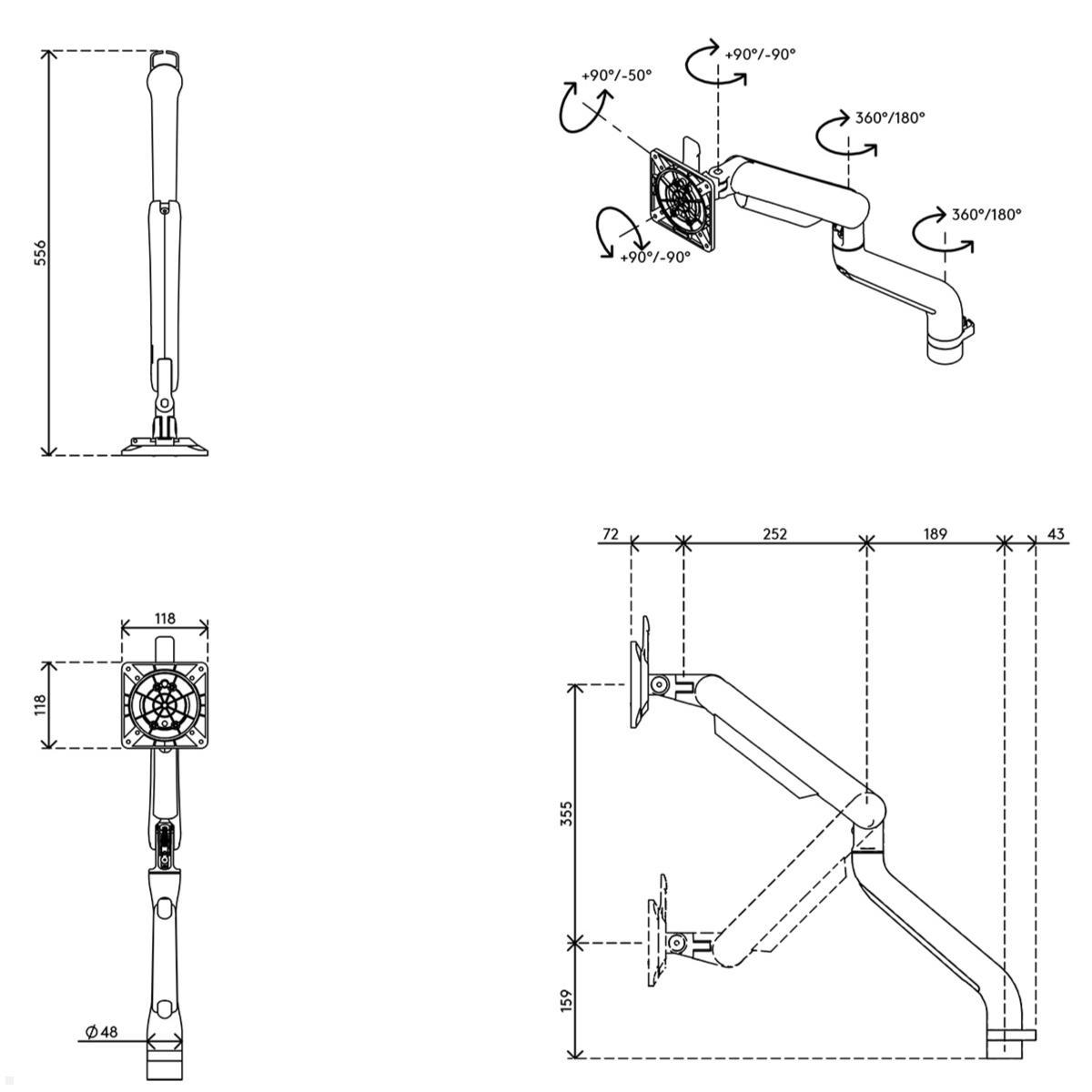

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 1,5 |
| Capacity: | 9 kg |
| Tilt: | +90°/-50° |
| Rotate: | 90° |
| Height range (mm): | 355 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Length of the swivel arm: | 353 mm |
| Screen size: | 19 - 37" |
| Thickness of table (mm): | 12 - 50 mm |
| Depth of the bracket: | 391 mm |
| Special features: | Delivery includes desk clamp |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 488 x 318 x 125|185 x 110 x 110 |
| Scope of delivery: | 1x Viewprime monitor mount (65.113), 1x Viewprime desk clamp (65.913) |
| Contains installation material: | + |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Warranty: | 5 years |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| Theft-proof: | No |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
