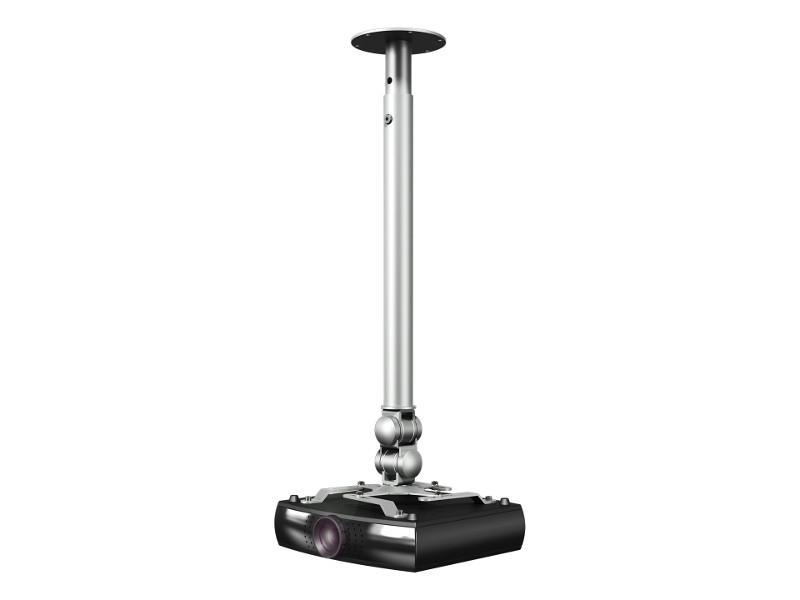

Dataflex projector beamer ceiling mount 555 - 855 mm (52.582)
With the freely adjustable mounting brackets, almost all projectors or projectors up to 15 kg can be attached to a ceiling with this Dataflex Addit projector mount 52.582 in silver.
Few modern offices can do without TVs or projectors. But they take up a lot of space and can easily be stolen. With Addit AV solutions, you can mount your devices mostly out of sight and secure them with ceiling or wall mounts. This gives you more adjustment options and reduces the risk of theft.

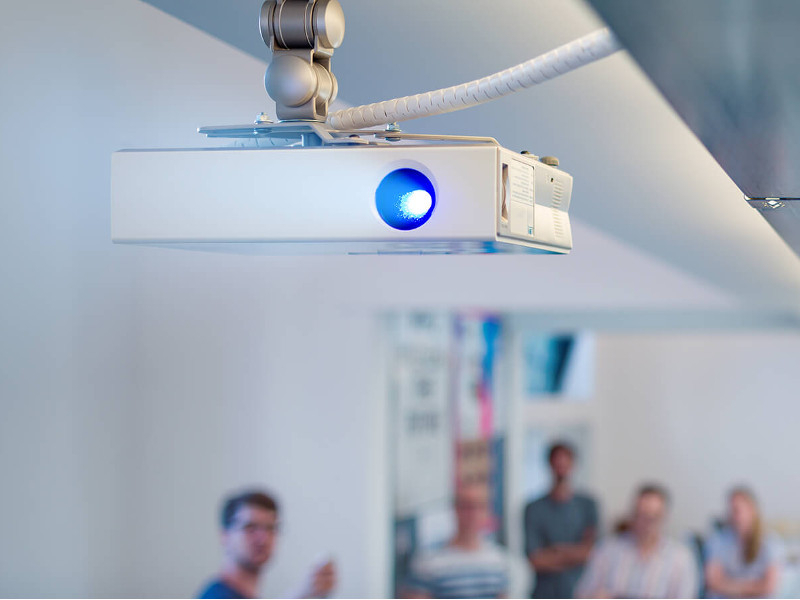

Beamer ceiling mount

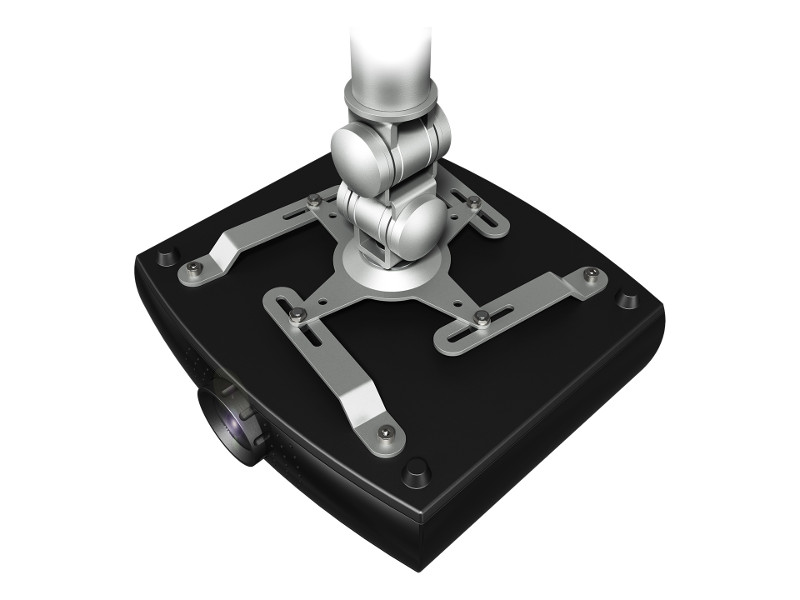

With the freely adjustable mounting brackets of the Dataflex 52.582 Beamer ceiling mount attach almost all beamers or projectors to a ceiling with this projector mount. It can be used with height adjustment or with a fixed height and can therefore be attached almost anywhere. In both variants, several joints enable precise adjustment.
Technical data for projector mount, ceiling
- Ceiling mount for almost all beamers and Projector
- Also suitable for a slightly sloping ceiling
- Load capacity up to 15 kg
- Rotatable + 90 degrees/-90 degrees, tilt +90 degrees/-90 degrees, swivel 360 degrees
- Excellent value for money
- Height adjustable 555 - 855 mm in 6 50mm increments
- Supplied with a 181mm short fixed height alternative
- Made of steel
- Supplied with all necessary fixings
- Colour: silver
- Warranty: 5 years
| Product sheet: |  [pdf, 236 kb] |
|---|---|

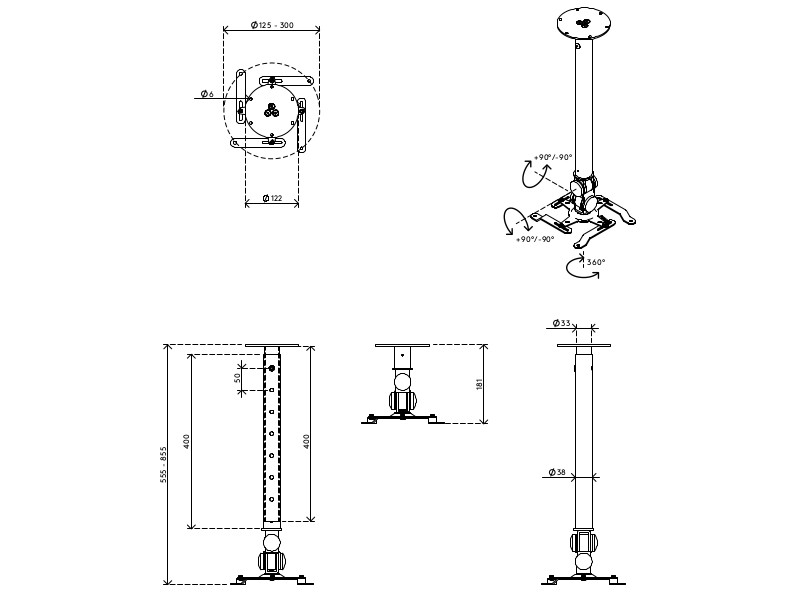

| Technical drawing: | [pdf, 469 kb] |
| Installation manual: | [pdf, 580 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | +90°/-90° |
| Rotate: | +90°/-90° |
| Height range (mm): | 300 mm |
| Swivelling range: | 360° |
| Material: | Stahl |
| Special features: | Supplied with a 181 mm short fixed height alternative |
| Ceiling distance: | 555 - 855 mm |
| Packaging dimensions (LxWxH in mm): | 590 x 140 x 140 |
| Contains installation material: | + |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Warranty: | 5 years |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount, Pitched roof |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
