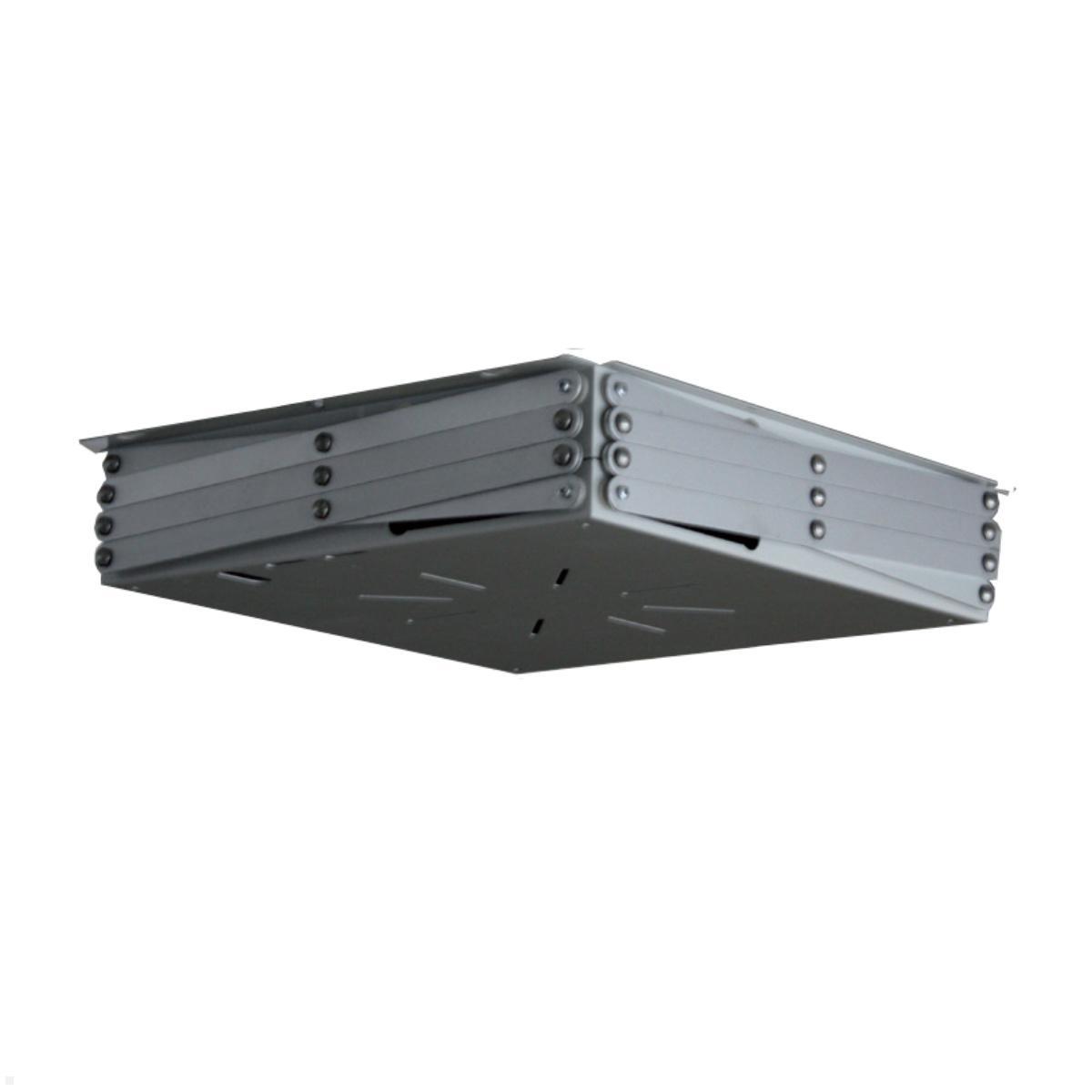

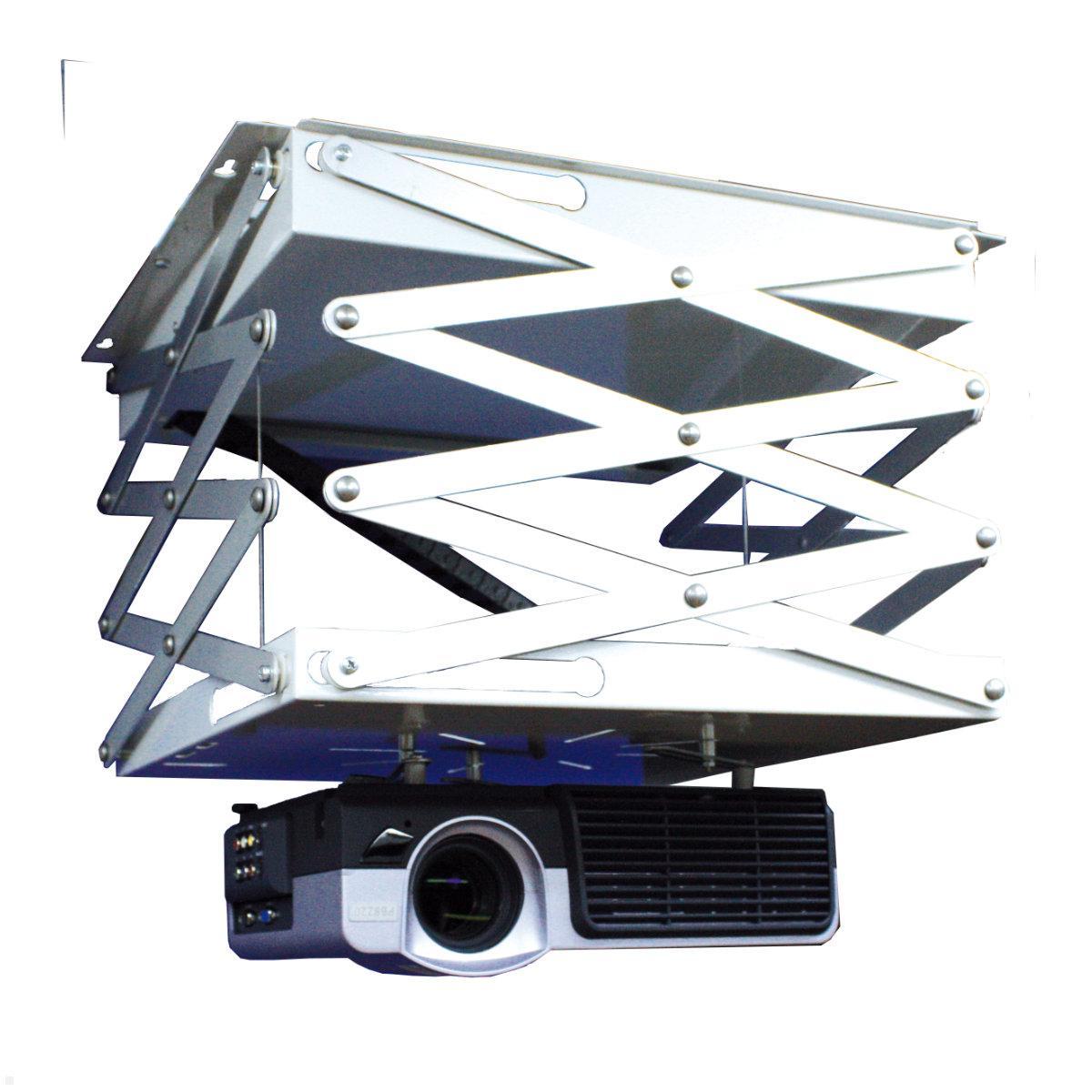

Ceymsa - VL-ONE - Video Lift
Ceymsa - VL-ONE -Video Lift. Lift to conceal projectors in ceiling. Maximum length 80cm – Maximum weight/load 10kg.

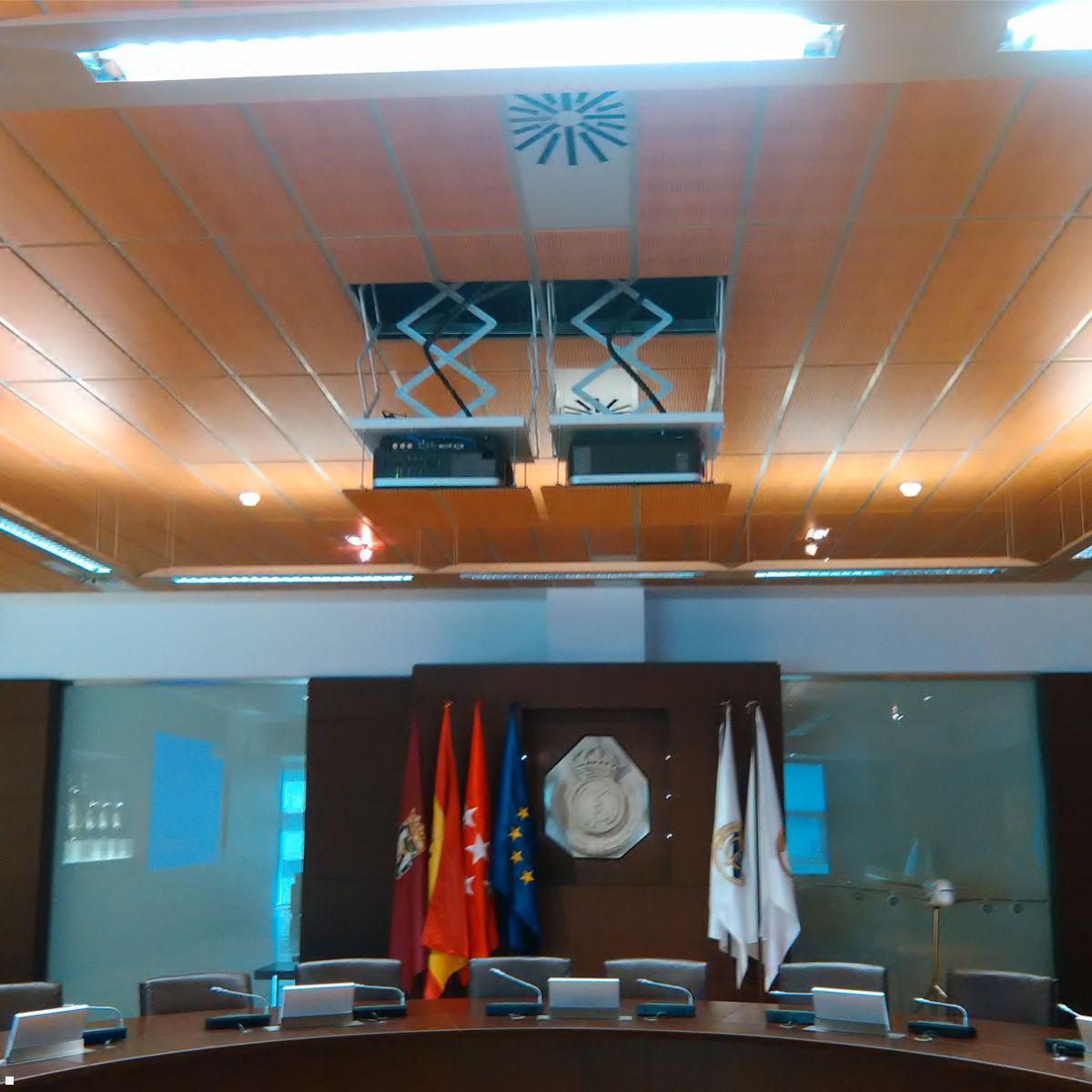

Concealing system for projectors developed and registered by CEYMSA. Quality, precision, reliability, quick installation, easy maintenance and adjust. It results mandatory in the installations to save the height differences between the screen and the projection equipment, to escape from architectonical barriers and to maintain hidden all the mechanisms and cables in the fake ceiling concealing the projector. It helps as well to protect from kicks or accidents that always can happen in places where people move them without interruption. It works with a silent motor of high features and is made with three pantographs to give more on-line aspect and two dragging lines to optimize its stability. It allows a safe installation for projectors up to 10 Kg. Maximum length 80cm. Weight of the equipment 8,5 Kg.
Ceymsa - VL-ONE - Video Lift
- Easy to install a use.
- Three pantographs for more linearity.
- Two lines of drag, greater stability.
- Cable guidance system improved.
- Low noise and weight.
- Only fully folded 88 mm.
- Optimized for projectors up to 10kg.
- New anchorage system of the projector.
- incl. Radiofrecuency remote control mod. MRF 1RP
| Product sheet: |  [pdf, 52 kb] |
|---|---|
| Technical drawing: |  [pdf, 58 kb] |
| Installation manual: | [pdf, 1,7 MB] |
| Capacity: | 10 kg |
| Tilt: | - |
| Rotate: | - |
| Height range (mm): | - |
| Swivelling range: | - |
| Material: | Aluminium |
| Ceiling distance: | max. 800mm |
| Accessories: | Ceymsa VL-FRAME01 Ceymsa VL-Box01 |
| Contains installation material: | + |
| Manufacturer/Importer: | Ceymsa Audiovisual S.A, CL. Luis I, 31-33 Nave 17, 28031 Madrid, Spain, audiovisual@ceymsa.com |
| Ceiling distance in m: | < 1m |
| Mounting type: | Ceiling mount |
| color: | Grey |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
