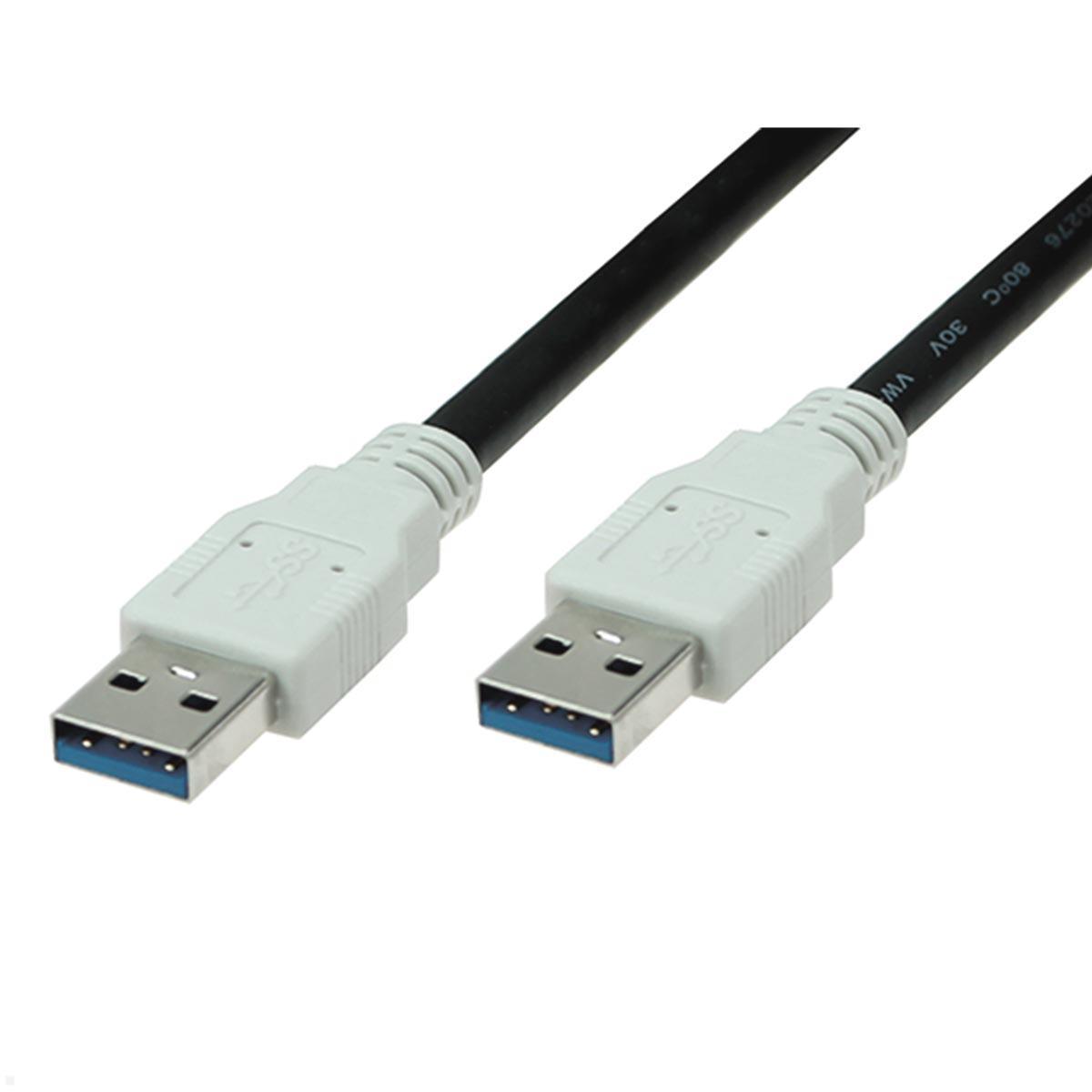

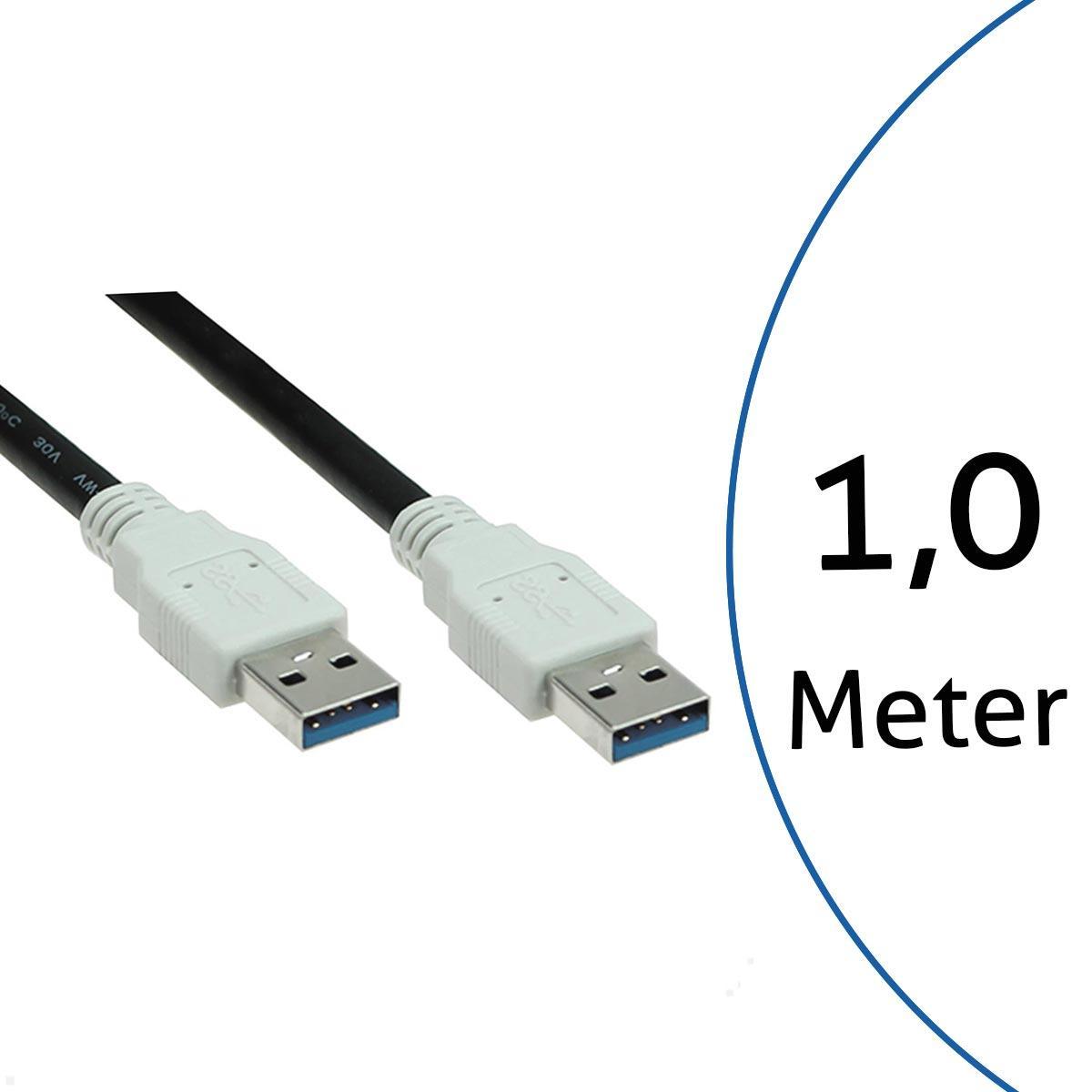

Bachmann USB 3.0 A/A connecting cable 1 m (918.176)
Fully wired Bachmann USB 3.0 A/A connecting cable with 1m lenght (918.176) in black finish. The cable is straight through, not suitable for host-to-host connection.
Key features Bachmann USB 3.0 A/A connecting cable 1 m (918-176)
- Finish: Black
- End 1: Plug A
- End 2: Plug A
- Can be used with custom modules with USB A socket
e.g. 917.018, 917.019, 917.400, 917.401 - Fully wired straight through, not suitable for host-to-host connection
Please note:
Unlike USB 2.0, USB 3.0 cables have an extra earth connection and two additional signal wire pairs:
SSTX+ and SSTX- for data transmission from host to device, SSRX+ and SSRX- for data transmission
from device to host.
Active components require straight-through USB 3.0 cables for communication. Because our USB 3.0 A/A keystone module is straight-through, a straight-through cable must also be used. If the components are not used as required (crossed USB cables), the data speed of USB 3.0 is reduced to USB 2.0 speed even though only USB 3.0 components are being used. USB 3.0 SuperSpeed data connections are only possible up to a total cable length of 4.5m. If keystone modules are used, shorter cables are required. Cable quality is an important factor for high data rates. We recommend Bachmann USB 3.0 cables.
| RoHS / REACH: |  [pdf, 110 kb] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
