Bachmann Twist 2S 2x socket (931.100) black glossy

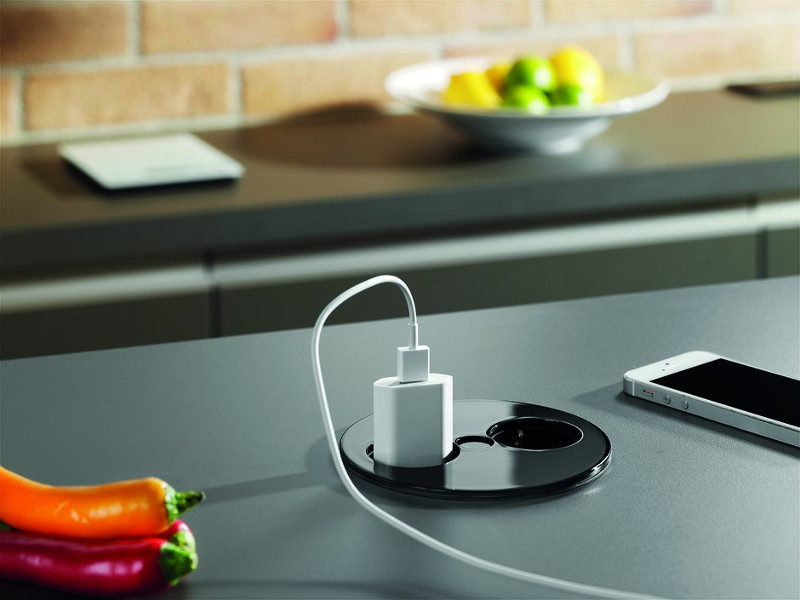

TWIST is a power strip for the kitchen, office, lounge and additional, personalised uses. With its compact design and low installation depth, Bachmann TWIST 2S, black glossy, similar to RAL9005 (931.100) is easily integrated in a space-saving way into kitchen worktops or desks, for example.
Through different Oberl&aum;chen-Ausführungen fügt itself Installation socket Bachmann TWIST 931.100 with the color black ähnlich RAL9005 glänzend in classic modern as well as lively form concepts and color concepts. Clever is the closure: after use, the cover is turned and the sockets disappear under it.
Bachmann TWIST 2S 2-fold socket
Bachmann TWIST 931.100 is a socket unit for kitchen, Büro, lounge and other, individual areas of use. Thanks to its compact design and low installation depth, Bachmann TWIST is integrated in a space-saving manner in, for example, kitchen countertops or desks. The power line is guided closely at the Gehäuse, so that the installation depth is only about 40mm – an installation über drawers is thus easily possible.
Bachmann TWIST 931.100 2-fold socket won among other things. one of the most prestigious design awards, the Good Design Award 2014, the Focus Open 2014 Silver and Interior Innovation Award 2014, the Best Office Award of the trade fair Office Next Moscow 2014, the Red Dot Product Design Award 2012, the interzum award: intelligent material & design 2015 and most recently the German Design Award 2016.
Key features Bachmann TWIST built-in socket splash-proof
- Color: Black similar RAL9005 glossy
- 2x socket outlet with earthing contact, with child protection, black
- 2.0 m cable with wire end sleeves and enclosed mounting plug, black
- Multiple Design Award winner
- Raffined twist lock
- Low installation depth (approx. 40 mm)

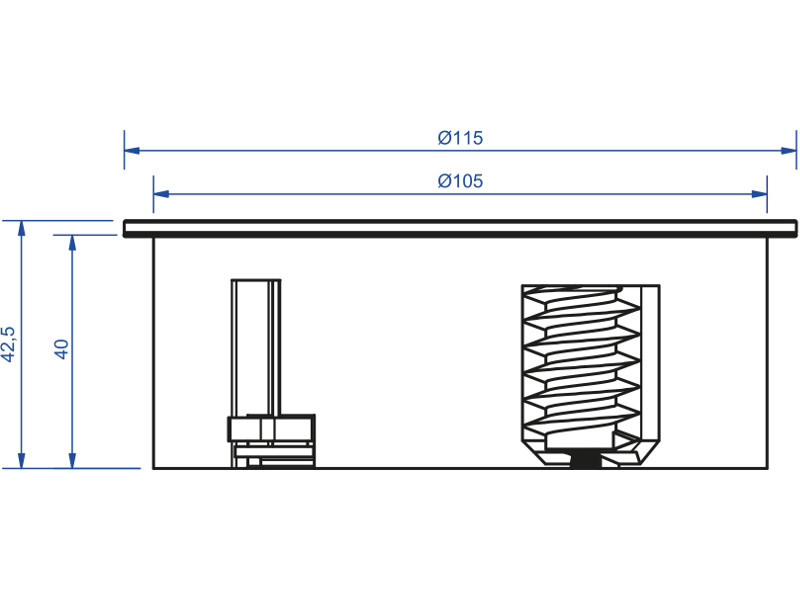

- Compact design (H x Ø: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Simple and quick assembly
- Material cover plate: metal
- Material socket: plastic
- Very low installation depth (approx. 40 mm)
- Compact design (HxØ: approx. 42,5 x 115 mm)
- Space-saving cable routing
- Simple and fast assembly
- Red Dot Product Design Award Winner 2012
- Integrated water drain
- IP20 dust protected
- Splash-proof when closed
| Product sheet: |  [pdf, 154 kb] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | Bachmann TWIST hole saw (931.900) |
| Packaging dimensions (LxWxH in mm): | 185 x 185 x 95 |

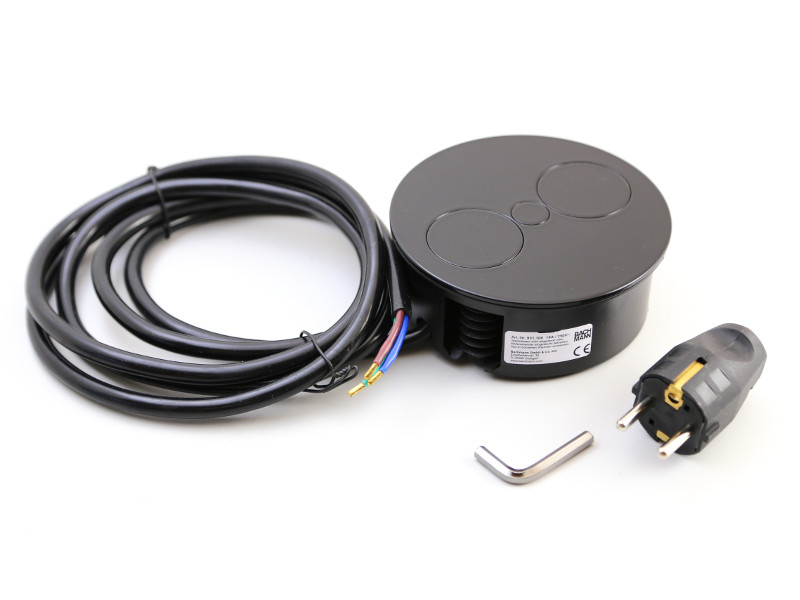

| Scope of delivery: | 1x built-in socket incl. 2m cable with wire end sleeves | 1x enclosed mounting plug |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| Form: | rund |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
