Bachmann STEP BASE 4-way power strip France UTE with GST18 (906.18820)
The Bachmann STEP BASE 4-way France/UTE socket strip (906.18820) is equipped with GST18. The STEP is e.g. suitable for installation in cable ducts, partition walls or under table tops. Successor to 336.606.
UTE multiple socket strip
The Bachmann STEP BASE UTE (906.18820) is a socket strip with GST18 that is designed for use in France. It consists of a black plastic profile and offers increased touch protection to ensure safety during use. The 4-way socketstrip has a total of 4 sockets of the type UTE (Universal Tension Electricity), which are especially suitable for the French market. These sockets are generally common in France and allow the connection of various electrical devices and equipment. Power is supplied via the GST18 plug, which is suitable for both the current input and output is used. The GST18 plug is a common standard for connecting electrical devices and ensures reliable and safe power transmission.
Key features UTE socket:
- 4x protective contact sockets, 35° twisted, 2-pin
- Length approx. 295 mm
- Width 52 mm
- Max. 16A / 250V~ / 3,680W
- 50Hz
- IP20 protection class (protection against contact, dust, water)
- Colour: Black

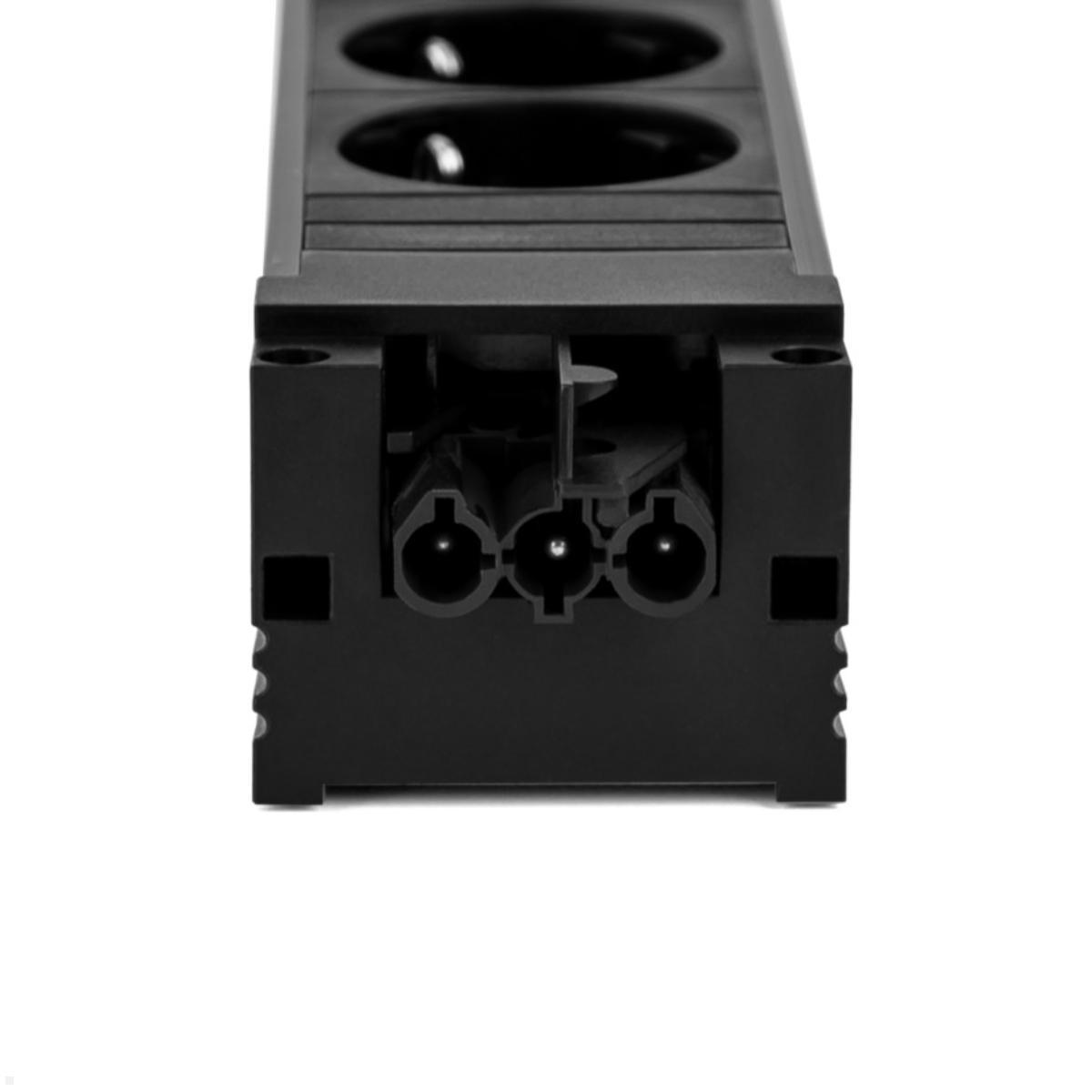

- Power input: Wieland GST18i3 plug black
- Power output: Wieland GST18i3 socket black
- Incl. Connector latch
- Successor to 336.606
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.606 |
| Packaging dimensions (LxWxH in mm): | 280 x 60 x 50 |
| Scope of delivery: | 1x Step Base UTE power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| color: | Black |
| Land: | France |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
