Bachmann STEP ALU socket strip with FI switch 30mA with GST18 (906.18812)
The power strip Bachmann STEP ALU RCD with GST18 (906.18812) is a STEP ALU safety module with residual current device, tripping current 30 mA. Individual modules can be interconnected or combined with a connecting line.
Socket strip with FI switch

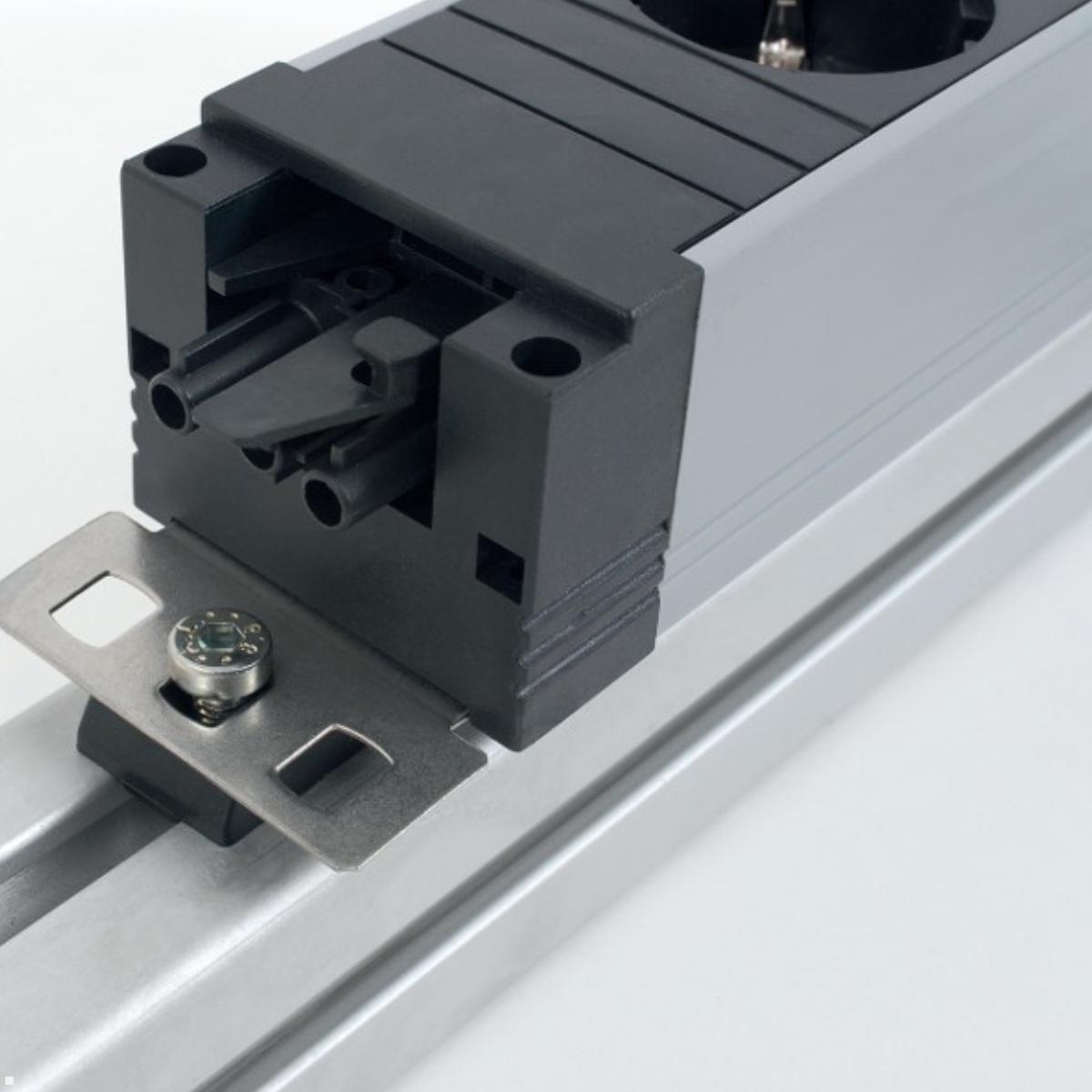

The Bachmann 906.18812 socket strip with FI switch STEP ALU offers simple and modular electrification -Set with an aluminum profile (width 52 mm). This safety strip is equipped with a 25A residual current circuit breaker and is characterized by its compact dimensions and stable housing. The STEP ALU safety strip can be installed on T-slot profiles and stand profiles from different suppliers. It can be easily fixed with special, ESD-compatible brackets. Both the power input and the power output are via the Wieland GST18 connector system. The strips can optionally be fitted with various modules to meet individual requirements. The power strips can be linked by using device extensions. The energy is fed in either directly at the power connection with a device supply line or via feed-in modules. The Bachmann 906.18812 socket strip with FI switch STEP ALU thus offers a practical and safe solution for electrifying various work areas. With its high-quality design and flexible installation options, it is a reliable choice for professional applications.
Key features Bachmann socket strip/safety strip 906.18812
- Lä Length approx. 230 mm
- Width 52 mm
- FI switch
- Response current: 30mA
- Response time: 30mS
- Power input: GST18i3 plug black
- Power output: GST18i3 socket black

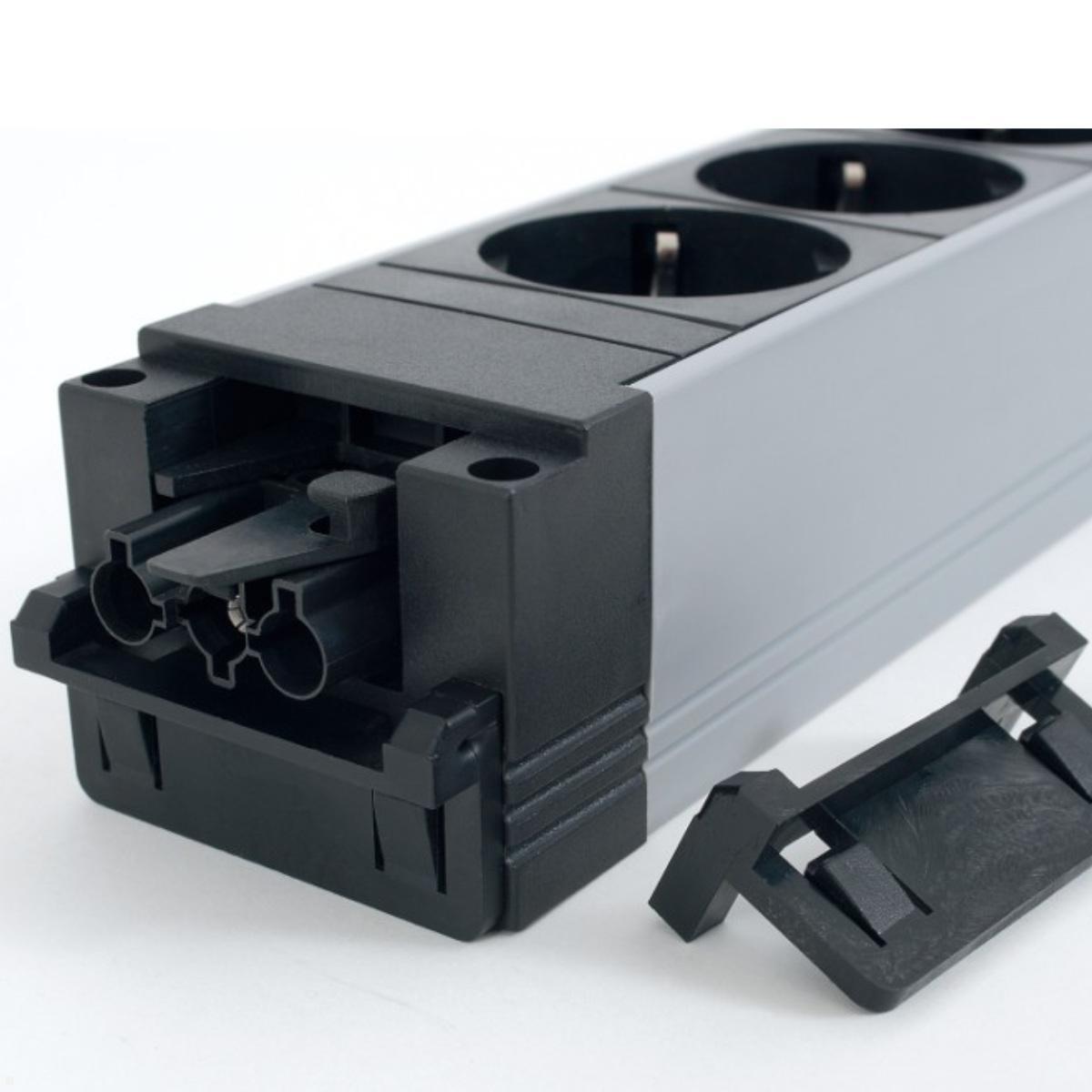

- Incl. Plug latching
- Aluminium profile silver, sockets black
- successor model of 336.014
Perfectly prepared for the best connections

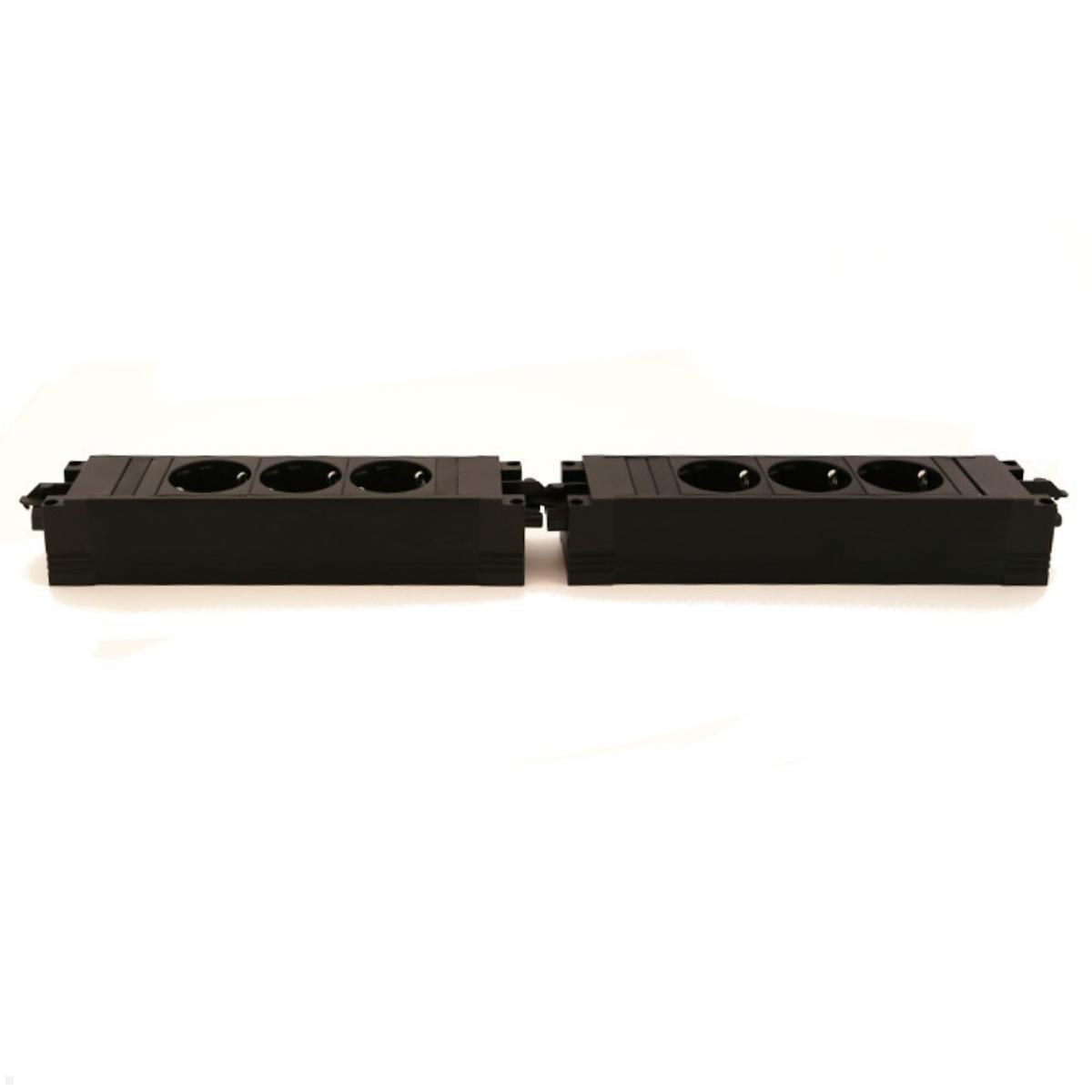

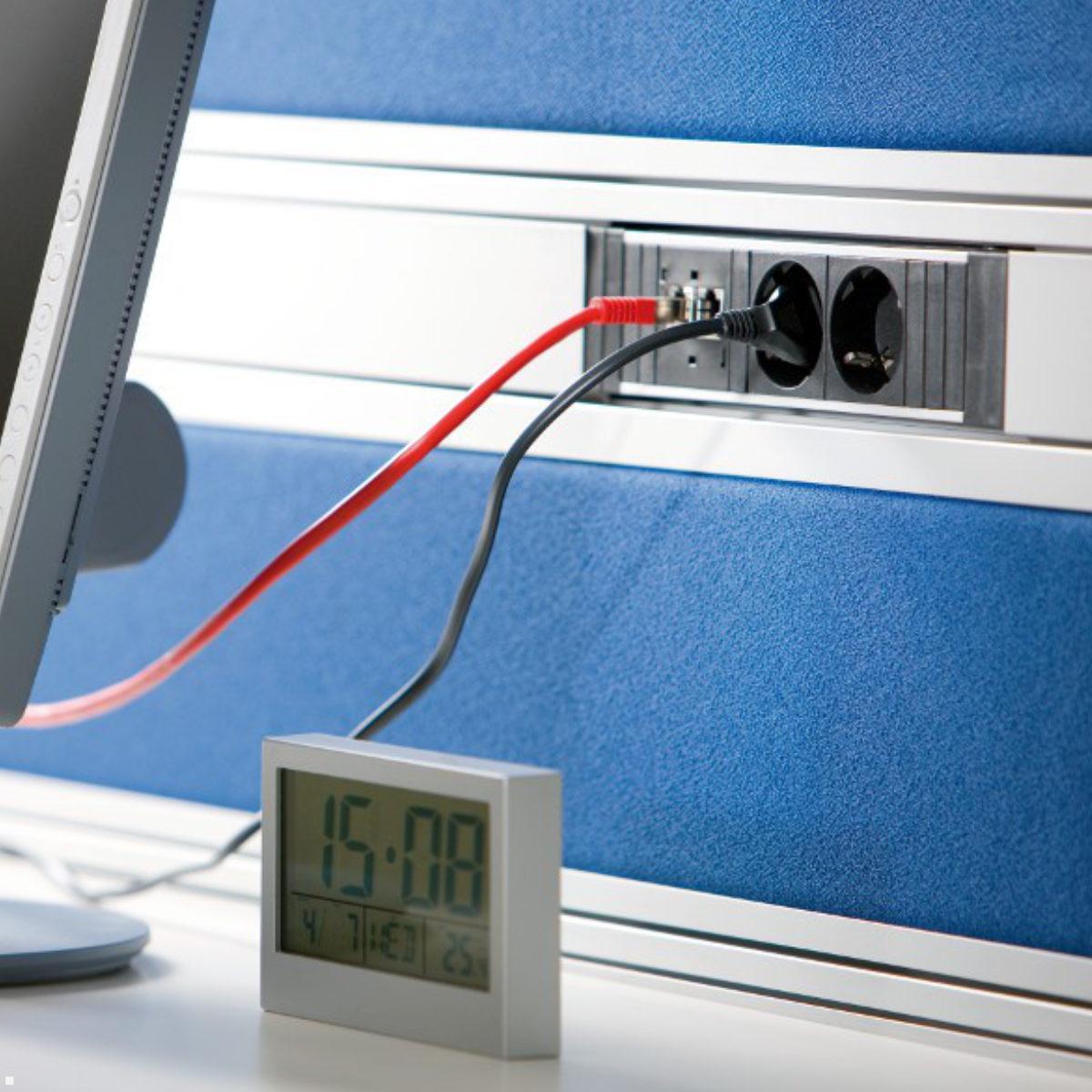

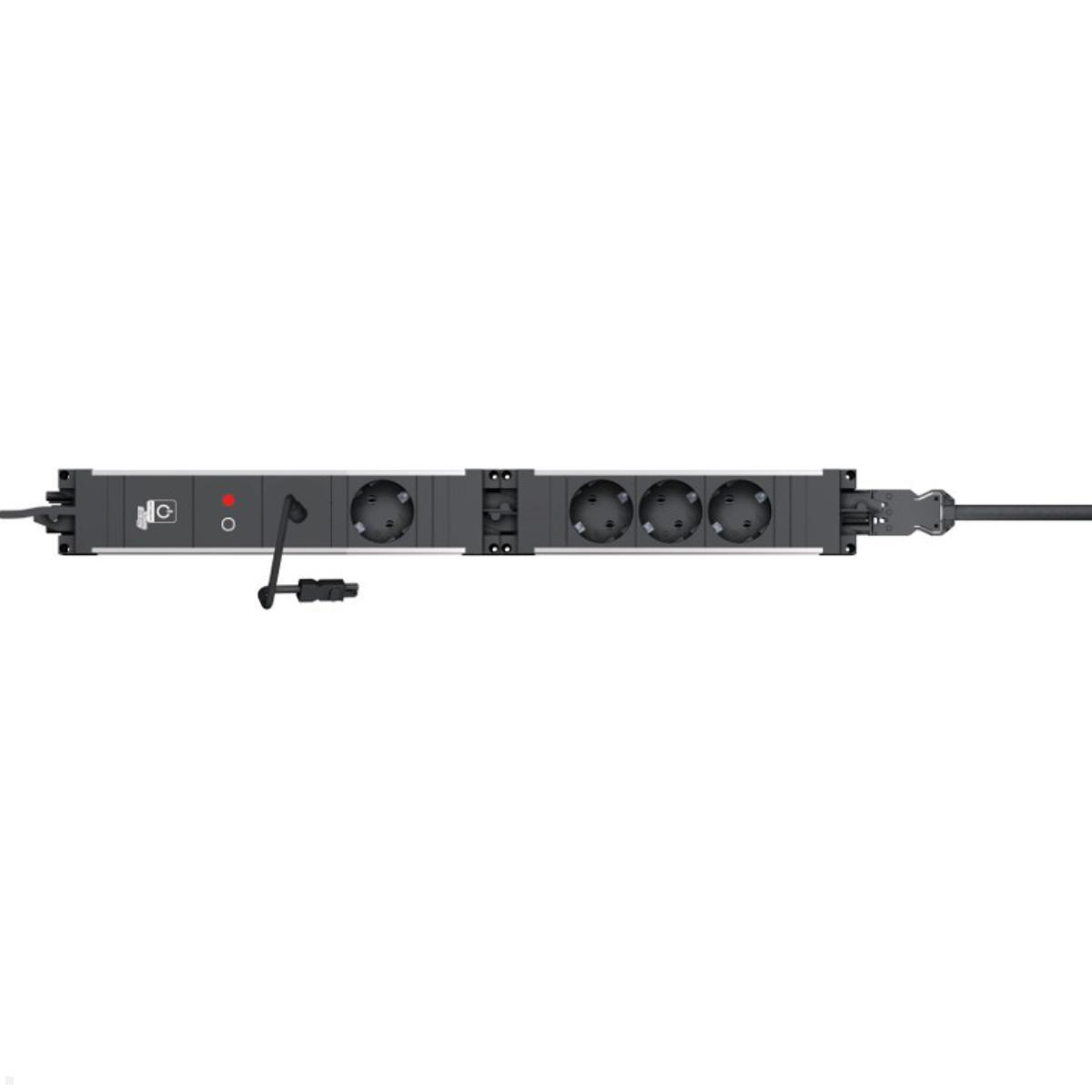

The Bachmann STEP socket unit with FI switch is available with aluminum or plastic profile. Several socket units can be connected to each other as a modular system. Bachmann STEP is primarily designed as a simple electrification unit for the office workplace. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to Bachmann STEP. Bachmann STEP power strips have a power input and a power output, each integrated in the end caps on the front. The built-in GST18 connectors from Wieland are particularly tried and tested connectors for office use and have the appropriate coding and connector latching in accordance with the applicable standard. Bachmann STEP combination options Individual modules can be plugged together or combined with a connecting cable.This turns Bachmann STEP into an individual power distribution system. Other connector systems such. B. Wago Winsta, Woertz, Ensto can be realized on request.
Many mounting options

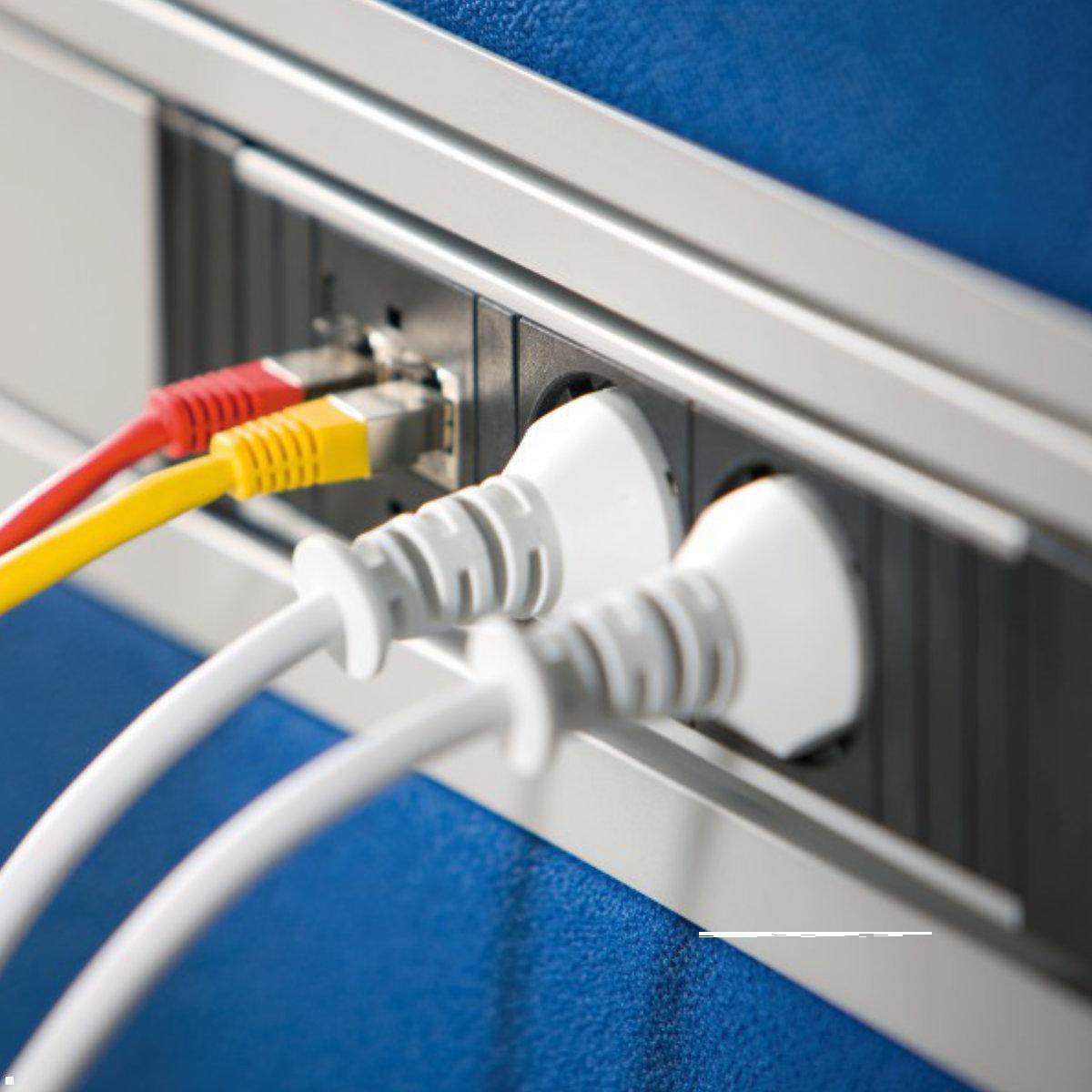

Bachmann STEP socket units can be used in many different ways. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.014 |
| Scope of delivery: | 1 x Step Alu Steckdosenleiste |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| FI switch: | Yes |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
