Bachmann STEP ALU 3x power strip, 1x switch (906.18801)
The Bachmann STEP ALU socket strip, 3-way socket strip, 1x switch (906.18801) can be seen with an aluminum profile (52 mm width) as a simple, modular electrification set. Switch only switches sockets (not current outlet). Successor to 906.003.

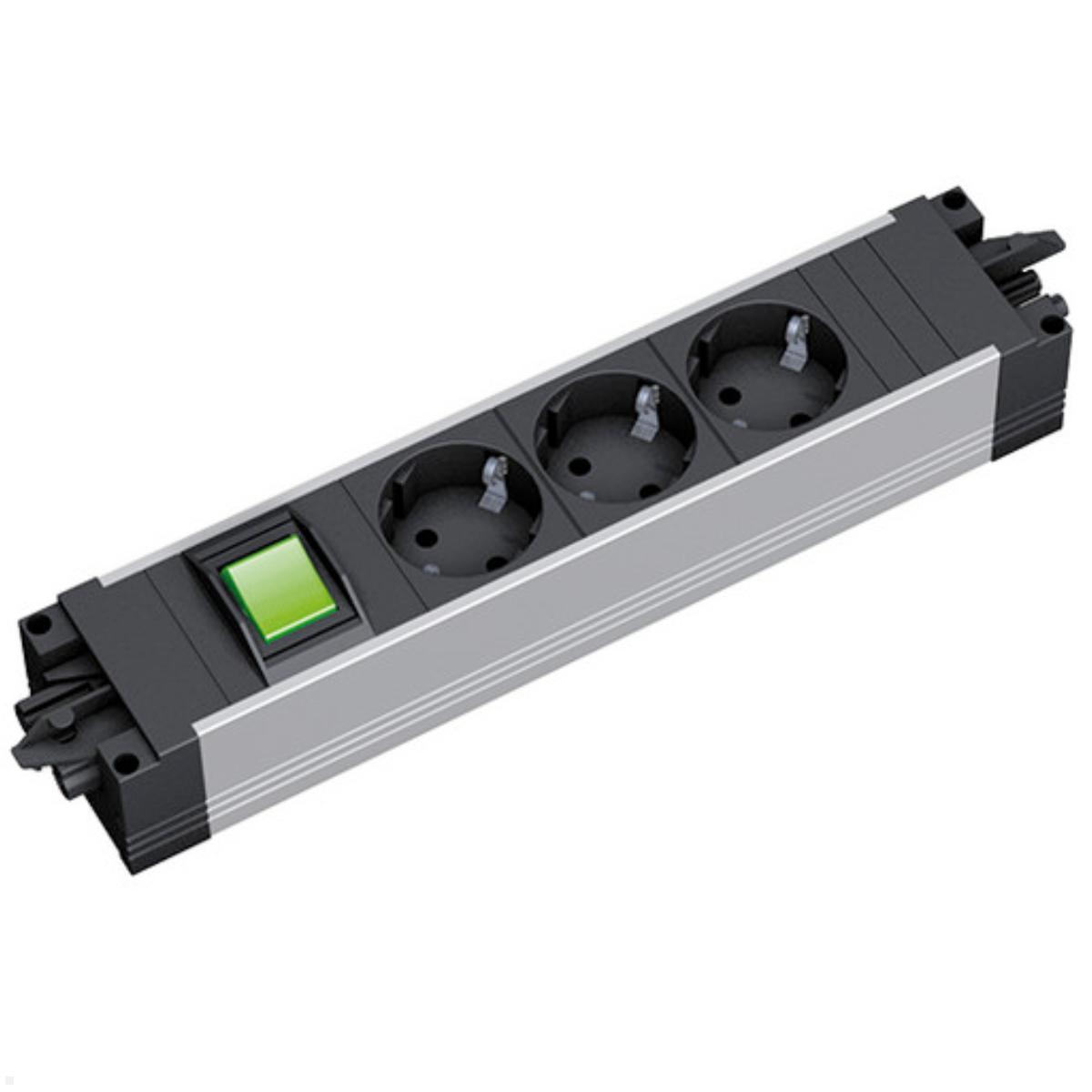

Bachmann STEP ALU - 3-way power strip with switch

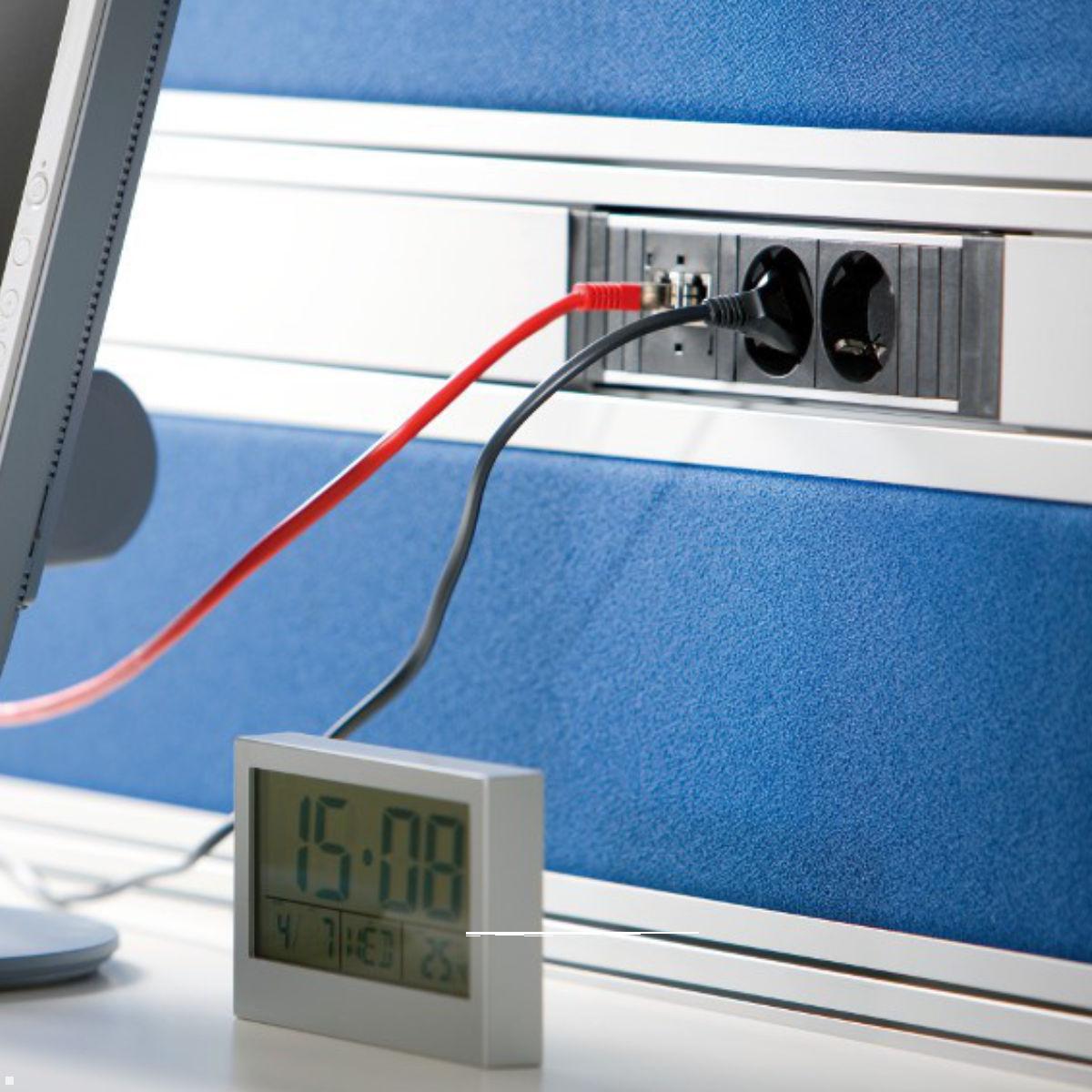

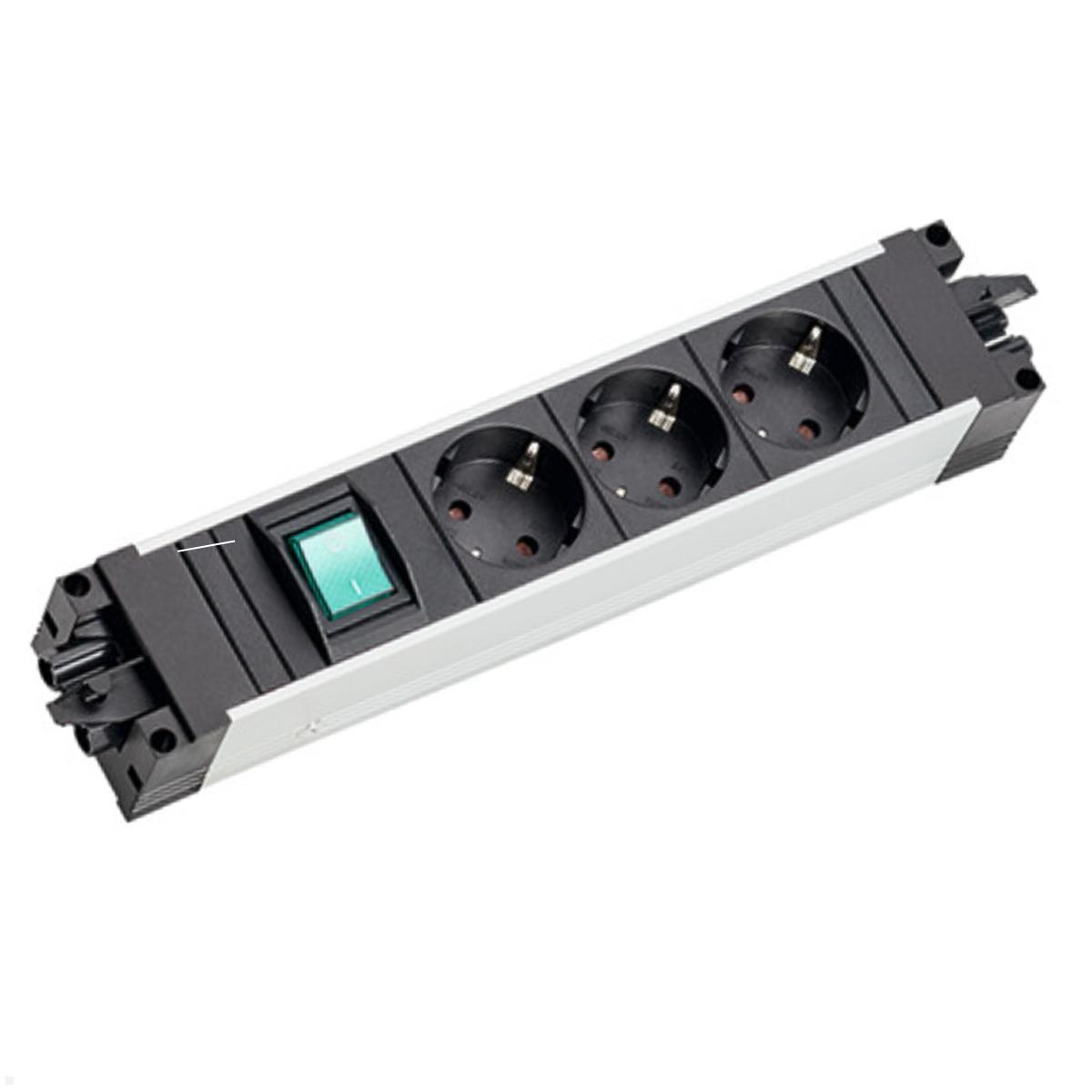

The Bachmann STEP ALU power strip (906.18801) is equipped with 3 protective contact sockets 35°; rotated and a green illuminated switch. The multiple socket strip is equipped with Wieland GST18i3 connections as standard. STEP socket units can be used in a variety of ways, for example for mounting under table tops, in cable trays or partitions. Various attachment options are available for this. The Bachmann STEP ALU system is ideal for flexible energy and data supply in offices, in double floors or in partition wall systems. The modularity of the STEP ALU socket units offers almost limitless possibilities.
Key features Bachmann STEP ALU socket unit
- Length approx. 270mm
- Width 52mm
- Maximum 16A / 230V~ / 3,680W
- IP20 protection class (protection against contact, dust, water)
- 3-way power strip, 35° rotated
- 1x switch switches only sockets (not power output)
- Power input: GST18i3 plug black
- Power output: GST18i3 socket black
- Incl. Connector latching
- Compact dimensions and stable housing
- Mounting option on T-slot profiles and stand profiles from different suppliers
- Easy mounting with adapted brackets (ESD -capable)

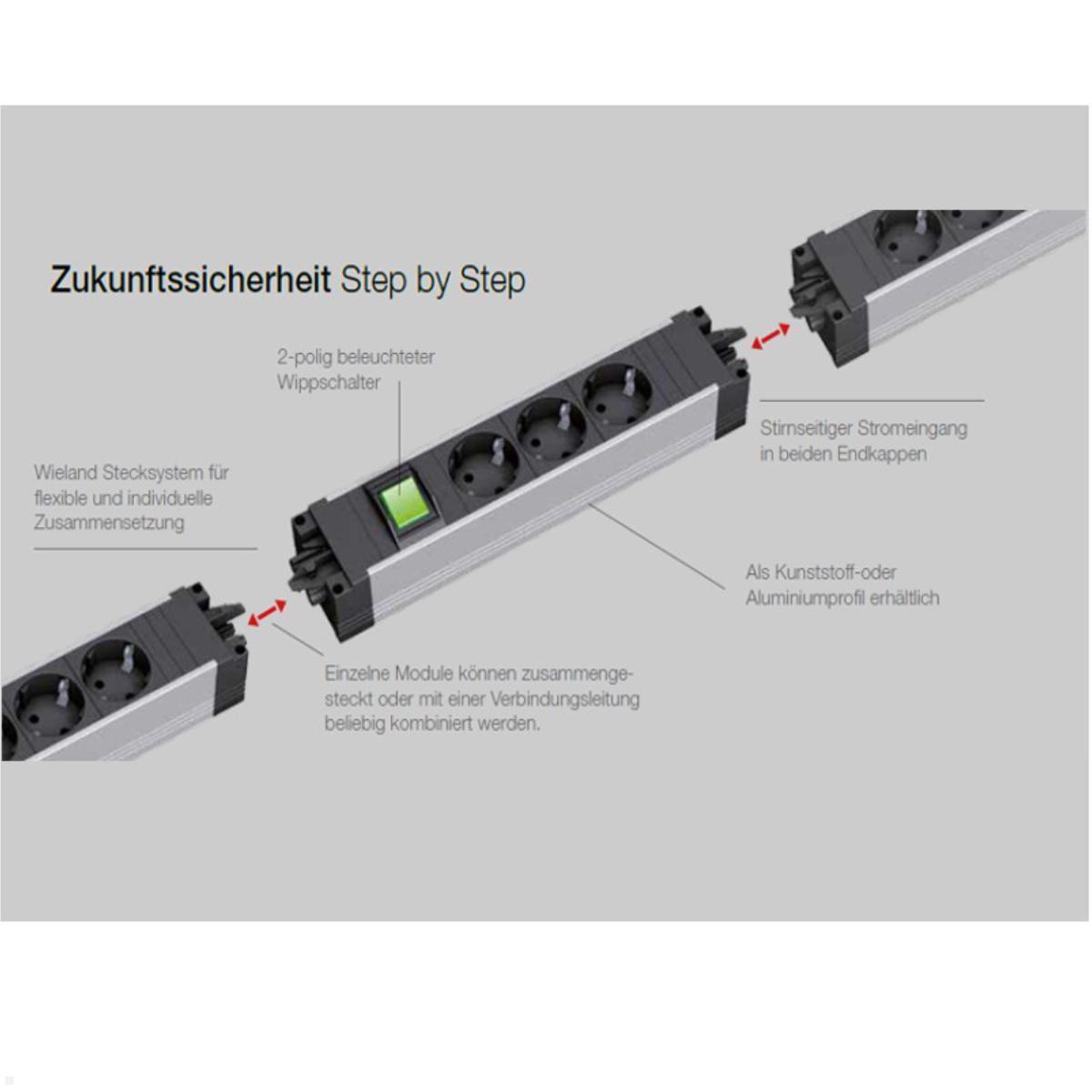

- Linking of the power strips to one another using device extensions
- Infeed directly at the power connection with device cable or via infeed modules
- Aluminium profile silver, black sockets
- Successor to 906.003
| Product sheet: |  [pdf] |
|---|---|

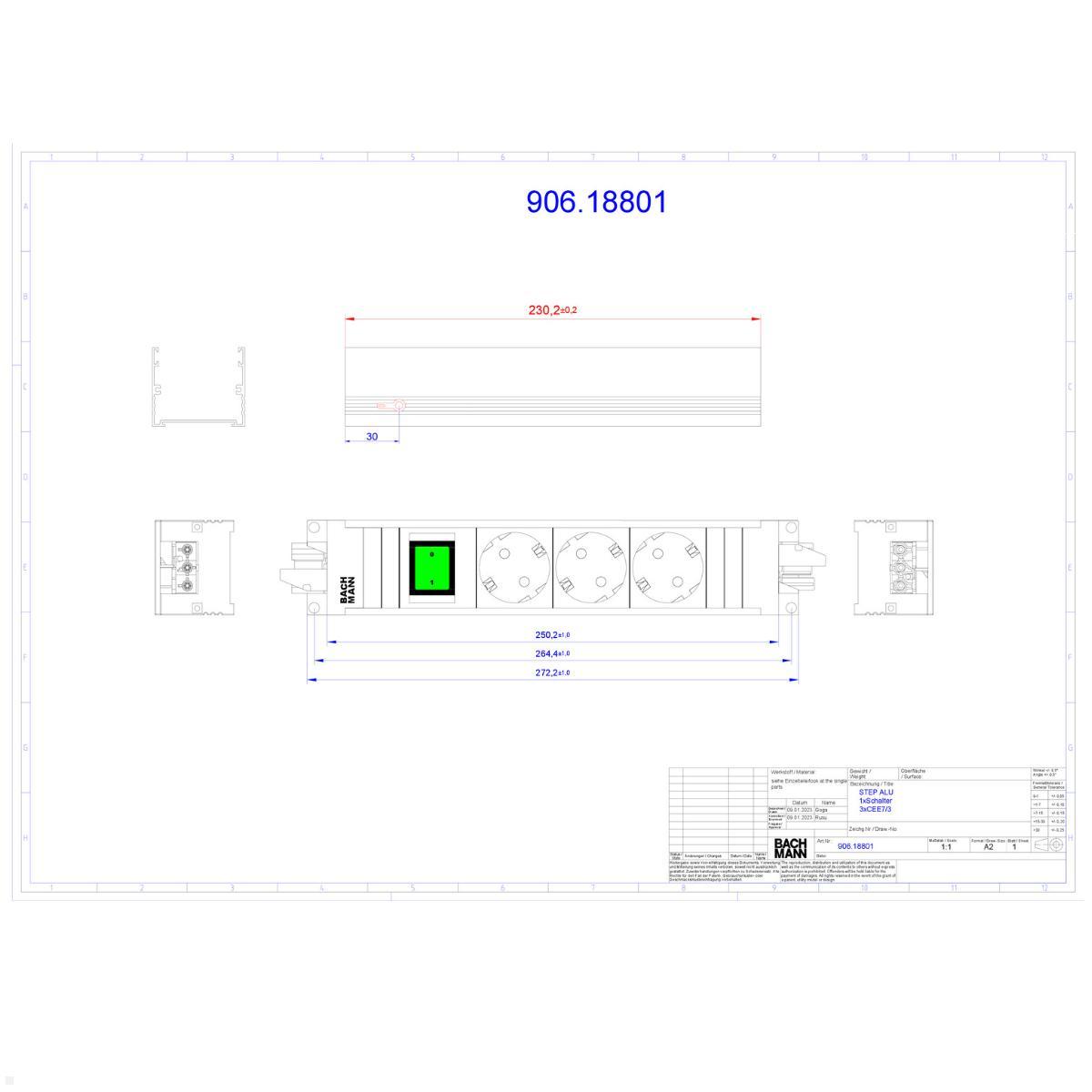

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 906.003 |
| Packaging dimensions (LxWxH in mm): | 272 x 52 x 44 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
