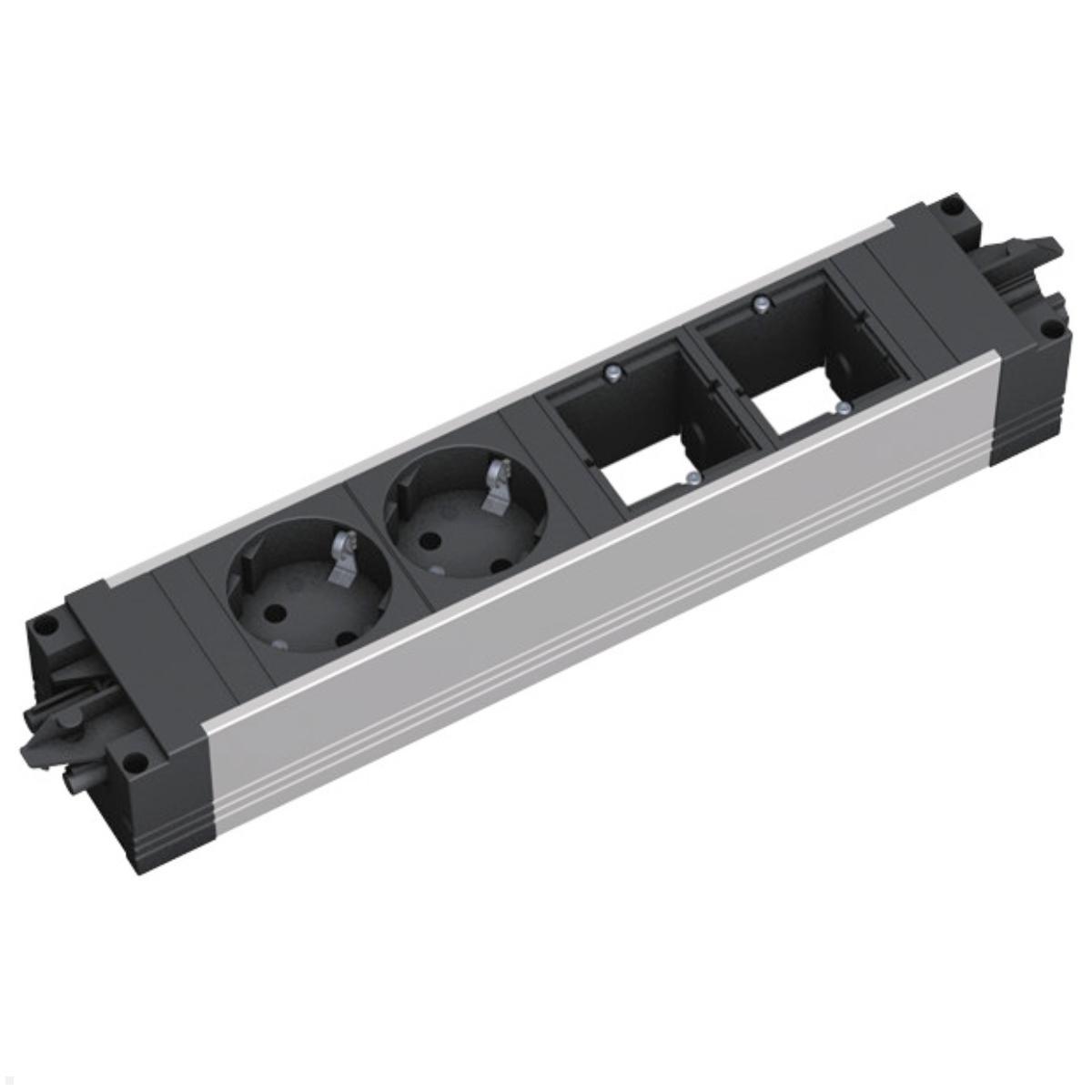

Bachmann STEP ALU 2x power strip, 2x custom module (906.10933)

Multiple socket with custom module inserts

The Bachmann 906.10933 Step Alu socket strip is a modular 2-way socket with additional 2-way custom module inserts. This combination offers you a practical solution for powering electronic devices in your office, home or other work environment. The multiplesocket can be easily installed in desks, worktops or on T-slot profiles and stand profiles from different suppliers. It can be easily attached with special, ESD-capable brackets. Both the power input and the power output are via the Wieland GST18 connector system. The power strips can be linked by using device extensions. The energy is fed in either directly at the power connection with a device feed line or via feed-in modules. The 2-way custom module allows you to customize the socket to your specific requirements. For example, you can equip the module with USB ports, network jacks, HDMI ports or other ports, depending on the devices you want to connect.

Key features Bachmann 906.10933

• Socket strip 2 x CEE7/3 and 2 x CM
• Length approx. 230mm
• Width 52mm
• Rated current: 16A / 250V~
• IP20 degree of protection (protection against contact, dust, water)
• Aluminum profile silver, sockets black
• 2x sockets, 2-pin with protective contact, rotated 35°, 20A / 250V

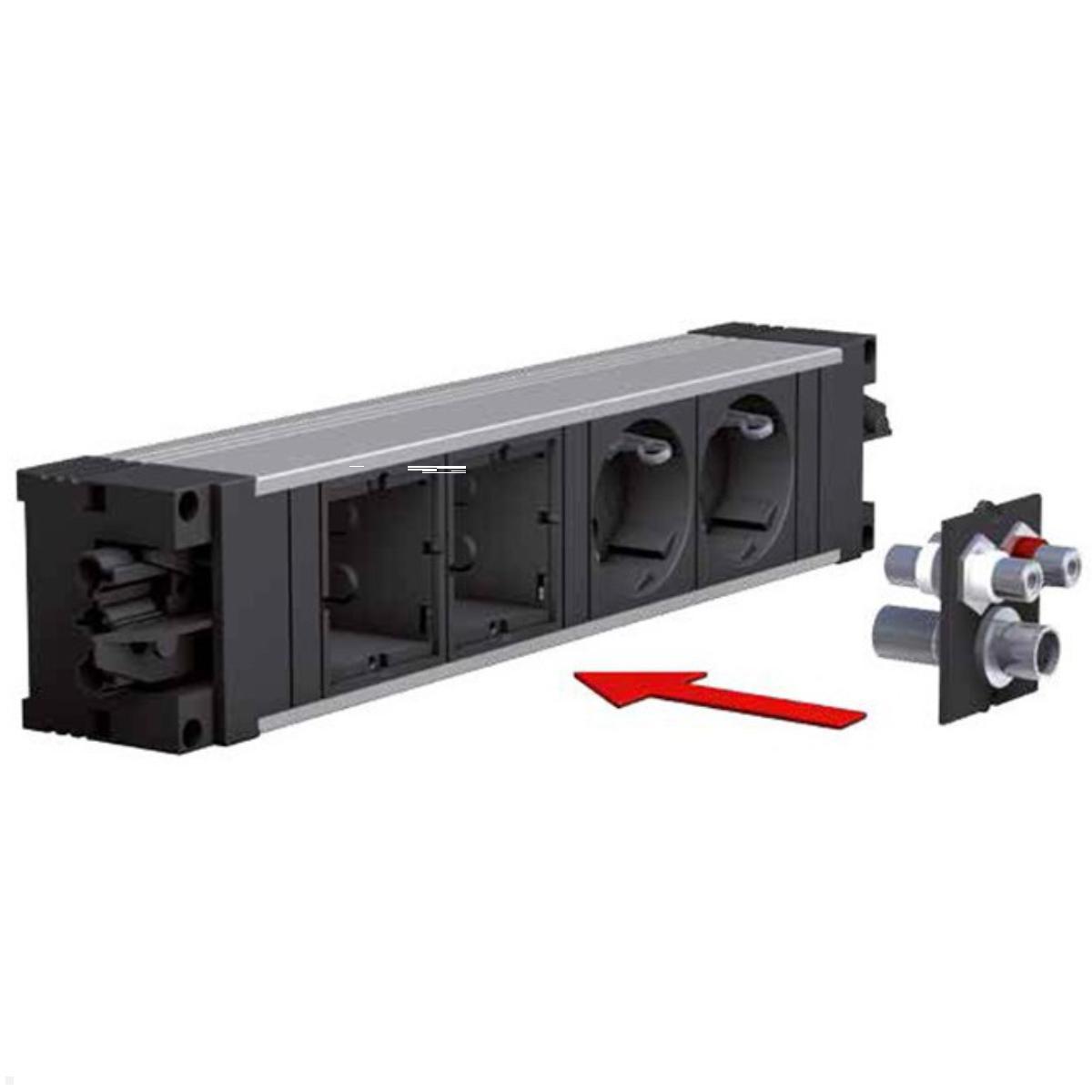

• 2x custom module (insert without content)

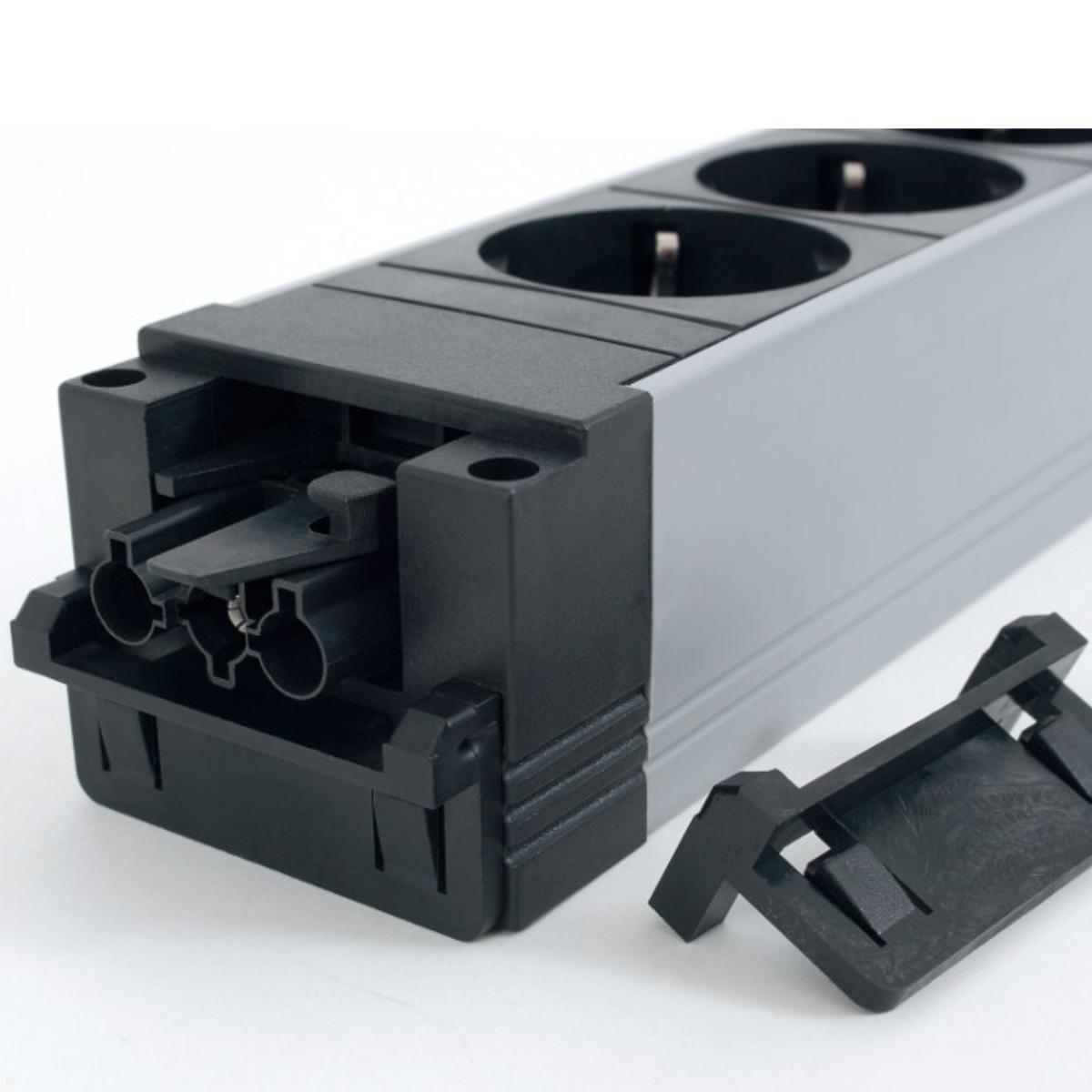

• Power input: GST18i3 connector black
• Power output: GST18i3 socket black
• Including connector latch
• Successor to 906.001

Perfectly tailored for the best connections

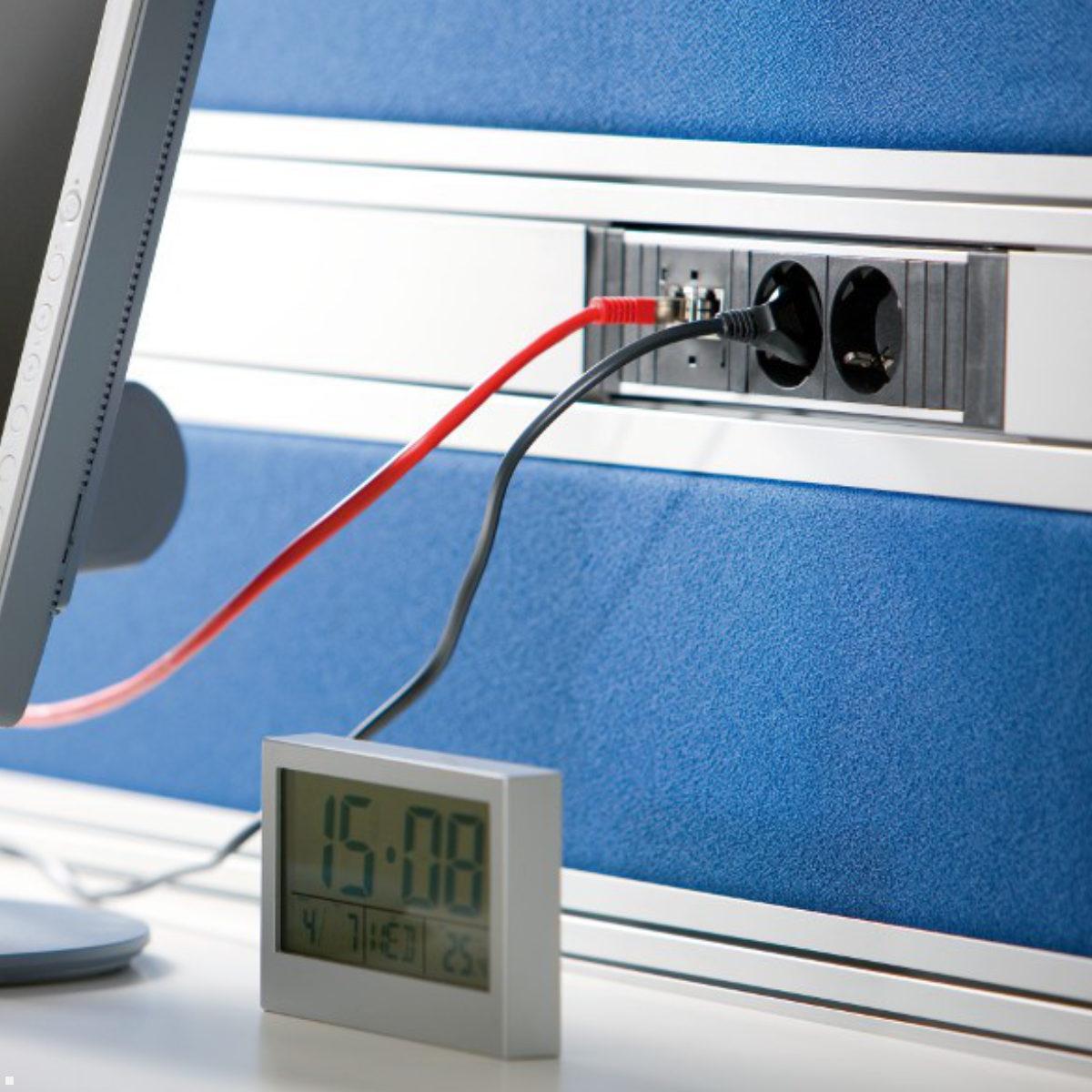

The Bachmann STEP power strip is available with an aluminium or plastic profile. It is possible to connect multiple power strips together to form a modular system. Bachmann STEP is designed primarily as a simple electricity supply unit for office workstations. Permanently positioned devices such as PCs, monitors, printers, etc. can be connected to Bachmann STEP . STEP power strips have a power input and a power output, each of which is built into the end caps. The Wieland GST18 plug connectors fitted are particularly tried-and-tested solutions for office use and have the coding and latch mechanism required to comply with the applicable standard.

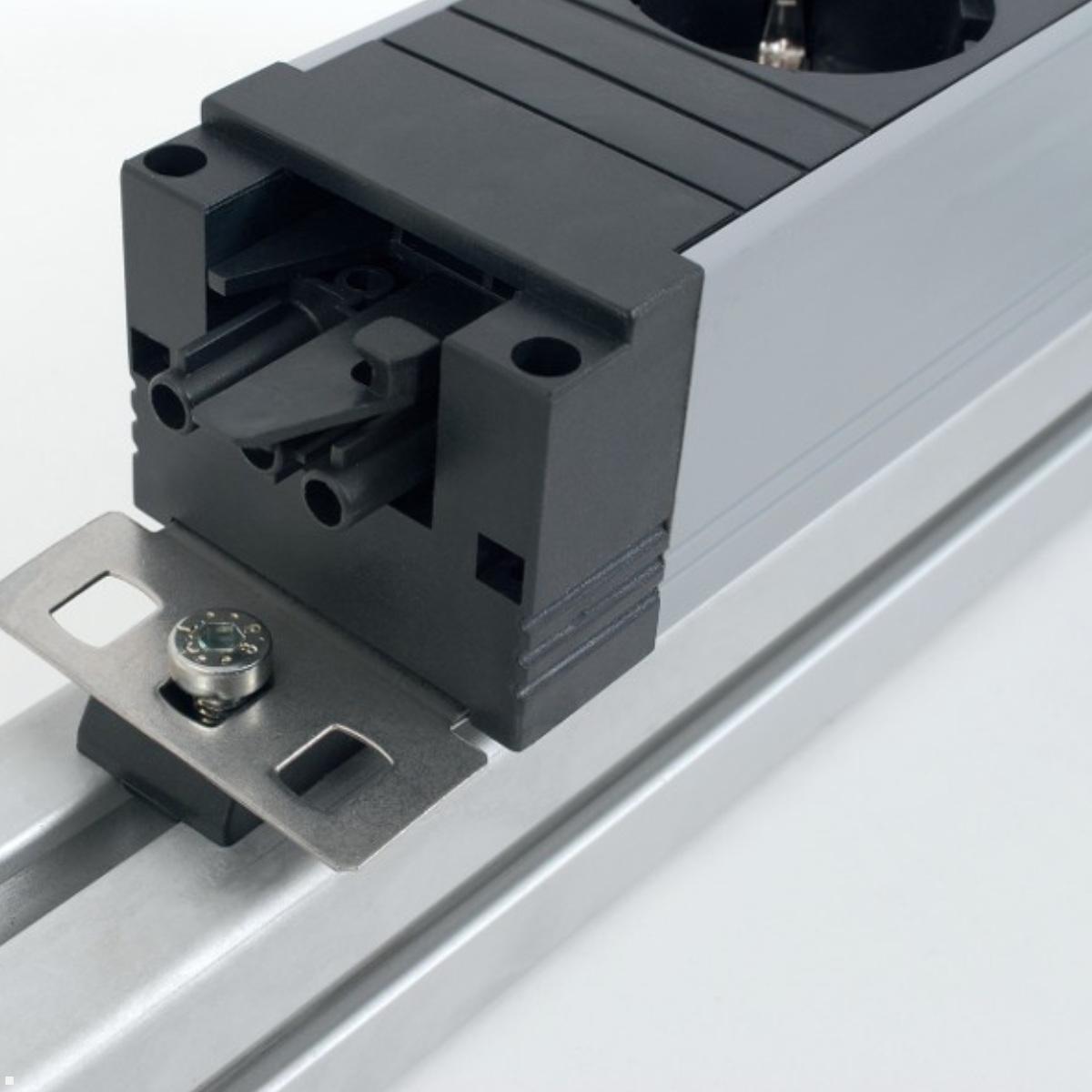

Multiple fixing options

Bachmann STEP power strips are versatile in their application. They can be fitted for example under table/desk tops, in cable ducts and in partitions. Different fixing options are available to suit these various application.

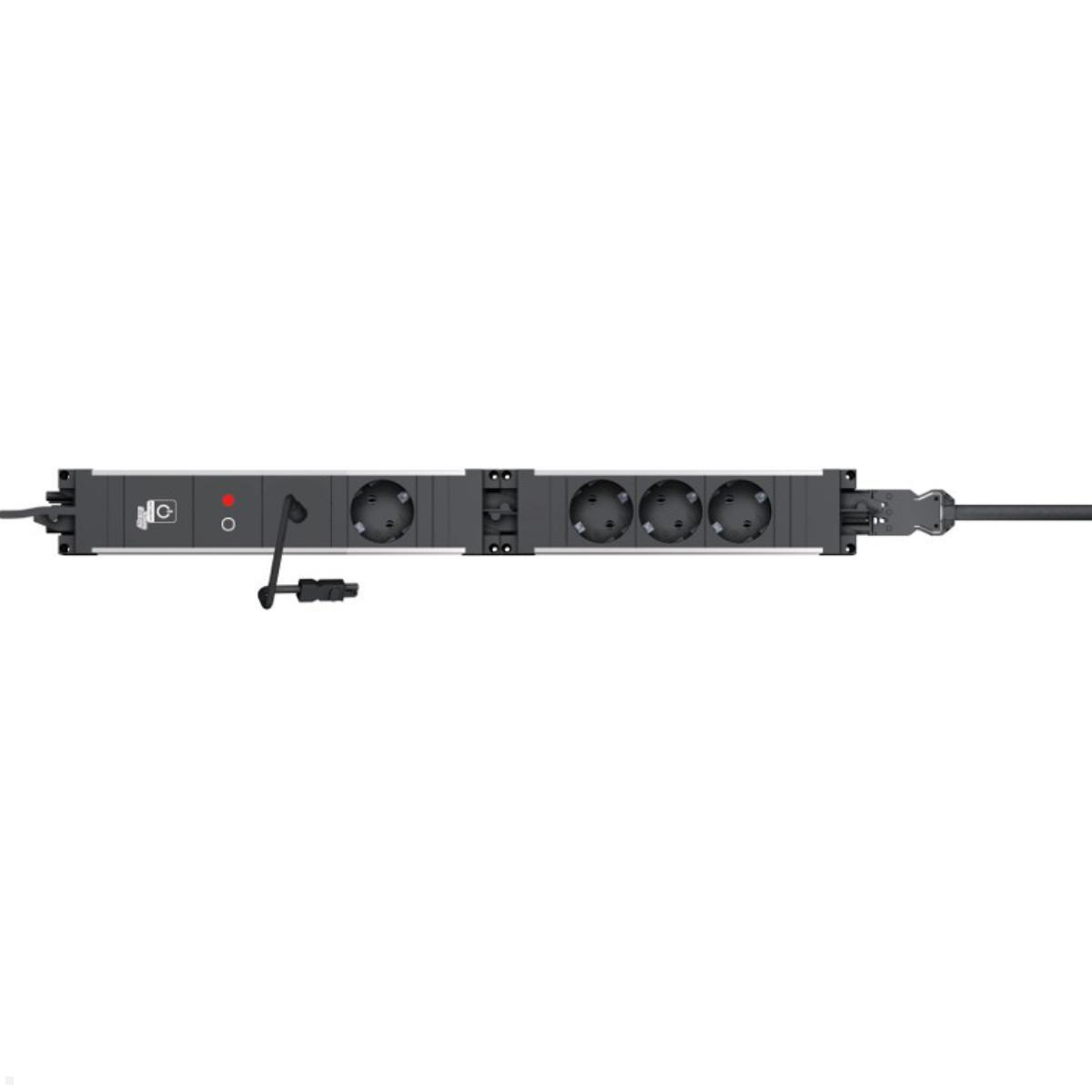

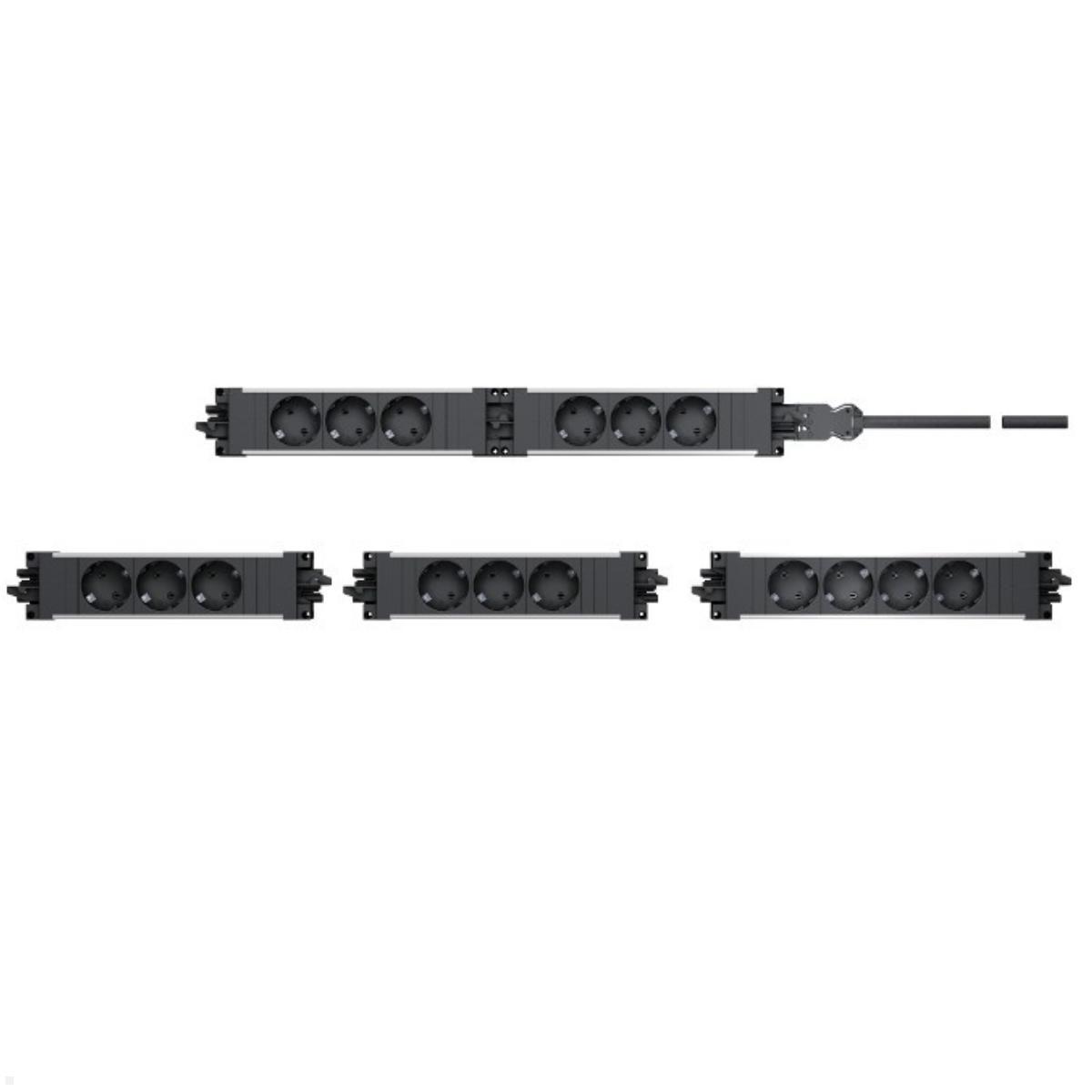

STEP combination options

You can plug separate modules together or combine them as you wish with a connecting cable. Thus Bachmann STEP  gives you your own custom power distribution system. Other plug-in connection systems (e.g. Wago Winsta, Woertz, Ensto) can be supplied on request.
