Bachmann STEP ALU 1x USB, 1x custom module, 2x power outlet (906.0218)

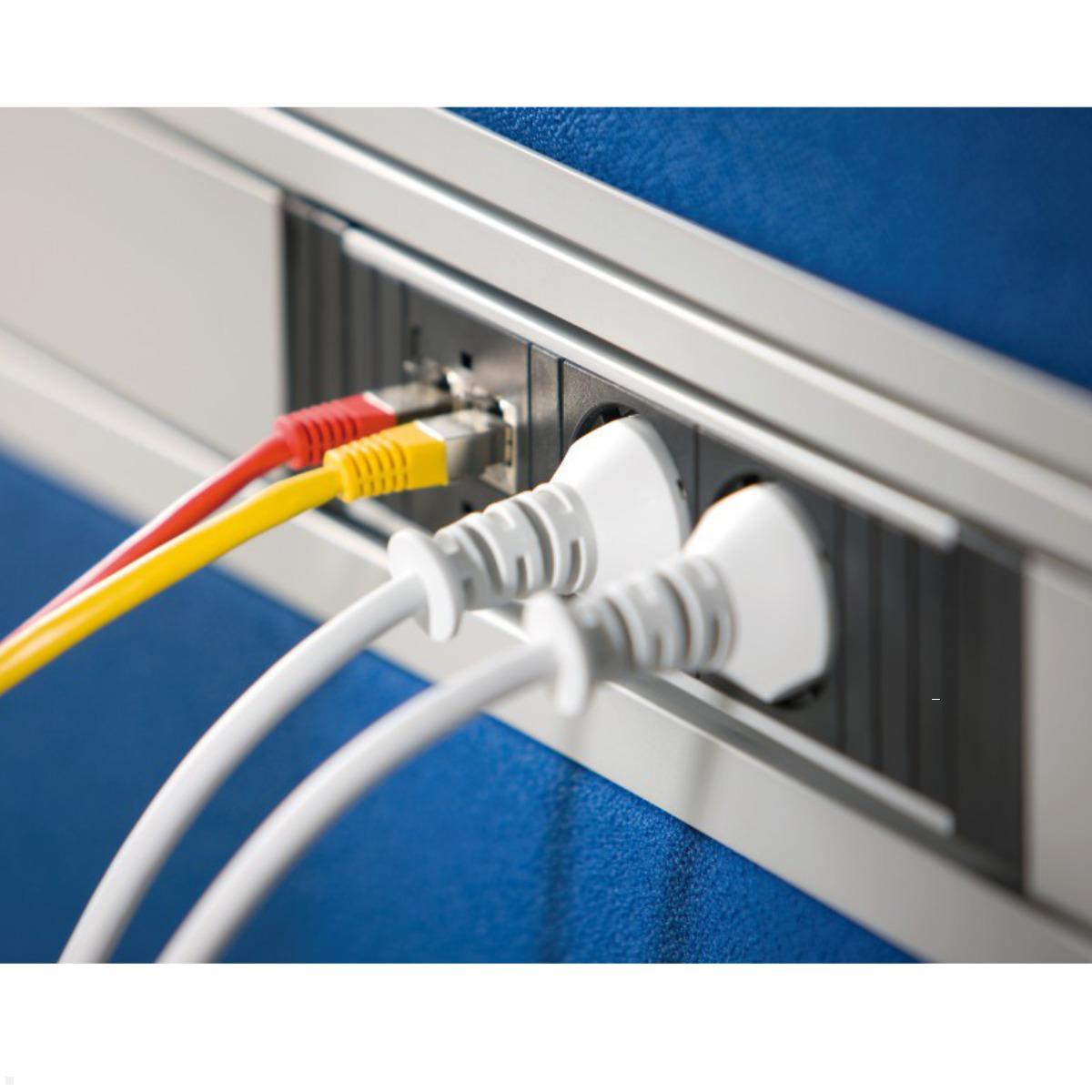

The Bachmann STEP ALU socket strip with 2 sockets with 1x custom module insert and 1x USB charger (5.2V/2.15A) (906.0218) is the ideal solution for flexible data and energy supply on partition wall systems, workplaces or double floors. Successor to 906.0113
Double socket line with USB charger and custom module

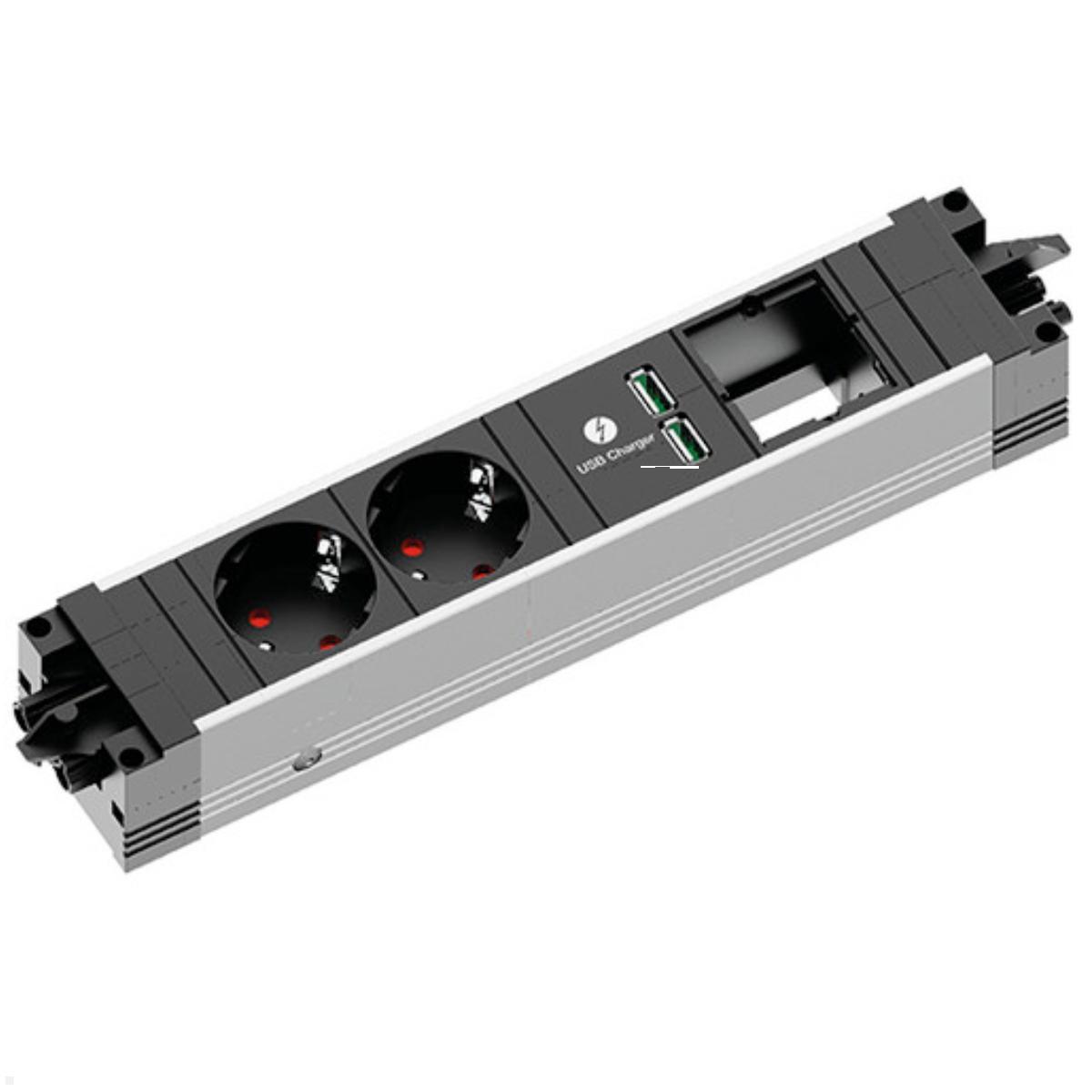

The Bachmann STEP socket unit (906.0218) has 2 sockets with child protection, a USB Charger with 2 USB-A sockets and a custom module. Standard are power input and Power output integrated in the end caps on the front. The built-in GST18 connectors from Wieland are particularly tried and tested connectors for office use and have the appropriate coding and connector latching according to the valid standard . Individual modules can be plugged together or combined as desired with a connecting cable. This turns the Bachmann STEP socket strip into an individual power distribution system.
Technical details Bachmann STEP ALU socket strip
- Length approx. 282 mm
- Height bar: 43 mm
- Maximum 16A / 230V~ / 3,680W
- IP20 protection class (protection against contact, dust, water)
- 2x sockets with child protection, 35° rotated
- 1x custom module
- USB charger (5.2V/2.15A) 2x USB-A socket
- Power input : GST18i3 plug black
- Power output: GST18i3 socket black
- Incl. Connector latching
- Compact dimensions and stable housing

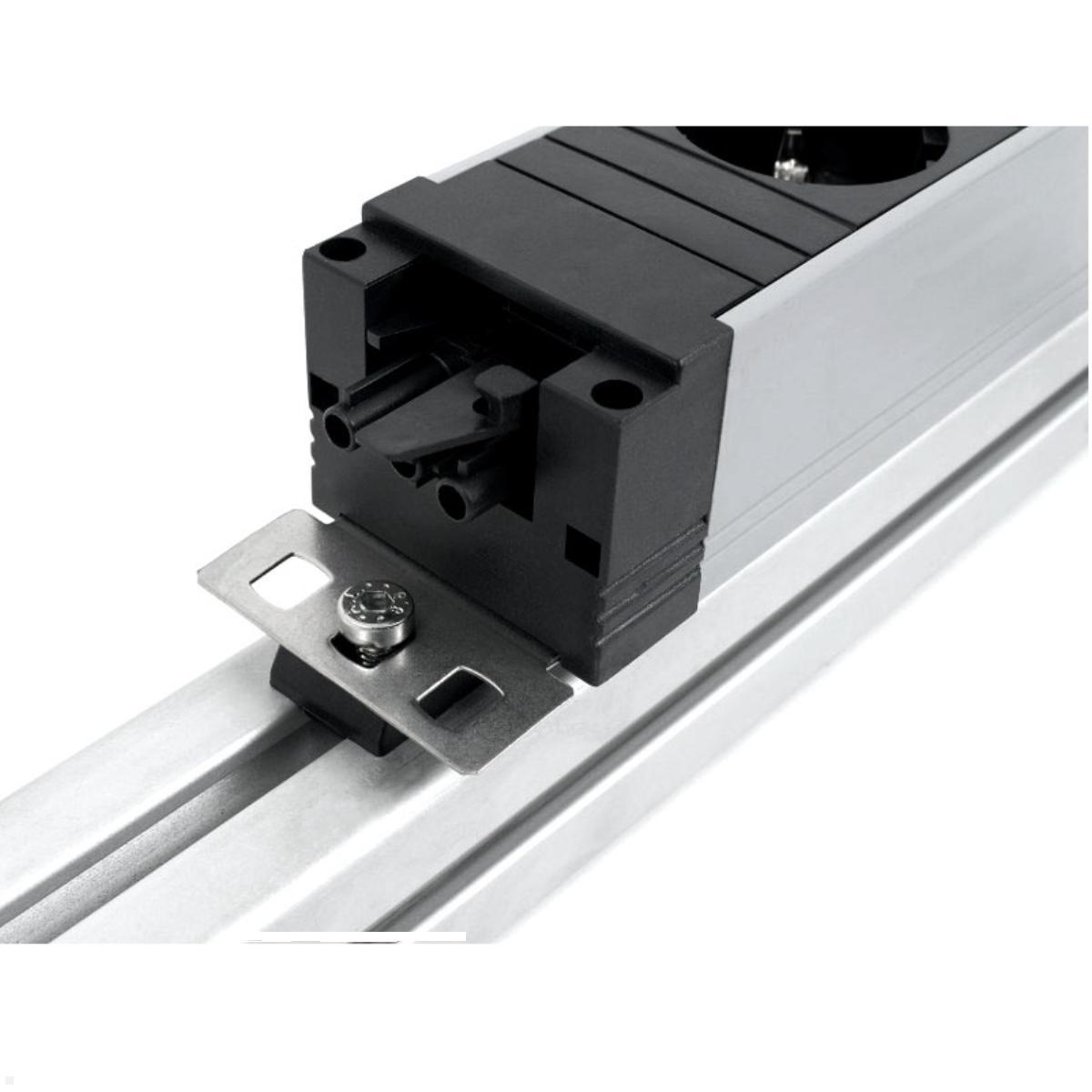

- Mounting option on T-slot profiles and stand profiles from different suppliers
- Easy mounting with adapted brackets (ESD -capable)

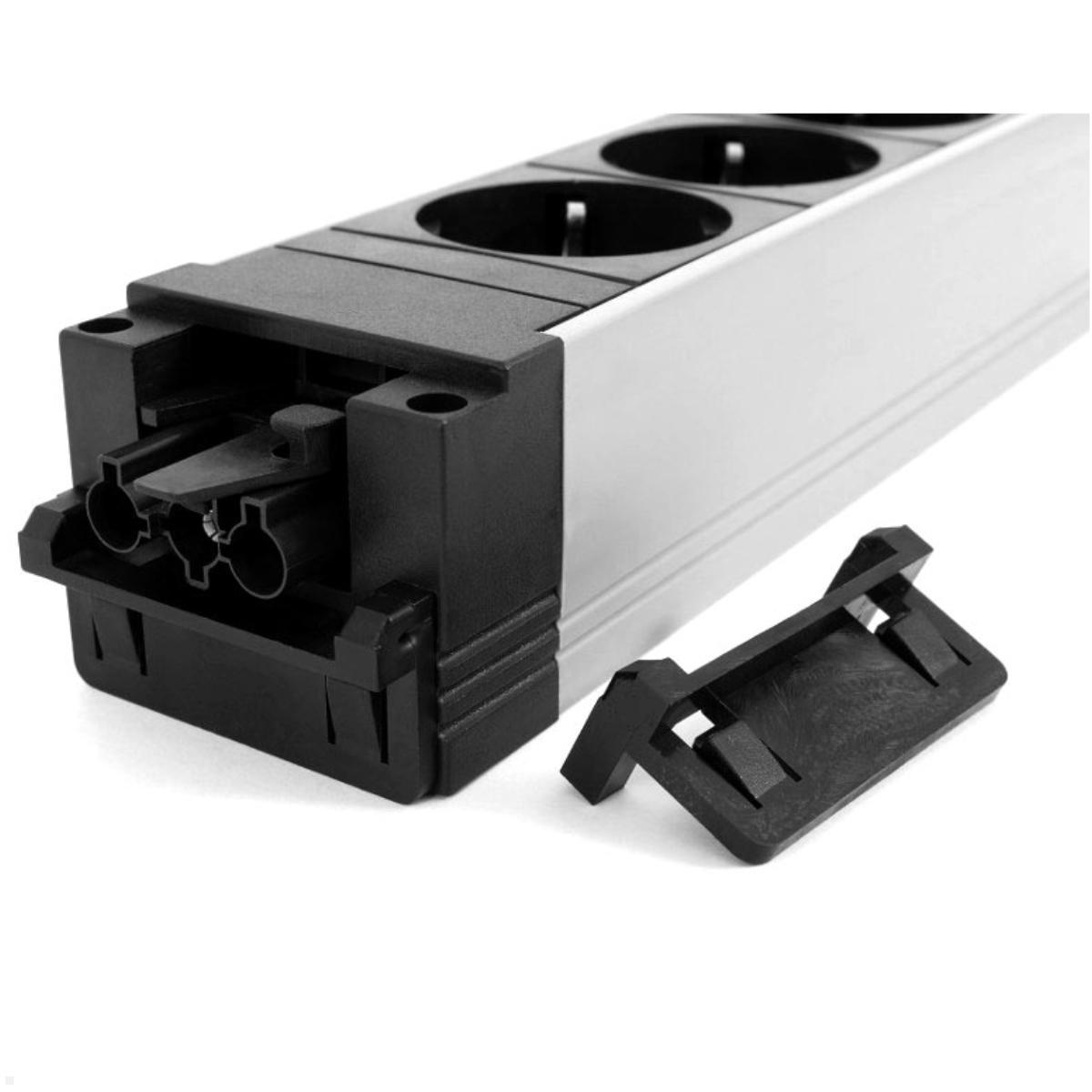

- Power input and output with Wieland GST18 connector system
- Optional assembly of the strips with modules

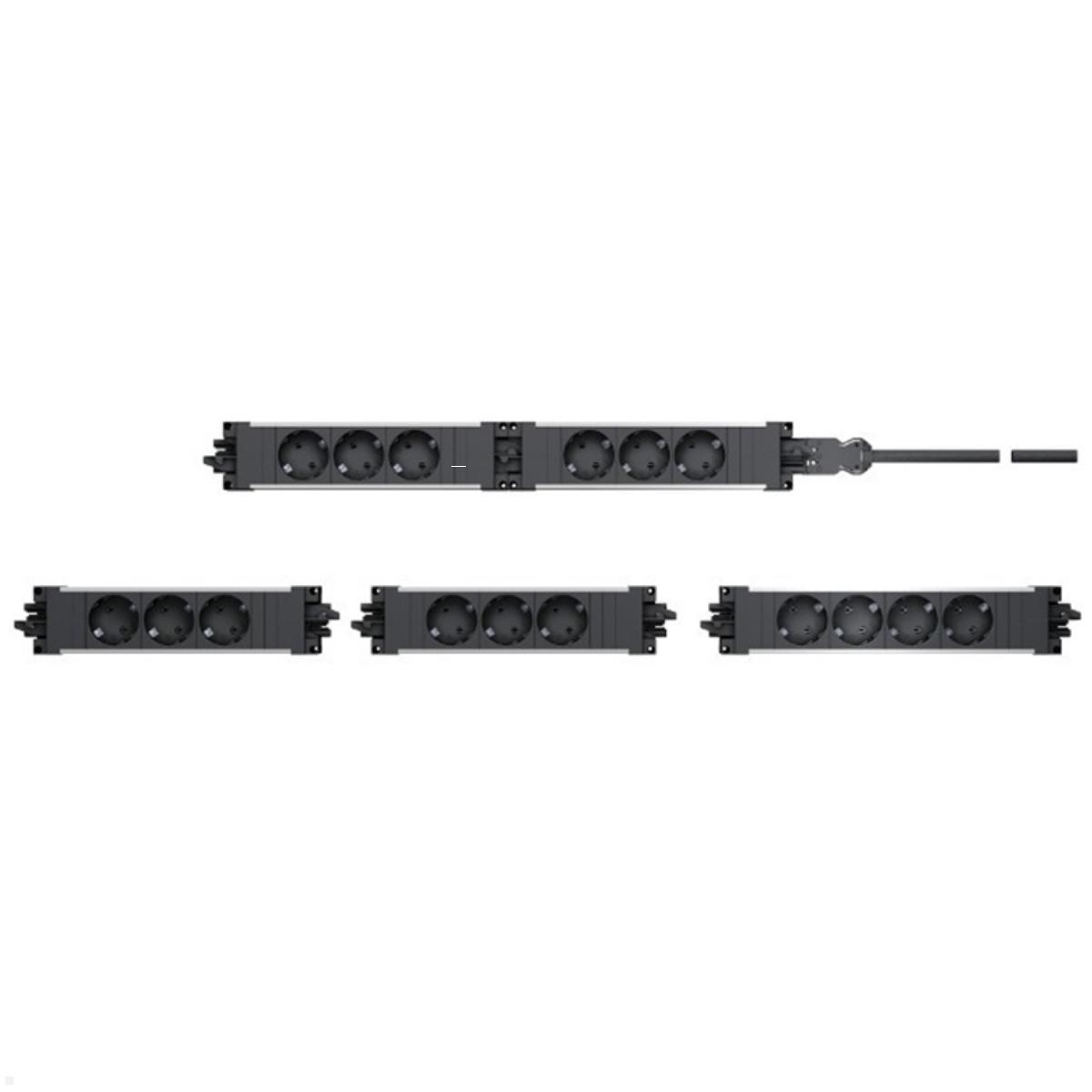

- Linking of the power strips to one another using device cables ;neglected
- Infeed directly at the power connection with device cable or via feed-in modules
- Aluminium profile silver, sockets black
- Successor to 906.0113
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 906.0113 |
| Packaging dimensions (LxWxH in mm): | 282 x 52 x 44 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Black |
| USB-Charger: | USB A/A |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
