Bachmann STEP ALU 1x LS with GST18 (906.305)

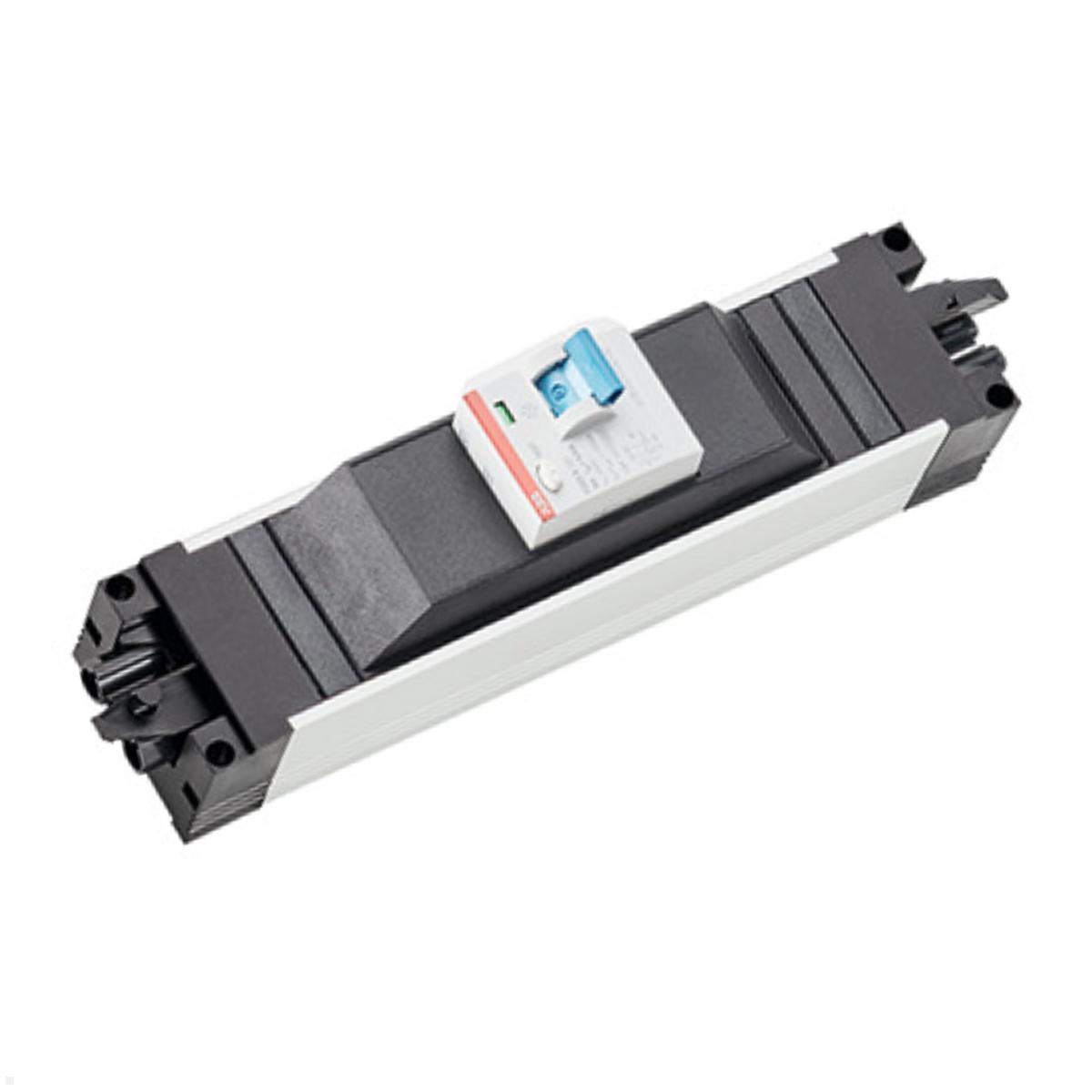

Safety strip with switch

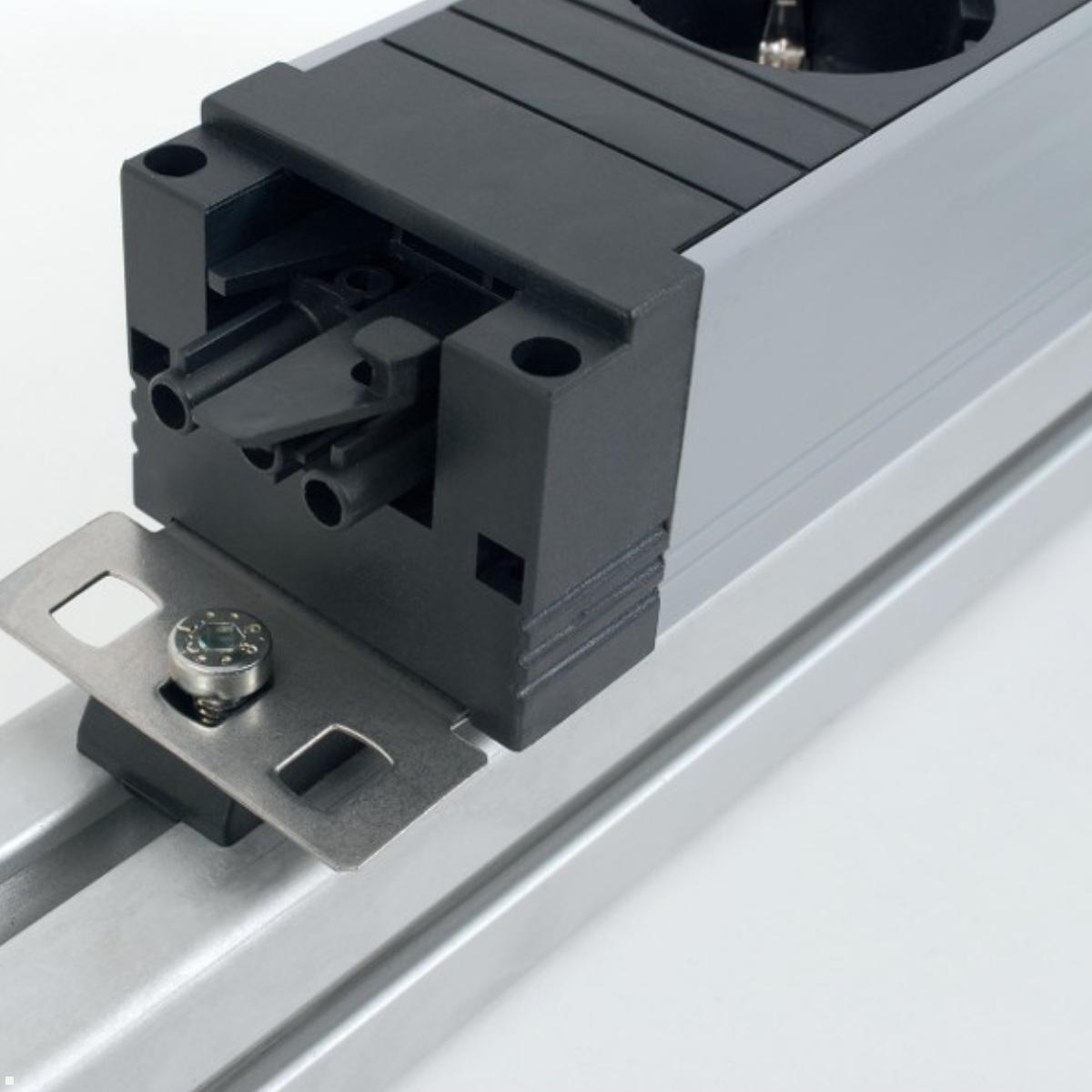

Bachmann STEP ALU socket strip (906.305) LS circuit breaker 16A. Assembling the STEP ALU Sockets Strip is possible on T-slot profiles and stand profiles from different suppliers. It can be easily fixed with special, ESD-compatible brackets. Both the power input and the power output are via the Wieland GST18 connector system. The power strips can be linked by using device extensions. The energy is fed in either directly at the power connection with a device supply line or via feed-in modules. The Bachmann socket strip with circuit breaker thus offers a practical and safe solution for electrifying various work areas. With its high-quality design and flexible installation options, it is a reliable choice for professional applications.directly to the power connection with device cable or via feed-in modules

Key features 906.305

• Safety strip with LS switch
• Length approx. 230 mm
• Width 52 mm
• Nominal current: 16A, 2-pole< /li>
• Rated voltage: 250V
• Frequency: 50Hz
• Power input: GST18i3 plug, black
• Power output: GST18i3 socket, black
• Incl. Connector catch
• Aluminium profile silver, sockets black
• Successor to 336.015

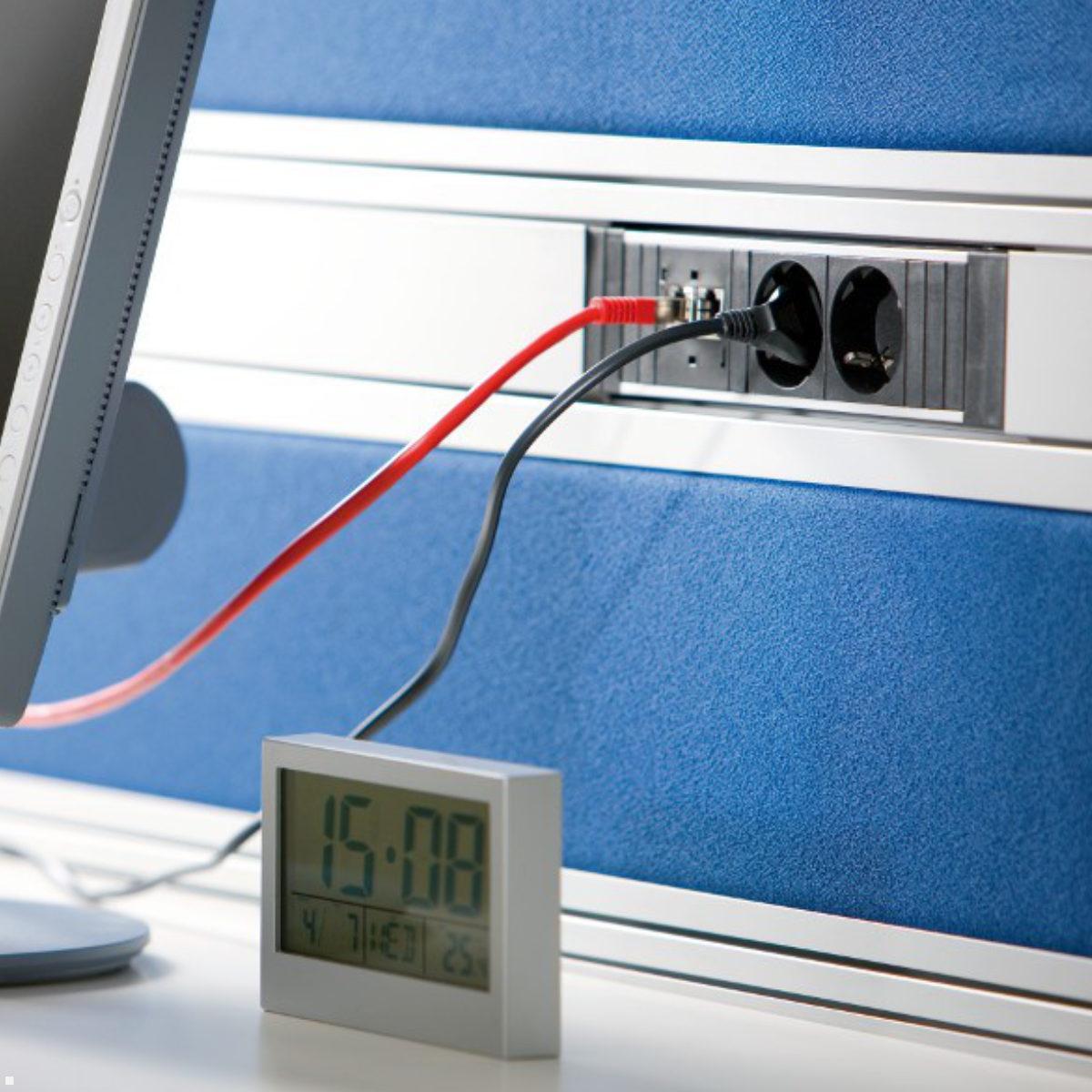

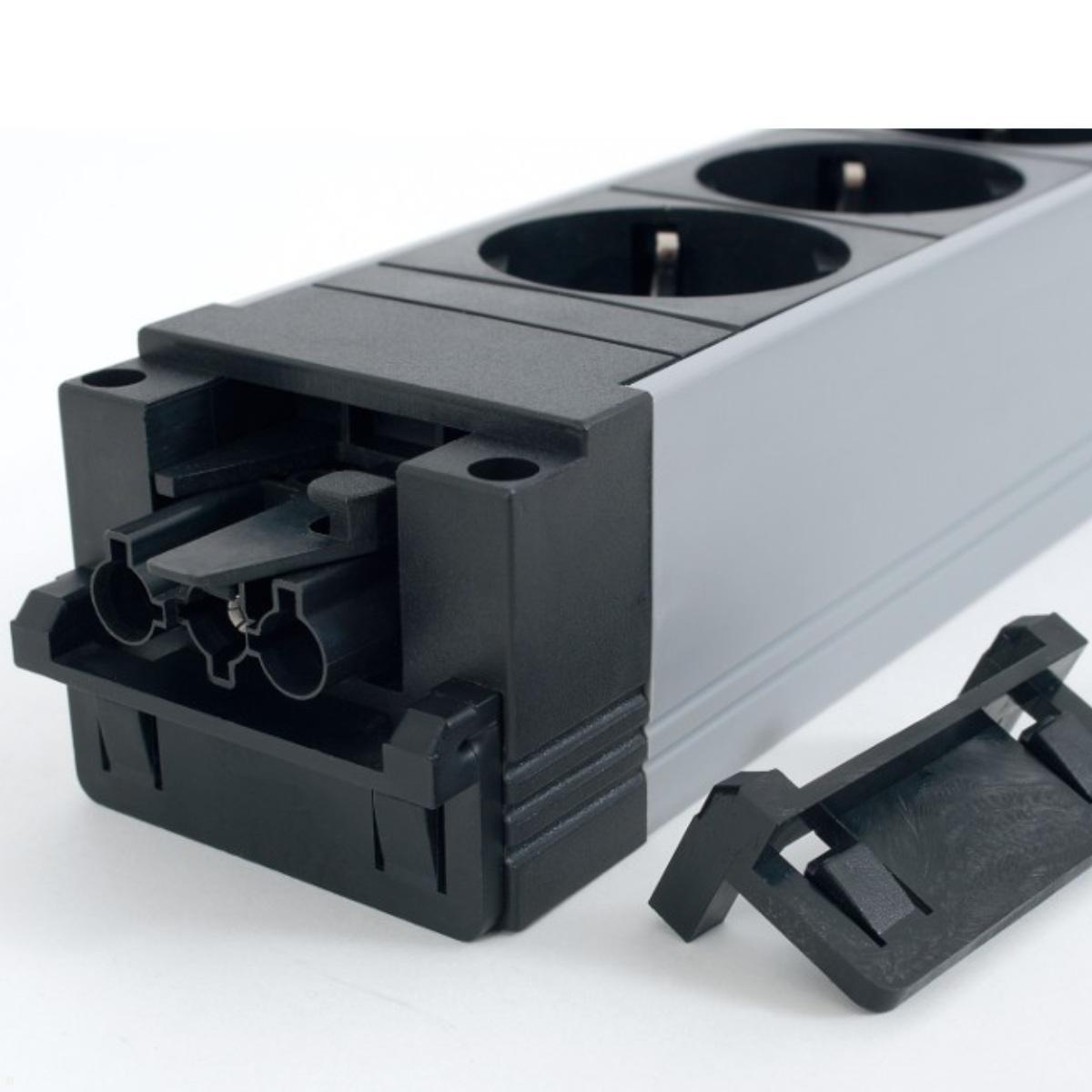

Perfectly prepared for the best connectionsThe Bachmann STEP socket unit is available with an aluminum or plastic profile. Several socket units can be connected to each other as a modular system. Bachmann STEP is primarily designed as a simple electrification unit for the office workplace. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to Bachmann STEP. Bachmann STEP power strips have a power input and a power output, each integrated in the end caps on the front. The built-in GST18 connectors from Wieland are particularly tried and tested connectors for office use and have the appropriate coding and connector latching in accordance with the applicable standard. Bachmann STEP combination options Individual modules can be plugged together or combined with a connecting cable.
This turns Bachmann STEP into an individual power distribution system. Other connector systems such. B. Wago Winsta, Woertz, Ensto can be realized on request.

Many mounting options

Bachmann STEP socket units are versatile. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
