Bachmann Power Frame 4-way 2x socket 1x USB A/C 1x CM, white (916.702)
Built-in socket with USB / CM

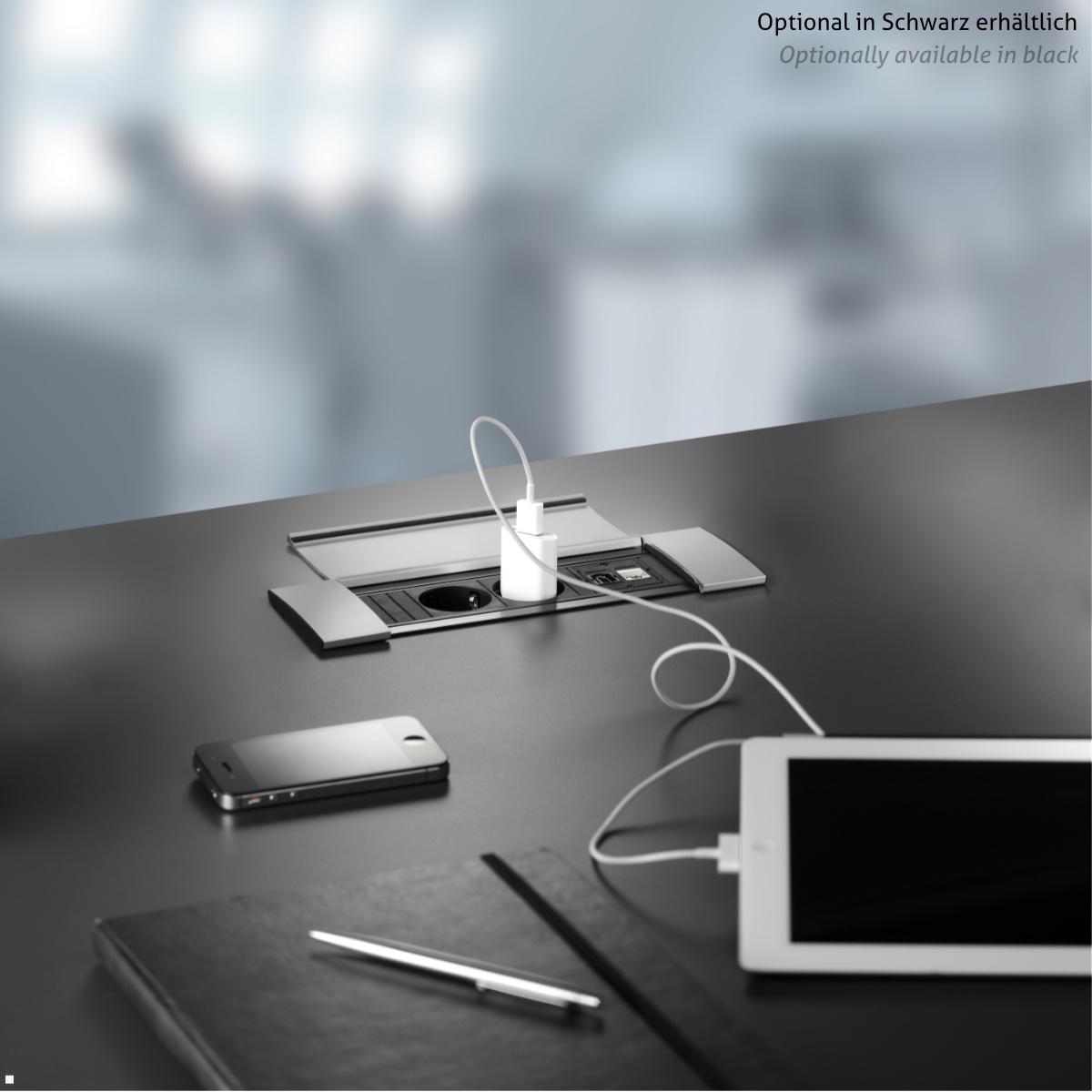

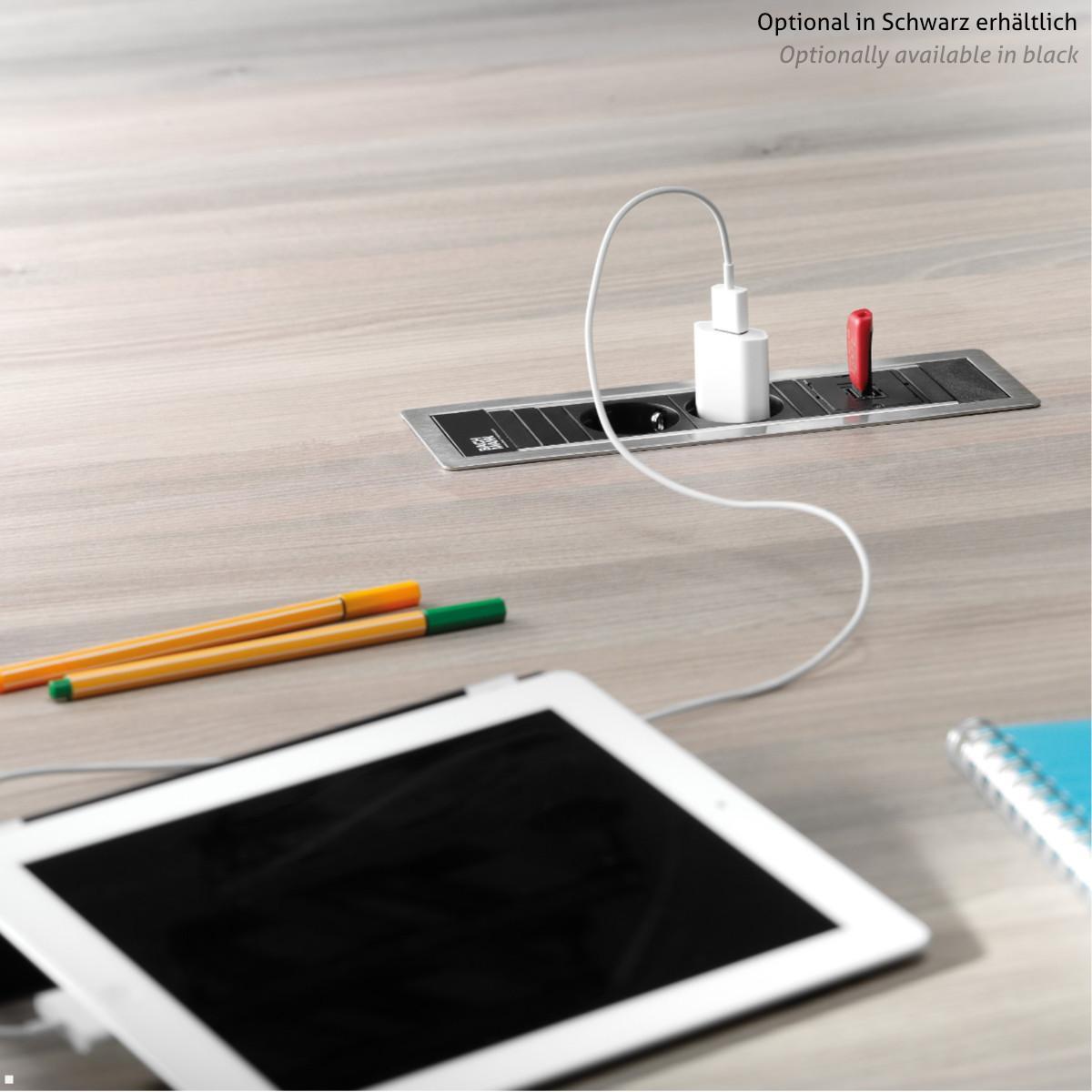

The Power Frame built-in socket with USB / CM (916.702) from Bachmann offers uncomplicated access to power and data from any seat and is ideal for equipping conference tables, office desks or even kitchen counters. The Bachmann PURE WHITE desktop connection panel is equipped with 2 protective contact sockets with increased contact protection as well as a USB double charger with USB-A and USB-C connection. In addition, a custom module empty field is integrated, in which any keystone module can be inserted. The installation is carried out in combination with a standard frame of the same size. Here, the POWER FRAME power strip is installed flush with the tabletop and thus recessed into the table. With a separately available Power Frame Cover, the white multiple socket outlet can be elegantly covered and protected from dust and dirt.
Key features Bachmann POWER FRAME 4-way power strip (916.702)
- For conference tables and desks
- Power and data access from every seat
- 2x protective contact socket with increased contact protection, rotated 35°
- 1x USB double charger with USB-A and USB-C (22 W)
- 1x custom module (CM)
- Supply cable (length: 200 mm) with Wieland GST18i3 plug
- Length power strip: approx. 262 mm
- Material (housing): Aluminum, anodized
- Color: white
| Product sheet: |  [pdf] |
|---|---|

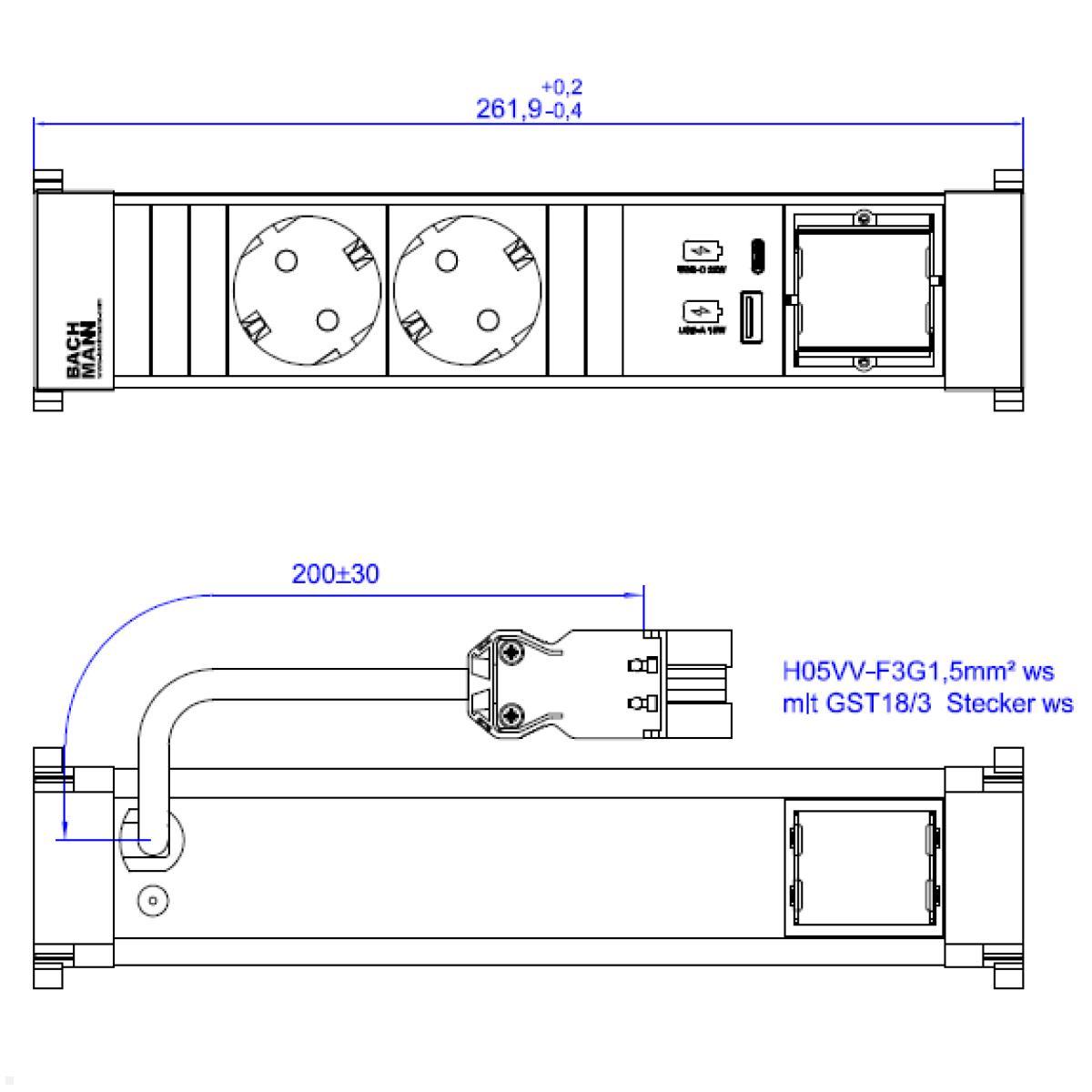

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Power Frame built-in frame 4-way |
| Scope of delivery: | 1x Power Frame socket strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | White |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | No |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
