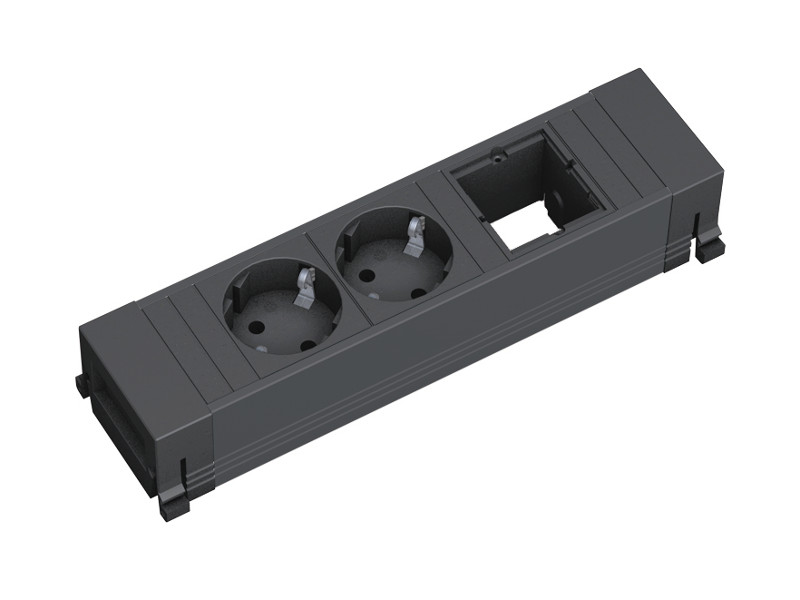

Bachmann Power Frame 3-way 2x sockets 1x custom module (916.060)
The Bachmann Power Frame 3-way sockets unit 2x socket 1x custom module 916.060 is especially designed for the Bachmann Power Frame mounting frame 3-way and is easy to install. Bachmann PowerFrame - the perfect table connection field!
Bachmann Power Frame 2x power sockets 1x custom module 916.060

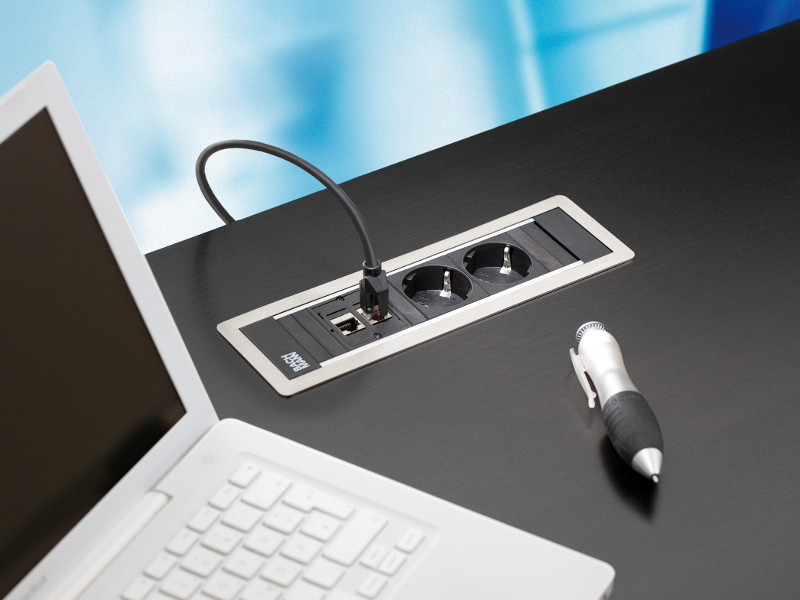

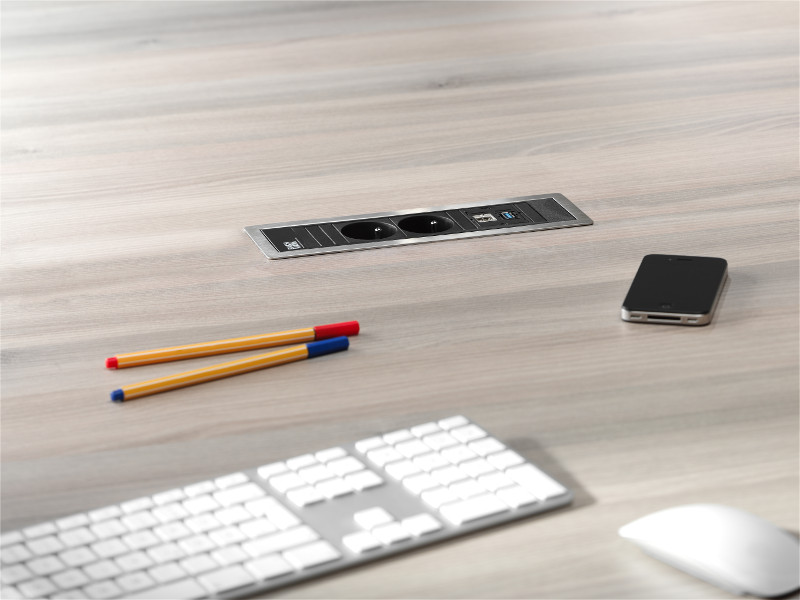

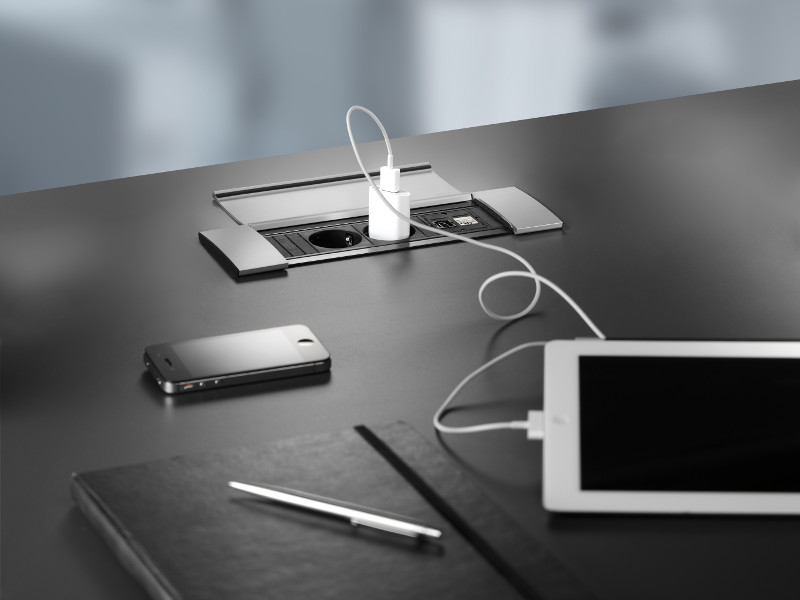

Bachmann POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations.

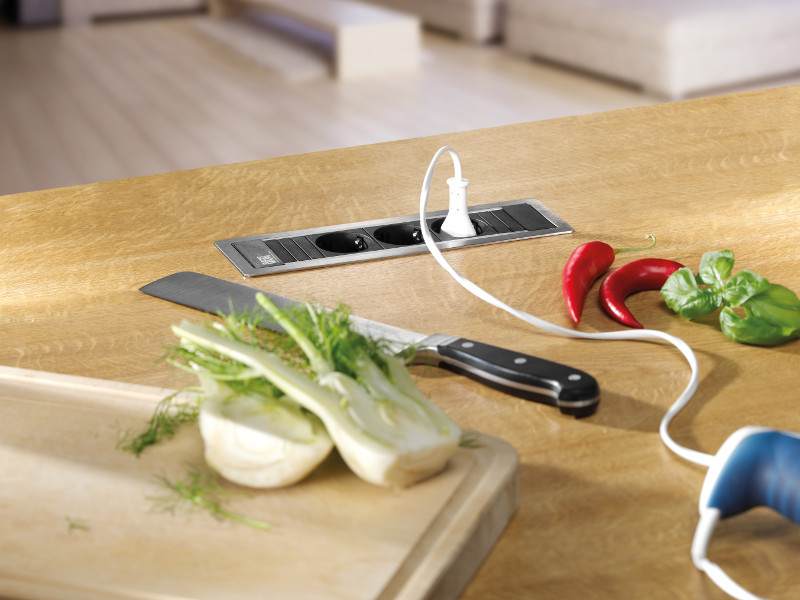

The built-in power strips can be either factory fitted or supplied for retrofitting. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. Such as in sales showrooms and display windows and at trade fair and demonstration stands.
In short, wherever secure and rapid connections are the order of the day. Your chosen power socket simply plugs into the built-in frame from below without tools - a stroke of perfection. POWER FRAME, for a more compact and more efficient solution.
Key features Bachmann Power Frame 3-way built-in power strip 916.060

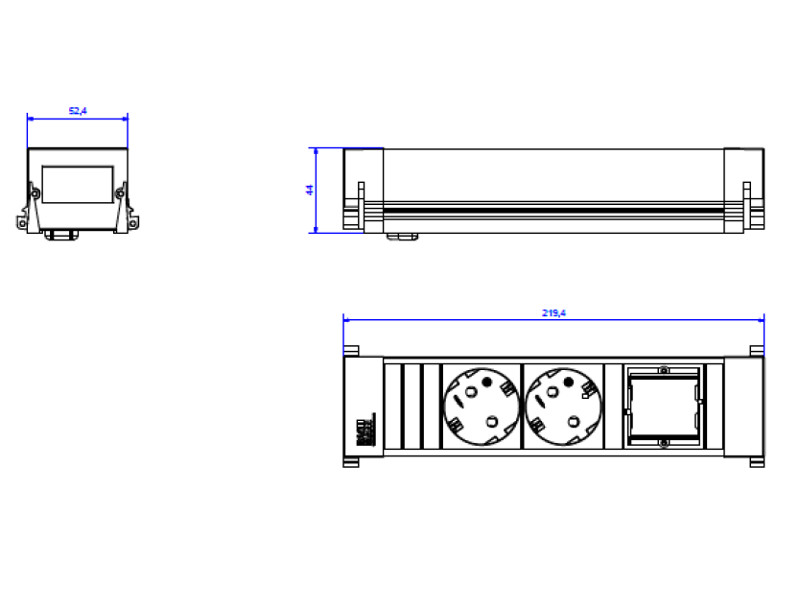

- Dimensions (LxWxH): 219,4 x 52,4 x 44 mm
- Plastic profile
- 2x socket outlet with earthing contact, shuttered, black, set at 35°

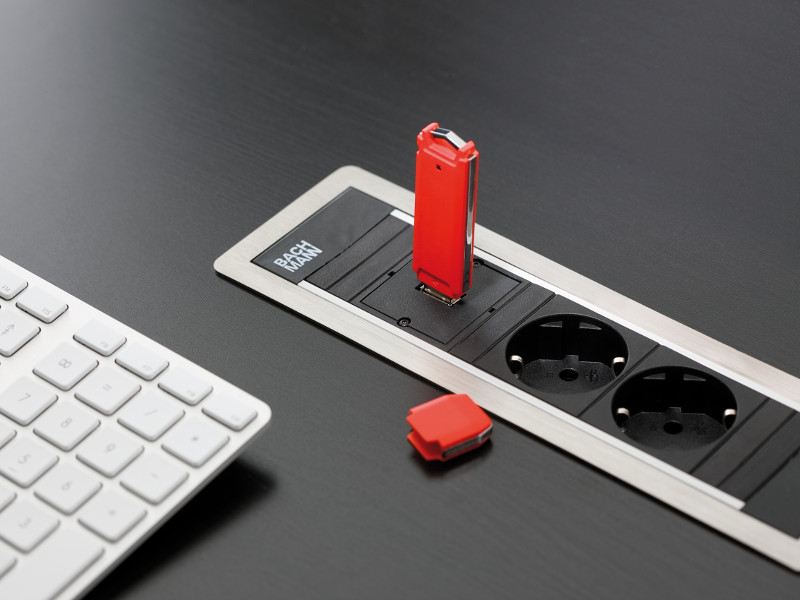

- 1x custom module empty
- Power input: 0.1 m cable and GST18i3 plug
- Table thickness from 16mm

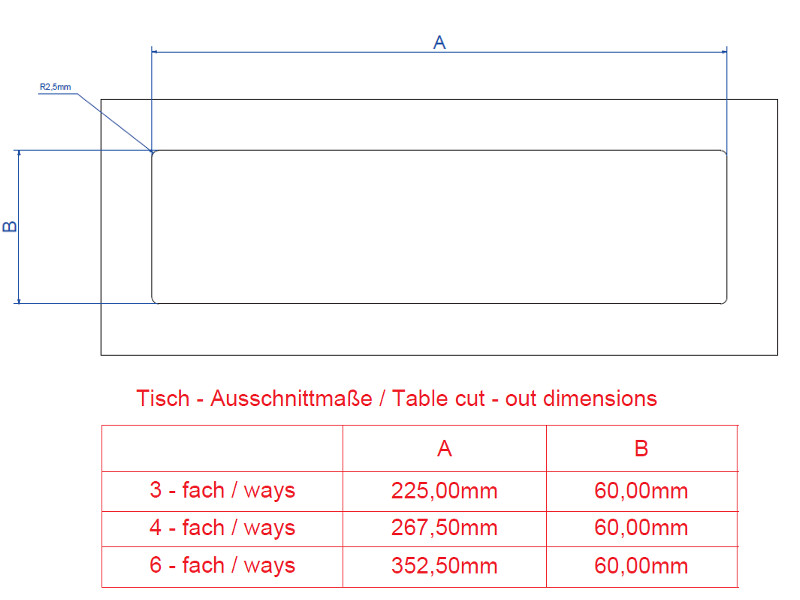

- Table cut-out dimensions: 60 x 225 mm
- Versatile in application
- Finish: black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |

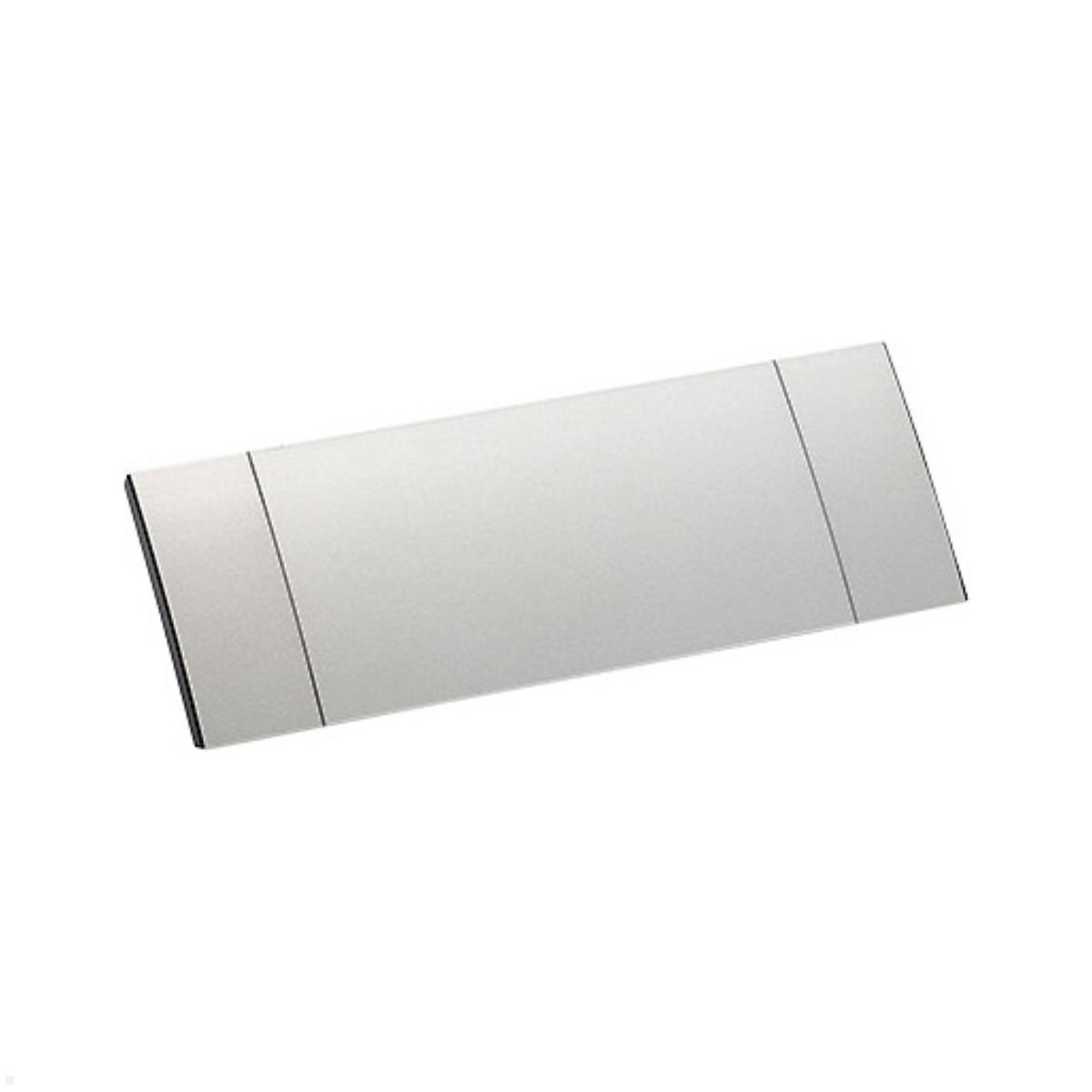

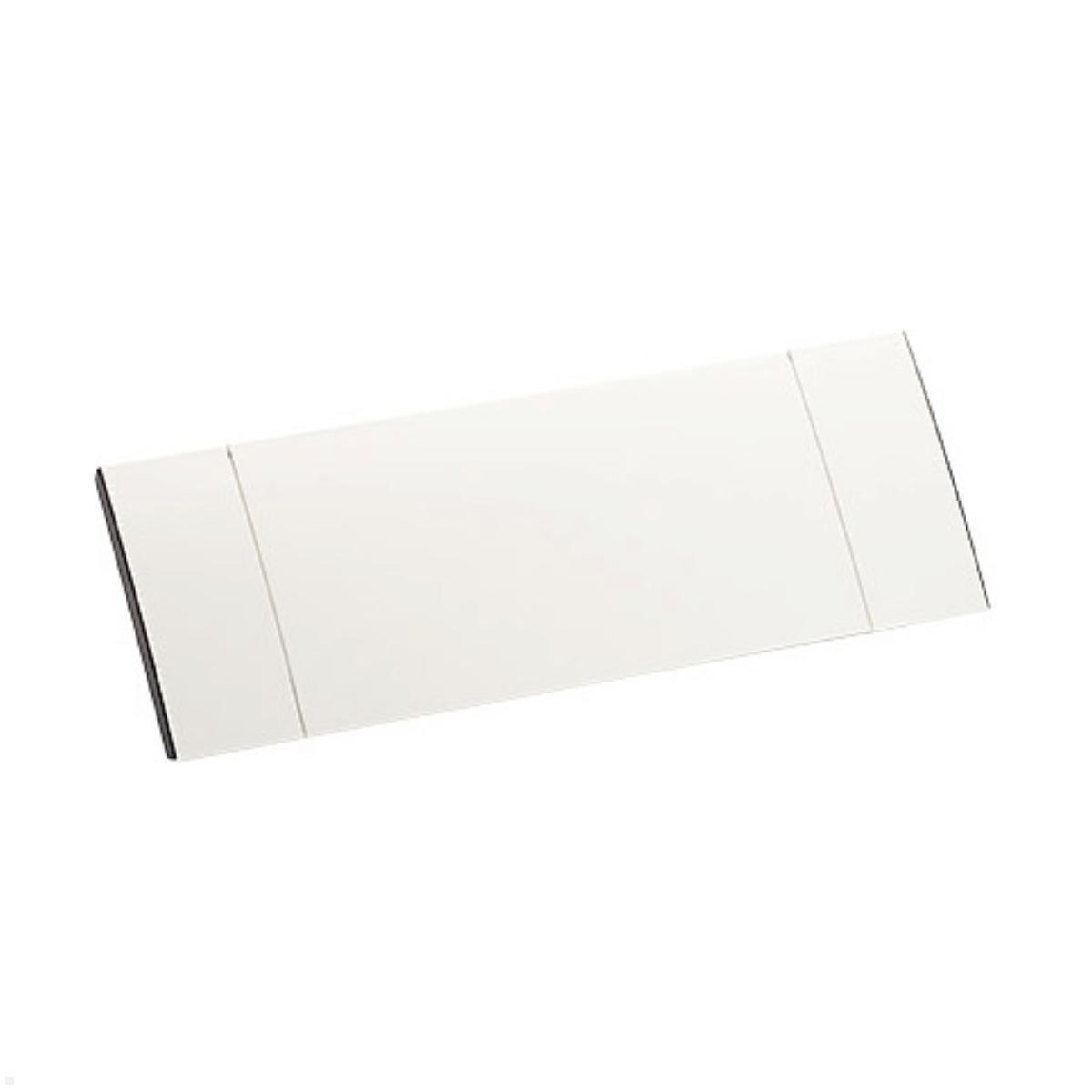

| Accessories: | Bachmann Custom Module Bachmann Power Frame Cover |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| Land: | Germany |
| screw-on: | No |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
