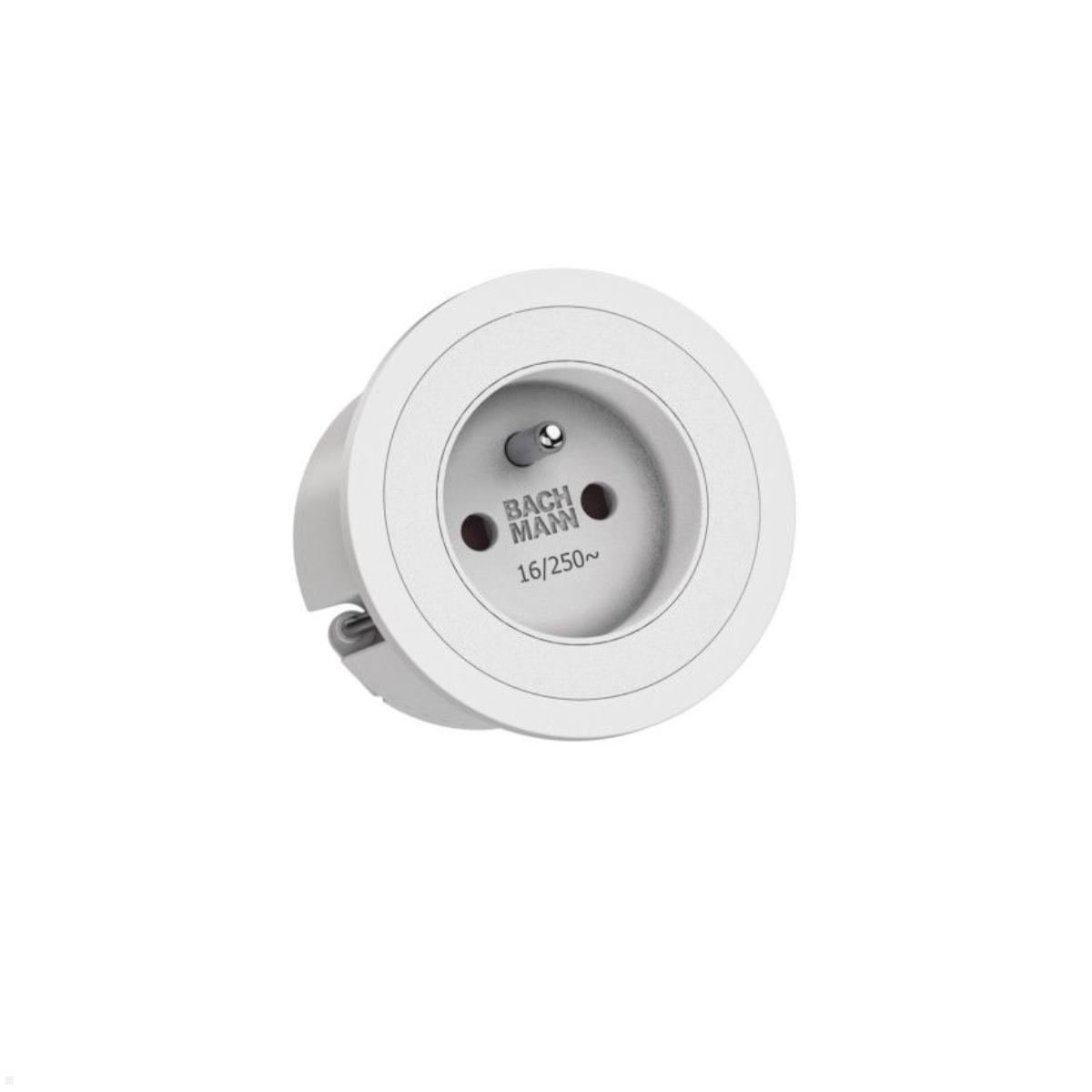

Bachmann PIX 1x FR socket outlet UTE with 2m AEH power cable (926.303)
The Bachmann PIX FRANCE round built-in socket (926.303) with 2m power cable with wire end sleeves and assembly plug included allows space-saving installation directly from above or the front with its low installation depth of approx. 45 mm, which is also possible at a later date. Whether on the desk in the office, in the kitchen, in the bathroom, in the lounge element, in the wall or other living room scenarios, PIX offers a world of connections that can be individually designed.
Built-in socket with 2m cable FRANCE
The Bachmann PIX Built-in socket with 2m cable FRANCE now also shines in a timelessly elegant white and is part of the PURE WHITE product series, which stands for exclusivity, clear, no-frills design and functionality. The built-in socket 926.303 is part of the Bachmann PIX collection, which consists of filigree, round built-in socket and connection units that can be used in furniture and kitchen counters as desired. The power input of the built-in socket is via a 2.0 m cable with wire end sleeves and the enclosed assembly plug.
Whether on the desk in the office or at home, in the kitchen, in the bathroom, as a lounge element, in the wall or other living room scenarios - with its round, flat shape and the minimalist exterior, the Bachmann PIX 926.303 meets the requirements in things design to the point. The Bachmann PIX built-in socket offers a world of connections that can be designed individually. The compact design (HxØ: approx. 45 x 68 mm) and low installation depth ensure space-saving installation directly from above or in front, which is also possible at a later date.
Key features Bachmann PIX socket 926.303
- Can be integrated or combined individually
- Replaceable decorative rings in white and stainless steel
- Small installation diameter of 56 mm
- Optionally with a pivoting cover
- Easy installation from above, including retrofitting
- 1x FRANCE safety socket, with child protection, white
- Housing white plastic, similar to RAL 9010
- Installation depth without cable of approx. 45 mm
- Plate thickness: 10 - 40 mm
- Power input 2.0 m cable with wire end ferrule
- Mounted decorative ring white similar to RAL 9010
- With enclosed decorative ring stainless steel
- Optional cover sets in stainless steel (926.100) or white (926.102) can be ordered separately
| Product sheet: |  [pdf] |
|---|---|

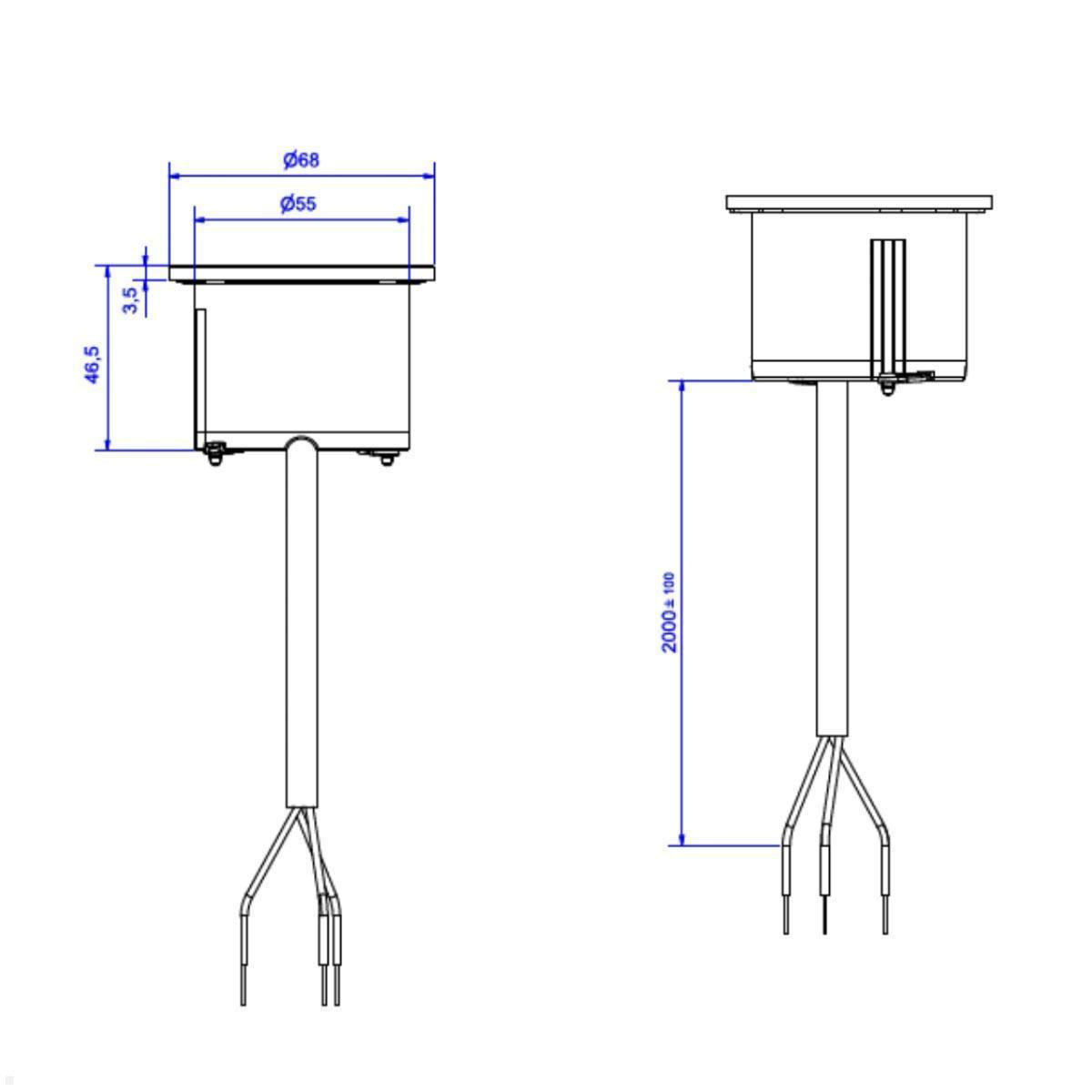

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | PIX accessories cover set white (926.102)PIX accessories decorative rings coloured (926.200) |
| Packaging dimensions (LxWxH in mm): | 126 x 126 x 116 |
| Scope of delivery: | 1x PIX FR built-in socket outlet with 2m cable AEH | 1x decorative ring white (mounted) | 1x decorative ring stainless steel look | 1x mounting plug | 1x cable clip screw fixing |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | White |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
