Bachmann Keystone USB-C 3.1 module PD 60W female/male (917.1212)
USB-C 3.1 Keystone

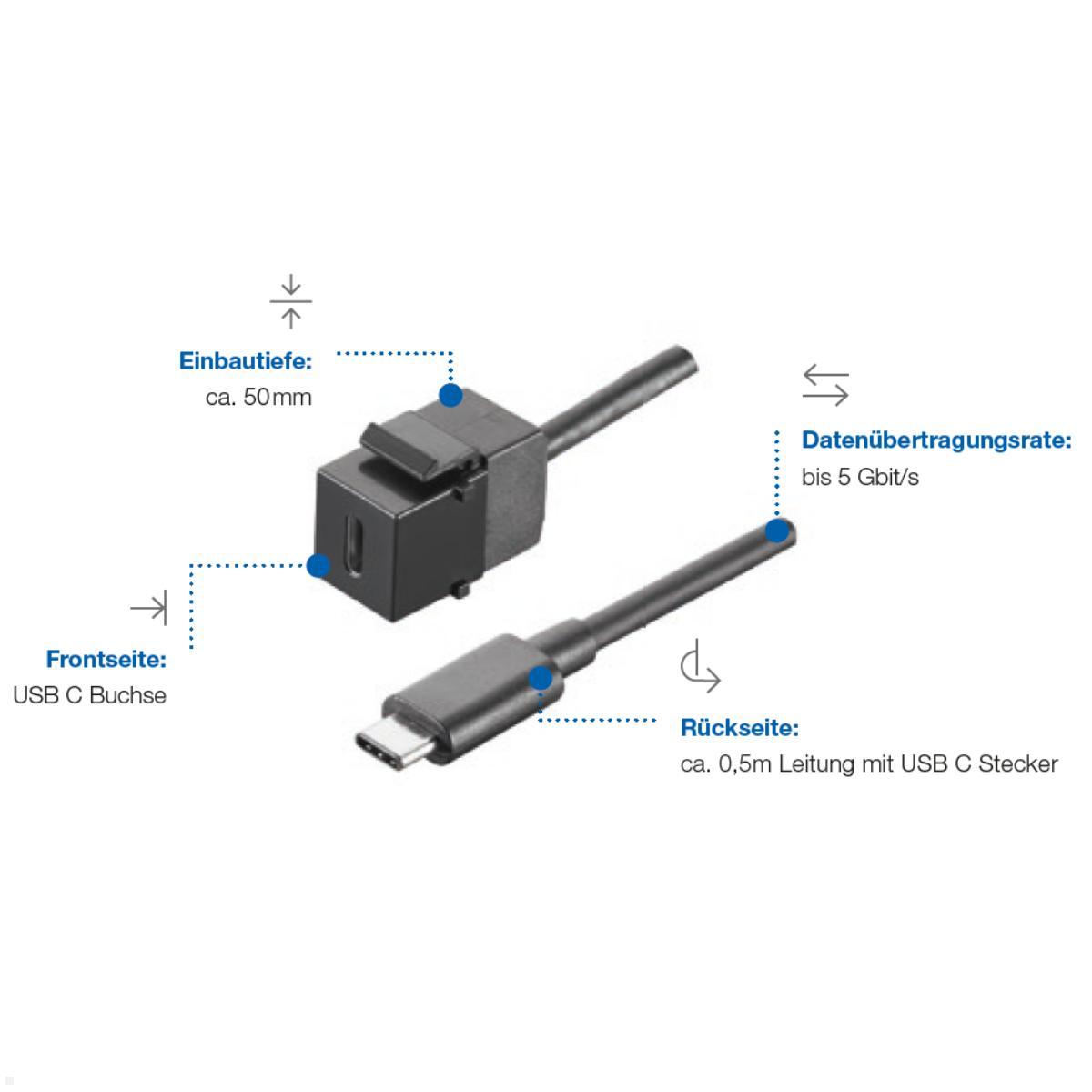

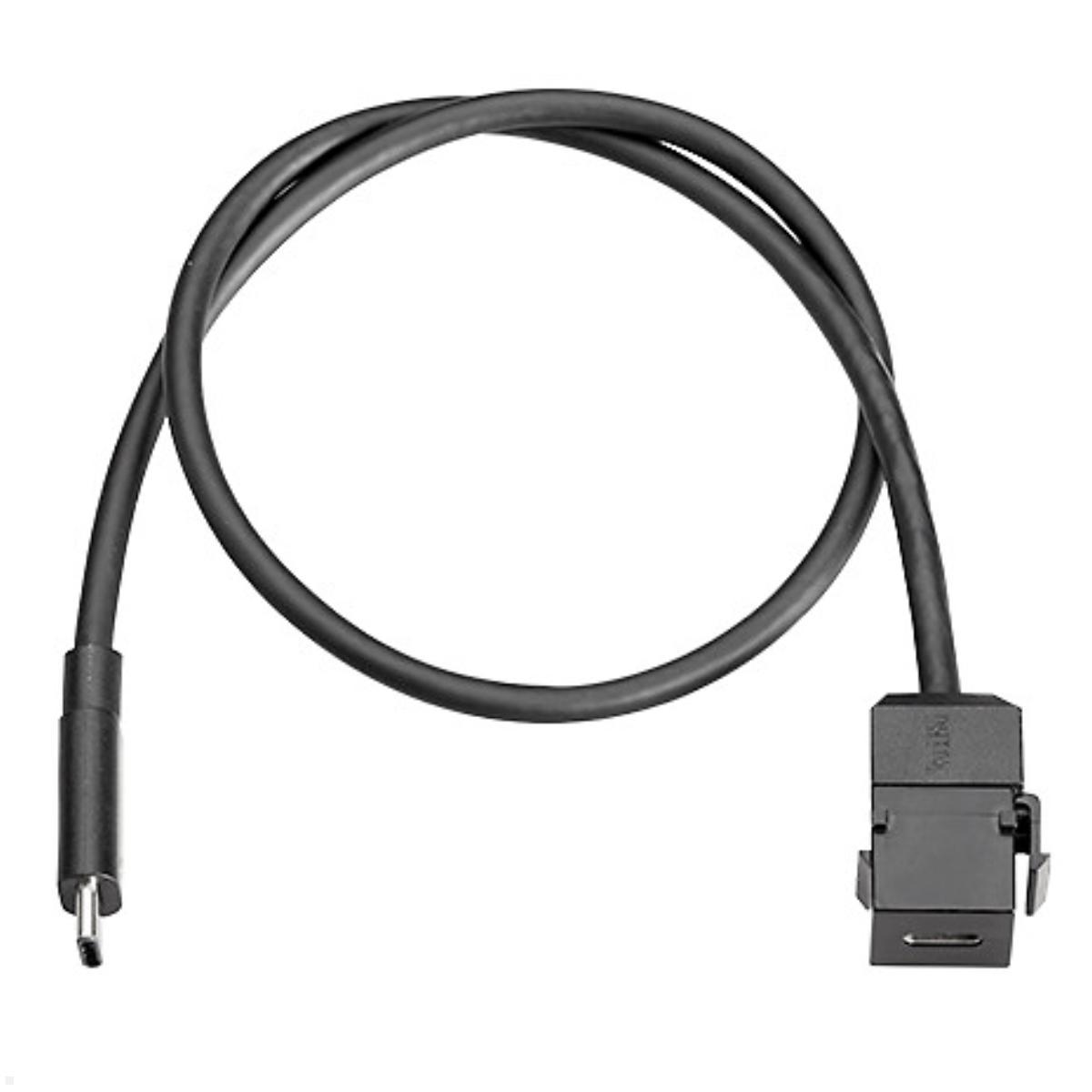

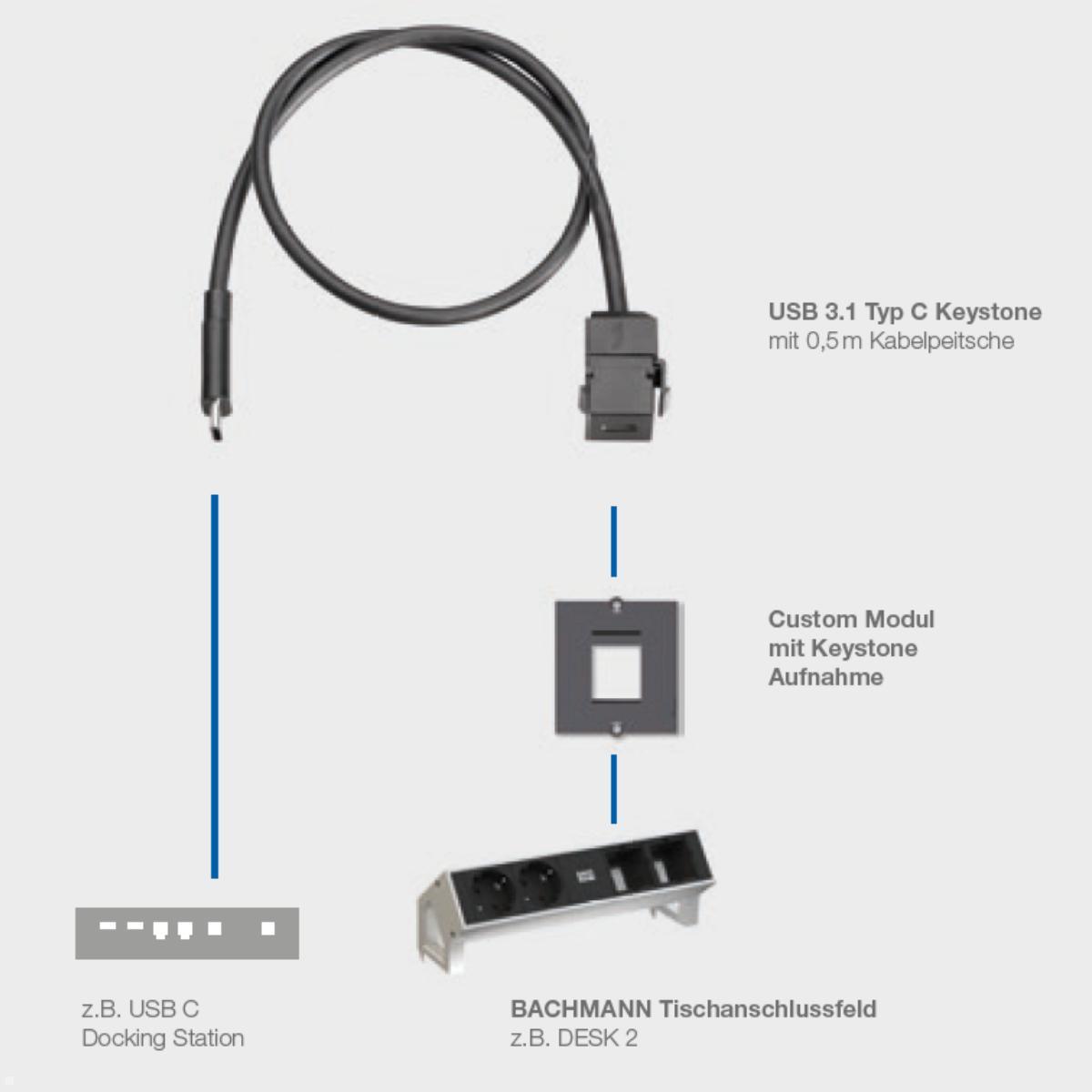

The USB-C 3.1 Keystone (917.1212) can be inserted into a matching custom module frame and thus integrated into almost any configurable Bachmann power strip with a corresponding receptacle. The connector has a data transfer rate of 5 Gbit/s and supports Power Delivery (PD) up to 60W. Smartphones, laptops, tablets and other devices can thus be both quickly charged (fast charging) and supplied with data at a desktop connector panel without requiring additional long cables. Ideal places of use are office workstations, conference rooms, exhibition halls, hotels or private desks. The USB-C charger is equipped with a socket at the front, a 0.5m breakout cable with plug at the back and has an installation depth of 50 mm.
Key features Bachmann USB-C keystone module female/male (917.1212)
- Suitable for Bachmann custom modules with keystone receptacle
- Can be used with USB-C enabled smartphones, tablets, laptops etc.
- USB standard: USB 3.1 Gen 1
- Front: USB-C socket
- Rear: 0.5m breakout cable with USB-C plug
- Data transfer rate: 5 Gbit/s
- Power Delivery 60W
- Installation depth: 50 mm
- Material: Plastic
- Color: Black
| Product sheet: |  [pdf] |
|---|---|

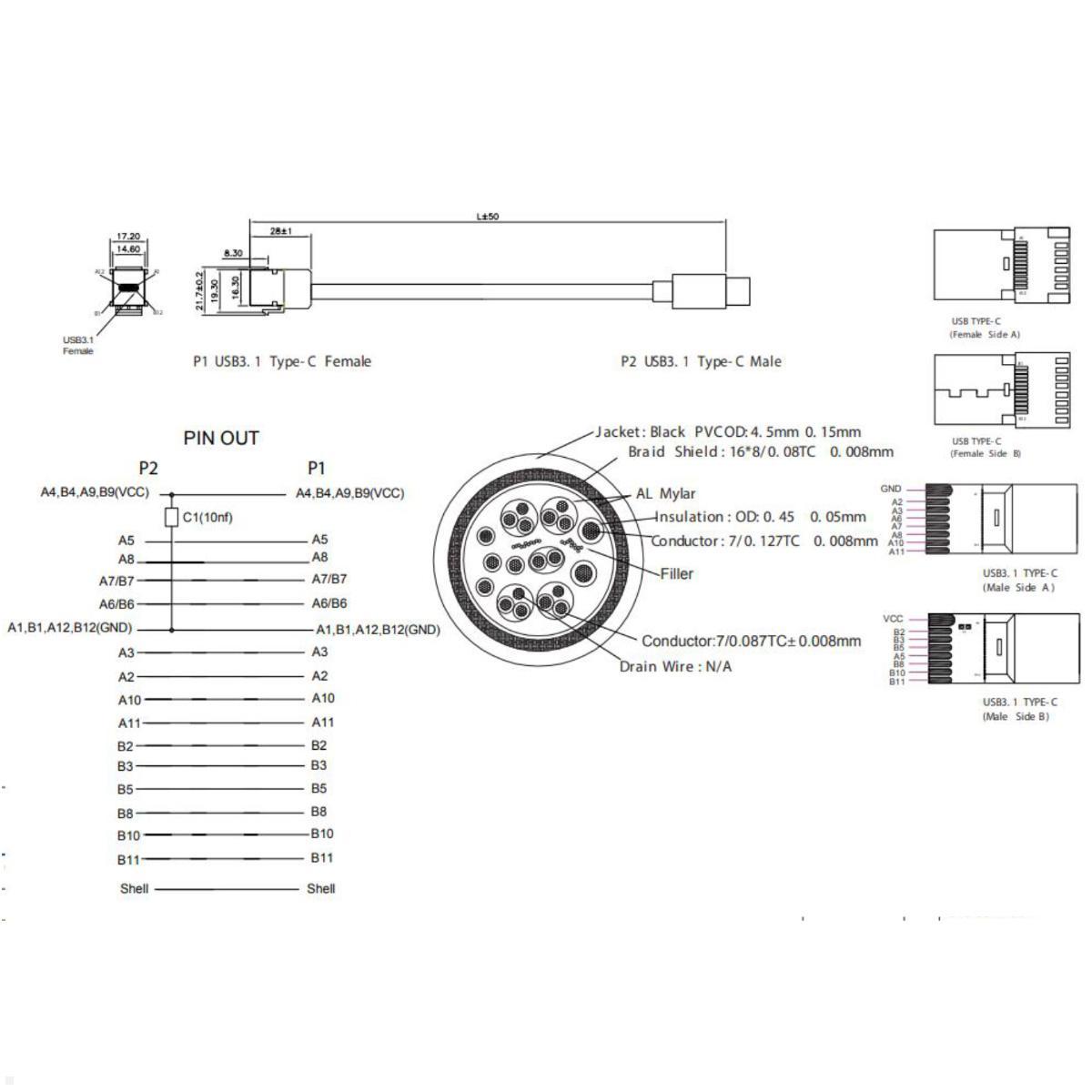

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann custom module / power strip |
| Packaging dimensions (LxWxH in mm): | 23 x 14 x 22 |
| Scope of delivery: | 1x Keystone module 917.1212 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
