Bachmann Keystone Module LWL-SC coupling (918.072)
The Bachmann LWL-SC coupling in Keystone design is the ideal solution for use in LWL networks and is a module for mounting in Bachmann Keystone frames.
LWL-SC coupling
The Bachmann Keystone LWL-SC coupling (918.072) is a high-quality coupling for fiber optic cables (LWL) and an ideal solution for use in fiber optic networks. It is easy to install and provides a reliable connection between different fiber optic cables. A Bachmann custom module (frame) is required for installation on the Bachmann system bars.
Key features Bachmann Keystone (918.072)
- Keystone Fastening
- LWL-SC coupling
- Can be integrated in socket units from Bachmann Facility products
- Weight: 5.4 grams
- Classification: ETIM 8.0 - LWL cable (EC000034)
- Halogen-free according to EN 60754-1/2: No
- Oil-resistant according to EN 60811-404 : No

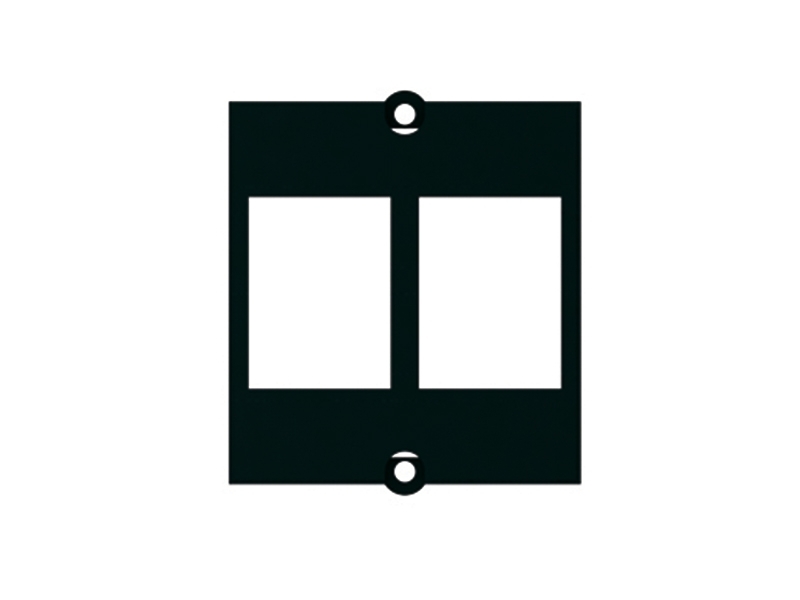

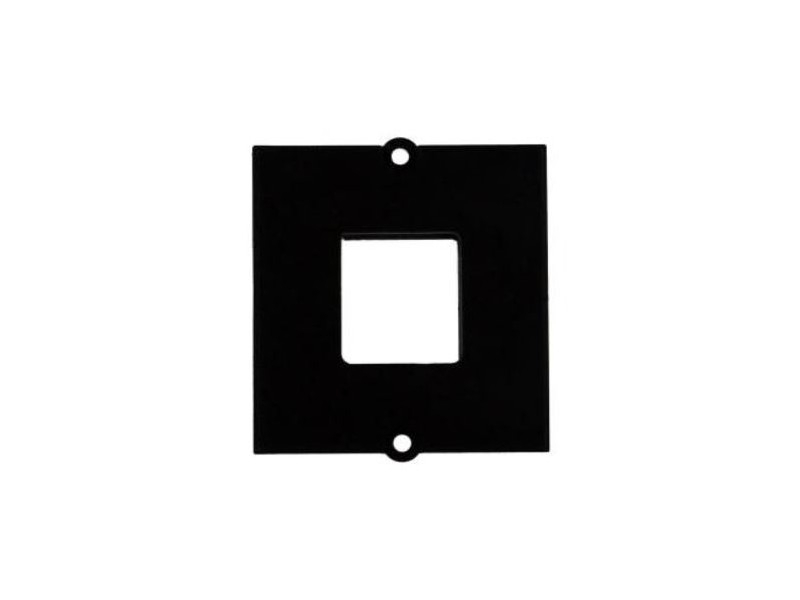

- Installation in Bachmann Keystone frames 917.000, 917.001, 917.061 and 917.062
- Facility systems, rack installations and electrical installations
- Material: plastic
- Color: black/blue
| Product sheet: |  [pdf] |
|---|---|

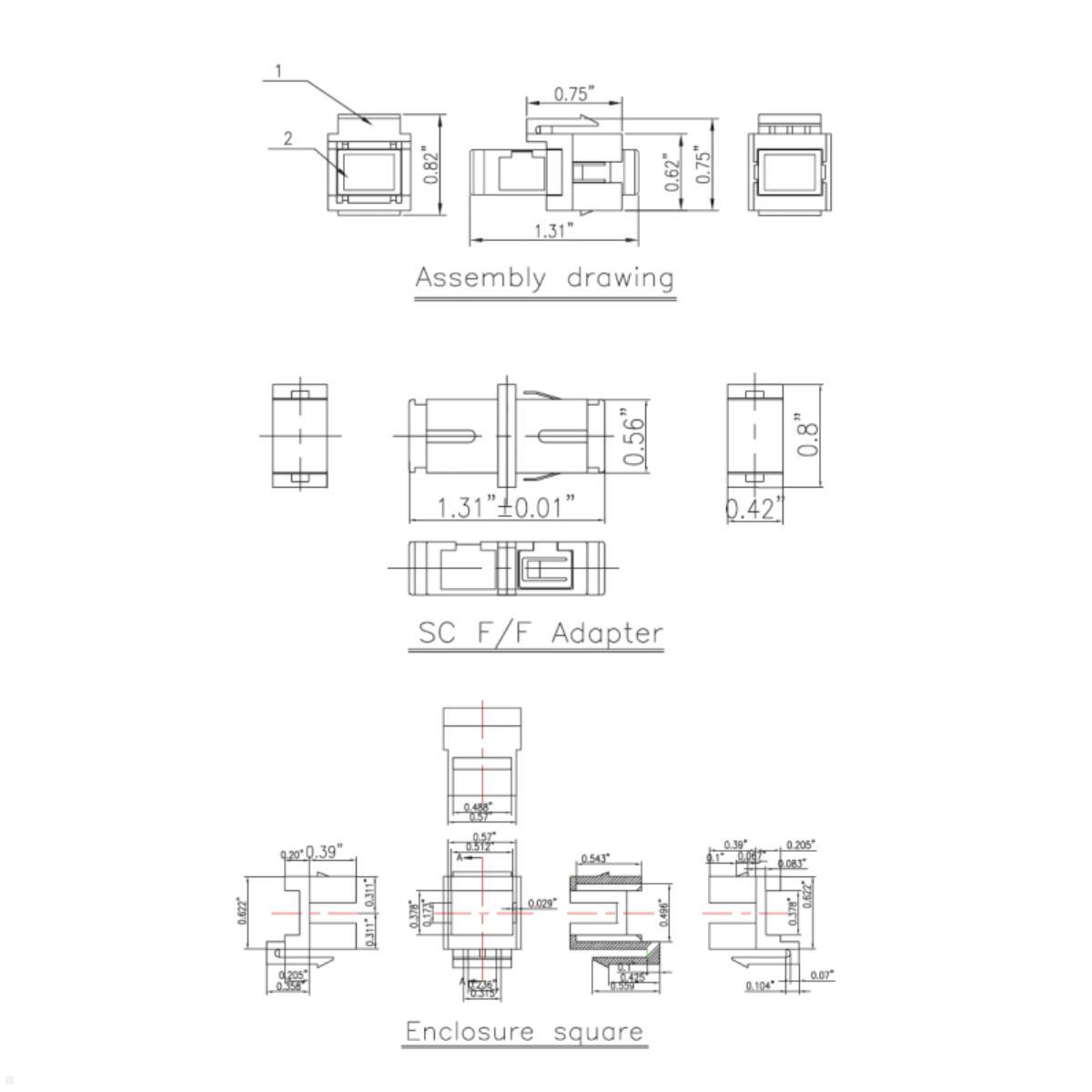

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann custom module / socket unit |
| Packaging dimensions (LxWxH in mm): | 50 x 40 x 20 |
| Scope of delivery: | 1 x Keystone LWL-SC und 1 x TRX-Schrauben |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | black/blue |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
