Bachmann Keystone CAT6a RJ45 module female (918.035)
CAT6a Keystone module
The CAT6a keystone module (918.035) is simply plugged into a custom module frame provided for this purpose using a snap-in function and can thus be integrated into almost any configurable Bachmann power strip with a corresponding receptacle. The LAN socket has a data transmission rate of 10 GBit/s and is therefore suitable for network connections using standard Ethernet / LAN cable. Areas of application include office workstations, exhibition halls, conference rooms, hotels or home desks. The RJ45 jack on the front of the module is intended for self-connection to a line.
Key features Bachmann CAT6a keystone module (918.035)
- Suitable for Bachmann custom modules with keystone receptacle (917.000 / 917.001 / 917.061 / 917.062)
- Front: RJ45 CAT6a socket
- Data transmission rate: 10 Gbit/s
- Halogen free
- Material: Plastic
- Color: Silver
| Product sheet: |  [pdf] |
|---|---|

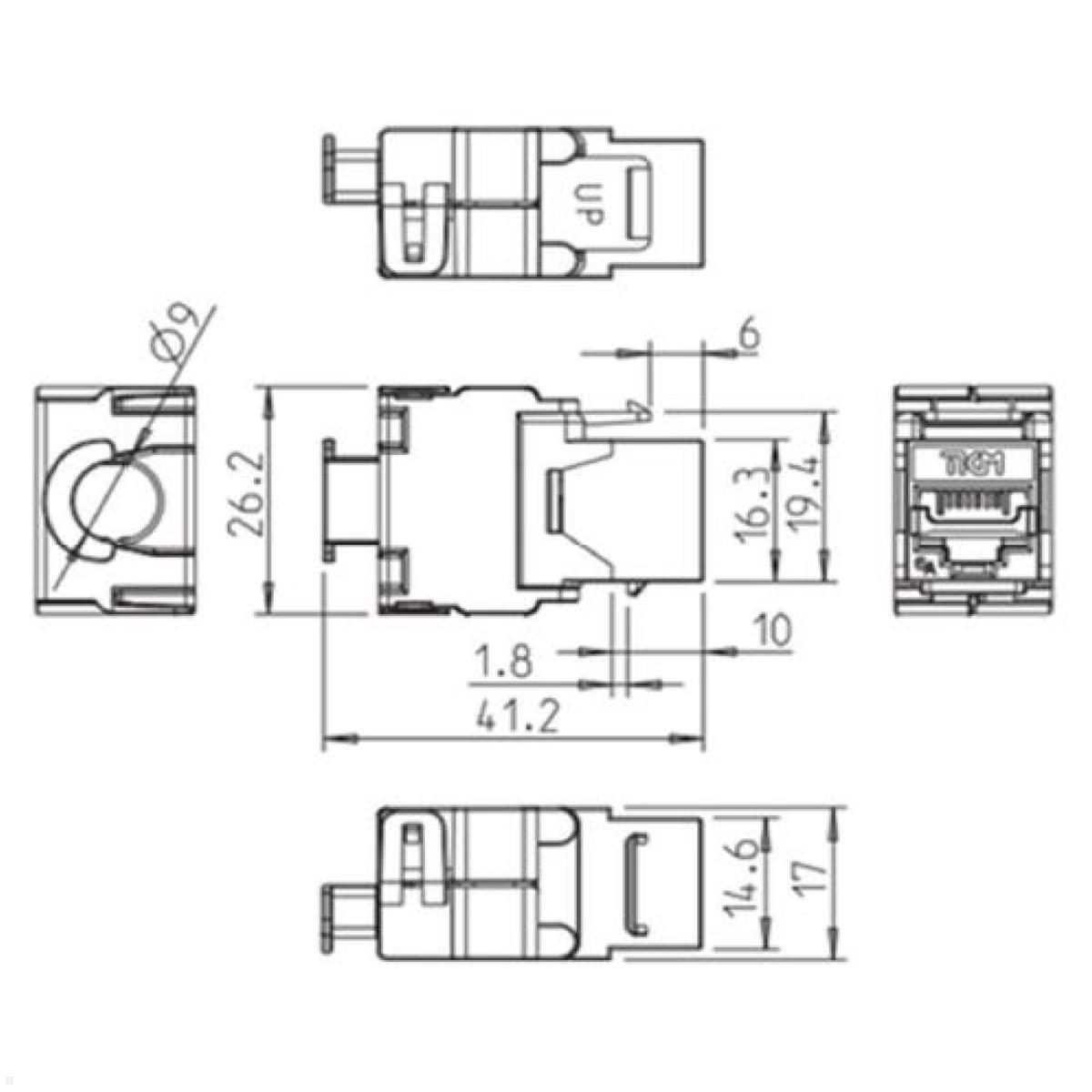

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann custom module / power strip |
| Packaging dimensions (LxWxH in mm): | 30 x 40 x 20 |
| Scope of delivery: | 1x Keystone module 918.035 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
