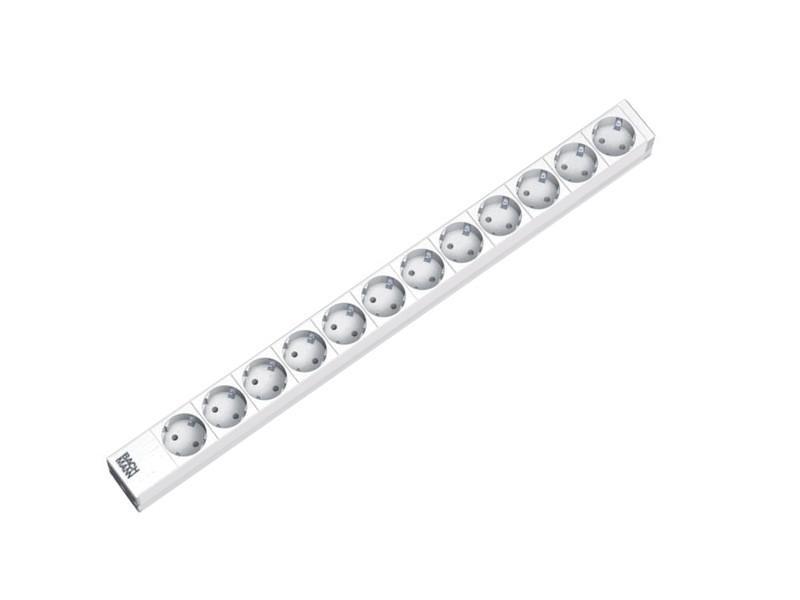

Bachmann IT PDU power strip 12x sockets 1U (333.413)
The Bachmann power strip 333.413 is a 12-way PDU power strip with 1U Alu-Profile for an efficient power distribution in the datacenter, server rack, or network rack. The power distribution unit contains 12x german type socket outlets and a 2,0m power supply cable with right-angled earthing contact plug.
Bachmann IT PDU 12-way power strip 1U (333.413)
With its IT PDU Basic BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the Bachmann PDU 333.413 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed).
Key features Bachmann IT PDU 12x power strip (333.413)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: right-angled earthing contact plug
- 12x german type socket outlet, grey
- Dimensions: 565 x 44 x 44 mm
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Rated voltage: 230V
- Incl. mounting bracket with screws
- End caps riveted, non rewireable
- Finish profile: grey
| Product sheet: |  [pdf, 49 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 12 |
| color: | Grey |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
