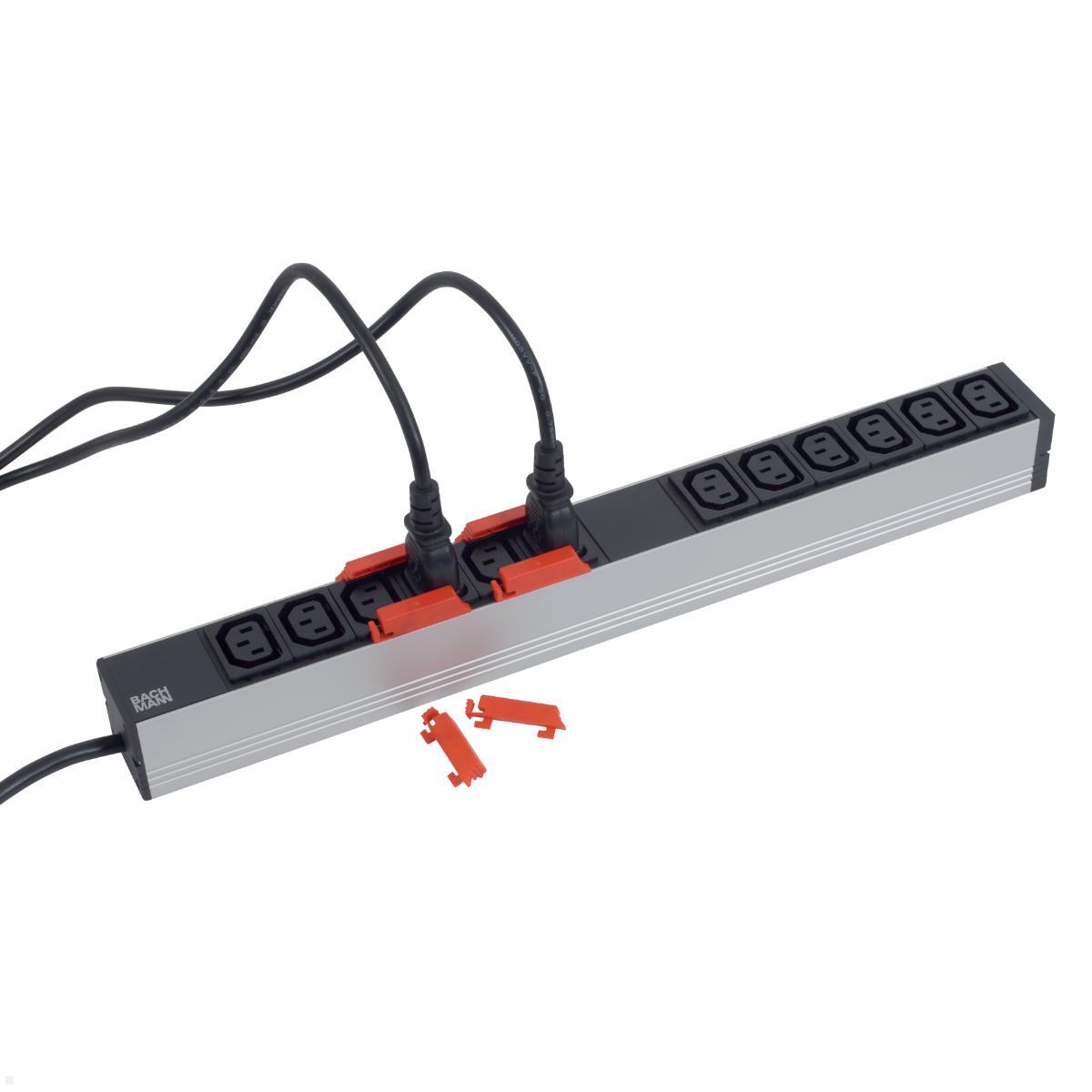

Bachmann IT PDU 11x power strip 8x C13, 3x C19, 1U (800.2332)
The Bachmann power strip 800.2332 is a 11-way PDU power strip with 1U Alu-Profile for the power distribution at a Datacenter or to be integrated into your IT rack. The power distribution unit contains 8x C13 and 3x C19 socket outlets with a 2,0m power supply cable with C20 plug.
Bachmann 11-way power strip 1U 8x C13 3x C19 socket outlets (800.2332)

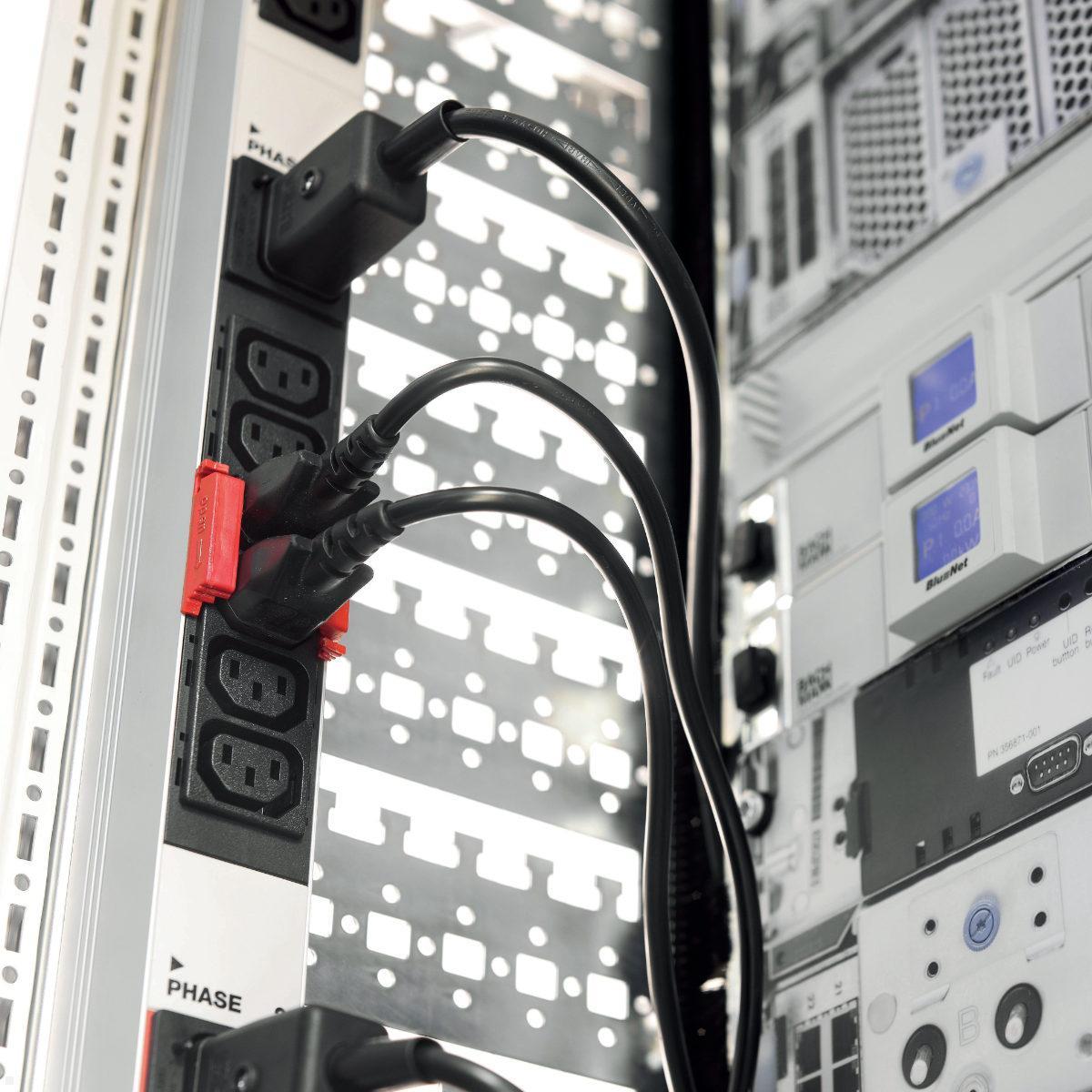

With its IT PDU Basic 1U, BACHMANN provides a huge choice of PDUs in a high-quality aluminium profile. With their extremely compact size of just 1 height unit and 44 mm in depth the power distribution unit 800.2332 can be easily integrated into your IT rack. Their multi-functional mounting brackets allow the units to be easily mounted in various ways (e.g. inwardly recessed). Our high quality standards ensure that the contact is reliable.
Key fetaures Bachmann 11x power strip 1U 8x C13 3x C19 socket outlets (800.2332)
- IT PDU Basic 1U (230V / 50Hz)
- Plug: C20
- 8x C13 socket outlets
- 3x C19 socket outlets
- Power supply: 2,0m H05VV-F 3G 1,50 mm²
- Phase(s):2
- Per Phase 4x C13
- Rated voltage: 230V
- Current per phase: 16A
- Non rewireable
- Incl. 2x mounting metal flanges
- Incl. interlocking red of IEC C13
- Finish profile: grey
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
