Bachmann frame for 1x Avaya/Systimax CAT6 M series (917.003)
The Bachmann 917.003 module frame is suitable for mounting the Avaya/Systimax Cat6 M series. This frame is part of the Bachmann system for designing cable and network installations.
Module frame 1x Systimax
The Bachmann frame 917.003 is a specific frame for mounting a single Avaya/Systimax CAT6 M series network socket. This frame is part of the Bachmann system for arranging cable and network installations in offices or other commercial environments. Due to their structure, they enable you to install them easily and flexibly in the areas of facility systems, rack and electrical installations.
Please note that the frame is only designed for mounting a single Avaya/Systimax CAT6 M-Series network socket and is not suitable for other network or electronic components.
Key features keystone module Bachmann
- Module with cut-out and mounting module
- For 1xAvaya / Systimax CAT6 unshielded (not included)
- Suitable for: SYSTIMAX® GigaSPEED XL® MGS400 Series / SYSTIMAX® GigaSPEED X10D® MGS600 series
- Suitable for: SYSTIMAX® GigaSPEED X10D® HGS620
- ETIM 8.0: Use/coverage for communication technology (EC000018)
- Incl. 2 Torx T6 screws supplied
| Product sheet: |  [pdf] |
|---|---|

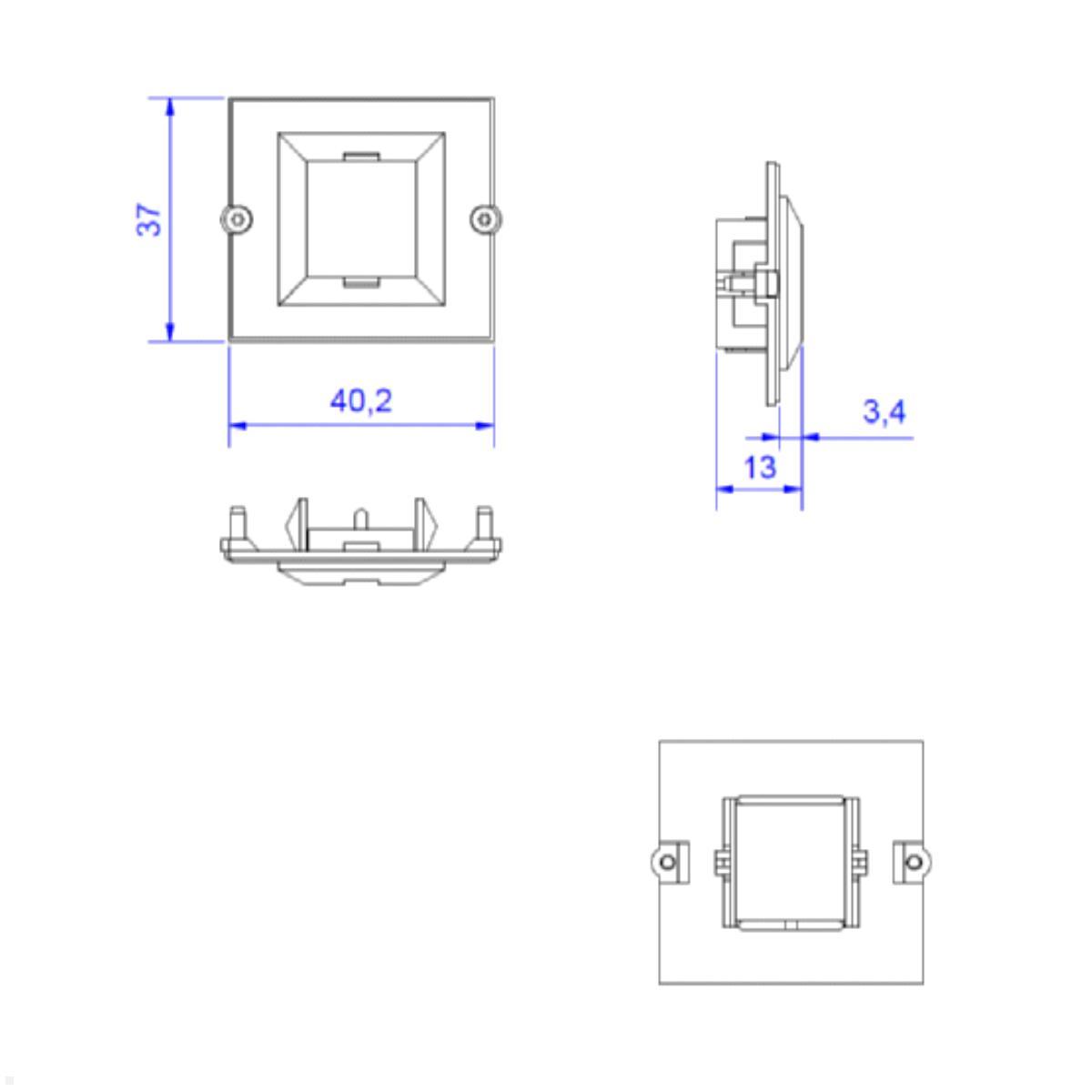

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann connection panel with CM inserts |
| Packaging dimensions (LxWxH in mm): | 40 x 40 x 20 |
| Scope of delivery: | 1 x custom module frame for keystones |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
