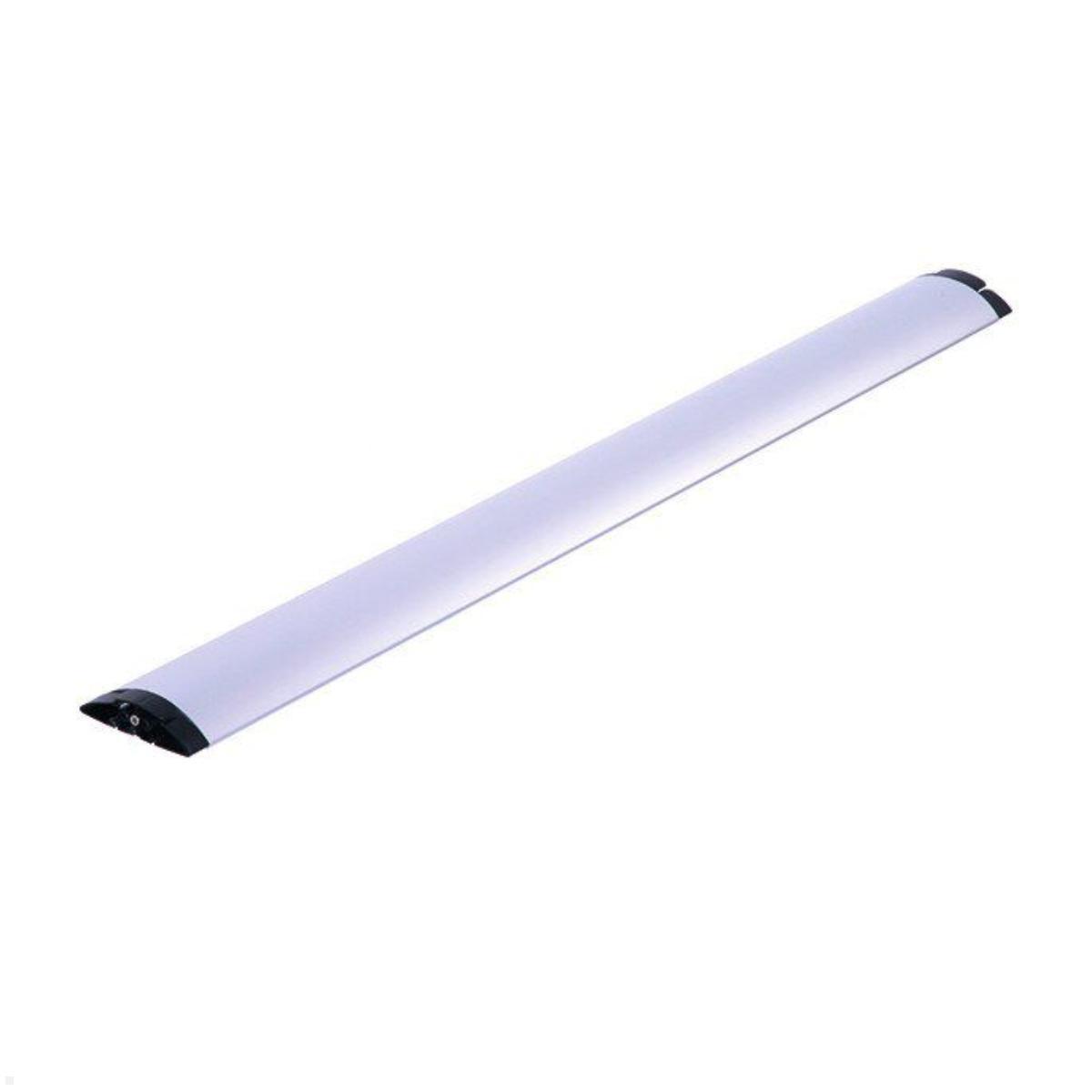

Bachmann Easy-Bridge cable bridge for smooth floors, aluminum 100 cm (930.028)
The Easy-Bridge cable duct Bachmann 930.028 is a hard-wearing aluminum floor duct with a length of 100 cm, suitable for laying on smooth floors.
Floor channel for smooth floors
Bachmann frees workplaces from cables lying around. The Bachmann cable management system Easy Bridge enables optimal cable routing at the workplace between the table, floor box, wall duct and various devices. The stable, tread-resistant floor channel is optimized for use for smooth floors .
The Bachmann Easy-Bridge cable bridge in 100 cm length is made of anodized aluminum, including mounted swiveling connection links made of polypropylene. A direct connection of the Cable Snakes Pro, Cube, Flex, Flex II and Classic are possible.
Key features Bachmann Easy-Bridge top duct (930.028)
- Material: anodized aluminum, polypropylene
- Color: silver similar to RAL 9006
- Dimensions LxWxH: 1000 x 90 x 25 mm
- Capacity: up to 30 cables
- Stable and tread-resistant
- Point load: max. 200 kg / cm3
- Pre-assembled double-sided adhesive tape
- Incl. Connecting links
| Product sheet: |  [pdf] |
|---|---|

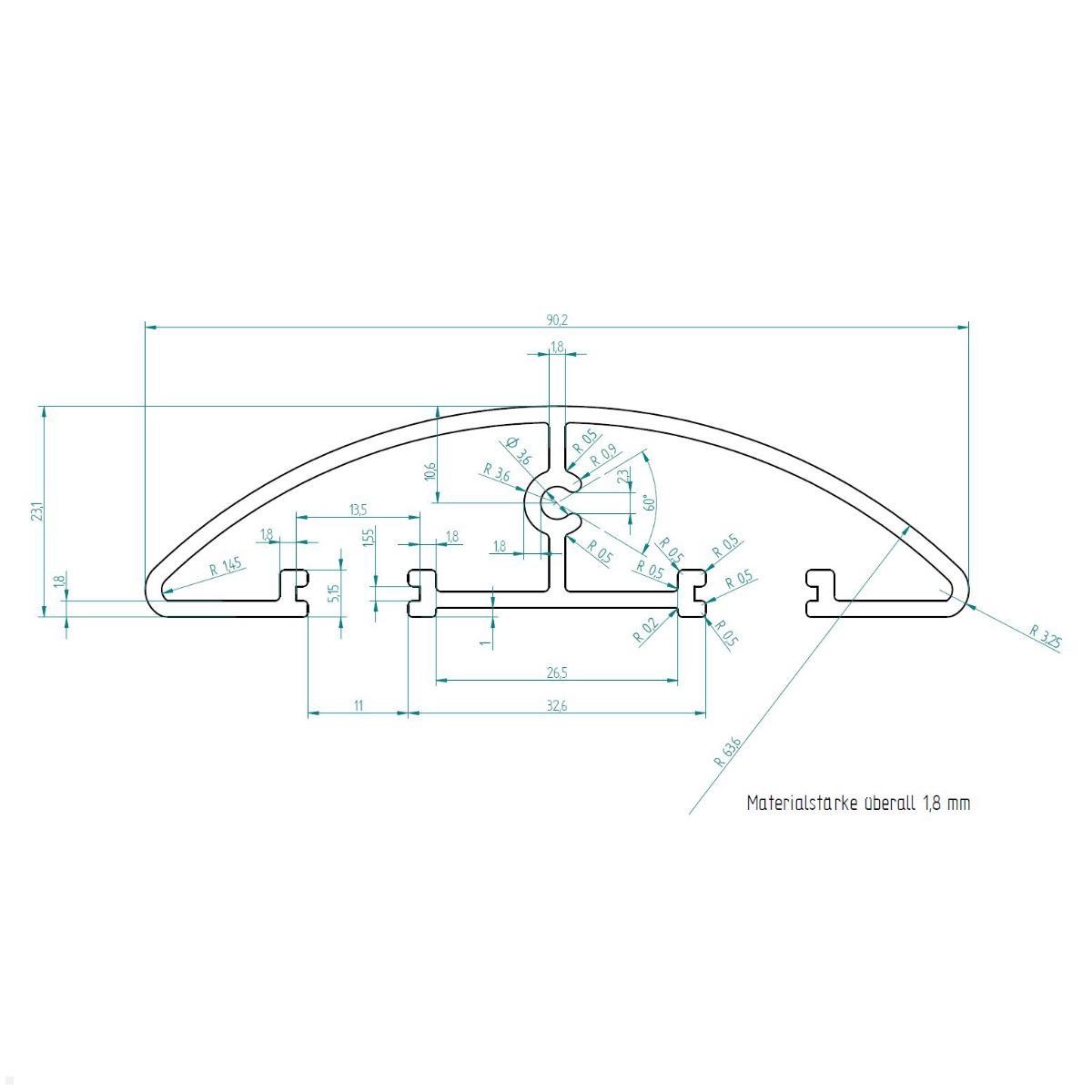

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | smooth floors |
| Scope of delivery: | 1x Easy-Bridge for smooth floors including mounted swiveling connecting links |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
