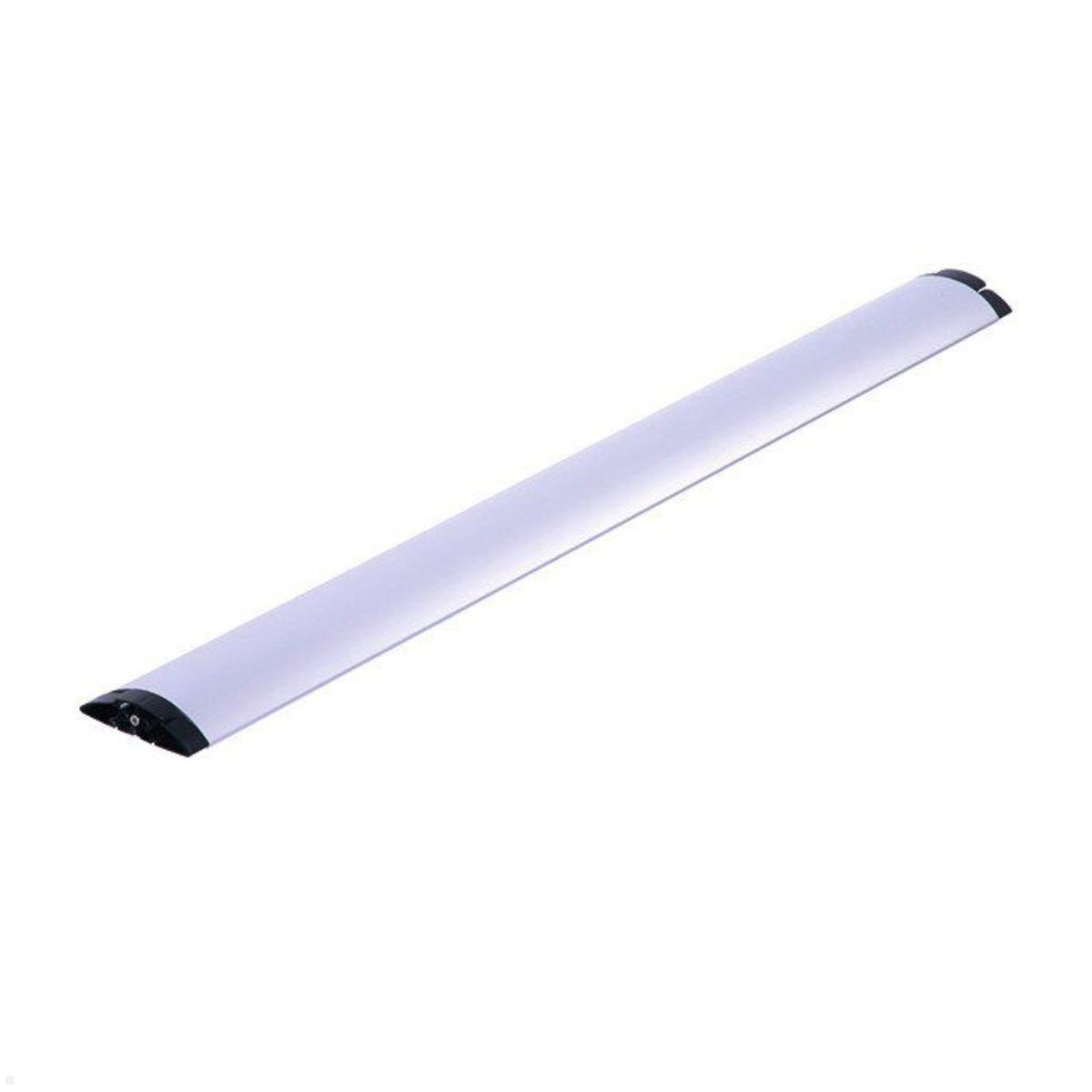

Bachmann Easy-Bridge cable bridge for carpet, aluminum 100 cm (930.027)
The Easy-Bridge cable duct Bachmann 930.027 is a non-slip aluminum floor duct with a length of 100 cm, suitable for laying on carpeted floors.
Floor duct for carpeting
Bachmann frees workplaces from cables lying around. The Bachmann cable management system Easy Bridge enables optimal cable routing at the workplace between the table, floor box, wall duct and various devices. The stable, tread-resistant floor duct is optimized for use for carpeting .
The Bachmann Easy-Bridge cable bridge in 100 cm length is made of anodized aluminum, including mounted swiveling connection links made of polypropylene. A direct connection of the Cable Snakes Pro, Cube, Flex, Flex II and Classic are possible.
Key features Bachmann Easy-Bridge top duct (930.027)
- Material: anodized aluminum, polypropylene
- Color: silver similar to RAL 9006
- Dimensions LxWxH: 1000 x 90 x 25 mm
- Capacity: up to 30 cables
- Stable and hard-wearing
- Point load: max. 200 kg / cm3
- Pre-assembled Velcro system
- Incl. Connecting links
| Product sheet: |  [pdf] |
|---|---|

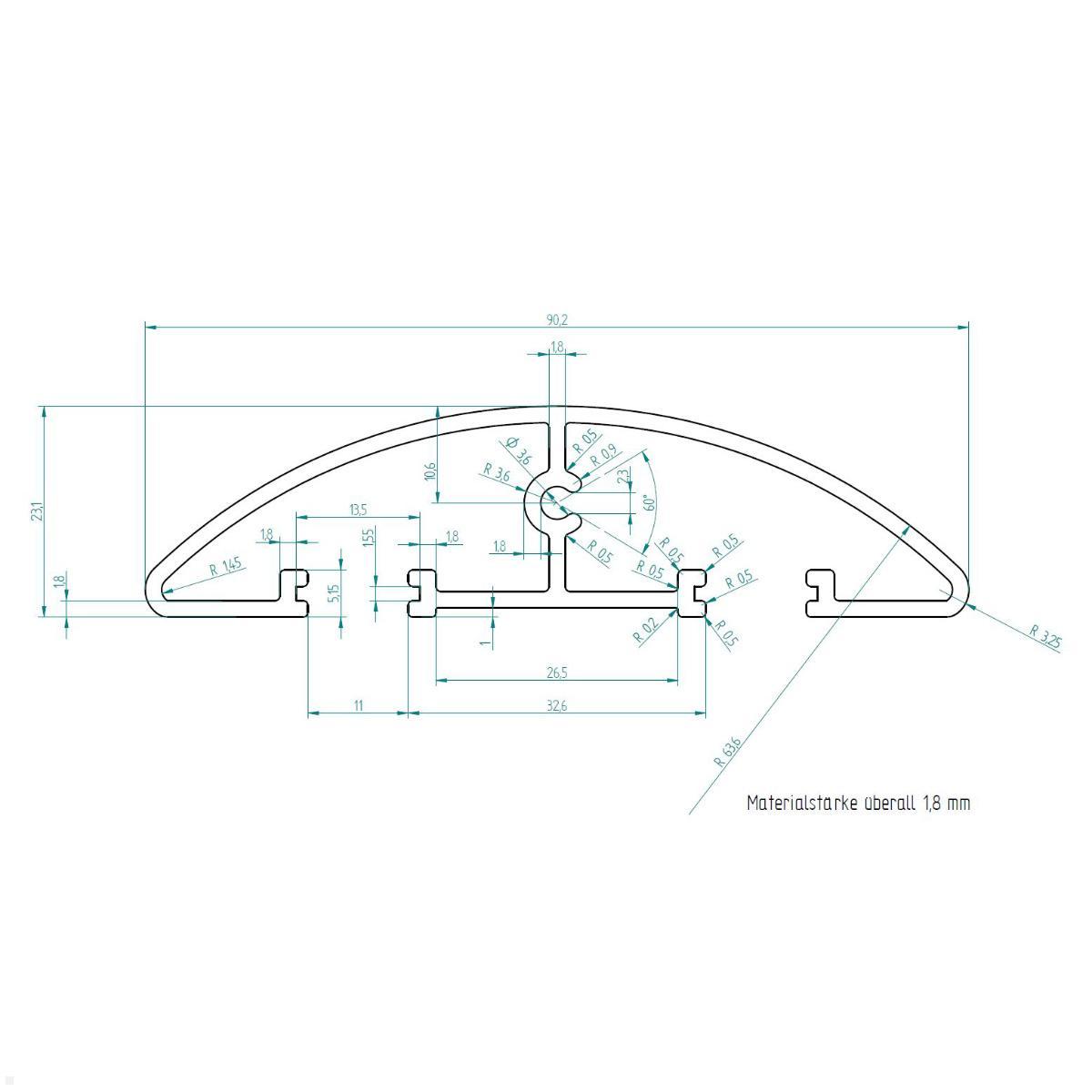

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | carpet |
| Scope of delivery: | 1x Easy-Bridge for carpet including mounted swiveling connecting links |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
