Bachmann DUE 2-fold socket with GST18 supply line, cover stainless steel (929.000DE)
2-way built-in socket with cover

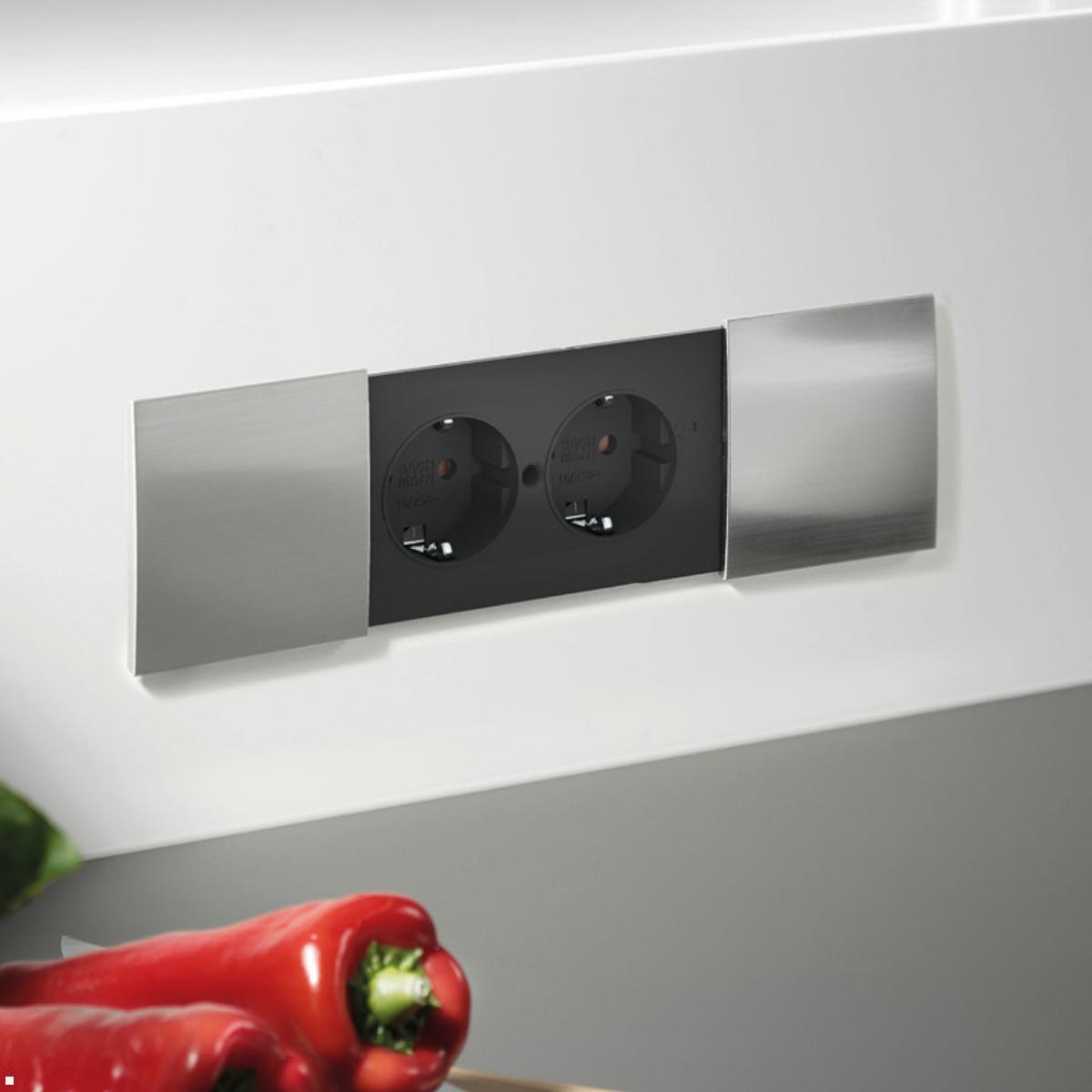

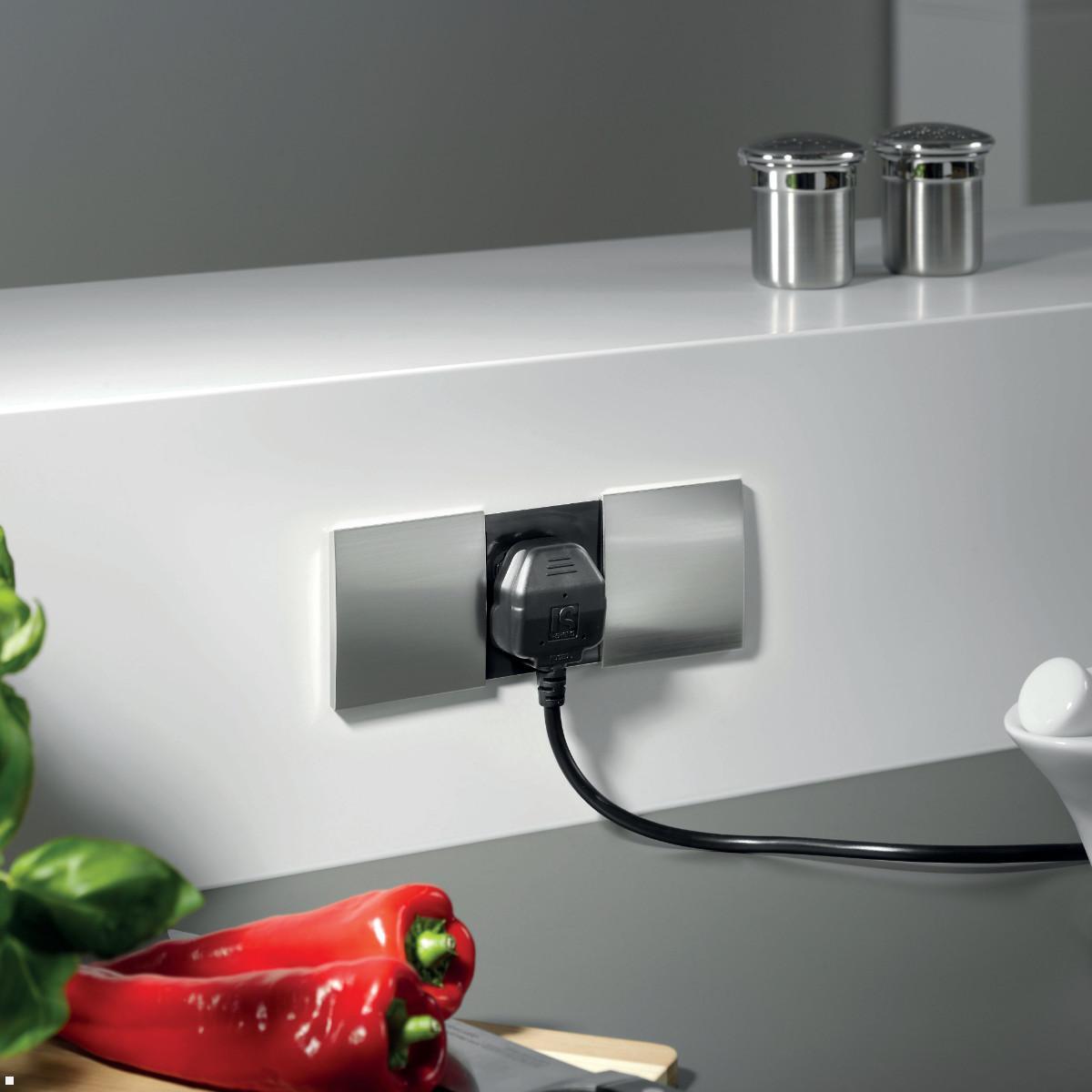

Offices, kitchens and various other places of use can be equipped with the Bachmann DUE (929.010DE) power strip. The 2-way built-in socket with cover is designed to be recessed into a tabletop or wall and creates an elegant power connection. Its low installation depth of 45 mm allows space-saving integration in kitchen countertops, in desks as a table connection panel, and installation above drawers. Bachmann DUE also cuts a perfect figure in terms of form and function when installed in walls. Thanks to the supplied two-part cover in stainless steel look, the multiple socket outlet can be slid on flexibly and also convinces in terms of design during use. Thanks to replaceable covers, it is also possible after installation to individually adapt the appearance in terms of color to the surroundings or to deliberately set highlights.
Key features Bachmann DUE 2-fold double socket with GST18 plug including stainless steel cover (929.000DE)

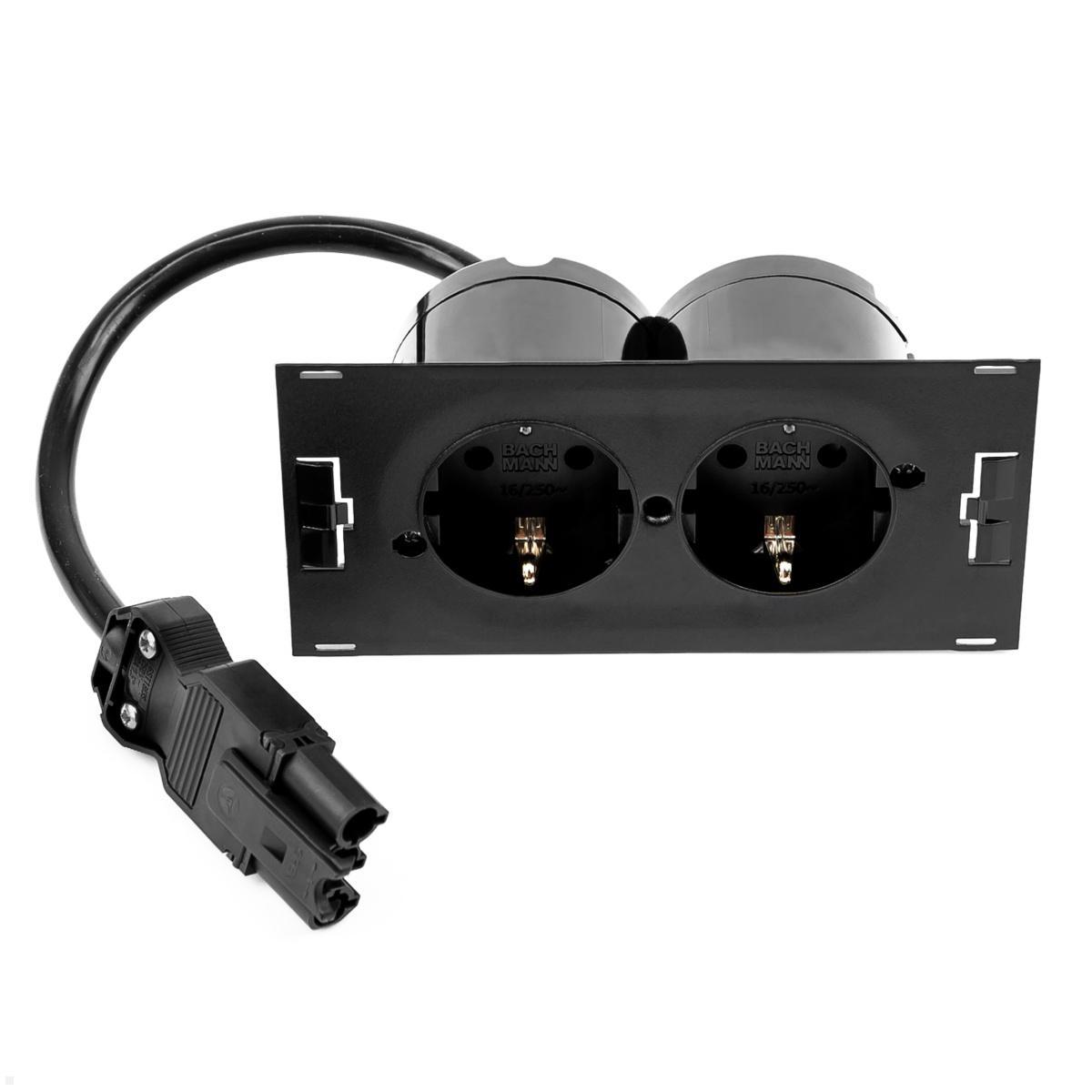

- 2x protective contact socket outlet including cover
- Sockets with child protection, rotated 90 degrees
- Space-saving even when open
- Cover with integrated water drain

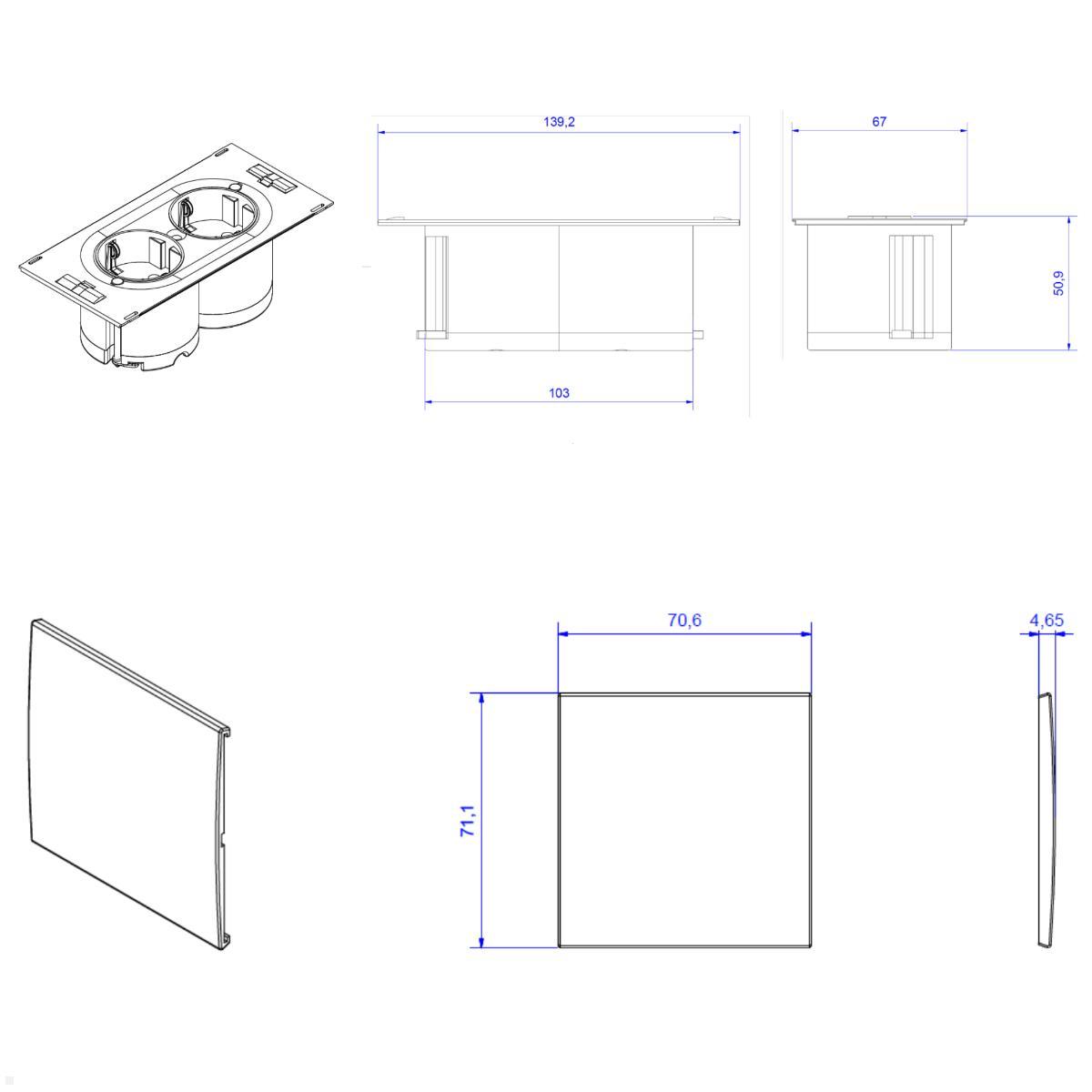

- Dimensions of power strip (WxHxD): 139.2 x 50.9 x 67 mm

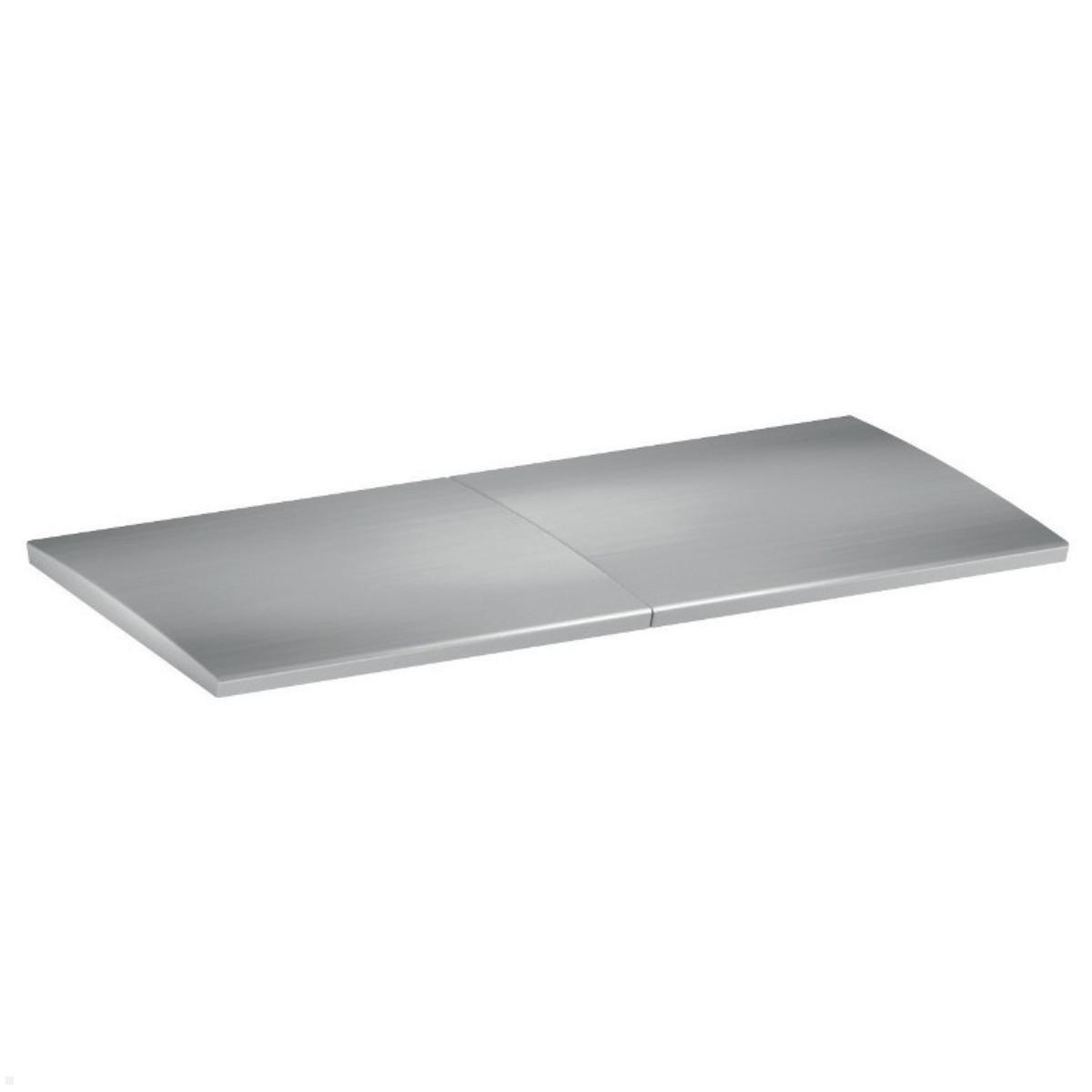

- Dimensions cover (WxHxD): 141.2 x 4.65 x 71.1 mm
- Installation depth without cable: 45 mm
- Table mounting plate thickness: 10 - 40 mm

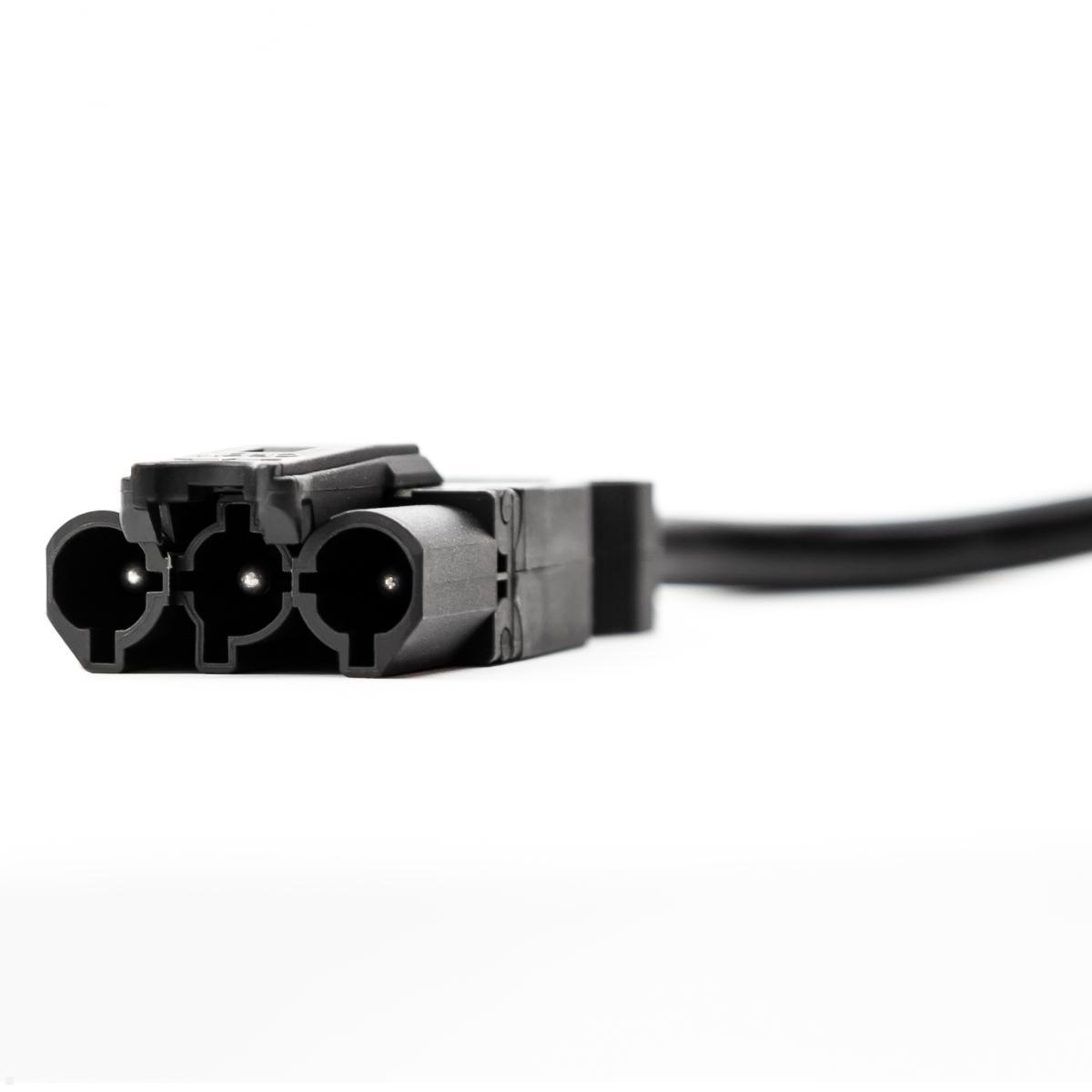

- Power input: 0.2 m cable with GST18i3 plug
- Color socket: black, similar to RAL 9005
- Color cover: stainless steel
- Material: plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x DUE power strip 929.010 | 1x drilling template | 1x mounting instructions | 1x DUE cover 929.100 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Stainless Steel |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
