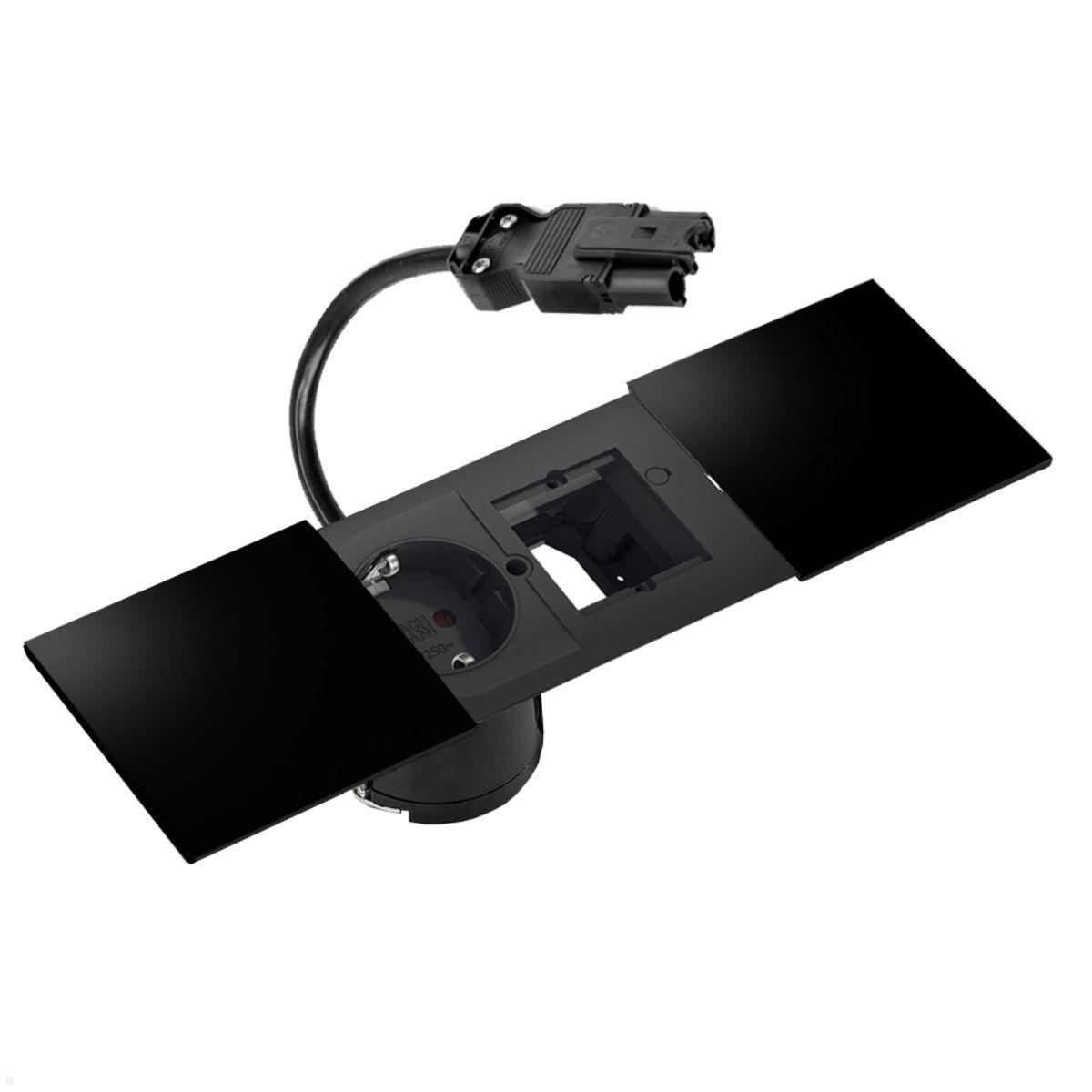

Bachmann DUE 1x socket, 1x CM, cover, black (929.030DB)
Built-in socket with CM and cover

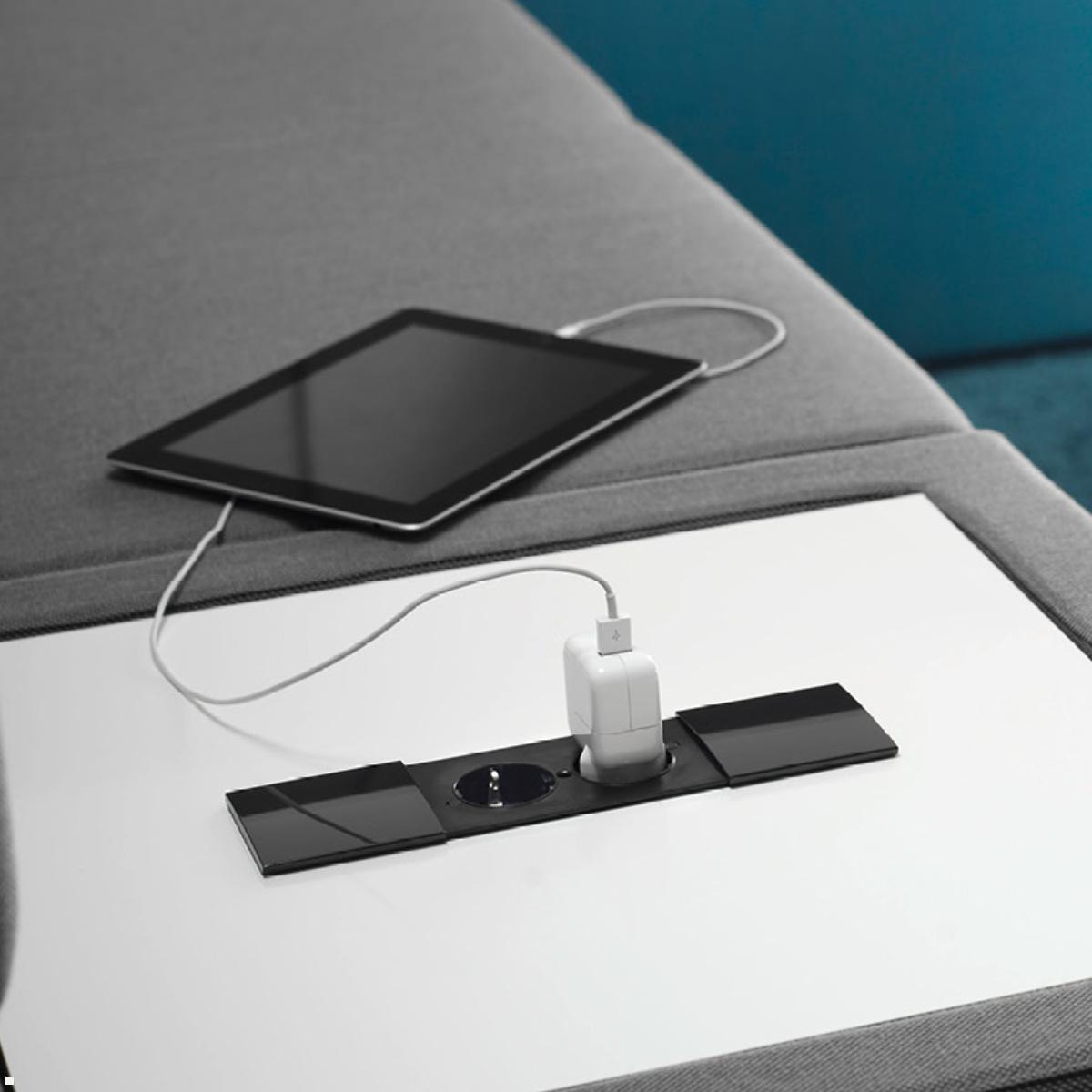

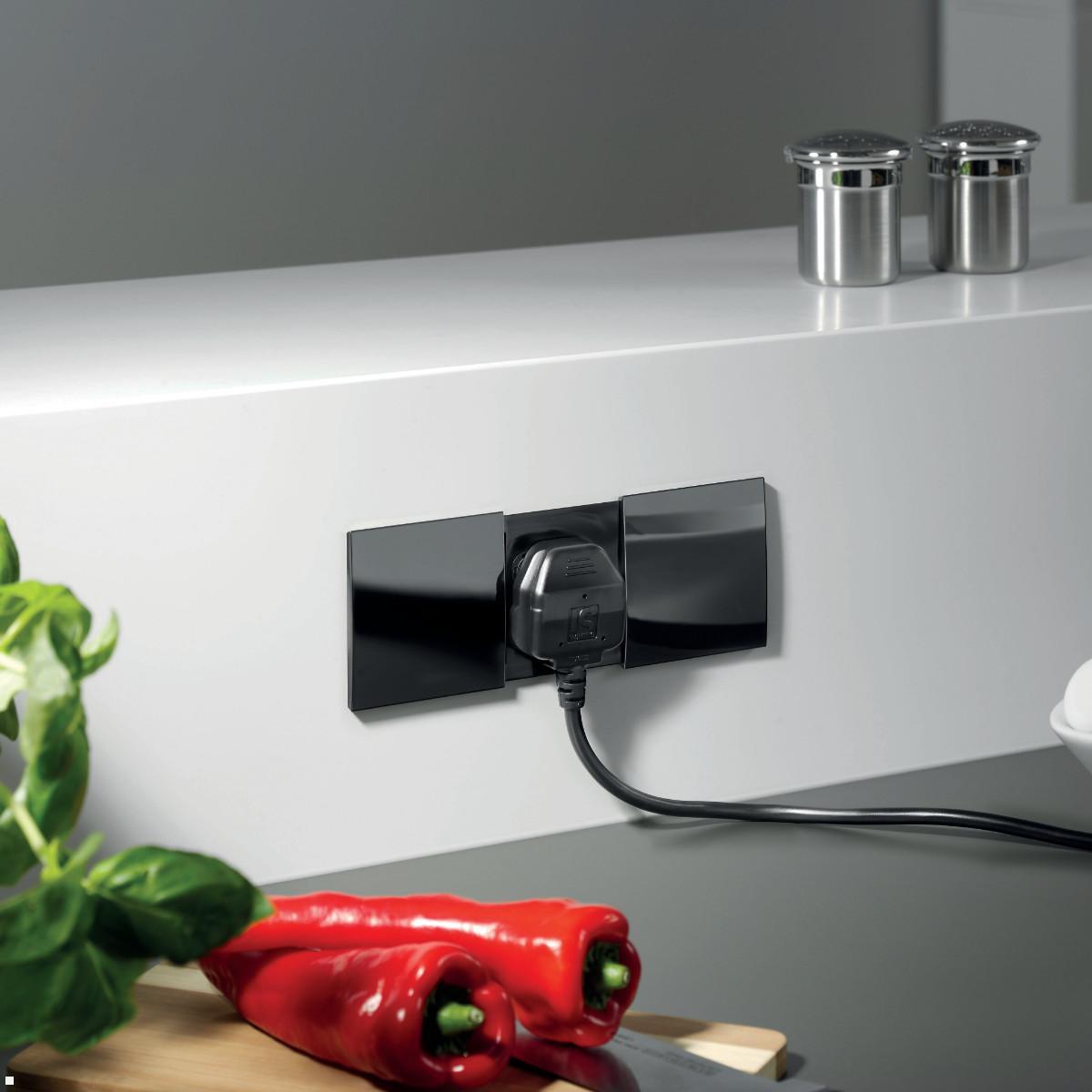

The Bachmann DUE (929.030DB) power strip is recessed into a tabletop or wall and provides an elegant power connection. Suitable locations for the built-in socket with CM and cover include offices, conference rooms or kitchens. Thanks to the low installation depth of 45 mm, it can be integrated in a space-saving manner in kitchen worktops, in desks as a table connection panel and above drawers. Bachmann DUE also cuts a perfect figure in terms of form and function when installed in walls. The power strip is equipped with a protective contact socket and a custom module empty field, which can be filled with any keystone module. The included two-piece cover in black allows flexible opening of the built-in socket, which also convinces in terms of design during use. Thanks to exchangeable covers, there is also the option of setting new visual accents after installation.
Key features Bachmann DUE 1x socket, 1x custom module with black cover (929.030DB)

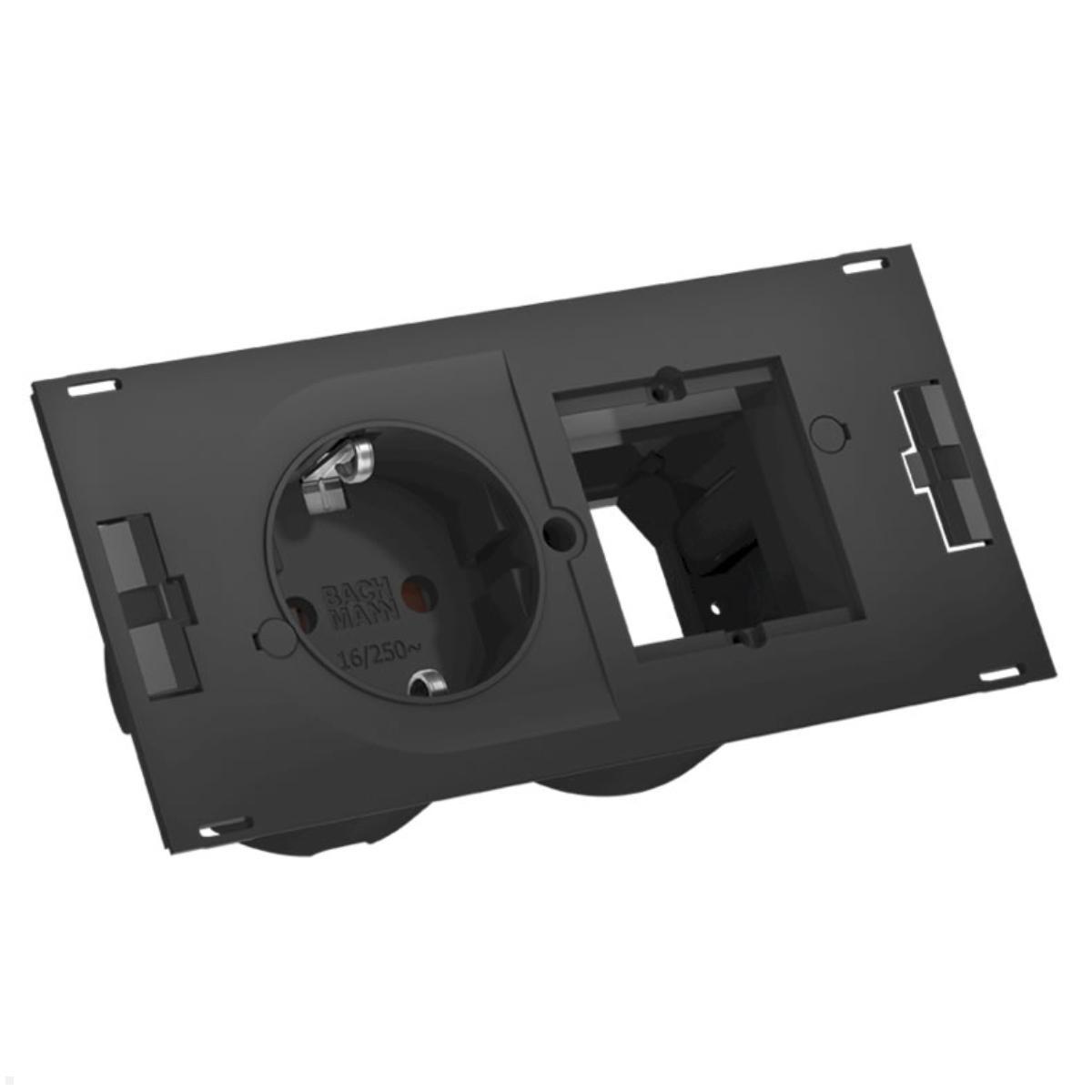

- 1x protective contact socket outlet
- 1x custom module empty

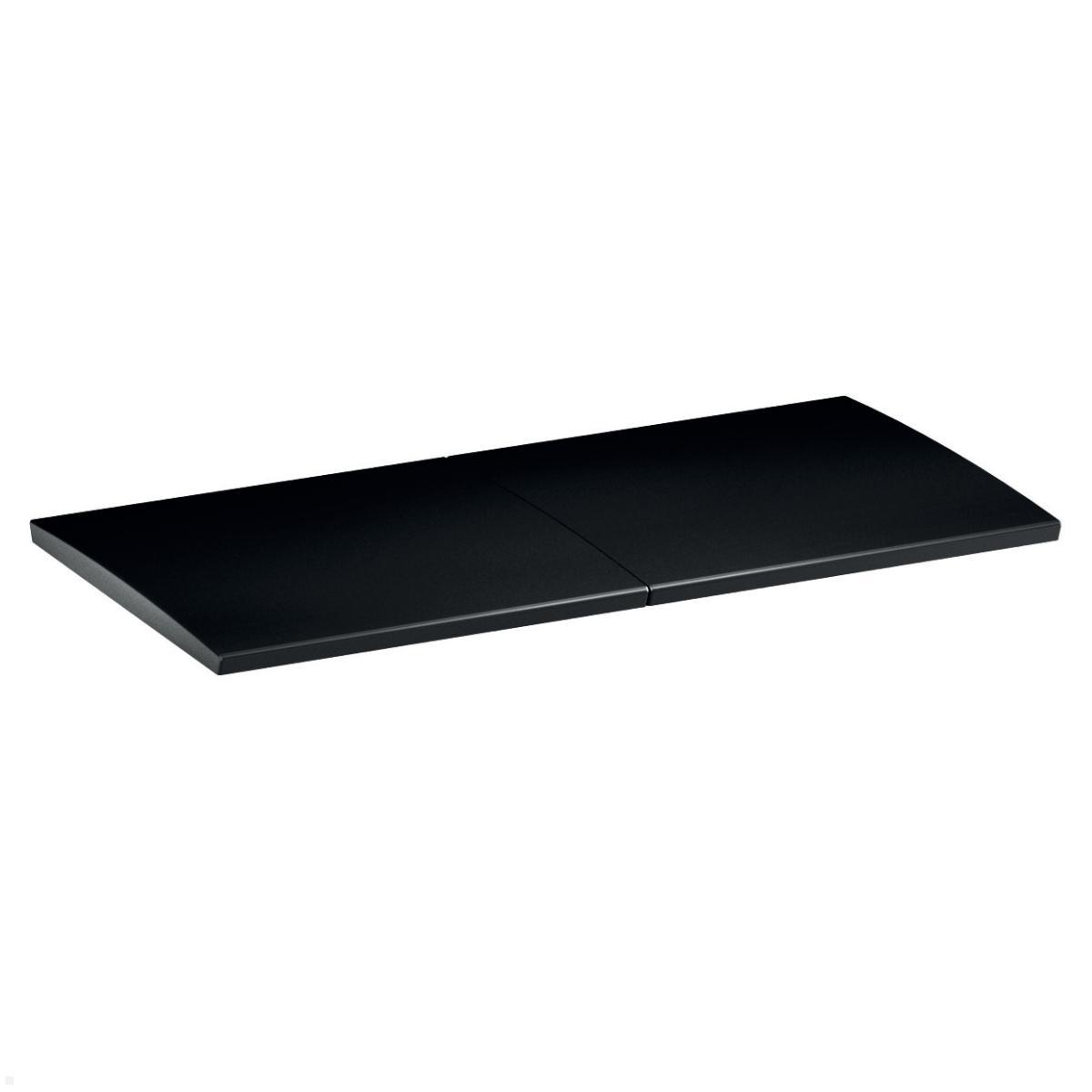

- 1x cover (two-part)
- Sockets with child protection, rotated 90 degrees
- Space-saving even when open
- Cover with integrated water drain
- Dimensions of power strip (WxHxD): 139.2 x 49.4 x 67.25 mm
- Dimensions cover (WxHxD): 141.2 x 4.65 x 71.1 mm
- Installation depth without cable: 45 mm
- Table mounting plate thickness: 10 - 40 mm
- Power input: 0.2 m cable with GST18i3 plug
- Protection class: IP20
- Color socket: black, similar to RAL 9005
- Color cover: black, similar to RAL 9005
- Material: plastic
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x DUE power strip 929.030 | 1x mounting plug | 1x mounting template | 1x DUE cover 929.101 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
