Bachmann device supply cable GST18 7m (375.1292)
The Bachmann device supply cable GST18 7m (375.1292) for the facility products (SLIDE, CONFERENCE, TOP FRAME, CONI, LIFT, POWER FRAME, DESK1, DESK2, STEP) is the power supply with the Wieland GST18 plug-in system..

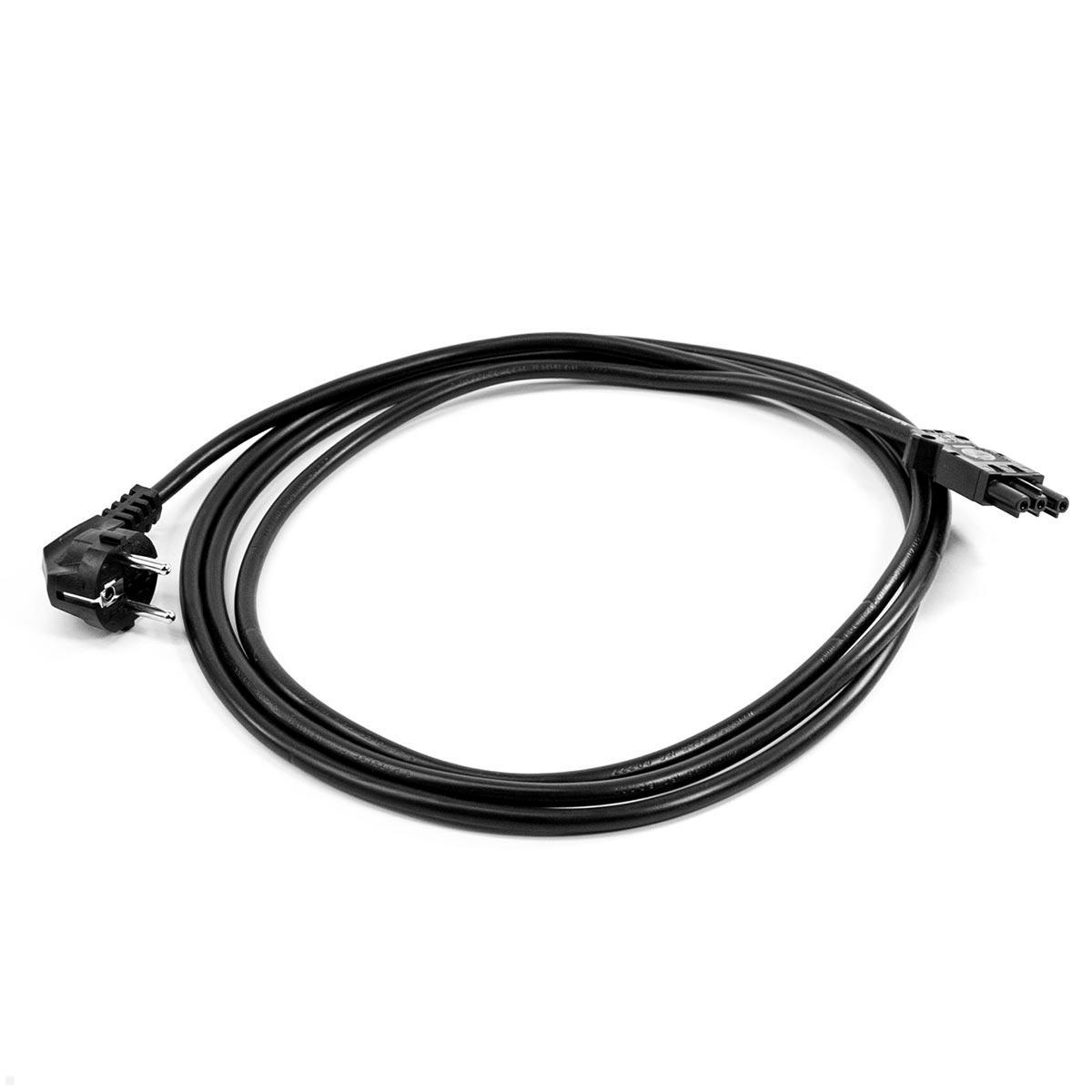

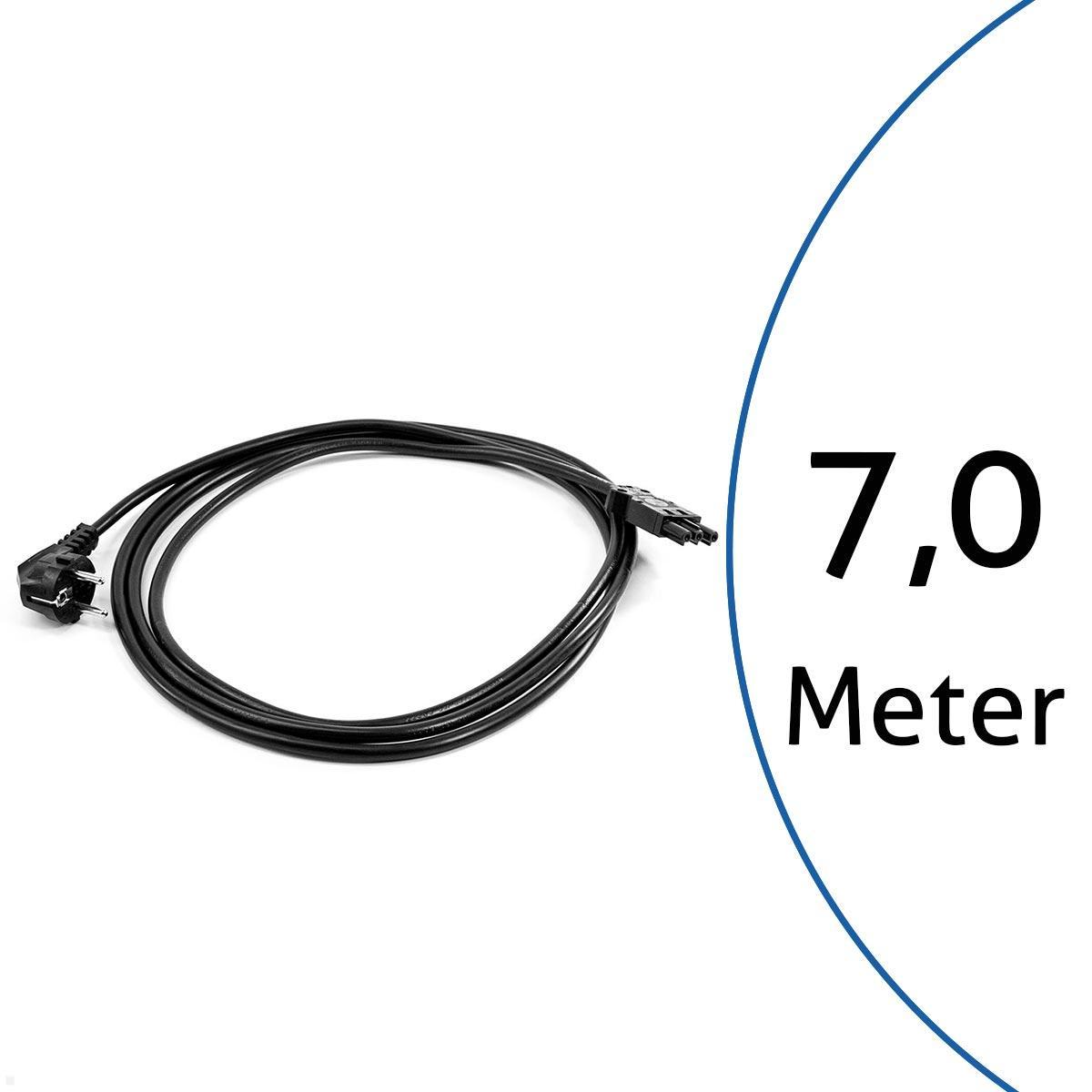

Bachmann device supply cable GST18 7m 375.1292
Bachmann device cable 7m 375.1292 with the Wieland GST18 connector system is available for the power connection of the Bachmann facility products. Advantages of these cables with connectors worldwide are flexibility in length, interchangeability with other length requirements, availability for different countries. Even power transmission to other Bachmann power strips is no problem and usually takes place without tools.
Key features Bachmann 375.1292 device supply GST18 7m
- Finish: Black
- Length 7m
- Cable: H05VV-F 3G 1.5 mm²

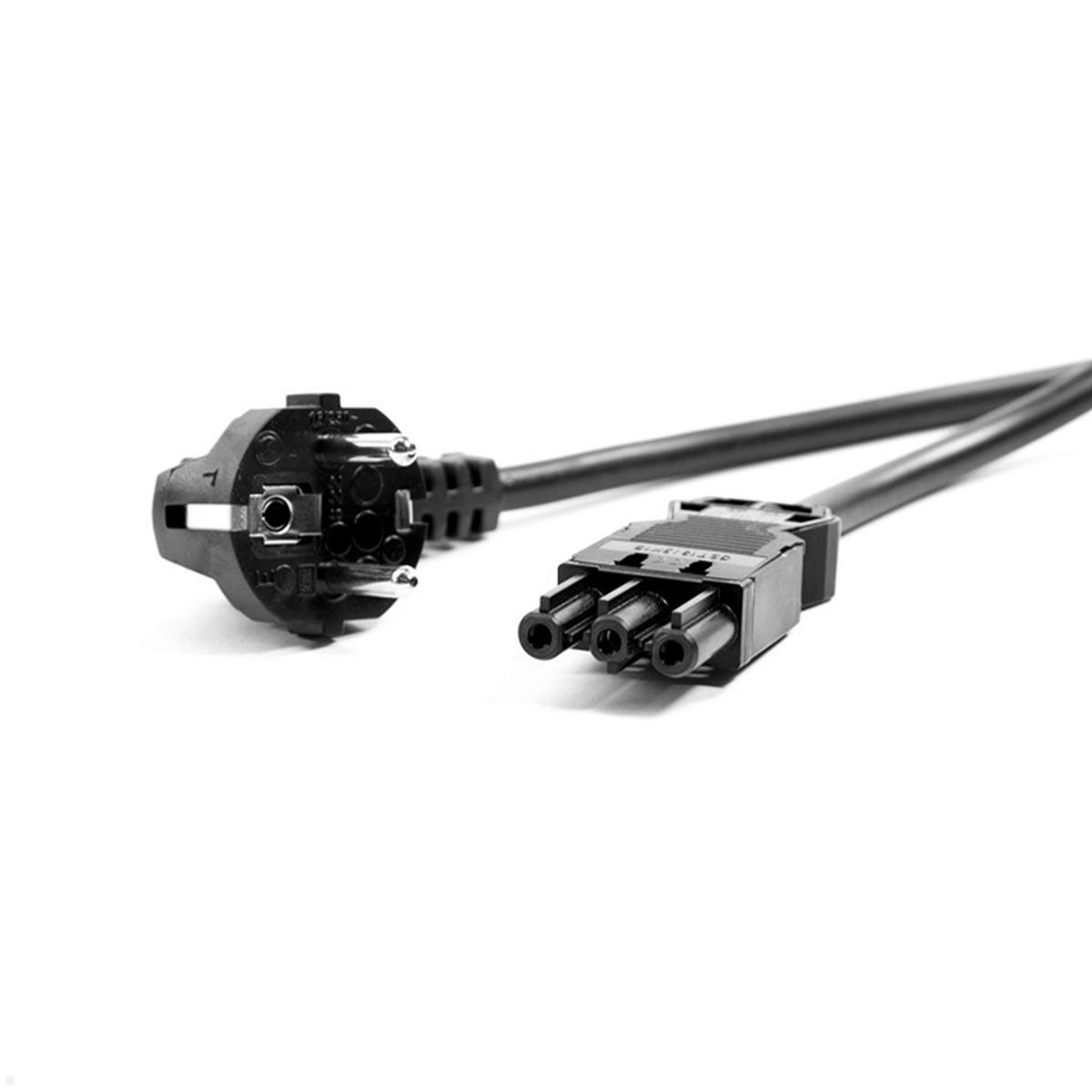

- Page 1: pin earth angle plug

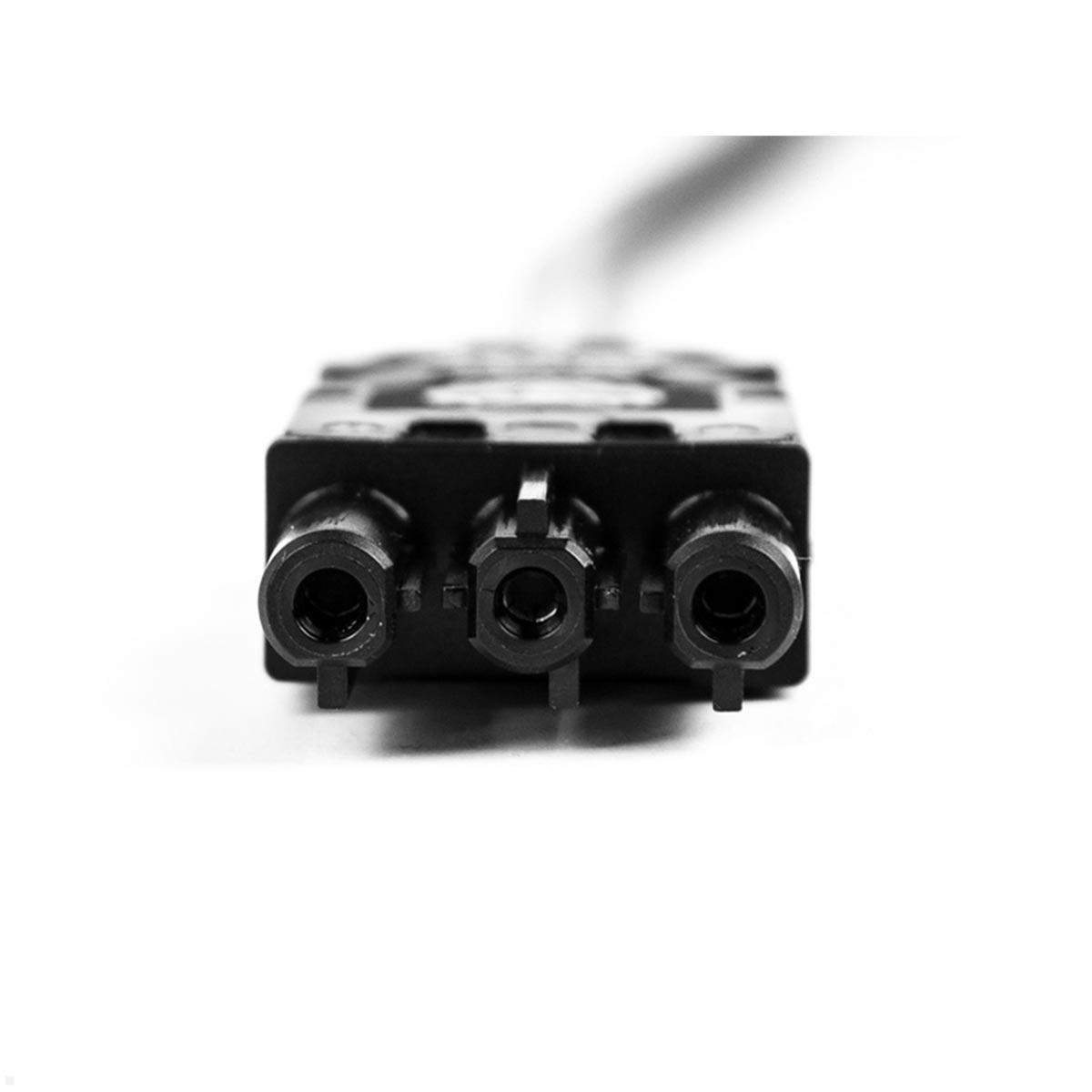

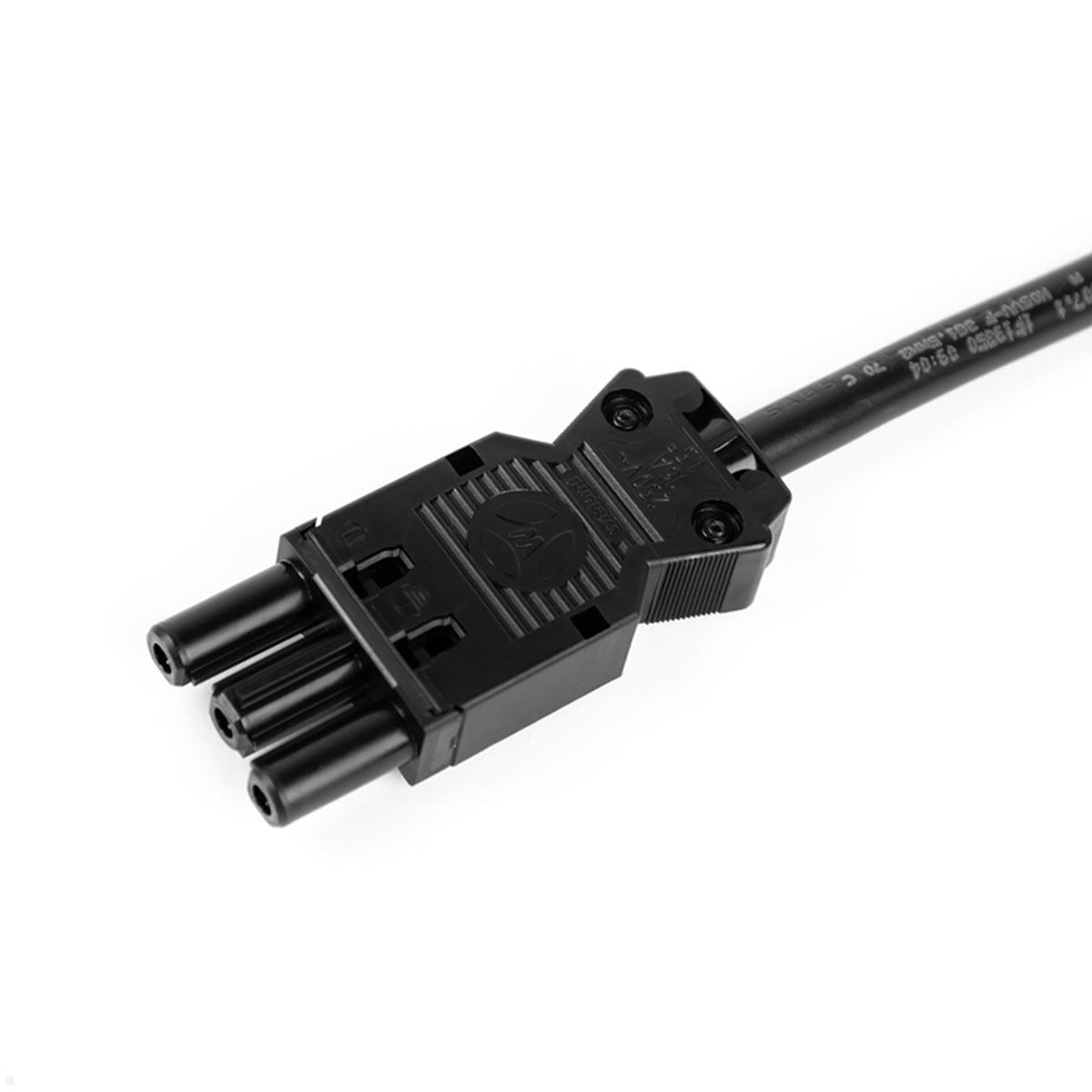

- Page 2: Wieland GST18i3 socket
| RoHS / REACH: |  [pdf, 110 kb] |
|---|---|
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
