Bachmann DESK RAIL 2x Socket CH, 1x USB Charger, 1x Custom Module (941.004)
The Bachmann DESK RAIL (941.004) is equipped with 2x swiss sockets, 1x USB Doppelcharger and 1x custom module. The multiple socket is compatible with the following railing systems: Novus, BENE, K & N, Steelcase, VS and many more.
Bachmann DESK RAIL 2x Steckdose CH, 1x USB Charger, 1x Custom Modul 941.004

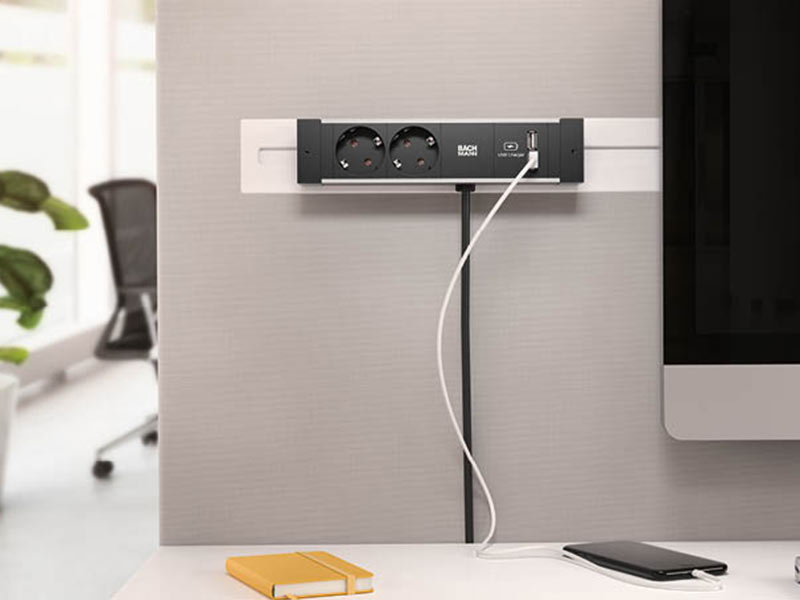

The clever system of the Bachmann Swiss DESK RAIL (941.004) allows media, power and data connections to be attached directly to common railing systems on a third level. The big advantage is an extra space on the desk and at the same time a comfortable, quick access to various ports. The 90° Bachmann custom modules are central components for audio-, Video- and network connections and can be integrated into the DESK RAIL.
Socket strip for railing systems

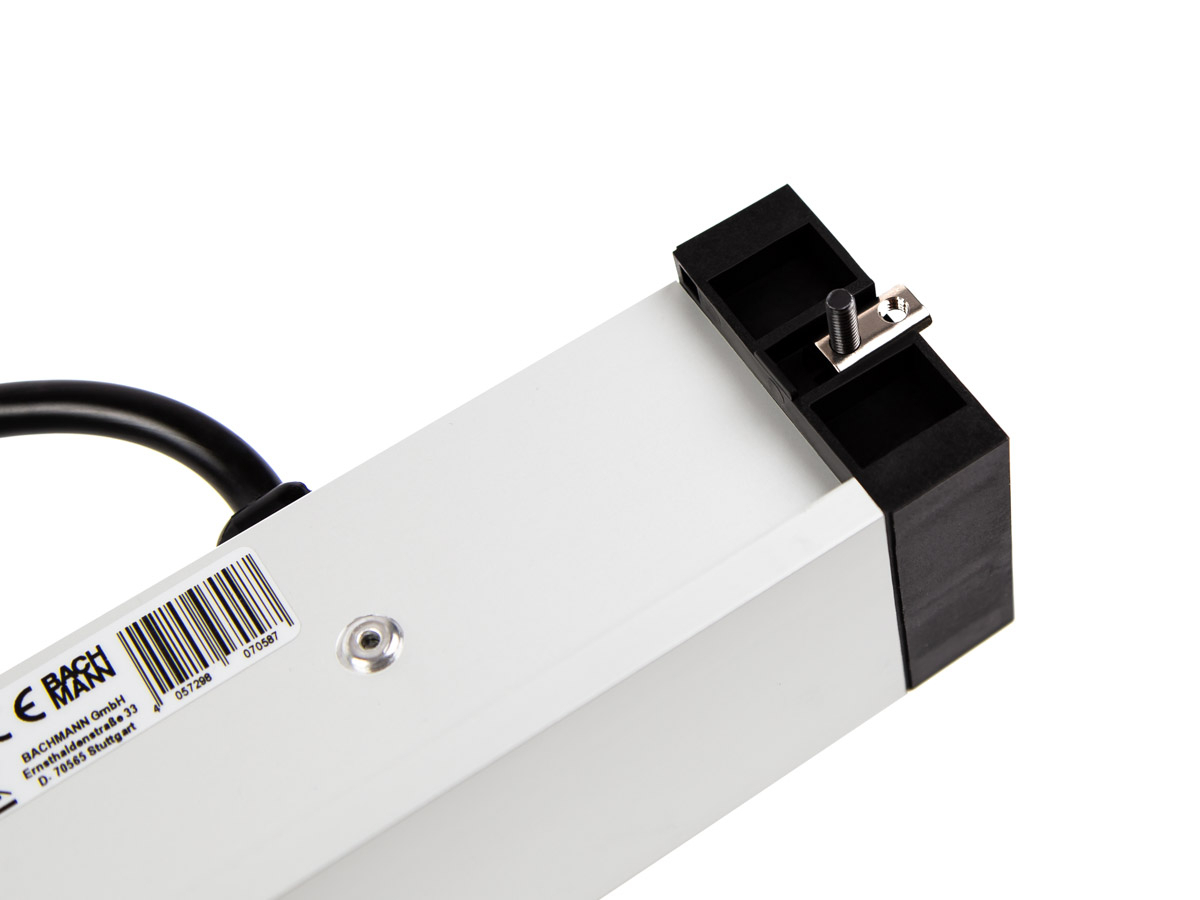

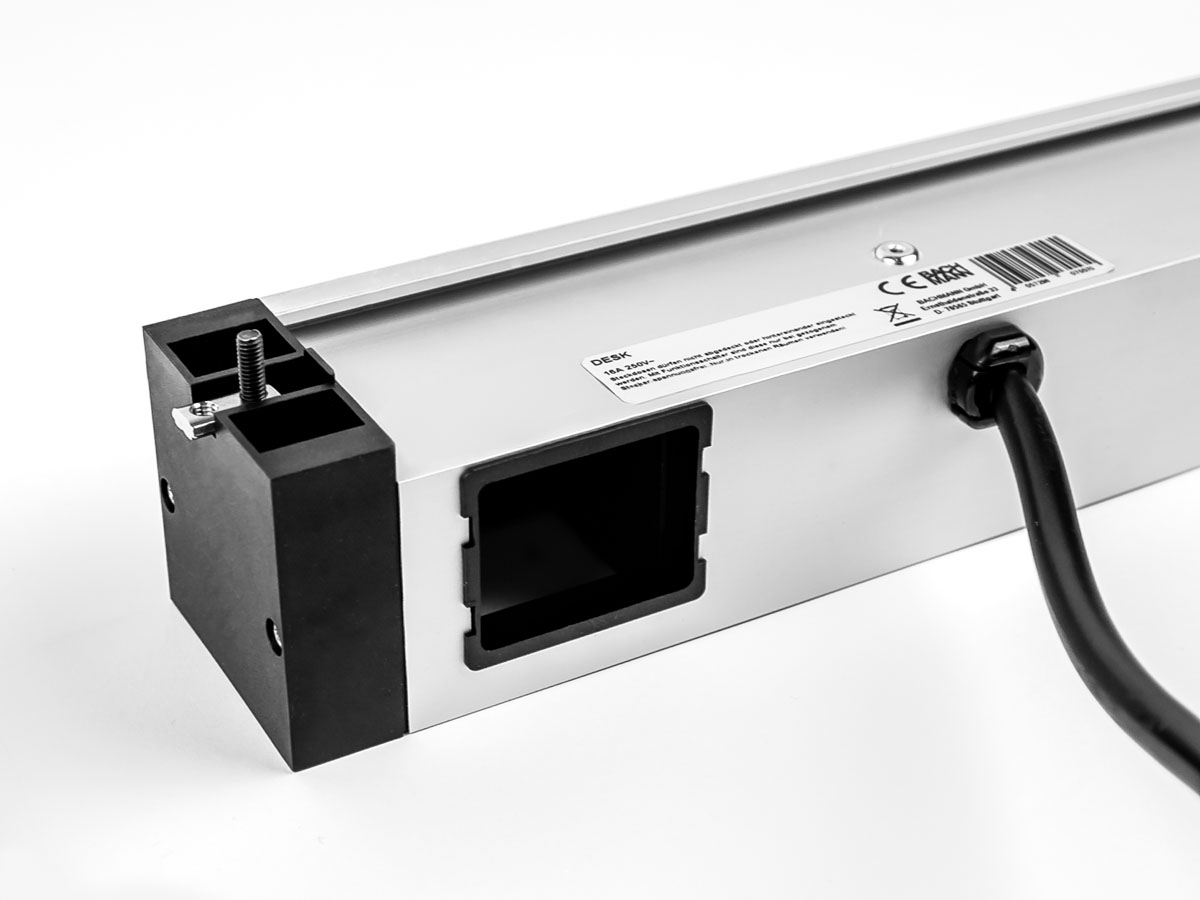

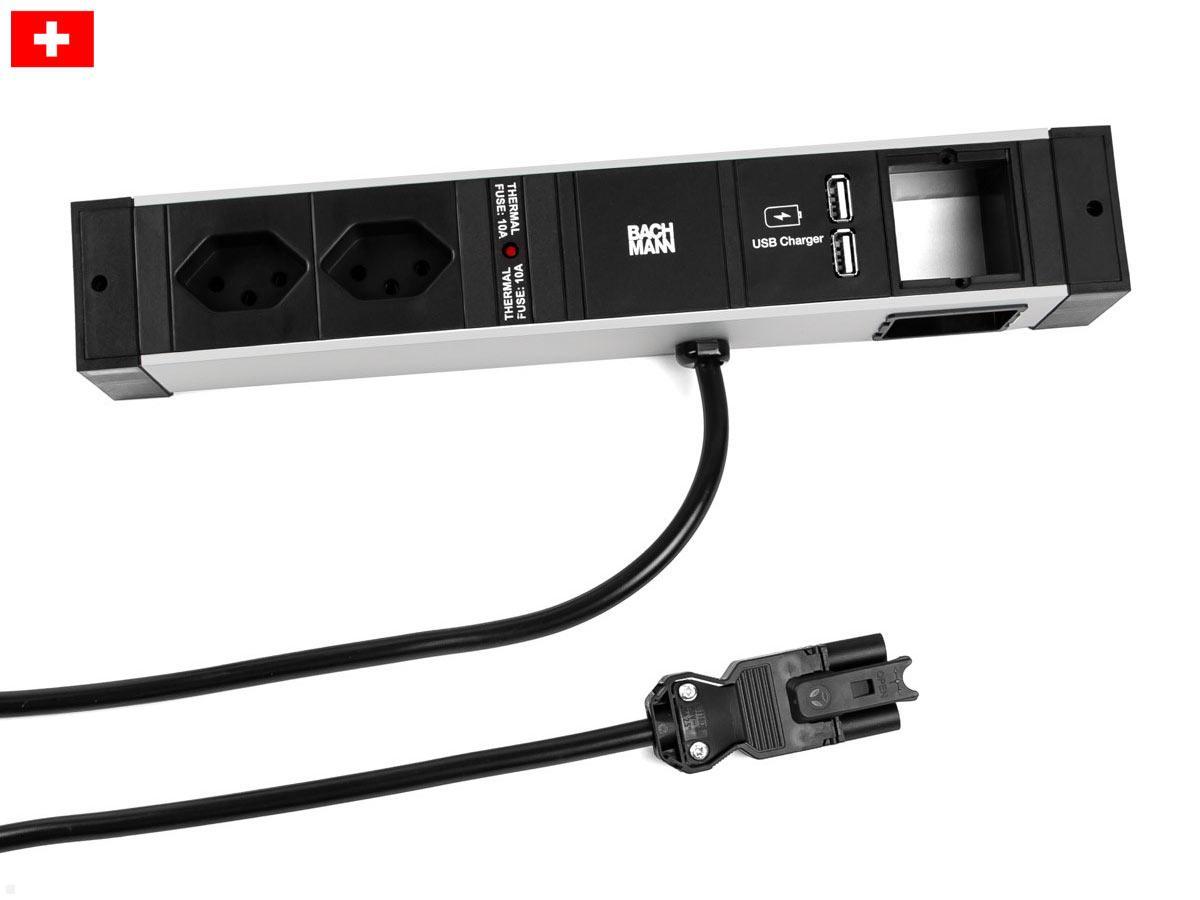

The Bachmann DESK RAIL 941.004 is equipped with 2 Swiss sockets, 1 USB dual charger and 1 custom module for individual assembly. The attachment succeeds simply by screwing on the front, while data and power supply lines from below. The Bachmann DESK RAIL is, thanks to the universal mount, almost compatible with all standard railing systems.
Key features DESK RAIL power strip
- Material profile: aluminum anodised
- Material socket: plastic
- Dimensions (WxHxD): 300x52x52 mm
- 2x Swiss socket - turned 90°
- 1x USB Doppelcharger 3,1A 5V DC
- 1x custom module
- Supply line: 2.0 m | H05VV-F | 3G1.5 mm²
- Plug: Wieland GST18i3
- 16A / 250V 50 Hz
- Compatible with the following railing systems: BENE, NOVUS, K & N, Steelcase, VS, etc.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver |
| USB-Charger: | USB A/A |
| Land: | Switzerland |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
